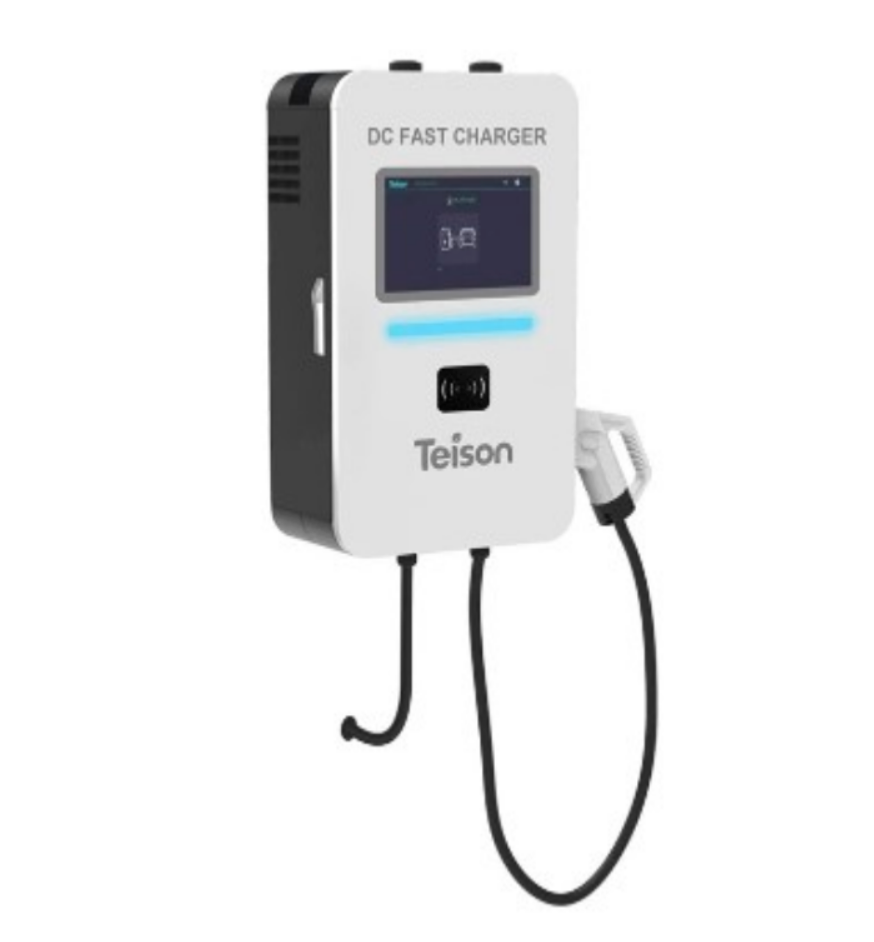

Teison 20kW DC Fast EV Charging Station | CCS1 | Wall Mounted | RFID, OCPP & WiFi | Model TS-EDW20

Power your electric vehicles with the reliable and compact Teison TS-EDW20 20kW DC Fast Charging Station. Designed for commercial, fleet, workplace, dealership, and public charging applications, this wall-mounted DC fast charger delivers dependable charging performance while supporting a wide range of modern authentication methods and smart charging management.

The TS-EDW20 features a CCS1 charging connector, making it compatible with most North American electric vehicles. A large 10.1-inch LCD touchscreen provides an intuitive user interface, while support for RFID cards, OCPP, QR code, password login, and mobile app access gives operators complete control over user authentication.

Built with an IP55 weather-resistant enclosure and IK10 impact protection, this charger is suitable for both indoor and outdoor installations.

Key Features

  • 20kW DC Fast Charging
  • Single CCS1 charging connector
  • Wall-mounted design
  • 10.1" LCD touchscreen
  • RFID authentication
  • QR Code login
  • Mobile App support
  • OCPP 1.6J compatible
  • Ethernet & WiFi connectivity
  • IP55 weatherproof enclosure
  • IK10 vandal-resistant housing
  • 5-meter charging cable
  • Suitable for commercial and public charging
  • 2-Year Manufacturer Warranty

Specifications

  • Model: TS-EDW20
  • Charging Power: 20kW
  • Connector: 1 × CCS1
  • Mounting: Wall Mounted
  • Output Voltage: DC 150V–1000V
  • Output Current: 0–80A
  • Communication: Ethernet, WiFi
  • Protocol: OCPP 1.6J
  • Protection Rating: IP55
  • Impact Rating: IK10
  • Cable Length: 5m
  • Display: 10.1" LCD Touch Screen
  • Warranty: 2 Years

Optional Accessories

  • 4G Module
  • NACS Charging Plug Upgrade
  • POS Payment Terminal
