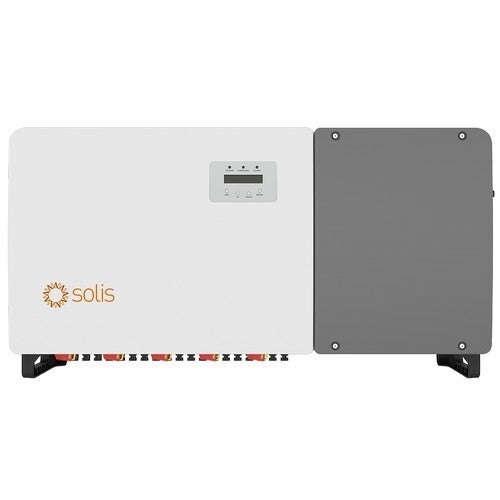

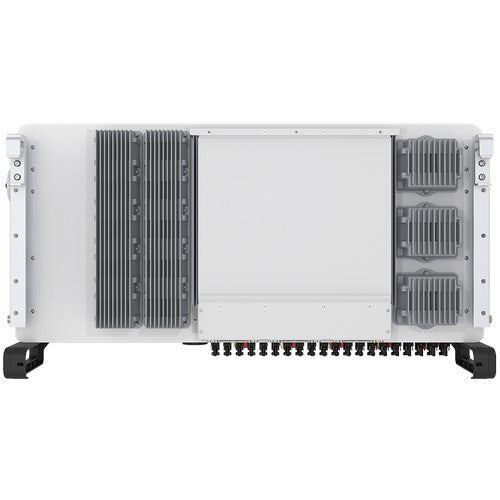

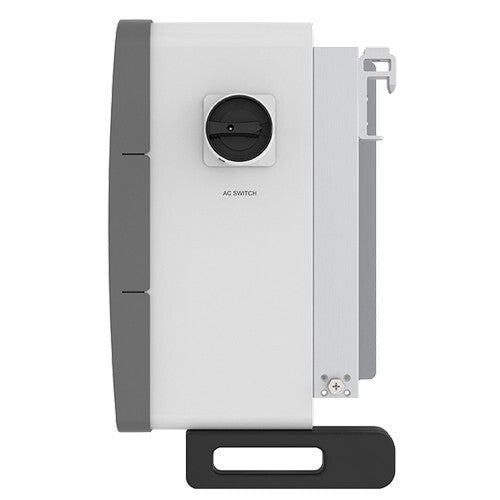

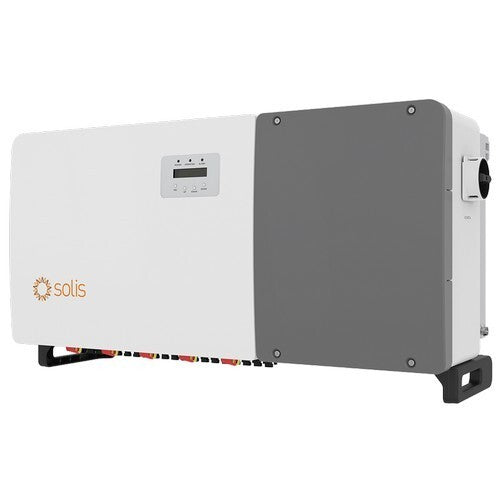

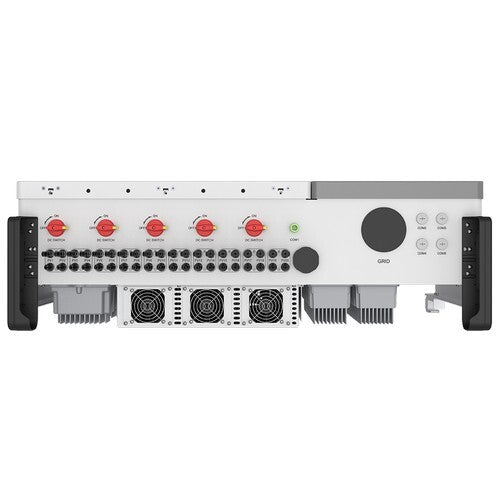

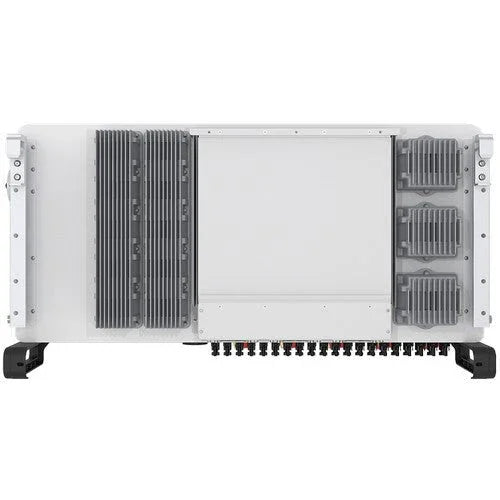

Solis S5-GC75K-US-APST, 75kW Three Phase Eight MPPT Grid-Tied Commercial Inverter w/ AFCI w/ FAN w/APS TX

Description

S5-GC(75-100)K-US is the preferred PV string inverter for large commercial rooftop or ground mount PV projects. The inverter features 10 independent MPPTs with very wide full-power operating ranges that can work efficiently with both 600Vdc and 1000 Vdc PV arrays. String current up to 16A, perfectly accommodates new high-power and bi-facial PV modules. Easy-to-use online O&M tools make O&M more intelligent and convenient. Optimized DC&AC interconnection will reduce the cost of system cables. Enclosures rated to IP66 protection grade can be installed in the harshest environmental conditions.

Product Features:

• > 1.5 DC/AC ratio
• UL 1741 SA and SB
• DC side supports "Y" connector
• Type 4X, C5 Anti-Corrosion Leve
• Support aluminium wire to reduce cost
• AFCI protection, proactively reduces fire risk
• String current up to 16A for higher capacity modules
• Intelligent string monitoring, smart I-V curve scan
• 8/9/10 MPPTs, max. efficiency 98.8% (CEC efficiency 98.3%)
• High quality components from globally recognized suppliers
• Integrated nighttime PID recovery for optimal module performance
• Remote firmware upgrade with simple operation(Requires the user to use Solis monitoring)

Product Specifications

Not only does this inverter offer significant cost savings by optimizing energy production, but it also contributes to environmental sustainability. It's suitable for a wide array of applications, from industrial facilities to large-scale solar farms.

Product Manual

Solis 75kW Three Phase Eight MPPT w/ AFCI w/ FAN w/APS TX - 10 Year Standard Warranty (NS) Manual

Solis 75kW Three Phase Eight MPPT w/ AFCI w/ FAN w/APS TX - 10 Year Standard Warranty (NS) Data Sheet

Solis 75kW Three Phase Eight MPPT w/ AFCI w/ FAN w/APS TX - 10 Year Standard Warranty (NS) Certificate

Product Warranty

Solis Inverter are manufactured by Ginlong (Ningbo) Technologies Co., Ltd. (The Company) (refered to as Ginlong) provides the following Warranty to the purchaser (The Customer) of the Inverter (The Goods). (The Customer is deemed to be the owner of the installed Goods at first sale

Warranty Terms

The Company warrants all Goods to be free from defects in material or workmanship under normal use and service for a period of 5 years from the date of sale to the
Customer.

The Warranty covers the cost of repairs or replacement parts. The Goods must be returned to the Company for inspection.

The company may repair or replace faulty components at its discretion.

This warranty extends the Customer’s statutory rights and cannot be construed so as to diminish such statutory rights.

Warranty Extension

The purchaser may apply for a warranty extension within 12 months of purchase by providing the serial number of the unit along with proof of purchase. An extended
warranty can be purchased for a further 5 years (Total 10 years).

Warranty Limitations

The Warranty is valid only for Goods purchased either directly from the Company or from an authorized reseller of the company.

The Warranty is not transferable and applies to brand new Goods only.

Defective parts replaced under Warranty become the property of the Company.

The Warranty does not cover:

• The Warranty does not cover:
• Consequential damages including but not limited to loss of revenue;
• Claims by third parties other than the Customer;
• Defects of installation. (Except where the installation is performed by the Company);
• Goods damaged as a consequence of incorrect installation. (Except where the installation is performed by the Company);
• Items ancillary to installation not supplied by the Company;
• Duties, import/export fees or costs and other general administrative costs;
• Damage to Goods caused by misuse, improper handling or unauthorized modification;
• Loss or damage occurring whilst in transit;
• Accidental or willful damage;
• Any Goods described in a quotation or delivery note as 'ex-display' or ‘reconditioned’. (A separate Warranty extension may have been issued
  to cover such Goods.)

Labour, travel and delivery (to and from customer) will be charged if goods returned found to be not faulty following a warranty claim.

Warranty Claims Procedure

To make a warranty claim the following information needs to be provided:

• Completed RTM Inspection Form
• Product Model (ie. Solis 1.5kW) and Product Serial Number (ie. A1110011)
• Copy of the invoice for the inverter
• Copy of the installation report and installation certificate

The authorized reseller will liaise with the Company regarding repair or replacement. The cost of repair or replacement will be borne by the Company provided the Warranty has been validated and the Warranty period has not expired.

Where repairs must be effected at the Company’s headquarters, the Company will endeavor to minimize the down time for the Goods.
