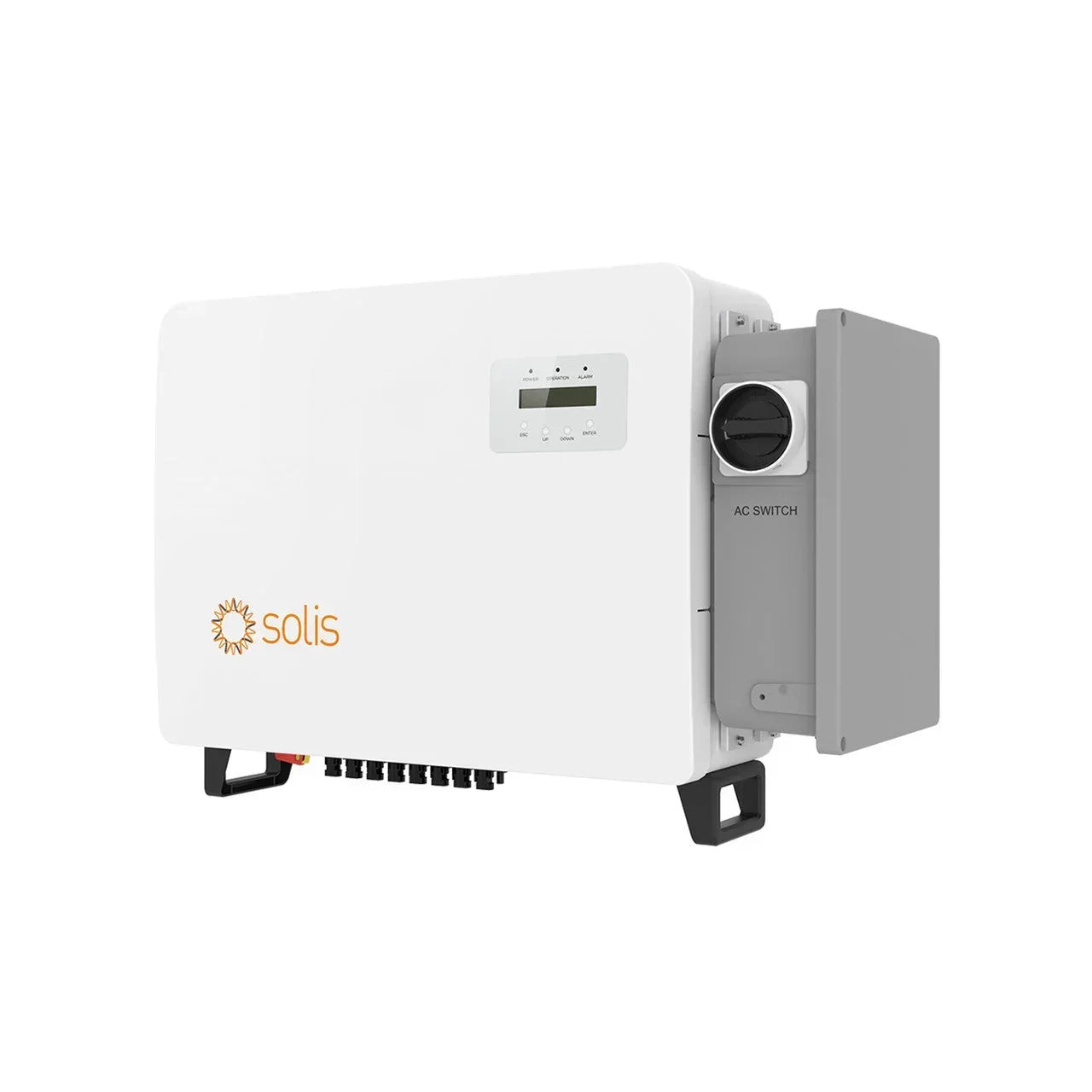

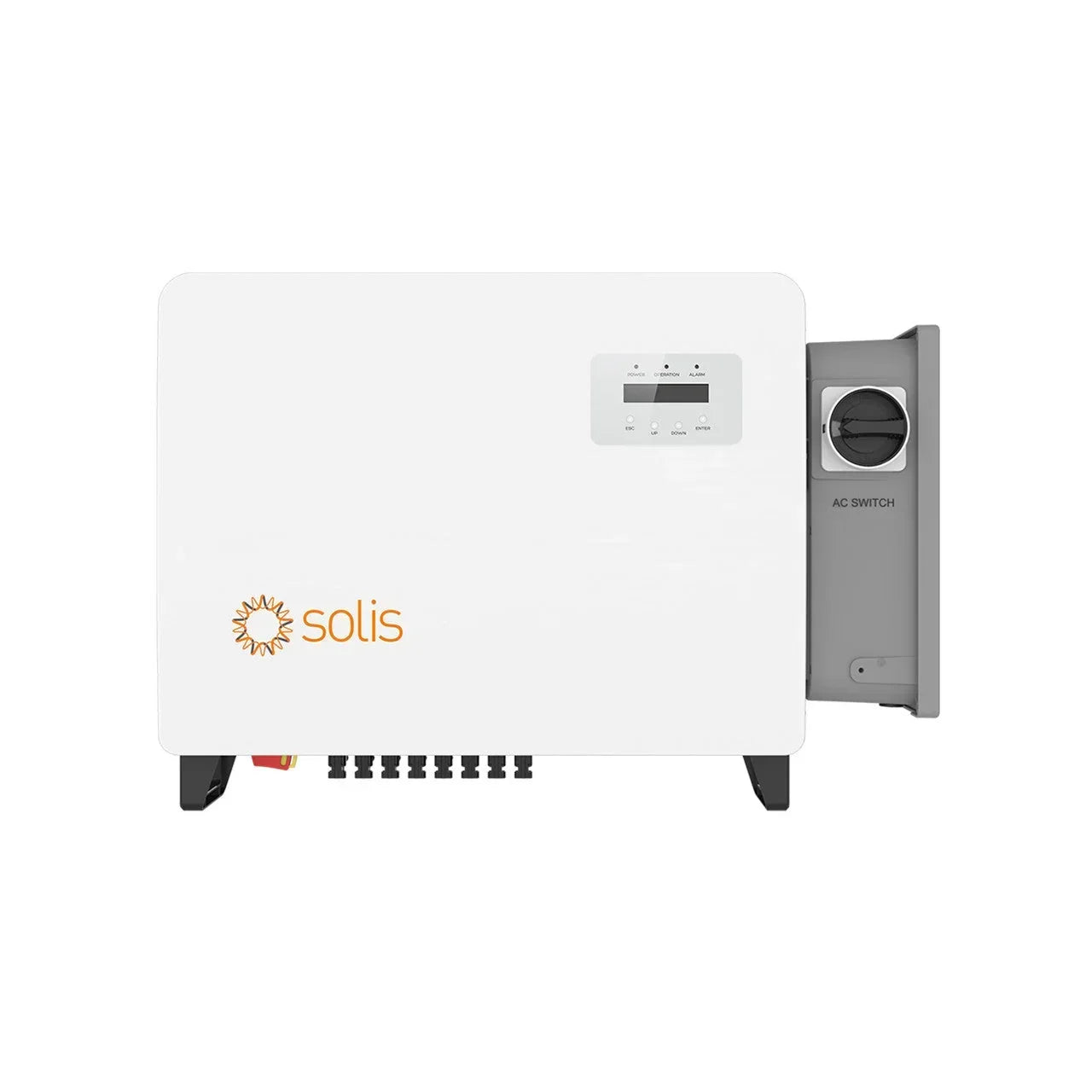

Solis 30kW 208V Three Phase Three MPPT w/ AFCI w/ Tigo S6-GC30K-LV-US-RSS

The Solis Solar S6-GC30K-LV-US inverter is suitable for three-phase commercial rooftop PV projects with a grid voltage of 208VAC. The PV string current of the inverter is up to 20A, which can be adapted to almost all types of PV modules in the market. The S6-GC30K-LV-US inverter has a very wide full power operating voltage range and can bring more benefits. Simple and easy to use online O&M tools make O&M more intelligent and convenient. Optimized DC and AC connect ports will reduce the cost of system cable. With Type 4X and C5 corrosion protection grades, the product can be installed in the harshest environmental conditions for stable operation.

Model S6-GC30K-LV-US-RSS
Series Three-Phase Commercial String Inverter
Manufacturer Solis

Mechanical / General Data

Type Three-Phase Commercial String Inverter:
30kW Three Phase 208Vac Three MPPT with AFCI - 10 Year Standard Warranty
Dimensions (W x H x D) 30.9" W x 21.6" H x 12.6" D
(784mm W x 549 mm H x 320 mm D)
Weight 103.8 lbs
(47.1 kg)
Topology Transformerless
Self-consumption (night) <1 W
Relative humidity 0-100%
Operating ambient temperature range -13 °F to 140 °F (-25°C to 60°C)
Ingress protection NEMA 4X (IP66)
Cooling concept Natural Convection
Max. operation altitude 13,120 ft (4000 m)
Compliance UL1741SB, UL1741SA, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB, California Rule 21, Heco Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1
Shipping Method Freight

Input (DC)

Max Voltage 1000 V
Rated voltage 600 V
Start-up voltage 195 V
MPPT voltage range 180-1000 V
Max.input current 40 A / 40 A / 40 A
Max. short circuit current 63 A / 63 A / 63 A
MPPT number/Max. input strings number 3/6

AC Output

Rated output power 30,000 W (30kW)
Max. apparent output power 33,000 W (33 kVA)
Max. output power 33,000 W (33 kVA)
Rated grid voltage 3Ф/PE, 208 V
Rated grid frequency 60Hz
Max. output current 91.6 A
Power factor >0.99 (0.8 leading - 0.8 lagging)
THDi <3%

Efficiency

Max. efficiency 97.7%
EU efficiency 97.0%

Protection

DC reverse-polarity protection Yes
Short circuit protection Yes
Output over current protection Yes
Surge protection DC Type II / AC Type II
Grid monitoring Yes
Anti-islanding protection Yes
Temperature protection Yes
Strings monitoring Yes
I/V Curve scanning Yes
Integrated AFCI (DC arc-fault circuit protection) Yes
Integrated PID recovery Optional
Integrated DC switch Yes
Integrated AC switch Yes

Features

DC connection MC4 connector
AC connection OT terminal (4 AWG to 3/0 AWG)
Display LCD
Communication Modbus RTU (Sunspec compliant), RS485, Optional: Cellular, Wi-Fi

Documentation

Data Sheet Solis S6-GC30K-LV-US Three Phase Commercial Inverter
Installation Manual Solis S6-GC30K-LV-US Three Phase Commercial Inverter
Certificate Solis S6-GC30K-LV-US Three Phase Commercial Inverter

Additional Product Features

Efficient

  • Max. efficiency 97.7% (CEC efficiency 97.0%)
  • String current up to 20A
  • 3 MPPT design, supports multiple orientation system design
  • Night time PID recovery function, increases overall system yield (optional)
  • Wide voltage range and low startup voltage

Smart

  • Equipped with external power control interface, supporting zero output power control
  • Intelligent string monitoring, smart I-V curve scan
  • Supports RS485, Ethernet, WiFi, Cellular
  • Scan to register on SolisCloud, supports remote upgrade and control

Safe

  • Type 4X, C5 Anti-Corrosion Level
  • AFCI protection, proactively reduces fire risk
  • Intelligent redundant fan-cooling
  • Integrated module level rapid shutdown transmitter
  • High quality components from globally recognized suppliers

Economic

  • >1.5 DC/AC ratio
  • Supports high power modules for lower installation costs
