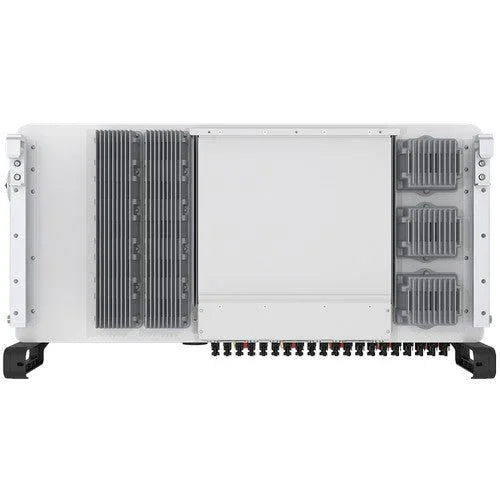

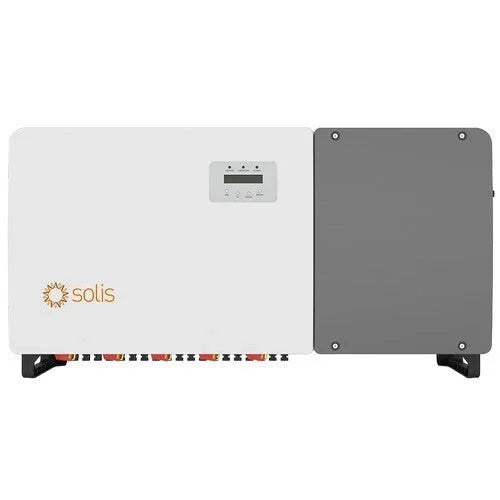

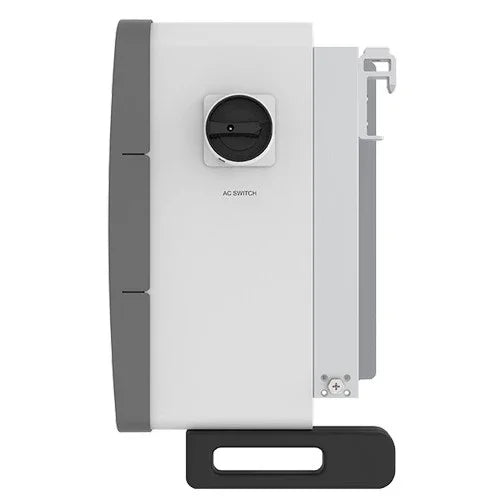

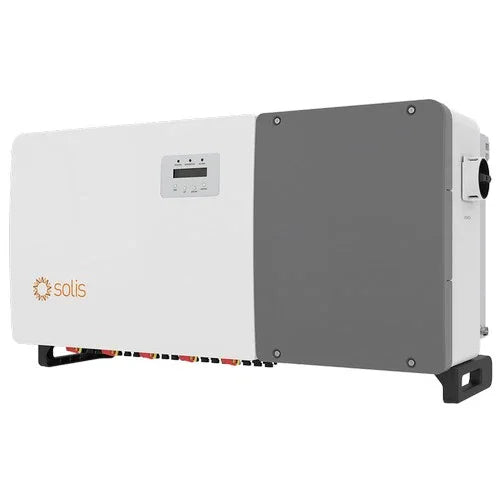

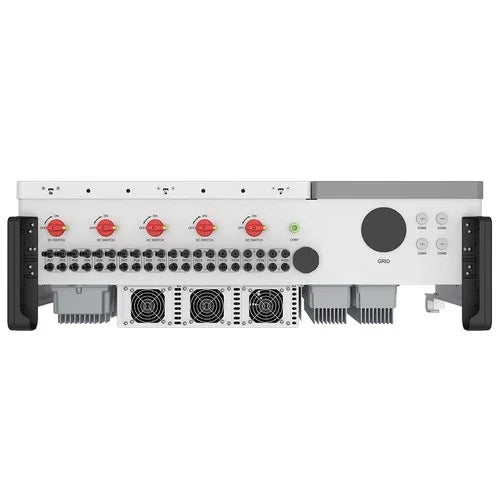

Solis S5-GC100K-US-APST 100kW, Three Phase Ten MPPT Grid-Tied Commercial Inverter w/ AFCI w/ FAN w/APS TX
S5-GC(75-100)K-US is the preferred PV string inverter for large commercial rooftop or ground mount PV projects. The inverter features 10 independent MPPTs with very wide full-power operating ranges that can work efficiently with both 600Vdc and 1000 Vdc PV arrays. String current up to 16A, perfectly accommodates new high-power and bi-facial PV modules. Easy-to-use online O&M tools make O&M more intelligent and convenient. Optimized DC&AC interconnection will reduce the cost of system cables. Enclosures rated to IP66 protection grade can be installed in the harshest environmental conditions.
Advanced Solis S5-GC100K-US-APST Grid-Tied Inverter
The Solis S5-GC100K-US-APST three-phase grid-tied inverter is designed to provide robust energy solutions for commercial PV systems. This inverter enhances efficiency and safety with features such as AFCI and multiple MPPTs, making it a premier choice for achieving a sustainable energy future.
Product Features:
High Efficiency and Performance
The olis S5-GC100K-US-APST inverter boasts a maximum efficiency of 98.8%, paired with a CEC efficiency of 98.3%. This ensures optimal energy conversion and utilization, supporting substantial power output for large solar installations.
Advanced Safety Mechanisms
Equipped with AFCI protection and surge protection on both DC and AC sides, this inverter significantly reduces fire risks and ensures secure operations even under adverse conditions.
Flexible String Design
With a 1.5 DC/AC ratio and string current capability of up to 16A, the Solis S5-GC100K-US-APST provides flexibility in module configurations and system design, accommodating a variety of PV panel setups.
Integrated Monitoring and Remote Control
Featuring smart I-V curve scanning and intelligent string monitoring, users can effectively oversee system performance. Remote firmware upgrades further simplify maintenance and updates.
Comprehensive Grid Support Features
Supporting a power factor greater than 0.99 and capable of handling grid voltage variances, this inverter is compatible with multiple grid codes, ensuring smooth integration with existing energy infrastructures.
How It Works
The Solis S5-GC100K-US-APST operates seamlessly to convert DC power from solar panels into AC power suitable for grid distribution. With multiple MPPT inputs and robust grid support functionalities, it maximizes energy generation while maintaining system safety and reliability.
Multiple MPPT Technology
This inverter includes 10 MPPTs, enabling precise tracking of energy production for superior system efficiency. Each MPPT accommodates up to 16 strings, optimizing power from diverse panel orientations and conditions.
AFCI and Safety Integration
The integrated Arc Fault Circuit Interruption (AFCI) technology promptly detects and mitigates arc faults, enhancing the overall safety of the solar power system.
Smart Cooling System
An intelligent fan-cooling mechanism ensures effective thermal regulation, preserving device longevity and consistent performance, even in extreme climates.
Product Specifications
Solis S5-GC100K-US-APST 100kW, Three Phase Ten MPPT Grid-Tied Commercial Inverter w/ AFCI w/ FAN w/APS TX Product Specificatons
| Max. Input Voltage |
1000 V |
| Rated Output Power |
100 kW |
| Max. Efficiency |
98.8% |
| Output Voltage |
3Ф/PE, 480 V |
| Operating Temperature |
-22°F to 140°F |
| Communications Interface |
RS485, Wi-Fi (Optional) |
| Dimensions (W*H*D) |
41.9*22.3*13.6 in |
| Weight |
200 lbs (91 kgs) |
| Grid Frequency |
60 Hz |
| Ingress Protection |
TYPE 4X |
Product Warranty
Solis Inverter are manufactured by Ginlong (Ningbo) Technologies Co., Ltd. (The Company) (refered to as Ginlong) provides the following Warranty to the purchaser (The Customer) of the Inverter (The Goods). (The Customer is deemed to be the owner of the installed Goods at first sale
Warranty Terms
The Company warrants all Goods to be free from defects in material or workmanship under normal use and service for a period of 5 years from the date of sale to the
Customer.
The Warranty covers the cost of repairs or replacement parts. The Goods must be returned to the Company for inspection.
The company may repair or replace faulty components at its discretion.
This warranty extends the Customer’s statutory rights and cannot be construed so as to diminish such statutory rights.
Warranty Extension
The purchaser may apply for a warranty extension within 12 months of purchase by providing the serial number of the unit along with proof of purchase. An extended
warranty can be purchased for a further 5 years (Total 10 years).
Warranty Limitations
The Warranty is valid only for Goods purchased either directly from the Company or from an authorized reseller of the company.
The Warranty is not transferable and applies to brand new Goods only.
Defective parts replaced under Warranty become the property of the Company.
The Warranty does not cover:
- The Warranty does not cover:
- Consequential damages including but not limited to loss of revenue;
- Claims by third parties other than the Customer;
- Defects of installation. (Except where the installation is performed by the Company);
- Goods damaged as a consequence of incorrect installation. (Except where the installation is performed by the Company);
- Items ancillary to installation not supplied by the Company;
- Duties, import/export fees or costs and other general administrative costs;
- Damage to Goods caused by misuse, improper handling or unauthorized modification;
- Loss or damage occurring whilst in transit;
- Accidental or willful damage;
- Any Goods described in a quotation or delivery note as 'ex-display' or ‘reconditioned’. (A separate Warranty extension may have been issued
to cover such Goods.)
Labour, travel and delivery (to and from customer) will be charged if goods returned found to be not faulty following a warranty claim.
Warranty Claims Procedure
To make a warranty claim the following information needs to be provided:
- Completed RTM Inspection Form
- Product Model (ie. Solis 1.5kW) and Product Serial Number (ie. A1110011)
- Copy of the invoice for the inverter
- Copy of the installation report and installation certificate
The authorized reseller will liaise with the Company regarding repair or replacement. The cost of repair or replacement will be borne by the Company provided the Warranty has been validated and the Warranty period has not expired.
Where repairs must be effected at the Company’s headquarters, the Company will endeavor to minimize the down time for the Goods.
