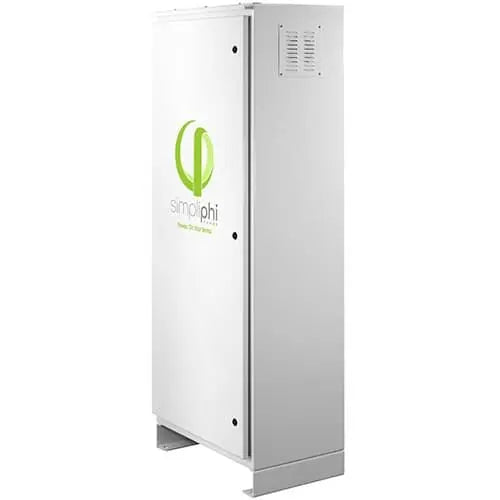

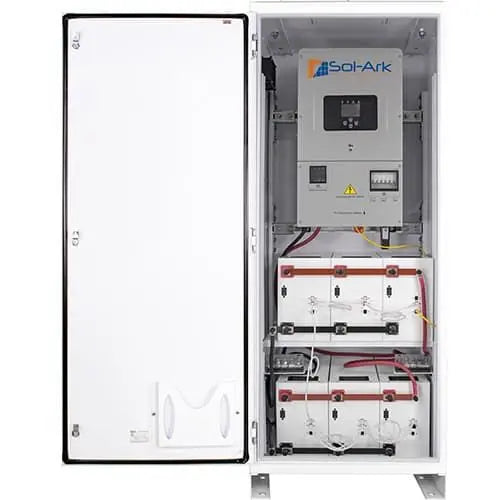

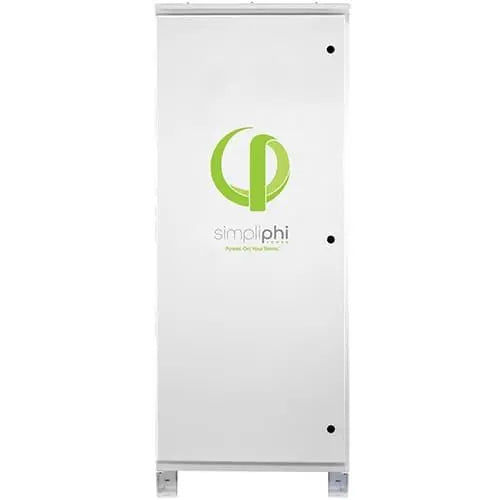

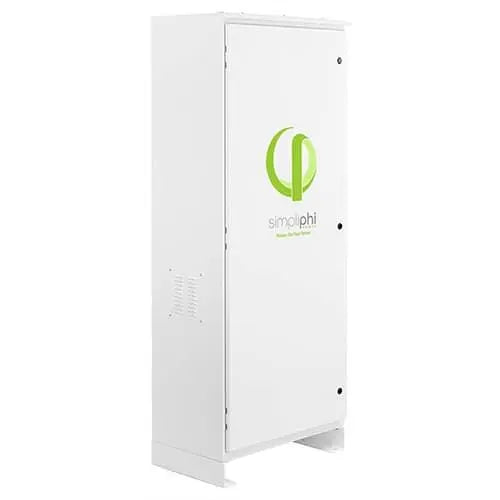

With 22.8kWh of storage capacity, the AccESS AmpliPHI maximizes PV generation by storing excess power for critical backup, evening hours and daily self-consumption to offset Time-Of-Use rates. Net-Metered customers can add energy storage to existing grid-tied solar systems for standby power or energy arbitrage. Off-grid customers can take advantage of integrated MPPT charge controls to create stand-alone systems for whole-home power and generator optimization with auto start capabilities. The AccESS AmpliPHI system scales easily to increase energy capacity with the BOSS.6 or BOSS.12 that automatically recalculates, reprograms and reconfigures settings in the Sol-Ark inverter through closed loop communications, creating resilience, energy security and daily cost savings with 98% efficient, safe and reliable access to power - 24/7.
SimpliPhi Power designs and manufactures efficient, non-toxic and enduring energy storage and management systems that utilize lithium ferro phosphate (LFP). Based in California, SimpliPhi combines non-hazardous LFP chemistry with its proprietary cell and battery architecture, power electronics, battery management system (BMS) and manufacturing methods to create safe, reliable, durable and highly scalable on-demand power solutions. Available for the residential, commercial, military and emergency response markets, SimpliPhi storage solutions have been rigorously tested and passed operational performance requirements by the U.S. Army and Marine Corps. Integral to all SimpliPhi solutions is a proprietary management system that further optimizes the life-cycle, round-trip efficiency rate, performance and durability of its batteries. SimpliPhi PHI 3.8 kWh 48V 60 Amp batteries are Certified to UL 1973 Standard.
Standard Features |
---|
Internal transfer switch automatically disconnects from the grid during power outages and provides standby power for critical circuits |
Outdoor rated enclosure can be free-standing, or pad-mounted |
Advanced LFP batteries with a 10,000 cycle / 10-year warranty |
98% round trip efficiency |
Remote monitoring by web browser or mobile device app |
No cobalt , thermal regulation, cooling, or risk of fire |
Extended operating temperature |
Solar MPPT for DC-coupled or off-grid installations |
Automatic Generator control for additional standby power |
APPLICATIONS |
---|
SIA (Standard Interconnection Agreement) customers: AccESS allows for solar PV power to be stored in batteries for a backup power source, or for self-consumption during evenings or other set times. |
NEM (Net Energy Metering) customers: Add energy storage to an existing net-metered solar array for standby power or energy arbitrage purposes. |
Off-grid customers: Up to 12 kW Solar MPPT combines power generation and energy management in a single package. |
Disaster recovery customers: Reliable, 98% efficient, non-toxic backup power in the event of a power outage. |
AccESS AmpliPHI Sol-Ark 12k 22.8kWH | |
---|---|
General | |
Dimensions (W x H x D) | 29.5” W x 76”H (w/feet) x 20” D / 75 cm W x 193 cm H x 51 cm D |
Weight | 600 lb (272.16 kg) (w/out batteries) |
Enclosure Rating | NEMA 3R Outdoor rated |
Operating Temperature | -4 F to 122 F (-20 C to 50 C) |
Charging Temperature (batteries) | 32 F to 120 F (0 C to 49 C) |
Mounting | Free-standing or Pad-mounted |
Enclosure Warranty Period | 2 years |
Certifications | UL1741SA Rule 21, HECO Rule 14H, PREPA approved and Rapid Shutdown compliant. Included batteries ETL certified and certified to UL 1973 |
Inverter | |
Sol-Ark | Sol-Ark 12K |
Application | On or Off-Grid |
AC Connections | 1 Bi-Directional Grid Port (50A double-pole), 1 Bi-Directional Generator Port (40A double-pole), 1 UPS Load Output (50A double-pole) |
Output Frequency (selectable) | 60 Hz or 50 Hz |
Output Voltage | L-N: 120VAC; L-L: 240VAC ? L-L: 208VAC (2/3 phases) ? 230VAC |
Off-Grid Output Power System | 8 kW Continuous |
Solar PV Continuous Power | 12 kW |
Inverter AC Continuous Power | 9 kW |
Inverter Battery Continuous Power | To grid: 9 kW, To load: 8 kW |
Max Output Charging Current | 190 ADC |
CEC Weighted Efficiency | 96.5% |
Warranty Period | 10 yr standard |
Parallel Stacking | Yes (needed for true 3 phase power)1 |
Other Features | EMP hardened upon request (against Nuclear EMP and Solar Flare), Smart Load capabilities (CTs included) |
Solar PV - DC Coupled | |
Sol-Ark Dual MPPT | 1 - 6 PV String Inputs (3 max per MPPT) |
Max Connected PV Power | 16.5 kW (8 kW max per MPPT) 12 kW max simultaneous utilization |
Min PV Array Starting Voltage | 175 VDC |
Max Open Circuit PV Array Voltage | 500 Voc per PV String |
MPPT Voltage Range | 150 - 425 VDC |
Max Array Short Circuit Current | 33A per MPPT |
Max Array Operating Current | 20A per MPPT |
Solar PV - AC Coupled | |
Max AC Coupled Input | 7.6 kW (string or micro-inverters) |
Solar PV - DC & AC Coupled | |
Max Combined Solar Input (DC + AC) | 16.5 kW |
Best Combined Input Combination | 3 kW AC + 12 kW DC |
Good Combined Input Combination | 4 kW AC + 11 kW DC |
OK Combined Input Combination | 5 - 7.6 kW AC + 9 - 7 kW DC 1 kW AC + 15 kW DC |
Other Features | |
Internet Connected Computer or Phone App | PowerView ES Monitor and Programming |
Communications | Closed loop communications between batteries and Sol-Ark inverter |
Automatic Generator Start | Two-Wire Automatic Generator Start |
Battery | |
SimpliPhi Power | (x6) AmpliPHI 3.8 kWh-48V |
Rated kWh Capacity @ C/2 | 22.8 kWh |
Usable kWh Capacity @ 80% DoD | 18.24 kWh |
Max Combined Output Power | 11.4 kWh |
Max Combined Charge Current | 225 ADC |
Charging Temperature | 32 F to 120 F (0 C to 49 C) |
Depth of Discharge3 | up to 100% DoD |
Round Trip Efficiency | 98% |
Cycle Life | 10,000+ (@ 80% DOD) |
Warranty Period | 10 years |
