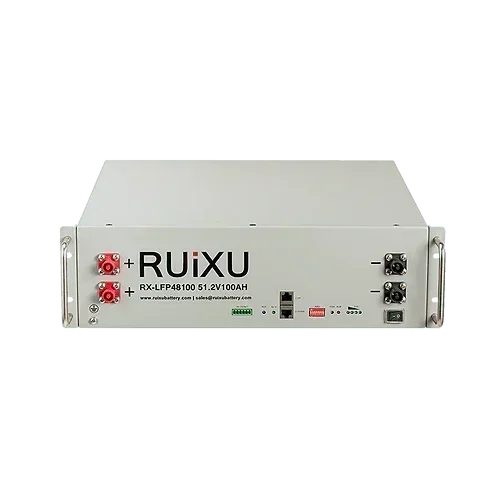

RUIXU Self-Heating RX-LFP48100-H | 19" Rack Mounted 3U Module | UL1973 Certified

Why this product is a must-have: The RUIXU Self-Heating RX-LFP48100-H is essential for energy storage systems operating in cold climates. Its innovative self-heating technology allows the battery to charge safely at temperatures as low as -20°C (-4°F), ensuring reliable performance and longevity.

Designed for seamless integration into your energy storage setup, the RX-LFP48100-H is UL1973 certified, guaranteeing the highest safety and reliability standards. Whether you're using it for solar energy storage or as a backup power source, this module promises efficient and dependable operation.

Key Features:

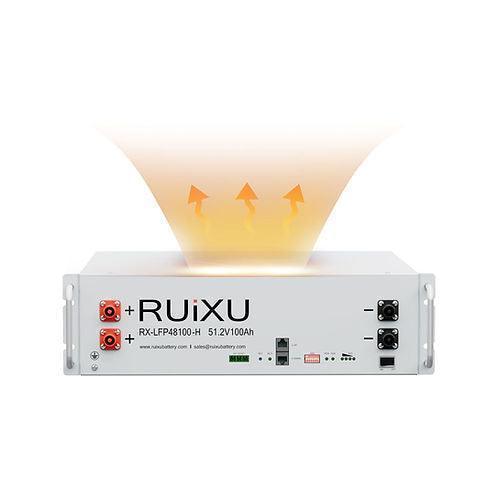

• Self-Heating Technology: Automatically heats the battery for optimal performance in extreme cold.
• Nominal Voltage: 51.2V
• Nominal Capacity: 100 Ah @ 0.2C
• Min. Capacity: 100 Ah @ 0.2C
• Nominal Energy: 5120Wh

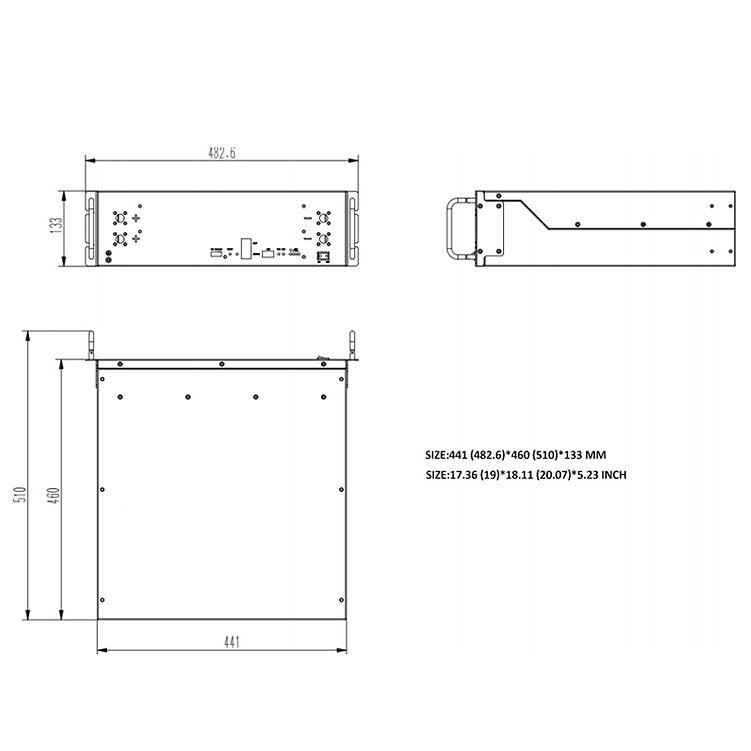

• Dimensions: 482.6 x 460 x 133 mm | 19 x 18.1 x 5.23 inch
• Weight: Approximately 47 kg (103.6 lb)

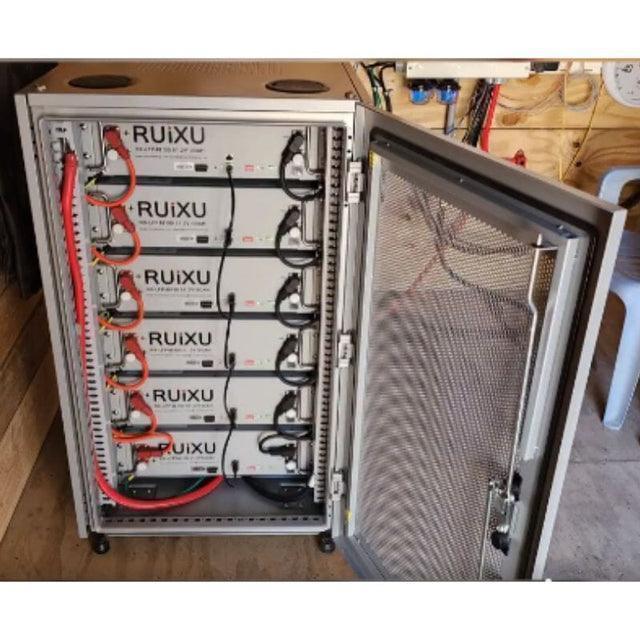

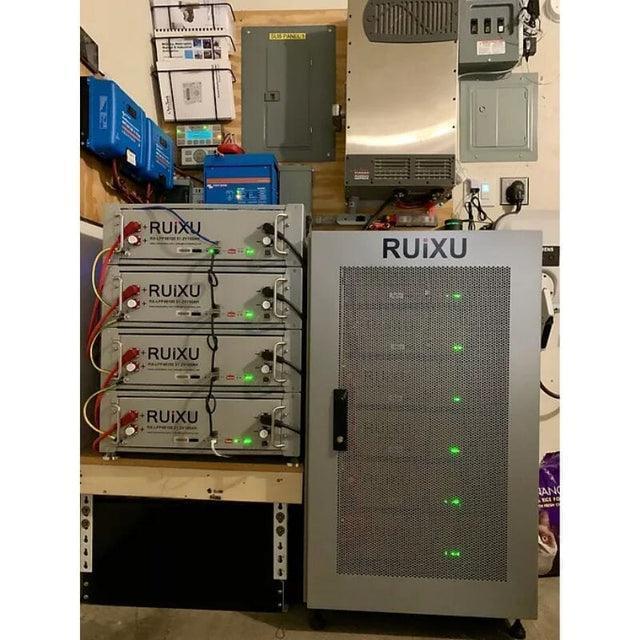

• Modular Support: Scale from 5 kWh to 160 kWh by connecting up to 32 units in parallel.

Communications:

Inverter Protocol Choosing: Utilize DIP address to set the RS485 baud rate and choose the inverter protocol.

Canbus Compatibility: Supports various brands including Victron, SMA, Goodwe, and more.

RS485 Compatibility: Compatible with MPP, Voltronic, RCT, and other leading brands.

What's Included:

• 1 x RUIXU 48V Server Rack battery (RX-LFP48100)
• 1 x RS485 Communication Cable
• 1 x Ground Cable
• 1 x Set of Parallel 4AWG Cables per battery

Upgrade your energy storage system today with the RUIXU Self-Heating RX-LFP48100-H. Experience the reliability and safety that RUIXU lithium battery solutions offer.

Resources:

• Spec Sheet: Click here
• User Manual
