  • Description

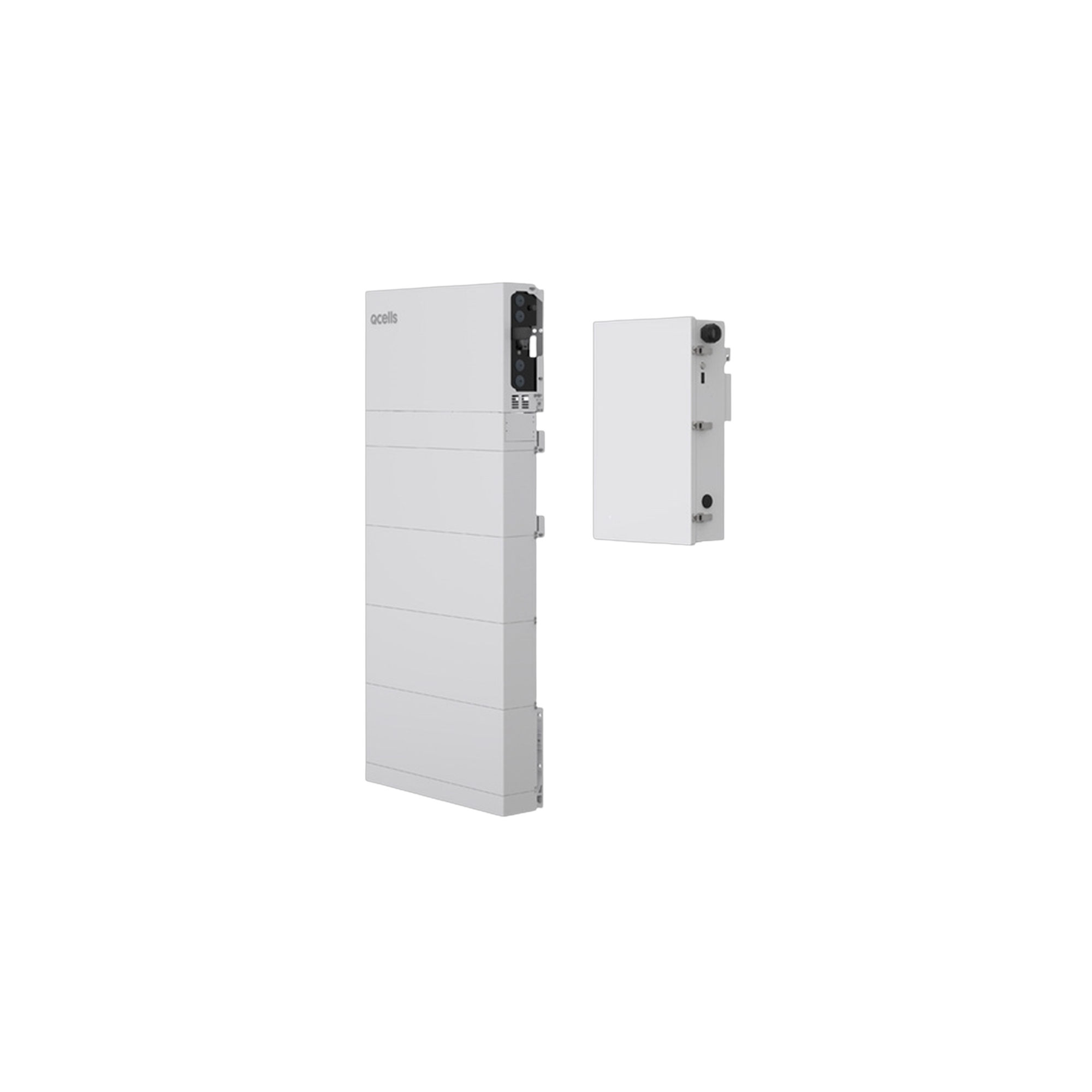

Q.CELLS Q.HOME HUB Energy Management Hub for Q.HOME CORE System

SKU: SBEW-00012

Product Overview

The Q.HOME HUB Energy Management Hub is a central component of the Q.HOME CORE energy storage system, designed to provide reliable whole-home or partial-home backup while intelligently managing power flow between the electrical grid, solar system, battery storage, and household loads.

With support for high-capacity residential electrical systems, the Q.HOME HUB provides flexible backup power management and integrated energy monitoring. It is designed to work as part of a complete Q.HOME CORE energy storage solution and can be installed for both indoor and outdoor applications.

Key Features

  • Up to 200A AC current capacity for residential electrical systems

  • Flexible backup power for whole-home or partial-home applications

  • Built-in energy management meter for monitoring household energy consumption

  • Automatic energy management during grid-connected and backup operation

  • Designed for integration with the Q.HOME CORE energy storage system

  • Supports AC- or DC-coupled solar configurations

  • Compatible system configurations with Enphase or SolarEdge

  • Designed for streamlined installation and commissioning

  • Supports scalable and stackable battery configurations

  • Suitable for indoor or outdoor installation

  • Designed to maintain essential loads during grid outages

Backup Power Management

The Q.HOME HUB enables homeowners to configure their energy storage system according to their backup requirements. Depending on the system design, it can provide either whole-home backup or partial-home backup, allowing selected circuits and essential appliances to remain powered during an outage.

The hub works together with the Q.HOME CORE system to coordinate energy from the solar array, battery storage, utility grid, and household loads.

Energy Monitoring

An integrated energy management meter provides visibility into household electricity consumption and system operation. Combined with the Q.HOME energy monitoring platform, users can track solar generation, battery status, energy consumption, and overall system performance.

Electrical Specifications

Specification Details
Product Q.HOME HUB Energy Management Hub
SKU SBEW-00012
Maximum AC Current 200 A
Grid Configuration 1P3W + PE, Split Phase
Nominal Grid Voltage 240 VAC
Nominal Frequency 60 Hz
Maximum Continuous Current 160 A
Maximum Grid OCPD 200 A
Maximum PV Inverter OCPD 80 A
Maximum ESS OCPD 40 A single/parallel; 80 A for 2× series connection
Maximum Phase Imbalance 3.6 kVA
Cooling Natural convection
Enclosure Rating NEMA 3R / Type 3R
Mounting Wall mount
Communication CAN 2.0B
Operating Temperature -4°F to 113°F (-20°C to 45°C)
Storage Temperature -13°F to 122°F (-25°C to 50°C)
Relative Humidity 5–95%, non-condensing
Altitude Up to 6,562 ft (2,000 m)
Noise ≤20 dB(A) at 1 m
Dimensions 18.5 × 33.5 × 8.7 in (470 × 850 × 220 mm)
Product Weight 108 lb (49 kg)
Warranty 15 years

Specifications may vary by system generation and configuration. Refer to the applicable installation documentation before installation.

System Compatibility

The Q.HOME HUB is designed specifically for use with the Q.HOME CORE energy storage platform. The complete system can incorporate Q.VOLT inverters and Q.SAVE battery modules, with scalable storage capacity to accommodate different household energy requirements.

The Q.HOME CORE platform supports scalable battery storage, with configurations capable of providing up to 20 kWh of storage capacity and up to 7.6 kW of backup output power, depending on the system configuration.

Safety & Certifications

The Q.HOME HUB is designed for residential energy-storage applications and incorporates electrical protection and monitoring features for reliable operation.

Applicable certifications and standards include:

  • UL 1741

  • UL 3141

  • UL 9540

  • UL 869A

  • UL 67

  • FCC Part 15 Class B

  • IEC/UL 60730-1 Annex H

  • NEMA 3R enclosure rating

Ideal Applications

The Q.HOME HUB is well suited for:

  • Residential solar-plus-storage systems

  • Whole-home backup power

  • Partial-home backup systems

  • Homes requiring high-capacity electrical service

  • Solar energy storage installations

  • Backup power for essential household loads

  • New solar and battery installations

  • Energy systems requiring integrated energy monitoring

Important Installation Information

The Q.HOME HUB is an electrical energy-management component intended for professional installation. System sizing, electrical connections, backup-load configuration, and installation must be performed according to applicable installation instructions, electrical codes, and system compatibility requirements.

The hub should be installed as part of a properly configured Q.HOME CORE energy storage system.
