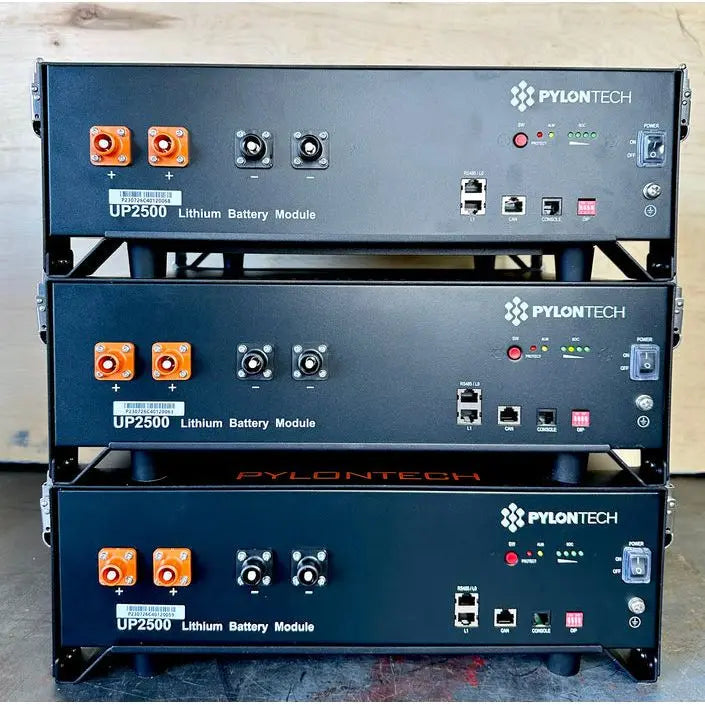

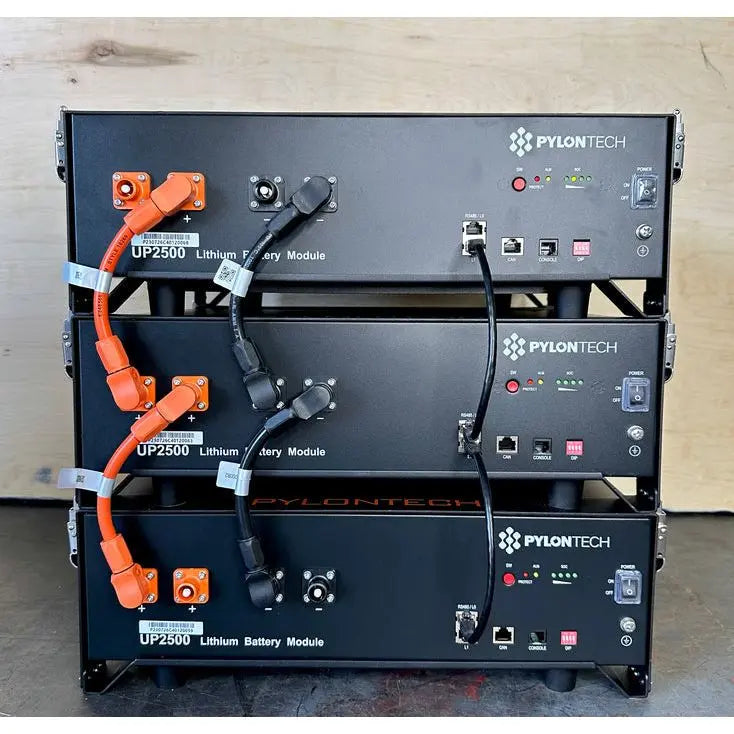

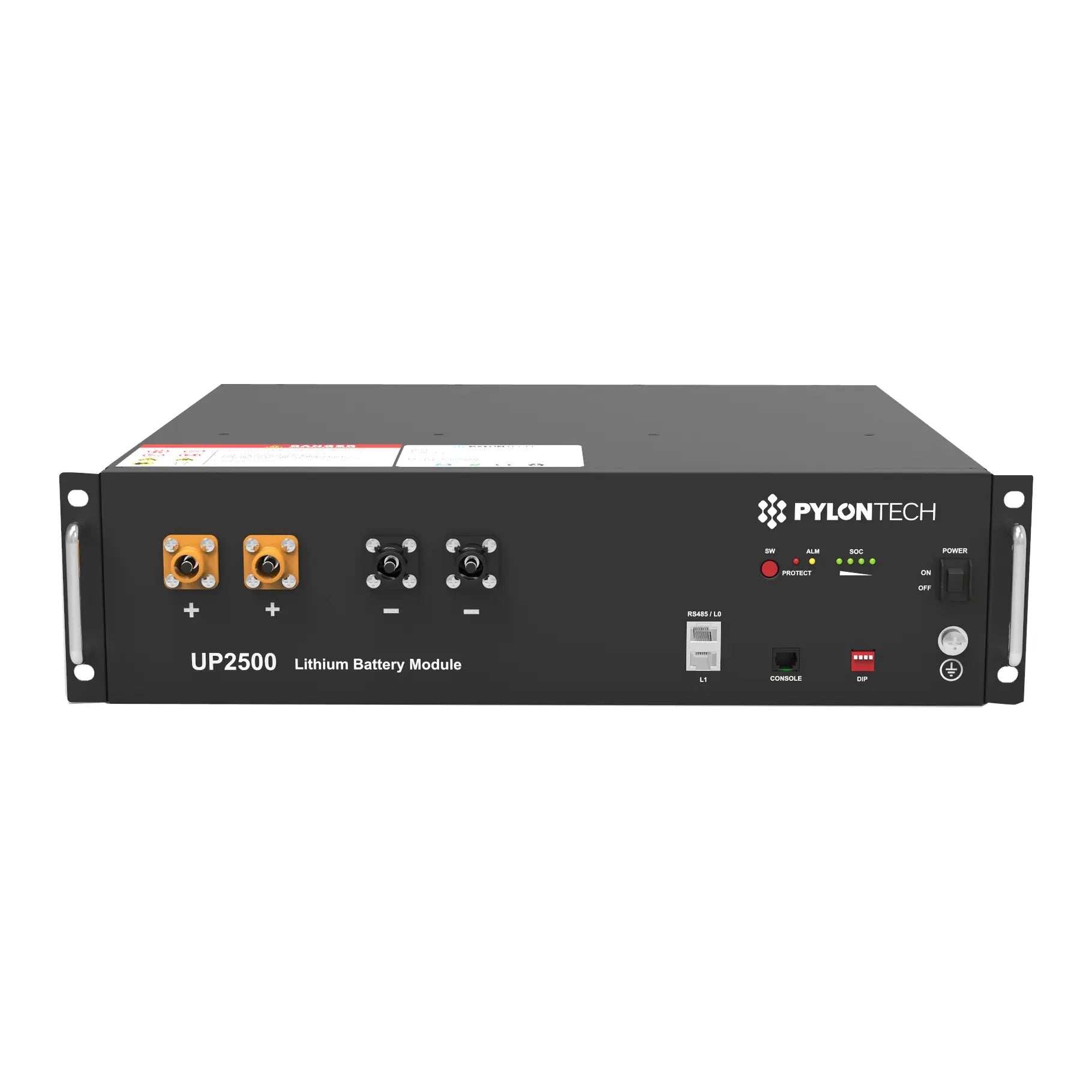

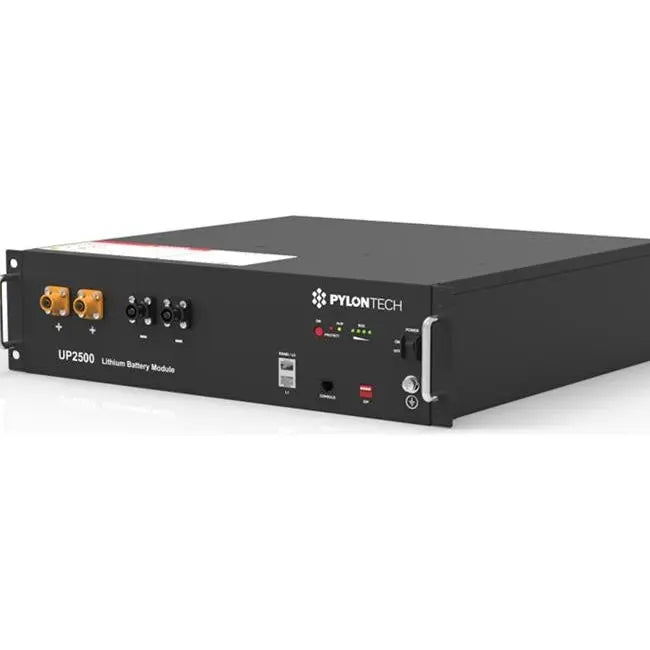

Pylontech UP2500 24V 2.8kWh Rack-Mount LiFePO4 Battery

The Pylontech UP2500 is a 24V, 2.8kWh rack-mount lithium iron phosphate (LiFePO4) battery designed for reliable energy storage in telecom, network backup, RV, marine, mobile, and off-grid power applications. Purpose-built for 24V DC systems, the UP2500 eliminates the need to wire multiple 12V batteries in series, providing a cleaner, safer, and more efficient energy storage solution.

Equipped with Pylontech's advanced Battery Management System (BMS), the UP2500 delivers intelligent protection, long cycle life, and seamless communication with compatible inverter and monitoring systems. Its modular design allows you to connect up to 20 batteries in parallel, making it easy to expand your system as your energy requirements grow.

Key Features

• 24V 2.8kWh Lithium Iron Phosphate (LiFePO4) battery

• Advanced Battery Management System (BMS) for intelligent protection and cell balancing

• Protection against overcharge, over-discharge, overcurrent, and high/low temperatures

• CAN bus communication for closed-loop integration with compatible inverter systems

• Seamless compatibility with Victron GX monitoring devices

• Up to 6,000 life cycles at 90% Depth of Discharge (DoD)

• Expandable up to 20 batteries in parallel for a total capacity of 56.8kWh

• Backward-compatible design allows additional battery modules to be added later

• Native 24V architecture eliminates the need to build battery banks from multiple 12V batteries

• Standard 19-inch rack-mount design with integrated mounting tabs for quick installation

• Maintenance-free, high-efficiency LiFePO4 battery technology

Ideal Applications

• Telecom and network backup power

• RV and camper electrical systems

• Marine and boating applications

• Off-grid solar systems

• Mobile power systems

• Residential battery backup

• Industrial and commercial DC power applications

Why Choose the Pylontech UP2500?

The Pylontech UP2500 offers an efficient and scalable 24V energy storage solution for users who require dependable DC power. Its long cycle life, intelligent battery management, and expandable design make it an excellent choice for both mobile and stationary energy storage systems. Whether you're powering an RV, supporting critical communications equipment, or building a reliable off-grid system, the UP2500 delivers the performance and reliability expected from one of the industry's leading battery manufacturers.

Specifications

• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)

• Nominal Voltage: 24V

• Energy Capacity: 2.84kWh

• Maximum Parallel Connection: Up to 20 batteries

• Maximum Expandable Capacity: 56.8kWh

• Communication: CAN Bus

• Cycle Life: Up to 6,000 cycles (90% DoD)

• Mounting: Standard 19-inch Rack Mount
