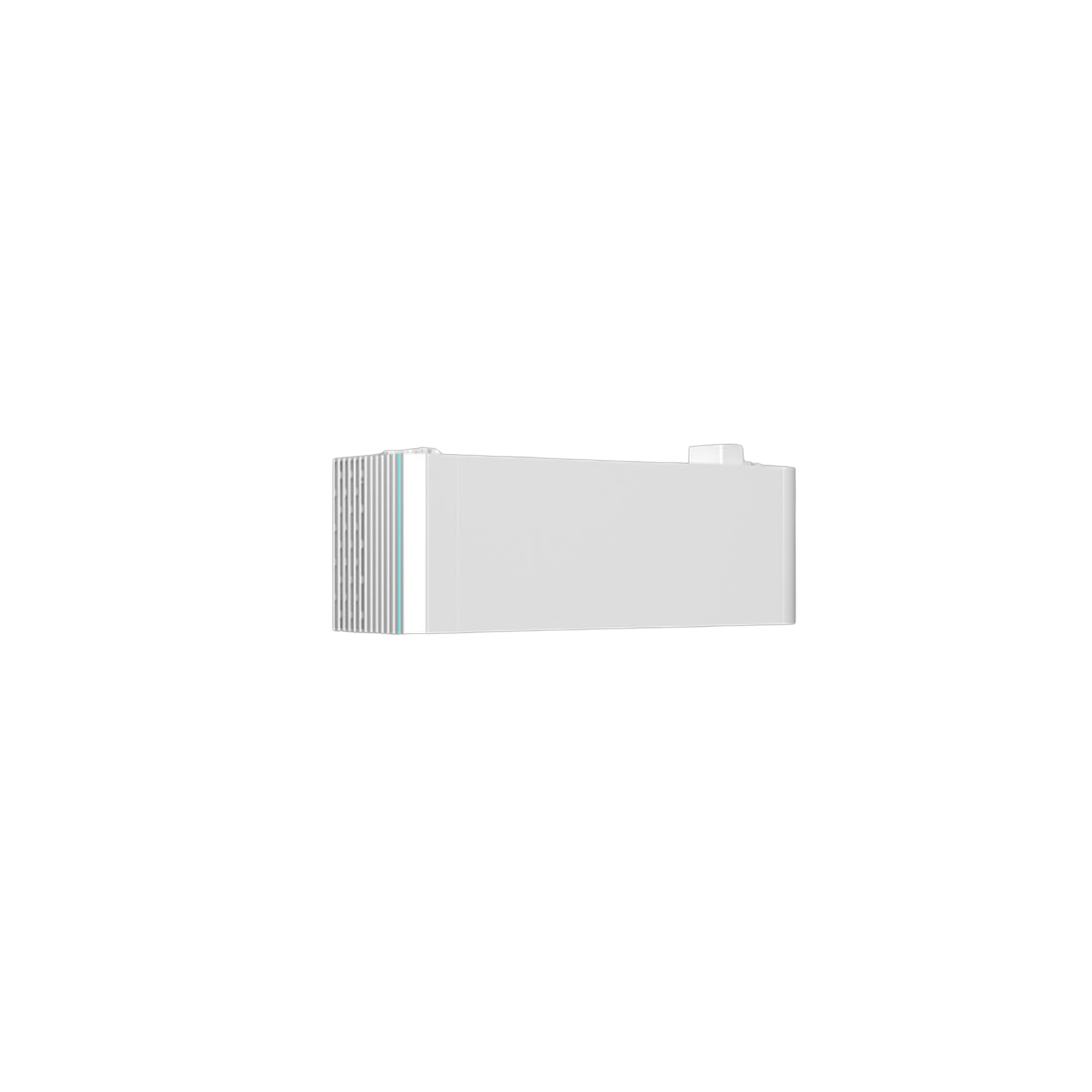

Pointguard Energy Battery Pack 5

SKU: 11130006

The PointGuard Battery Pack 5 is a modular energy storage solution designed for residential energy systems that require reliable, scalable battery capacity. With a compact design, flexible configuration options, and integrated safety features, it can be combined with additional battery packs to build an energy storage system that grows with changing power needs.

The battery pack is designed for flexible installation and expansion, supporting multiple battery configurations and parallel system connections. Its self-guiding plug connectors help simplify installation, while the integrated battery management and monitoring features provide visibility into system status through the myPointGuard App.

Key Features

• 5.38 kWh total capacity with 5.2 kWh usable capacity

• Modular battery design for scalable energy storage

• Supports 1–5 batteries per stack

• Up to 10 battery stacks in parallel

• System capacity range of approximately 5–390 kWh

• Large cell capacity with a low-voltage architecture

• Multi-layer battery safety protection

• Battery status monitoring through the myPointGuard App

• Self-guiding plug connectors for faster installation

• AI-assisted technology designed to optimize battery cycle life

• Flexible parallel connection options

• Suitable for expanding residential energy storage systems

Modular Energy Storage

The PointGuard Battery Pack 5 is designed around a modular approach, allowing battery capacity to be increased as energy requirements change. Up to five batteries can be configured in a single stack, while multiple stacks can be connected in parallel for larger energy storage systems.

This flexible architecture makes the system suitable for a range of residential applications, from smaller backup-power installations to larger energy storage configurations.

Smart Battery Monitoring

Battery status can be monitored through the myPointGuard App, providing visibility into the energy storage system and helping users keep track of battery operation.

The system also incorporates AI-assisted optimization technology designed to help improve battery cycle life over time.

Safety & Installation

The battery incorporates multiple layers of battery safety protection and uses self-guiding plug connectors to simplify system installation. Its low-voltage architecture and modular configuration provide flexibility when designing and expanding an energy storage system.

Capacity

• Total Capacity: 5.38 kWh

• Usable Capacity: 5.2 kWh

• Batteries per Stack: 1–5

• Maximum Parallel Stacks: 10

• Maximum System Capacity: Up to 390 kWh

Shipping Information

Single Battery:

• Package Dimensions: 14 × 34 × 17 in

• Shipping Weight: 141 lbs

• Quantity: 1 piece per box

Pallet:

• Configuration: 6 boxes / 6 pieces

• Pallet Dimensions: 34 × 44 × 38 in

• Shipping Weight: 870 lbs

Applications

The PointGuard Battery Pack 5 can be used as part of a scalable residential energy storage system for:

• Solar energy storage

• Home backup power

• Energy self-consumption

• Load shifting

• Expansion of existing battery storage systems

• Residential energy independence

The modular design allows additional battery capacity to be added as household energy requirements grow.
