Outback Power EnergyCell 5.1kWh 48 Volt Stackable Heated Lithium Battery Module

Authorized Outback Power Dealer | Full Vendor Warranty Included

Customers rate us 4.6/5 based on 416 reviews.
$1,350.00
$2,699.00
$1,350.00
Save $1,349.00
Hurry! Only a few left in stock
Order in the next h min to get this to you between and

Need Help? Talk to our experts today!

Live Chat:
Bottom Right Text or Call us:
513-743-2829
🚚
Shipping & Delivery Time Shipping timeline above is an estimate. Please live chat for precise ETAs and shipping costs.
🛡️
30-Day Return Guarantee
Check Policy
💲
Price Match Available
🏷️
Sales Tax Free! (Except AZ, CA, FL, OH, IL)
☀️ SUMMER DEALS ARE HERE – LOWEST PRICES GUARANTEED ☀️
Summer prices are here! Shop now to grab the lowest prices of the season before the sun sets.
Outback Power EnergyCell 5.1kWh 48 Volt Stackable Heated Lithium Battery Module - Green Vista Living

Outback Power

Outback Power EnergyCell 5.1kWh 48 Volt Stackable Heated Lithium Battery Module

$2,699.00 $1,350.00
Outback Power EnergyCell 5.1kWh 48 Volt Stackable Heated Lithium Battery Module - Green Vista Living
Outback Power EnergyCell 5.1kWh 48 Volt Stackable Heated Lithium Battery Module - Green Vista Living

Outback Power

Outback Power EnergyCell 5.1kWh 48 Volt Stackable Heated Lithium Battery Module

$2,699.00 $1,350.00
  • Description

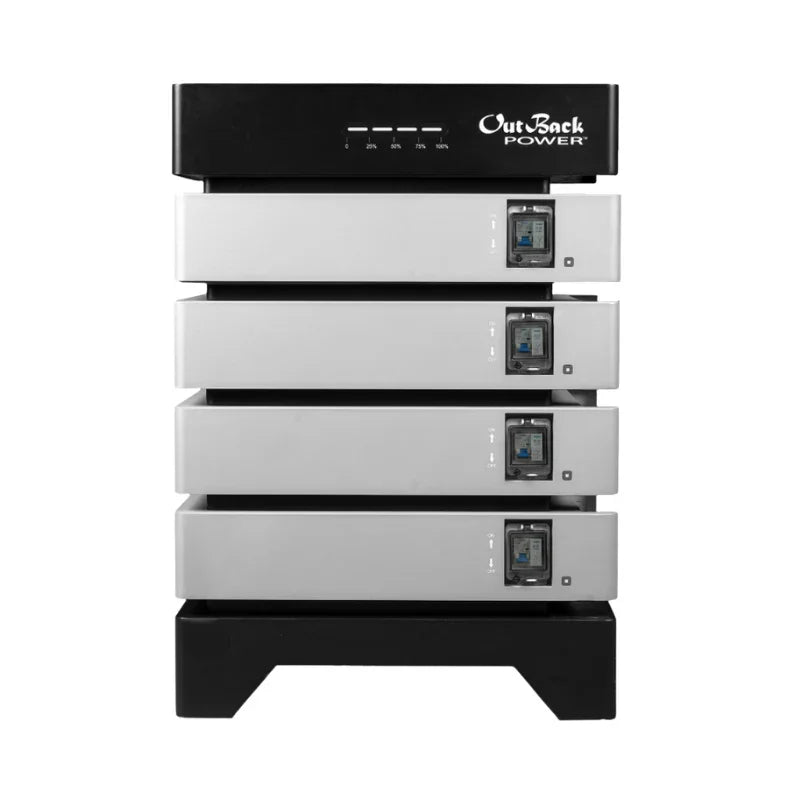

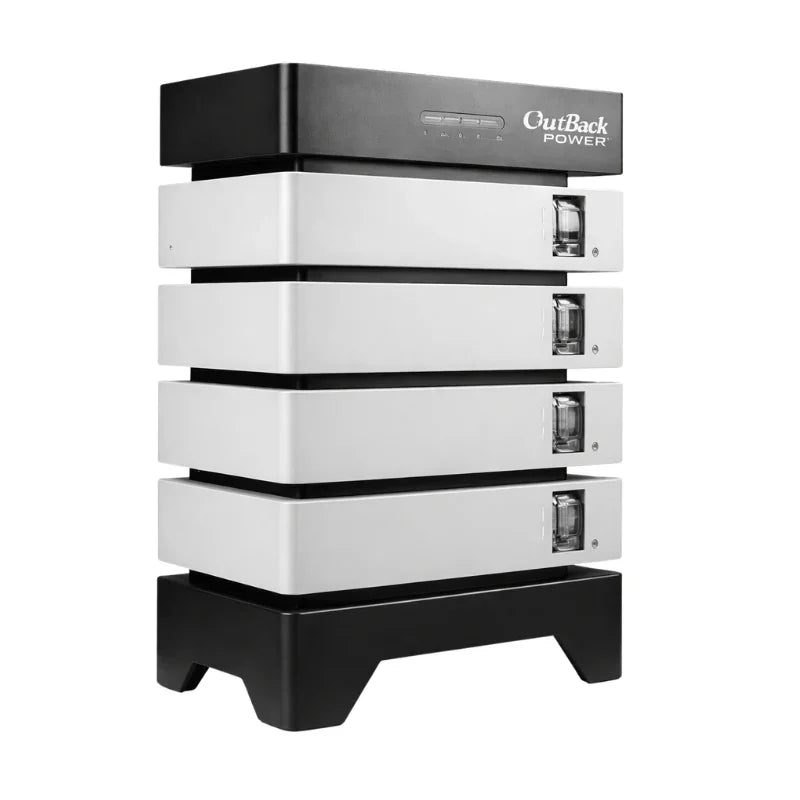

Outback Power EnergyCell 5.1kWh 48 Volt, Stackable Heated Lithium Battery Module

The Outback Power EnergyCell 5.1 is a 48V, 5kW-rated lithium iron phosphate (LFP) battery module designed for scalable residential and commercial energy storage systems. With integrated heating, IP65 outdoor rating, and stackable architecture supporting up to 24 modules, this battery delivers long-term reliability and high-performance energy storage.

Outback Power EnergyCell 5.1kWh 48V Lithium Battery Features

5.12kWh Nominal Capacity – high-density LFP battery chemistry for stable performance

5kW Continuous Output – dependable charge and discharge capability

7.68kW Peak Power – 2-second surge handling for demanding loads

Integrated Heating – optimized performance in cold environments

IP65 Outdoor Rating – weather-resistant enclosure for indoor or outdoor use

Stackable Design – 3–8 modules per stack, up to 24 modules total

RS485 & CAN Communication – inverter and system integration ready

125A Internal Breaker – built-in battery protection

8000 Cycle Life – rated at 0.5C, 80% DoD, 25°C

10-Year Warranty – long-term manufacturer-backed support

Placeholder Image

Outback Power EnergyCell 5.1kWh 48V Lithium Battery Applications

  • Residential Energy Storage – whole-home backup and solar self-consumption
  • Commercial ESS Systems – scalable storage for higher load demands
  • Hybrid Solar Installations – compatible with CAN/RS485 inverter systems
  • Cold Climate Installations – integrated heating for low-temperature charging
  • Outdoor Energy Storage – IP65-rated enclosure for exposed environments
Placeholder Image

What's Included

Everything you need is included with your product.

  • 1 × EnergyCell 5 Battery Module
  • 2 × Red & Black Power Cables (2 AWG, 6 ft / 180 mm each – 2 Red, 2 Black)
  • 4 × Screws
  • 4 × Expansion Anchors
  • 2 × Wall Brackets

Warranty

  • 10-Year Manufacturer Warranty

Outback Power EnergyCell 5.1kWh 48V Lithium Battery Specifications

General Characteristics

Specification Value
Model Name EC-FE5148
Product Type Low-voltage LFP battery pack
Battery Type Lithium Iron Phosphate (LFP)
Nominal Energy Capacity 100Ah
Nominal Voltage 51.2Vdc
Voltage Range 44.8–57Vdc
Usable Energy (DoD %) 100% (80% recommended)
Continuous Charge/Discharge Power 5kW (2.5kW recommended)
Peak Power (Duration) 7.68kW (2 seconds)
Communication Protocols RS485, CAN

Electrical Characteristics

Specification Value
Charge Voltage Range 56.0+/-0.8Vdc
Discharge Cut-off Voltage 44.8Vdc
Max Continuous Charge Current 100Adc (50Adc recommended)
Max Continuous Discharge Current 100Adc (50Adc recommended)
Max Parallel Units 24 EnergyCell 5 battery modules, 3 EnergyCell 5 control modules

Protection Features

Specification Value
Recommended Charging/discharging rate 0.5C
Short circuit protection >250Adc for 0.1ms
Battery Breaker 125Adc
Interrupt current rating 10kA

Other Specifications

Specification Value
Certifications and compliance UL 1973, UL 9540 DC ESS (pending), UL9540A, UN 38.3
Warranty and lifecycle ≥8000 (0.5C@25°C, 80%DOD) 10 years
Cycle Life (80% capacity) 8000
Design Life >10 years

Frequently-Asked Questions

How many modules can be stacked?

Up to 24 battery modules can be connected (3–8 per stack configuration).

Is this battery suitable for outdoor installation?

Yes. It is rated IP65 for outdoor use.

Does it include heating?

Yes. The module includes integrated heating for cold-temperature charging.

What is the cycle life?

Rated for 8000 cycles at 0.5C and 80% DoD.
