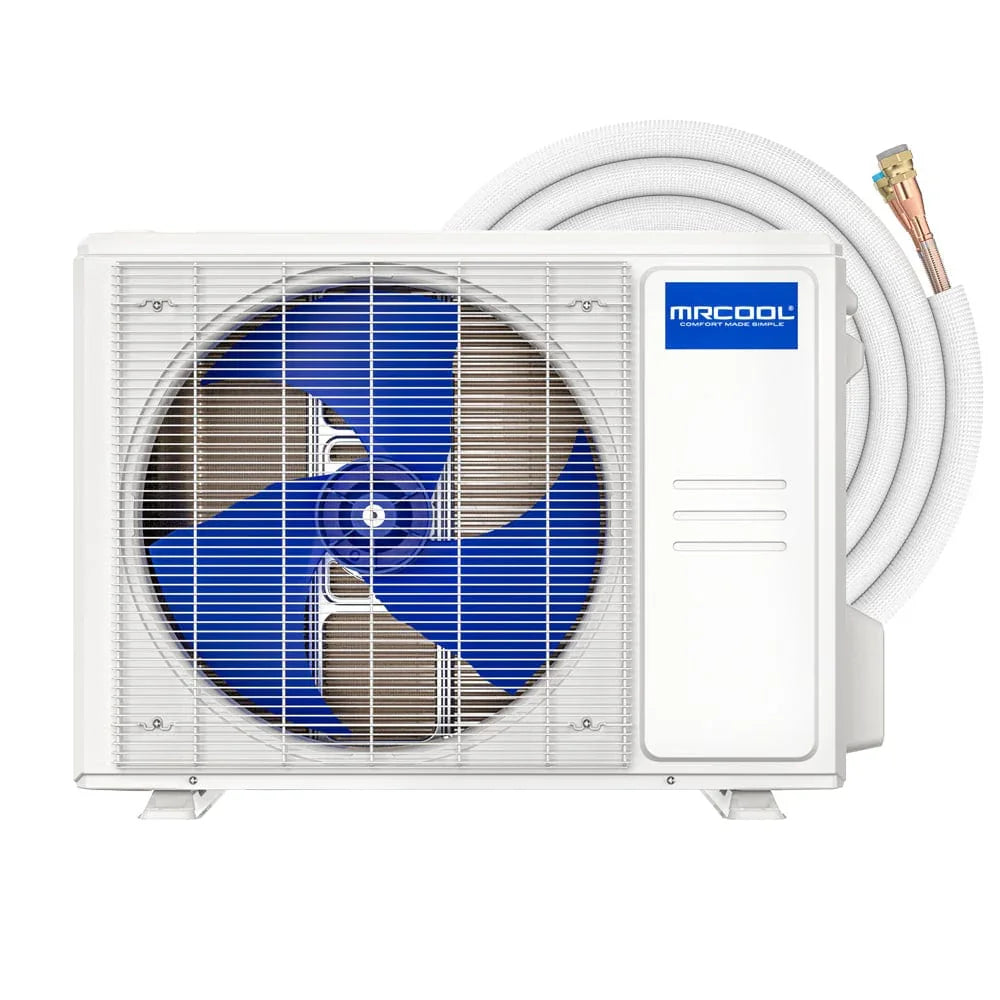

MRCOOL outdoor AC condenser unit with blue fan, white housing, and attached insulated hose

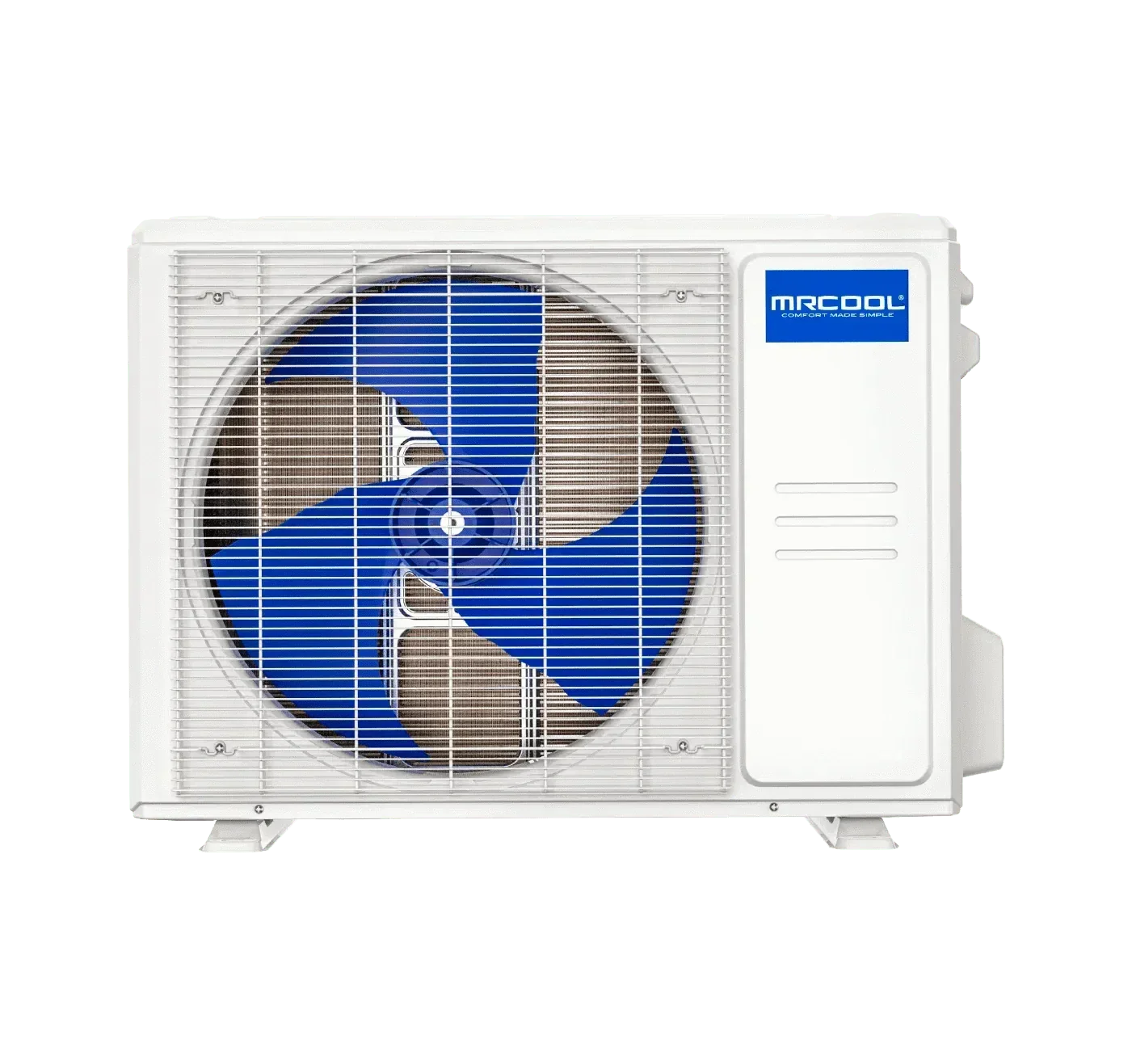

MRCOOL outdoor inverter air conditioner unit with blue fan and protective grille
MRCOOL outdoor AC condenser unit with blue fan, white housing, and attached insulated hose
MRCOOL outdoor inverter air conditioner unit with blue fan and protective grille

MRCOOL DIY 5th Gen EasyPro 12,000 BTU Single Zone Mini Split Condenser 115V with 16 ft. DIY Quick Connect Line Set | Condenser Only

Authorized GeoCool Dealer | Full Vendor Warranty Included

Customers rate us 4.6/5 based on 413 reviews.
$1,088.00
$1,400.00
$1,088.00
Save $312.00
Hurry! Only a few left in stock
Order in the next h min to get this to you between and

Need Help? Talk to our experts today!

Live Chat:
Bottom Right Text or Call us:
513-743-2829
🚚
Shipping & Delivery Time Shipping timeline above is an estimate. Please live chat for precise ETAs and shipping costs.
🛡️
30-Day Return Guarantee
Check Policy
💲
Price Match Available
🏷️
Sales Tax Free! (Except OH, FL, CA)
☀️ SUMMER DEALS ARE HERE – LOWEST PRICES GUARANTEED ☀️
Summer prices are here! Shop now to grab the lowest prices of the season before the sun sets.
MRCOOL outdoor AC condenser unit with blue fan, white housing, and attached insulated hose

GeoCool

MRCOOL DIY 5th Gen EasyPro 12,000 BTU Single Zone Mini Split Condenser 115V with 16 ft. DIY Quick Connect Line Set | Condenser Only

$1,400.00 $1,088.00
MRCOOL outdoor AC condenser unit with blue fan, white housing, and attached insulated hose
MRCOOL outdoor inverter air conditioner unit with blue fan and protective grille

GeoCool

MRCOOL DIY 5th Gen EasyPro 12,000 BTU Single Zone Mini Split Condenser 115V with 16 ft. DIY Quick Connect Line Set | Condenser Only

$1,400.00 $1,088.00
  • Description

MRCOOL DIY 5th Gen EasyPro 12,000 BTU Single Zone Mini Split Condenser 115V with 16 ft. DIY Quick Connect Line Set | Condenser Only



The MRCOOL DIY 5th Gen EasyPro 12,000 BTU Single Zone Mini Split Condenser offers high-efficiency comfort in a compact and easy-to-install design. Designed for DIYers, this unit comes equipped with a 16 ft. pre-charged Quick Connect line set and DIYPRO cable, eliminating the need for vacuuming or specialized tools. It’s a perfect solution for those looking to cool or heat small to medium-sized spaces efficiently and affordably.

Please note: This system is designed for DIY installation and includes a pre-charged Quick Connect line set for easy setup without HVAC tools or certification.

MRCOOL DIY 5th Gen EasyPro 12,000 BTU Single Zone Mini Split Condenser 115V with 16 ft. DIY Quick Connect Line Set Features

Pre-Charged Quick Connect Line Set
Includes a 16 ft. pre-charged line set with R-454B refrigerant—no vacuuming or charging needed.

DIYPRO Cable Included
Equipped with the safety-enhancing DIYPRO cable for straightforward electrical connections.

High-Efficiency Performance
12,000 BTU capacity for reliable cooling and heating, with Energy Star certification for efficiency.

Remote & Smart Control Options
Comes with a wireless remote and is compatible with the MRCOOL SmartHVAC app, Alexa, and Google Assistant.

Durable Construction
Corrosion-resistant finish and robust casing built to withstand the elements.

MRCOOL DIY 5th Gen EasyPro 12,000 BTU Single Zone Mini Split Condenser 115V with 16 ft. DIY Quick Connect Line Set Applications

  • Bedrooms – quietly maintains comfort throughout the night.

  • Home offices – offers consistent temperature for productivity.

  • Small apartments – an energy-efficient solution for compact living spaces.

  • Workshops or garages – ideal for creating year-round usable areas.

  • Rental units – easy to install without hiring a professional.

What’s Included?

  • 12,000 BTU EasyPro Condenser

  • 16 ft. Pre-Charged Quick Connect Line Set

  • DIY Installation Accessories

  • Installation Manual

Warranty

  • Compressor Warranty – 2 Years

  • Parts Warranty – 1 Year

MRCOOL DIY 5th Gen EasyPro 12,000 BTU Single Zone Mini Split Condenser 115V with 16 ft. DIY Quick Connect Line Set Specifications

DIMENSIONS
Dimensions 28.35 W" x 10.63 D" x 19.49 H"
Weight 54.89 lbs
CAPACITY & PERFORMANCE
Zone Capacity 1
Cooling Capacity 12,000 BTU
Outdoor Operating Temperature (Cooling) 5°F - 122°F
EER2 9
SEER2 19.5
Heating Capacity 12,000 BTU
Outdoor Operating Temperature (Heating) 13°F - 75°F
HSPF2-4 9.3
HSPF2-5 7
Coverage Area 550 sq ft.
Outdoor Noise Level 54 dB(A)
ELECTRICAL REQUIREMENTS
Voltage 115V
Phase 1
Cycle 60 Hz
Max Fuse Breaker 20A
Min Circuit Ampacity 19.5A
Refrigerant & Piping
Refrigerant Type R-454B
Refrigerant Volume 21.52 oz
Liquid Line Size 1/4"
Suction Line Size 3/8"
Max Line Set Length 82 ft.
FEATURES
Inverter DC
Compressor Type Rotary
Certifications & Warranty
Certifications UL Listed, CSA Listed, ETL Listed, AHRI Certified
Warranty 2 Year Parts / 1 Year Compressor

Frequently-Asked Questions

Can I install this system myself?

Yes! This EasyPro system is designed for DIY installation and includes a pre-charged Quick Connect line set and DIYPRO cable. No vacuum pumps or special tools are needed.

How long is the included line set?

This unit comes with a 16 ft. pre-charged Quick Connect line set.

Is it compatible with smart devices?

Yes, the system works with the MRCOOL SmartHVAC app and integrates with Alexa and Google Assistant.

Manual

  • MRCOOL DIY 5th Gen EasyPro 12,000 BTU Condenser Manual
