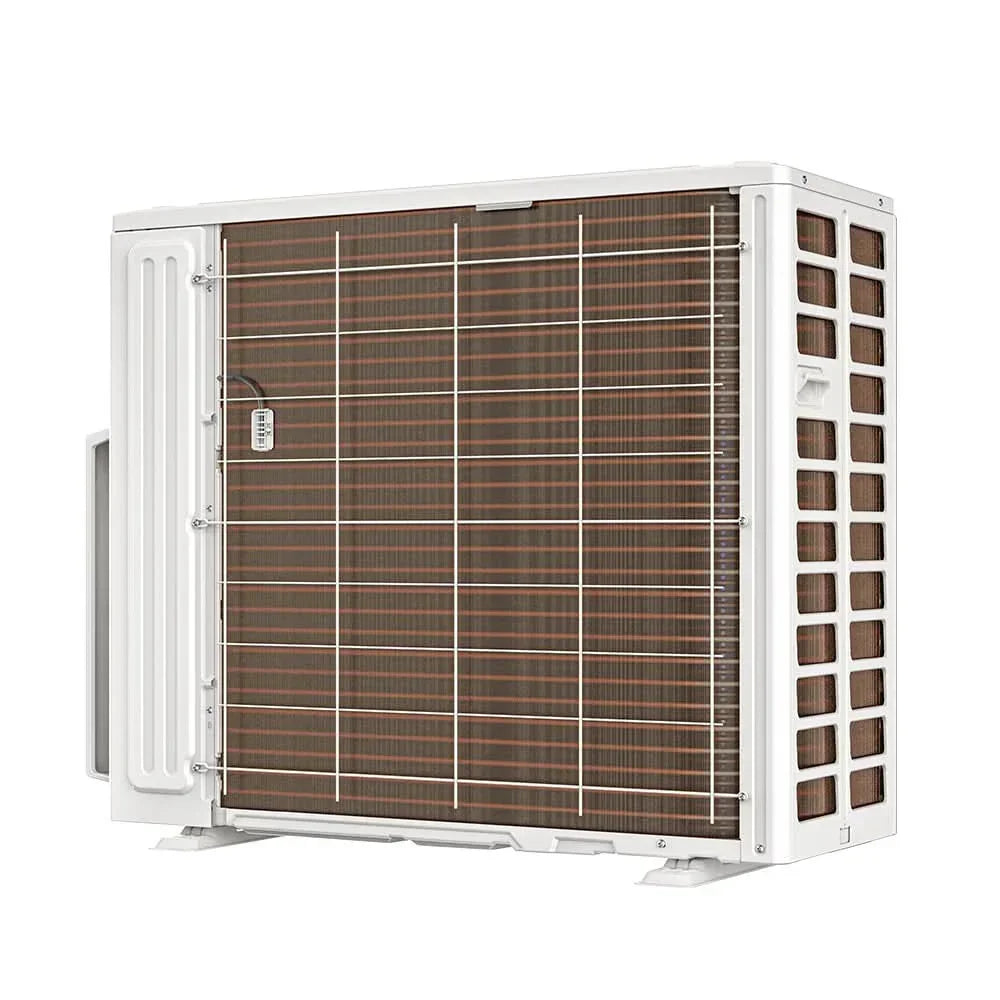

MRCOOL 5th Gen DIY 3-zone condenser R454B, white exterior HVAC unit with side coil view

MRCOOL DIY 5th Gen 36,000 BTU 5-Zone Mini Split Condenser 230v | Condenser Only

Authorized GeoCool Dealer | Full Vendor Warranty Included

Customers rate us 4.6/5 based on 417 reviews.
$2,543.00
$3,292.38
$2,543.00
Save $749.38
Hurry! Only a few left in stock
Order in the next h min to get this to you between and

Need Help? Talk to our experts today!

Live Chat:
Bottom Right Text or Call us:
513-743-2829
🚚
Shipping & Delivery Time Shipping timeline above is an estimate. Please live chat for precise ETAs and shipping costs.
🛡️
30-Day Return Guarantee
Check Policy
💲
Price Match Available
🏷️
Sales Tax Free! (Except AZ, CA, FL, OH, IL)
☀️ SUMMER DEALS ARE HERE – LOWEST PRICES GUARANTEED ☀️
Summer prices are here! Shop now to grab the lowest prices of the season before the sun sets.
MRCOOL 5th Gen DIY 3-zone condenser unit with blue fan, white grille, left side view

GeoCool

MRCOOL DIY 5th Gen 36,000 BTU 5-Zone Mini Split Condenser 230v | Condenser Only

$3,292.38 $2,543.00
MRCOOL 5th Gen DIY 3-zone condenser unit with blue fan, white grille, left side view
MRCOOL 5th Gen DIY condenser outdoor unit in snow, winter HVAC heat pump system
MRCOOL 5th Gen DIY 3-zone condenser, white outdoor AC unit with front metal grille.
MRCOOL 5th Gen DIY 3-zone condenser side profile, white HVAC outdoor unit
MRCOOL 5th Gen DIY 3-zone condenser unit close-up with blue valve caps
MRCOOL 5th Gen DIY 3-zone condenser R454B, white exterior HVAC unit with side coil view

GeoCool

MRCOOL DIY 5th Gen 36,000 BTU 5-Zone Mini Split Condenser 230v | Condenser Only

$3,292.38 $2,543.00
  • Description

MRCOOL DIY 5th Gen 36,000 BTU 5-Zone Mini Split Condenser 230V | Condenser Only

The MRCOOL DIY 5th Gen 36,000 BTU 5-Zone Mini Split Condenser offers unmatched flexibility, powering up to five indoor air handlers for customized comfort throughout your home or business. With a 22 SEER2 energy efficiency rating, this condenser is designed to deliver superior performance while keeping energy bills low. Covering up to 1,500 sq. ft., it ensures both heating and cooling in extreme temperatures, ranging from -13°F to 122°F.

Please note: This listing is for the condenser only. Air handlers, Quick Connect line sets, and accessories must be purchased separately for a complete installation.

MRCOOL DIY 5th Gen 36,000 BTU 5-Zone Mini Split Condenser 230V | Condenser Only Features

Multi-Zone Comfort

Supports up to five indoor zones, allowing personalized temperature control for each space.

Energy-Efficient Performance

Boasts a 22 SEER2 rating and 12 EER2, making it one of the most efficient DIY-friendly systems available.

Year-Round Comfort

Provides 34,000 BTU cooling and 36,000 BTU heating, ensuring consistent comfort in all seasons.

Smart Home Integration

Built-in Wi-Fi compatibility with iOS, Android, Alexa, and Google Assistant.

DIY Installation

MRCOOL’s Quick Connect line set technology eliminates the need for HVAC tools or professional installation.

Quiet & Reliable

Runs at just 64 dB(A) for quiet operation, even during heavy loads.

Placeholder Image

MRCOOL DIY 5th Gen 36,000 BTU 5-Zone Mini Split Condenser 230V | Condenser Only Applications

  • Large homes – Condition multiple bedrooms, living rooms, or open-concept spaces.
  • Small offices – Provide zoned comfort for workspaces and conference rooms.
  • Shops & studios – Maintain climate control in creative or retail environments.
  • Renovations or additions – Perfect for basements, attic conversions, and home expansions.

What's Included

Everything you need is included with your product.

  • 36,000 BTU 5th Gen condenser unit
  • User Manual

Warranty

  • 7 Years Compressor
  • 5 Years Parts

MRCOOL DIY 5th Gen 36,000 BTU 5-Zone Mini Split Condenser 230V | Condenser Only Specifications

Dimensions & Weight

Specifications Details
Dimensions 37.24" W x 16.14" D x 31.89" H
Weight 169.24 lbs

Capacity & Performance

Specifications Details
Zone Capacity 5
Cooling Capacity 34,000 BTU
SEER2 22
EER2 12
Heating Capacity 36,000 BTU
HSPF2-4 9.9
HSPF2-5 7.5
Coverage Area up to 1,500 sq. ft.
Outdoor Noise Level 64 dB(A)
Outdoor Operating Temperature Cooling: 5°F – 122°F | Heating: -13°F – 75°F

Electrical Requirements

Specifications Details
Voltage 208-230V
Phase 1
Cycle 60 Hz
Max Fuse Breaker 35A
Min Circuit Ampacity 30.5A

Refrigerant & Piping

Specifications Details
Refrigerant Type R-454B
Refrigerant Volume 104.75 oz
Liquid Line Size 1/4"
Suction Line Size (3/8 X4) (1/2 X1)
Max Line Set Length 221.4 ft.

Features

Specifications Details
Inverter DC
Compressor Type Rotary
Fan Only Option Yes
Quiet Mode Yes
Auto Cool Yes
Wifi Compatibility Yes
App Compatibility Yes
Works with IOS Yes
Works with Android Yes
Remote Control Included Yes

Certifications & Warranty

Specifications Details
Certifications Energy Star Certified, UL Listed, ETL Listed, AHRI Certified
Warranty 7 Years Compressor | 5 Years Parts

Frequently-Asked Questions

Does this condenser include air handlers?

No. This is the condenser-only listing. Air handlers and line sets must be purchased separately.

Is it really DIY?

Yes. The MRCOOL DIY system uses Quick Connect line sets, designed for homeowners to install without HVAC tools or certification.

How many rooms can it support?

Up to five rooms/zones, provided the correct air handlers are paired.

Manual

  • MRCOOL DIY 5th Gen 36,000 BTU 5-Zone Mini Split Condenser 230V Manual
