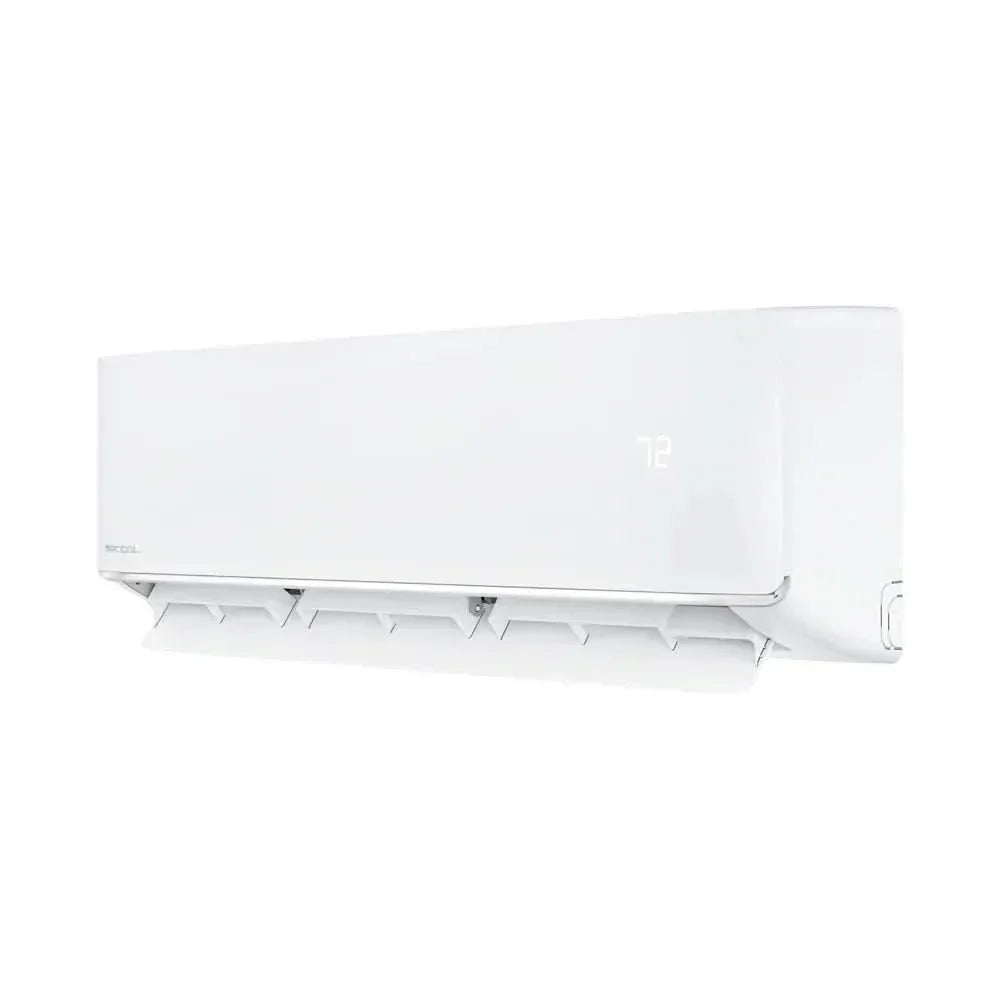

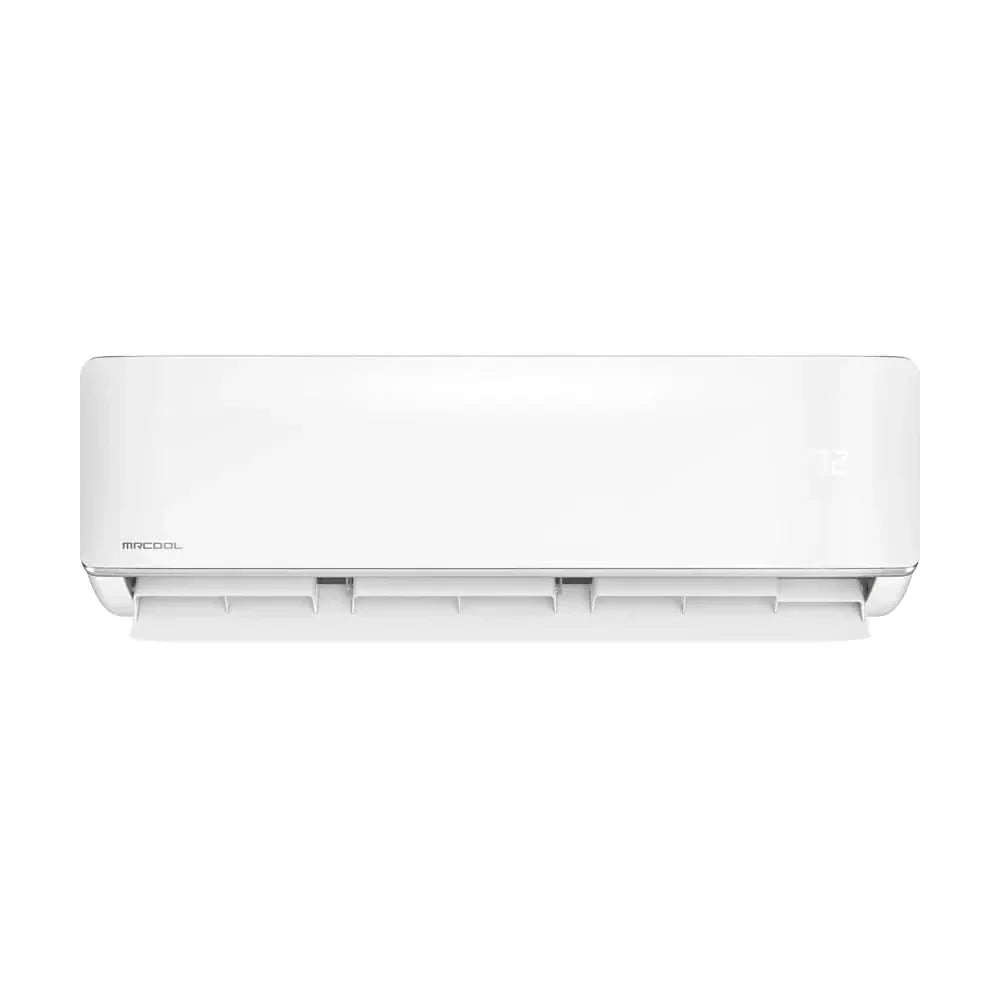

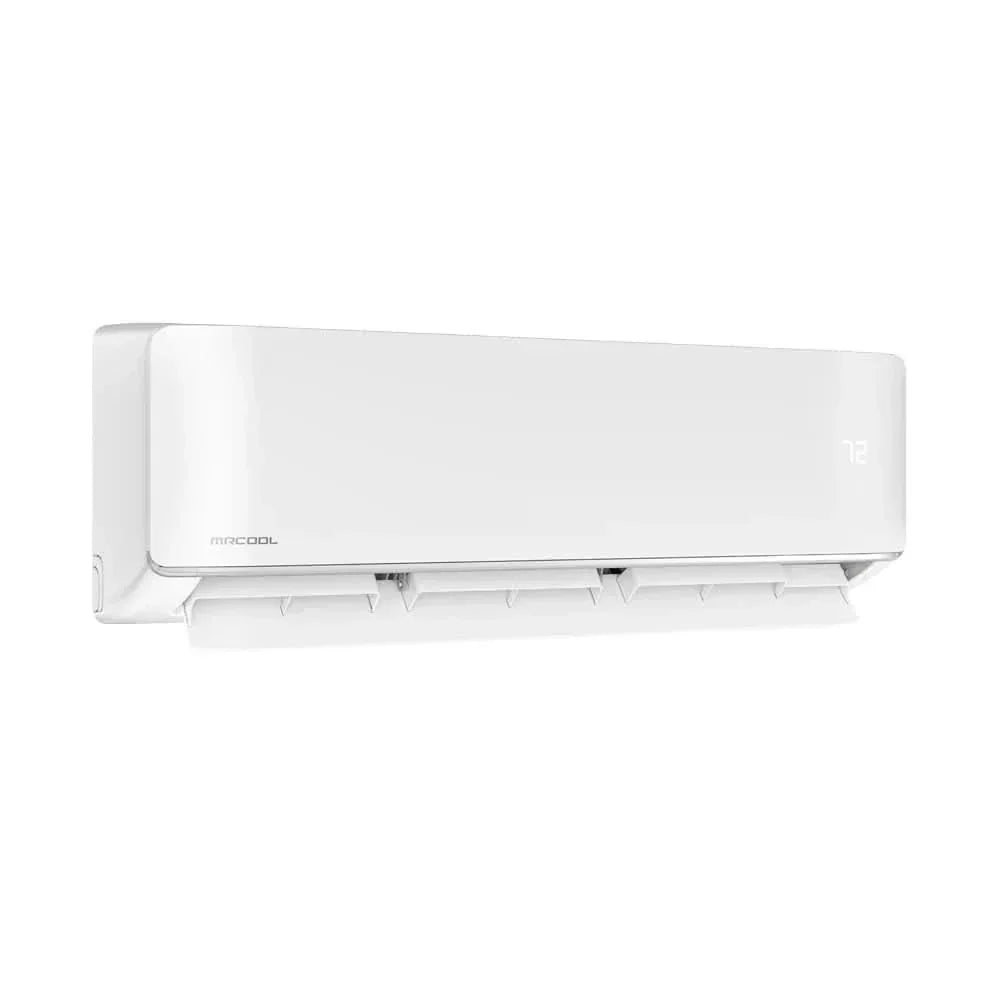

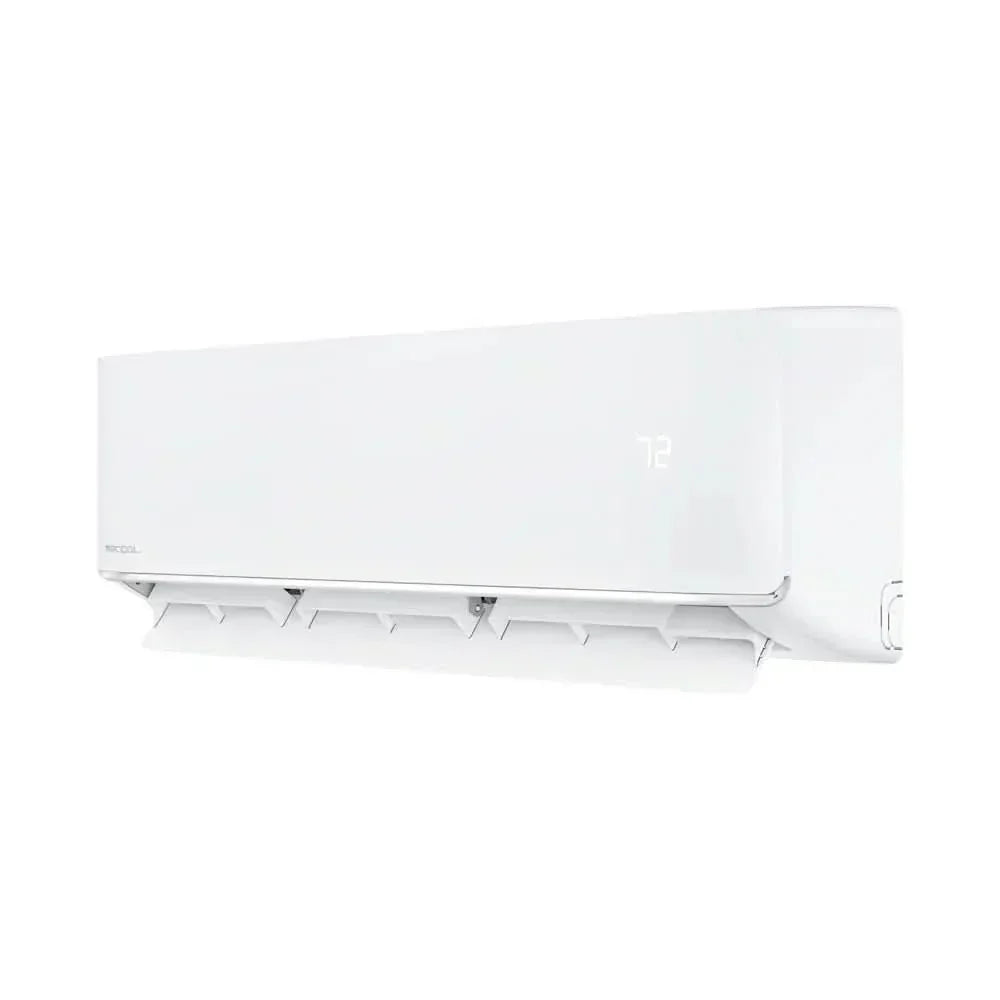

MRCOOL DIY 5th Gen 12,000 BTU Multi-Zone Mini Split Air Handler 230V | Air Handler Only

The MRCOOL DIY 5th Gen 12,000 BTU Multi-Zone Air Handler is designed for zoned comfort and energy efficiency. Engineered to work seamlessly with MRCOOL’s multi-zone condensers and pre-charged Quick Connect line sets (sold separately), this air handler empowers homeowners to install their own customized mini split system. With features like smart controls, whisper-quiet operation, and high SEER efficiency, it’s a powerful yet compact solution for targeted climate control in any part of the home.

Please note: This air handler is part of the MRCOOL DIY Multi-Zone system. It must be paired with a compatible DIY condenser and a separately purchased pre-charged Quick Connect line set for full functionality.

MRCOOL DIY 5th Gen 12,000 BTU Multi-Zone Mini Split Air Handler 230V Features

DIY-Friendly Installation

Designed to connect easily with MRCOOL pre-charged Quick Connect line sets—no special tools or certification required.

Smart Control Compatibility

Works with the MRCOOL SmartHVAC app, Amazon Alexa, and Google Assistant for remote control and scheduling.

Quiet Operation

Runs at low decibel levels for unobtrusive comfort in bedrooms, offices, and more.

Even Air Distribution

Auto-swing louver ensures efficient and balanced airflow throughout the zone.

Auto Restart Functionality

Restores previous settings after a power outage, reducing setup hassle.

Placeholder Image

MRCOOL DIY 5th Gen 12,000 BTU Multi-Zone Mini Split Air Handler 230V Applications

  • Bedroom – keep your sleeping area cool and quiet.
  • Home office – maintain focus in a climate-controlled workspace.
  • Living room – supplement comfort where central HVAC doesn't reach.
  • In-law suite – add personalized comfort to private spaces.
  • Detached shed or studio – deliver targeted climate control to remote zones.

What's Included

Everything you need is included with your product.

  • 12,000 BTU Multi-Zone Air Handler
  • Smart remote control
  • Mounting bracket and installation hardware
  • User manual

Warranty

  • 7 Years Compressor
  • 5 Years Parts

MRCOOL DIY 5th Gen 12,000 BTU Multi-Zone Mini Split Air Handler 230V Specifications

Dimensions & Weight

Specifications Details
Dimensions 31.57" W x 7.44" D x 11.63" H
Mount Type Wall
Weight 24.47 lbs

Capacity & Performance

Specifications Details
Capacity 12,000 BTU
Coverage Area 351 to 500 sq. ft.

Electrical Requirements

Specifications Details
Voltage 208-230V
Phase 1
Cycle 60 Hz
Max Fuse Breaker 15A
Min Circuit Ampacity 3A

Refrigerant & Piping

Specifications Details
Refrigerant Type R-454B
Liquid Line Size 1/4"
Suction Line Size 3/8"

Features

Specifications Details
Fan Only Option Yes
Quiet Mode Yes
Auto Cool Yes
Wifi Compatibility Yes
App Compatibility Yes
Works with IOS Yes
Works with Android Yes
Remote Control Included Yes

Certifications & Warranty

Specifications Details
Certifications UL Listed, ETL Listed, AHRI Certified
Warranty 5 Year Parts and 7 Year Compressor

Frequently-Asked Questions

Does this air handler come with a pre-charged line set?

No. The air handler is compatible with MRCOOL’s DIY pre-charged Quick Connect line sets, but they must be purchased separately.

Can I install this without an HVAC technician?

Yes. This unit is part of the MRCOOL DIY Multi-Zone series and is designed for homeowner installation using the pre-charged Quick Connect line sets and a compatible DIY condenser.

Can this be used with single-zone condensers?

No. This model is designed specifically for MRCOOL DIY Multi-Zone systems only.

Manual

  • MRCOOL DIY 5th Gen 12,000 BTU Multi-Zone Mini Split Air Handler 230V Manual
