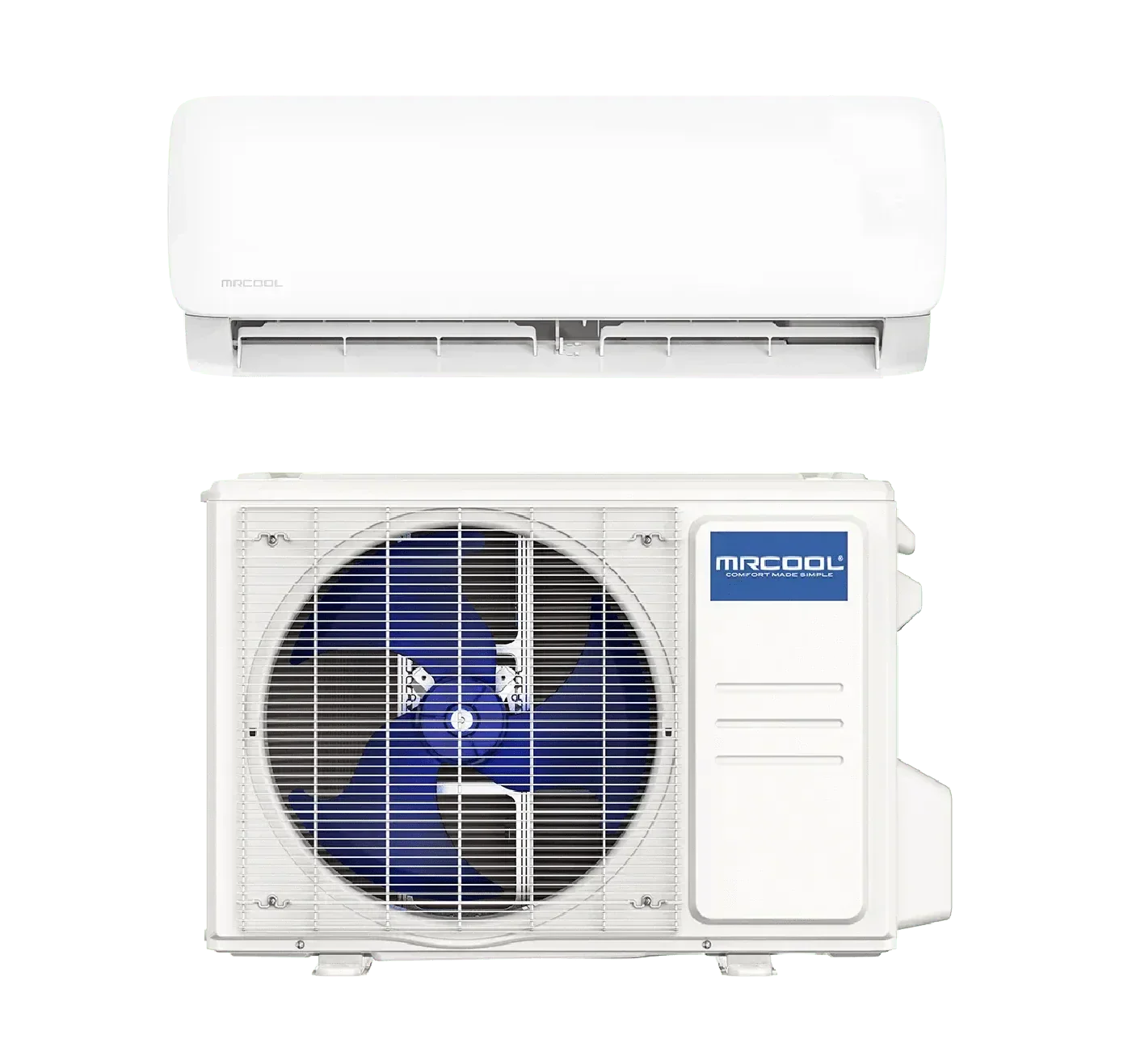

MRCOOL DIY 5th Gen EasyPro 9,000 BTU Single Zone Mini Split Complete System 115V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable | SYSTEM SET

The MRCOOL DIY 5th Gen EasyPro 9,000 BTU Single Zone Mini Split System is the ultimate affordable, efficient, and DIY-friendly heating and cooling solution for small spaces. Designed with pre-charged Quick Connect lines and the DIYPRO cable, this system eliminates the need for special tools or HVAC certification, allowing homeowners to install it themselves with confidence. With 20.2 SEER2 efficiency and advanced inverter technology, you’ll enjoy year-round comfort while keeping energy costs low.

Please note: This system is designed for DIY installation and includes a pre-charged Quick Connect line set for easy setup without HVAC tools or certification.

MRCOOL DIY 5th Gen EasyPro 9,000 BTU Single Zone Mini Split Complete System Features

Easy DIY Installation

Includes 16 ft. pre-charged DIY Quick Connect line set and DIYPRO cable—no vacuuming or special tools needed.

High Efficiency

Delivers 20.2 SEER2 cooling and 9.2 HSPF2-4 heating efficiency, saving you money on utility bills.

Advanced Modes

Multiple comfort modes including Auto, Cool, Heat, Fan-Only, Dry (Dehumidification), and Sleep Mode for maximum flexibility.

Smart Control

WiFi-enabled with smartphone app compatibility for iOS and Android, plus voice assistant integration.

Quiet Operation

Indoor noise levels as low as 18 dB(A) ensure whisper-quiet comfort.

Placeholder Image

MRCOOL DIY 5th Gen EasyPro 9,000 BTU Single Zone Mini Split Complete System Applications

  • Small bedrooms – efficient comfort in compact spaces
  • Home offices – stay cool or warm while working
  • Studio apartments – great for single-zone coverage
  • Sunrooms – regulate hard-to-control temperature areas
  • Tiny homes – perfect for compact living spaces

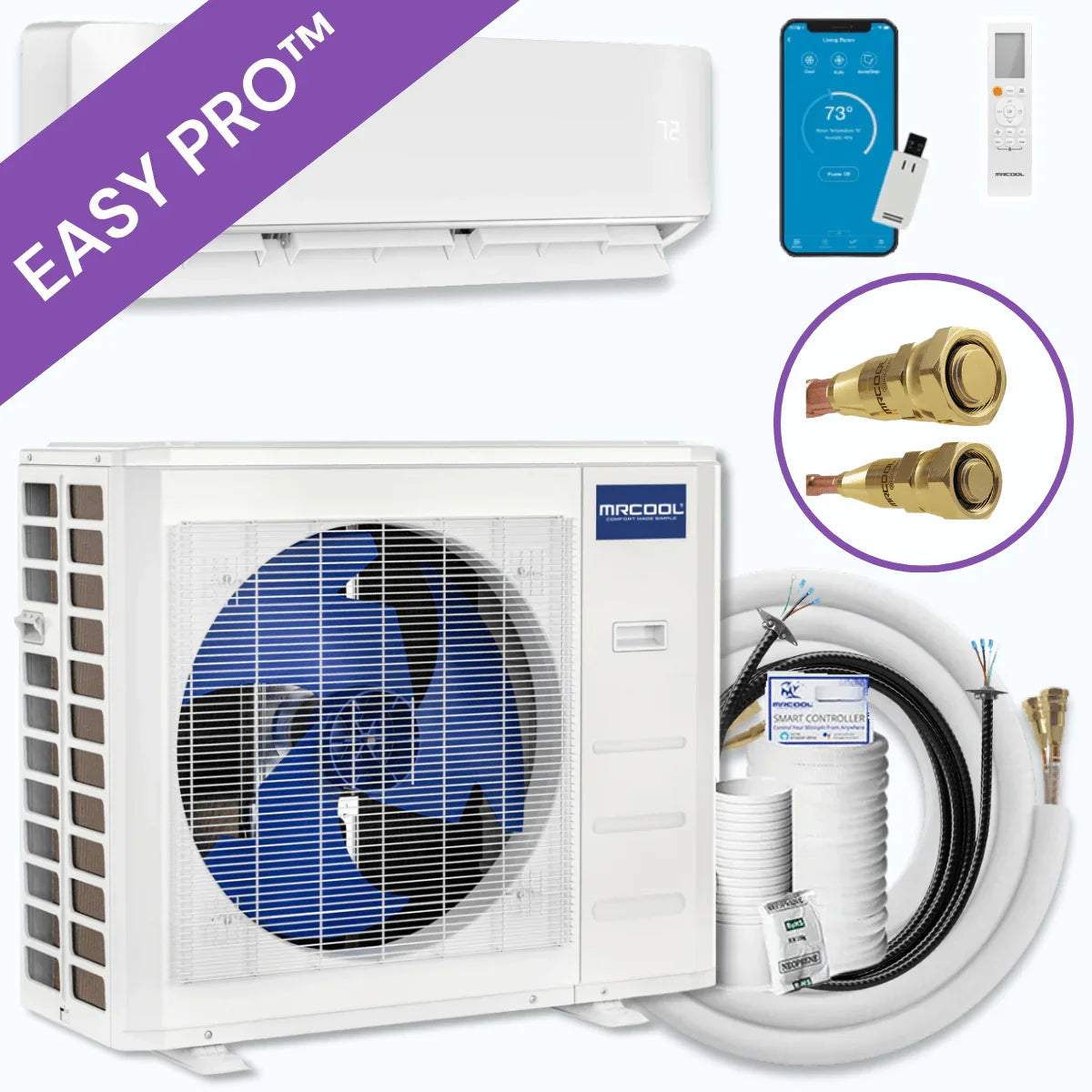

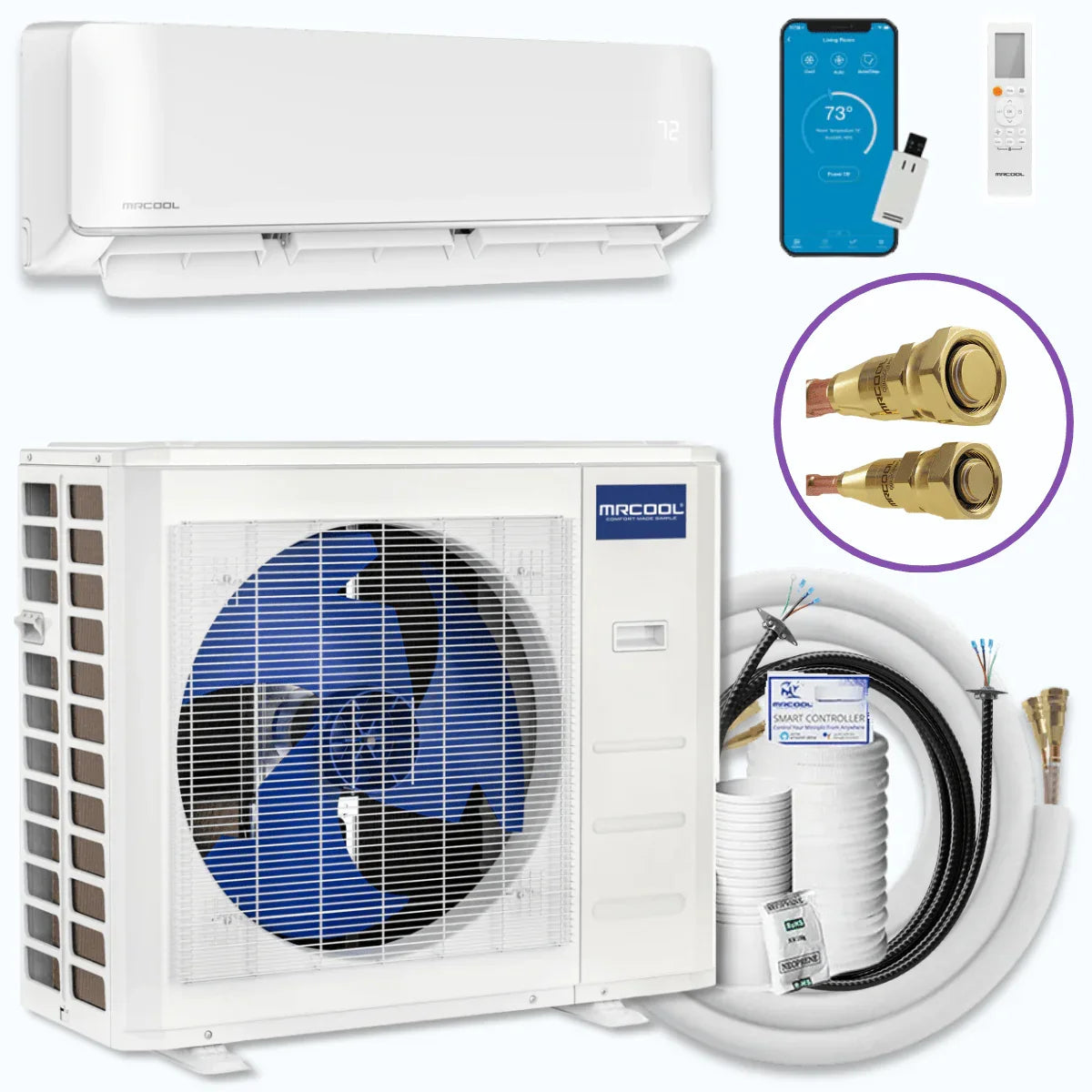

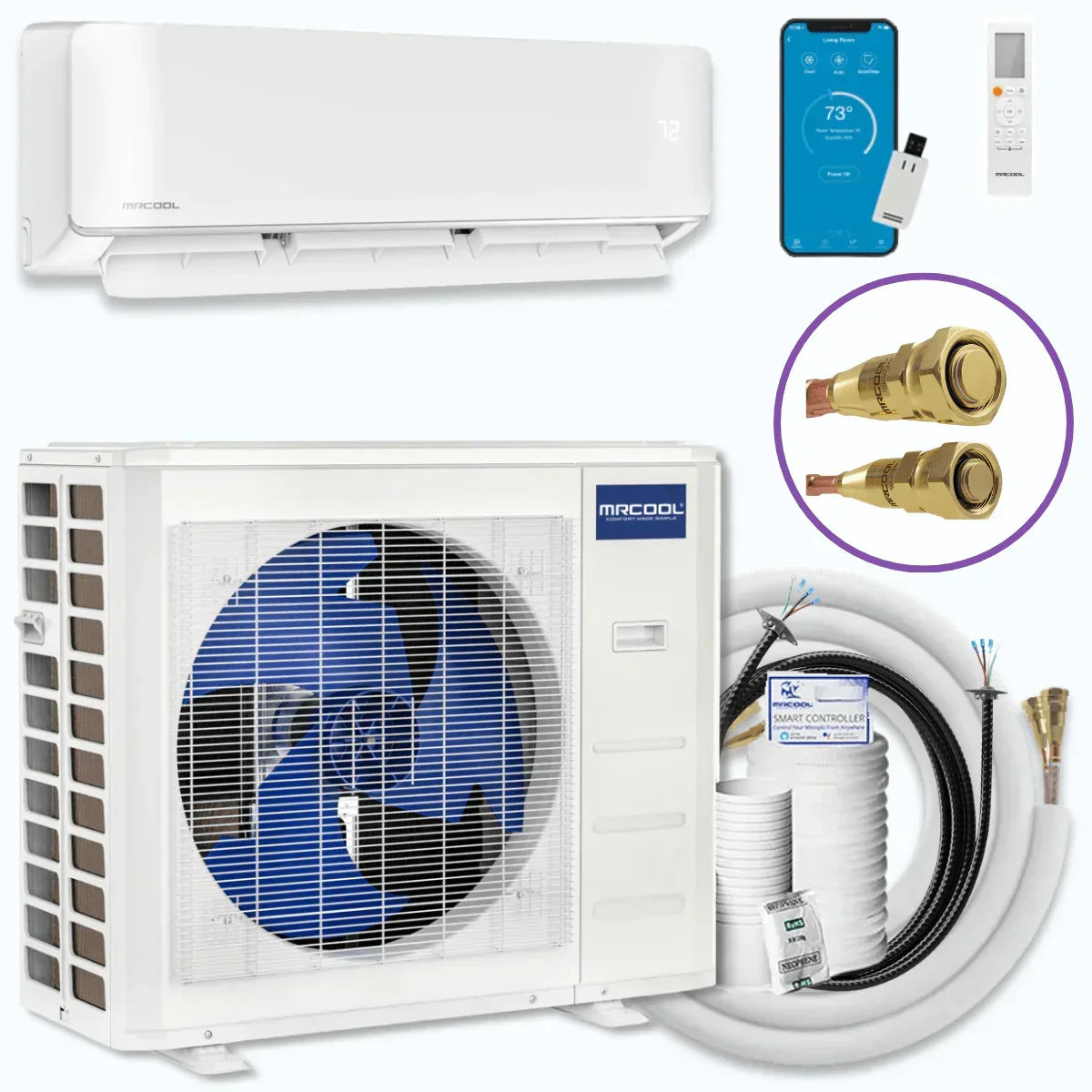

What's Included

Everything you need is included with your product.

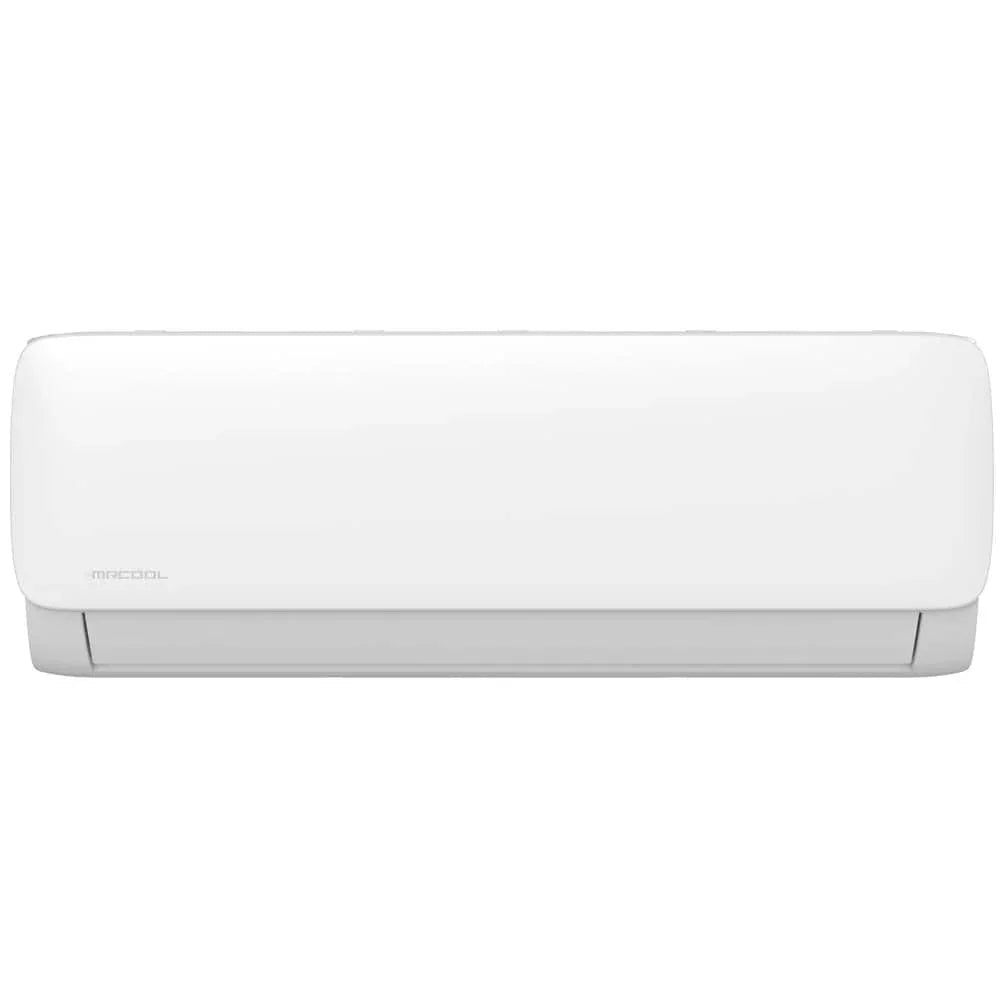

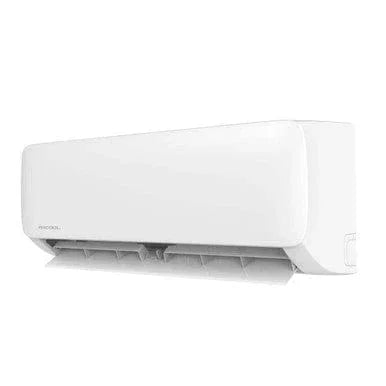

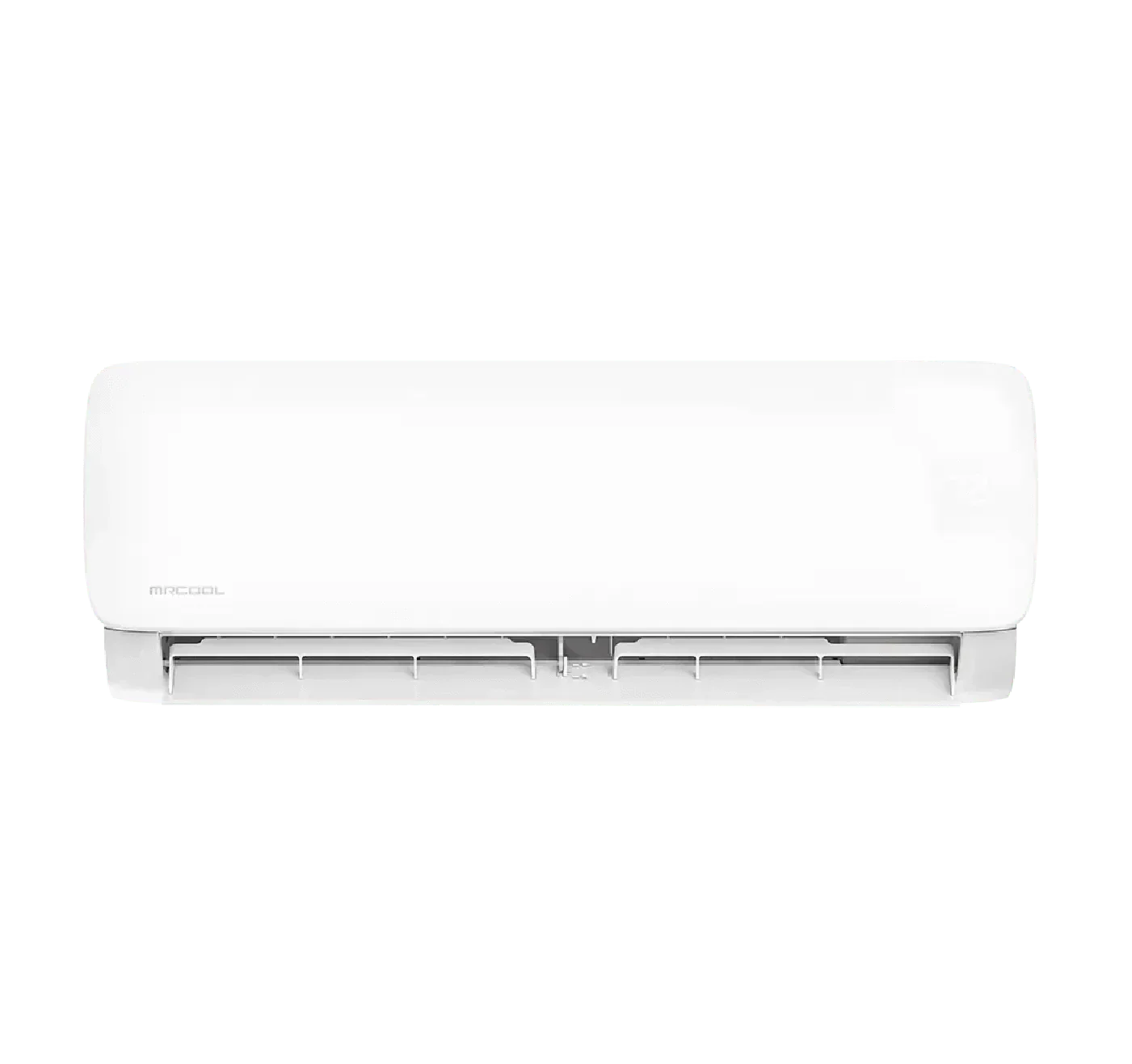

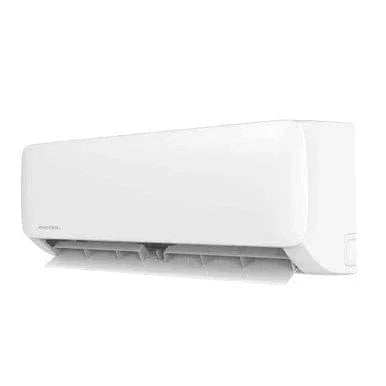

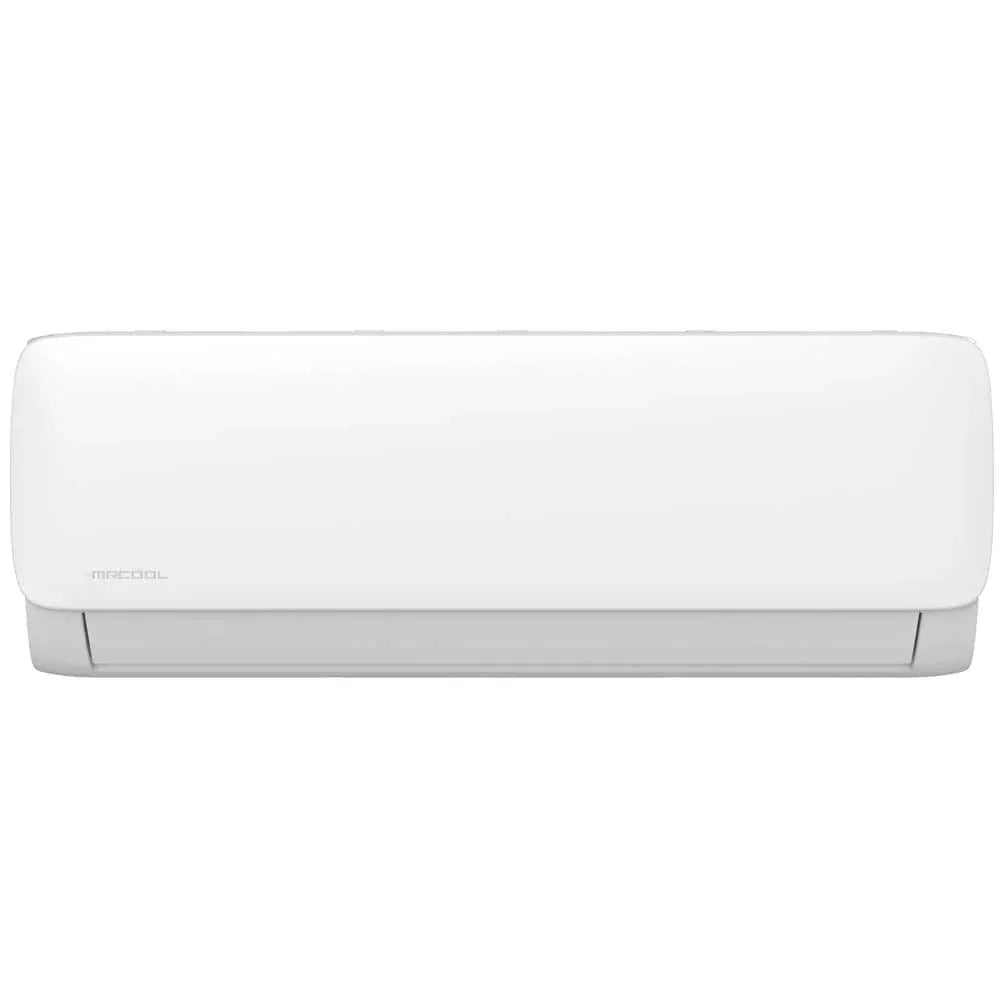

  • MRCOOL DIY 5th Gen EasyPro 9,000 BTU Indoor Air Handler

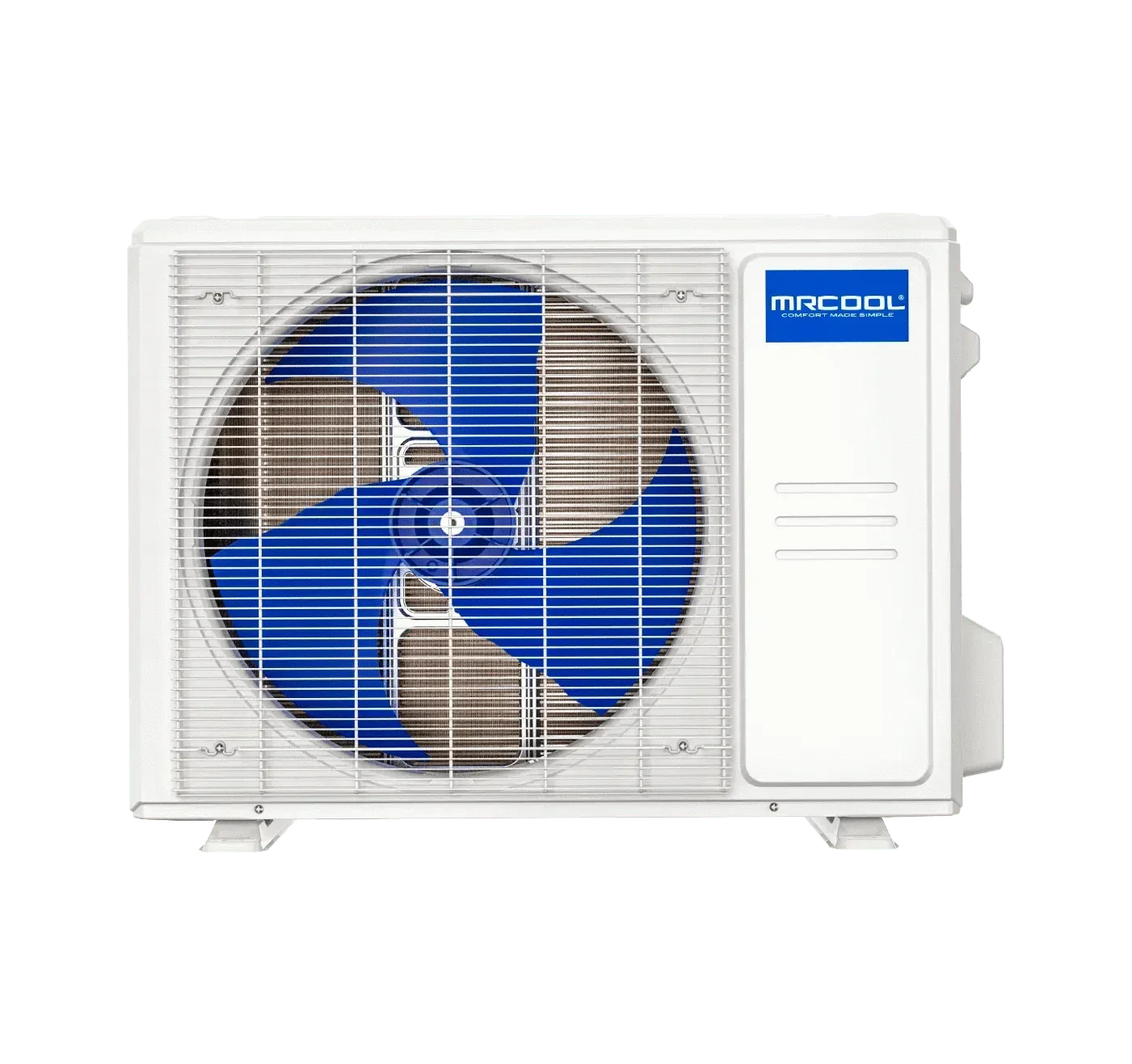

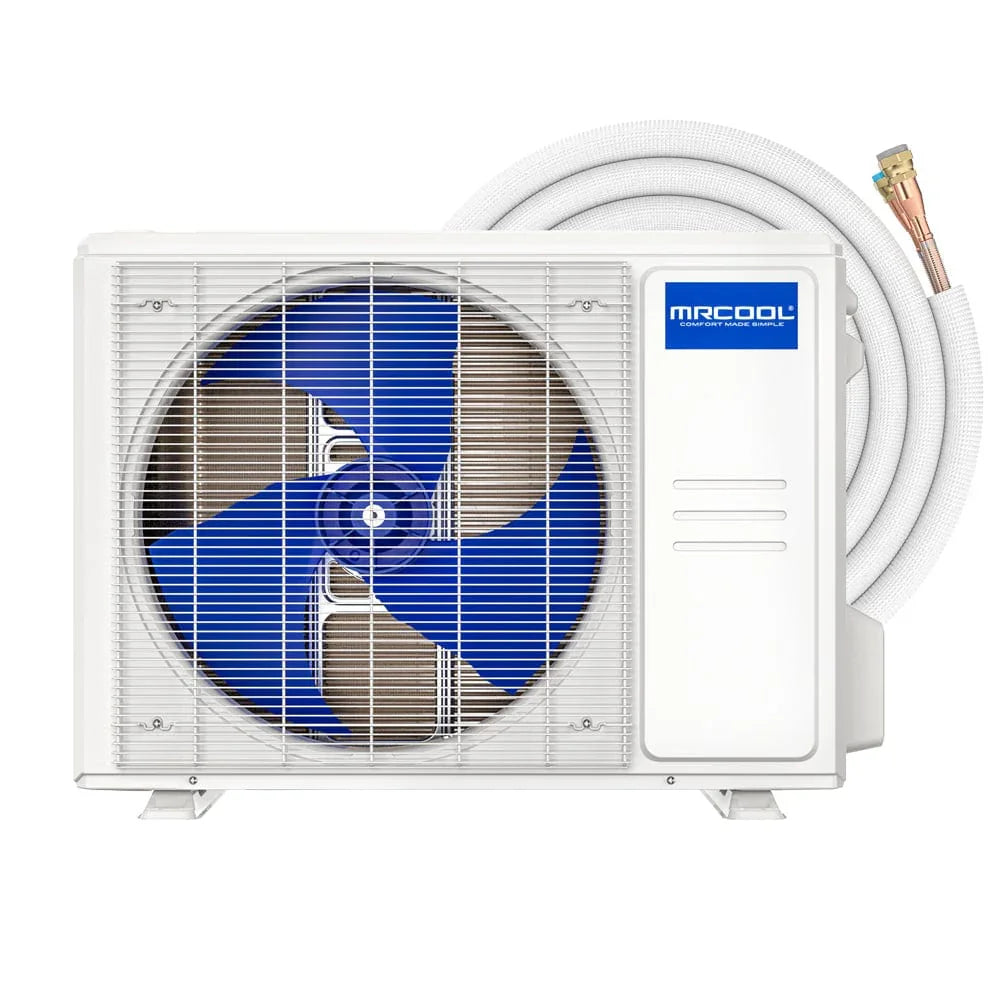

  • MRCOOL DIY 5th Gen EasyPro 9,000 BTU Outdoor Condenser
  • 16 ft. Pre-Charged Quick Connect Line Set
  • DIYPRO Cable
  • Remote Control
  • Installation Manual

Warranty

  • 1 Year Compressor
  • 2 Years Parts

MRCOOL DIY 5th Gen EasyPro 9,000 BTU Single Zone Mini Split Complete System Specifications

Dimensions & Weight

Specifications Details
Condenser Dimensions 28.35 W" x 10.63 D" x 19.49 H"
Condenser Weight 54.67 lbs
Air Handler Dimensions 152.12 lbs / 69 kg
Air Handler Weight 23.81 lbs

Capacity & Performance

Specifications Details
Zone Capacity 1
Cooling Capacity 9,000 BTU
Outdoor Operating Temperature (Cooling) 5°F - 122°F
EER2 11.3
SEER2 20.2
Heating Capacity 10,000 BTU
Outdoor Operating Temperature (Heating) 13°F - 75°F
HSPF2-4 9.2
HSPF2-5 7.1
Coverage Area Up to 400 sq ft.
Outdoor Noise Level 54 dB(A)
Indoor Noise Level (Hi/Mi/Lo) 43.0/31.0/18.0 dB(A)

Electrical Requirements

Specifications Details
Voltage 115V
Phase 1
Cycle 60 Hz
Max Fuse Breaker 20A
Min Circuit Ampacity 17A

Refrigerant & Piping

Specifications Details
Refrigerant Type R-454B
Refrigerant Volume 17.28 oz
Liquid Line Size 1/4"
Suction Line Size 3/8"
Max Line Set Length 82 ft.

Features

Specifications Details
Inverter DC
Compressor Type Rotary
Fan Only Option Yes
Quiet Mode Yes
Auto Cool Yes
Wifi Compatibility Yes
App Compatibility Yes
Works with IOS Yes
Works with Android Yes
Remote Control Included Yes
Modes Auto Mode: Automatically selects heating or cooling based on the room's temperature. | Cool Mode: Lowers the room temperature to your desired setting. | Heat Mode: Raises the room temperature to your desired setting. | Fan-Only Mode: Circulates air without heating or cooling. | Dry Mode (Dehumidification): Reduces humidity levels in the room. | Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.

Certifications & Warranty

Specifications Details
Certifications UL Listed, CSA Listed, ETL Listed, AHRI Certified
Warranty 2 Year Parts / 1 Year Compressor

Frequently-Asked Questions

Is this system truly DIY?

Yes! The EasyPro line is designed with MRCOOL’s patented Quick Connect pre-charged line sets, eliminating the need for special HVAC tools or certification.

What size room is this best for?

This 9,000 BTU system is ideal for rooms up to 400 sq. ft., such as small bedrooms, offices, or sunrooms.

Can I extend the line set?

Yes, you can extend up to 82 ft., but performance may vary depending on installation conditions.

Manual

  • MRCOOL DIY 5th Gen EasyPro 9,000 BTU Single Zone Manual
