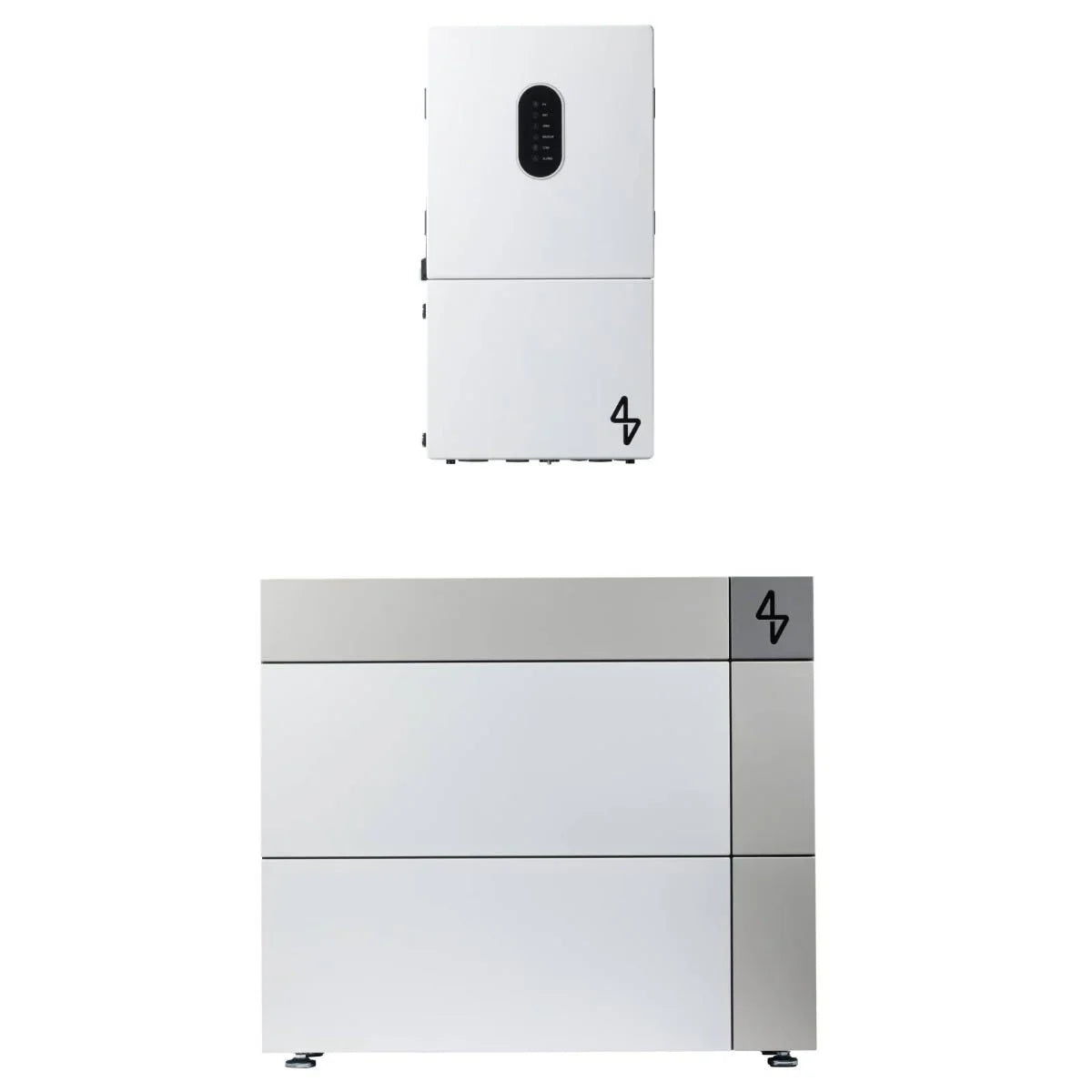

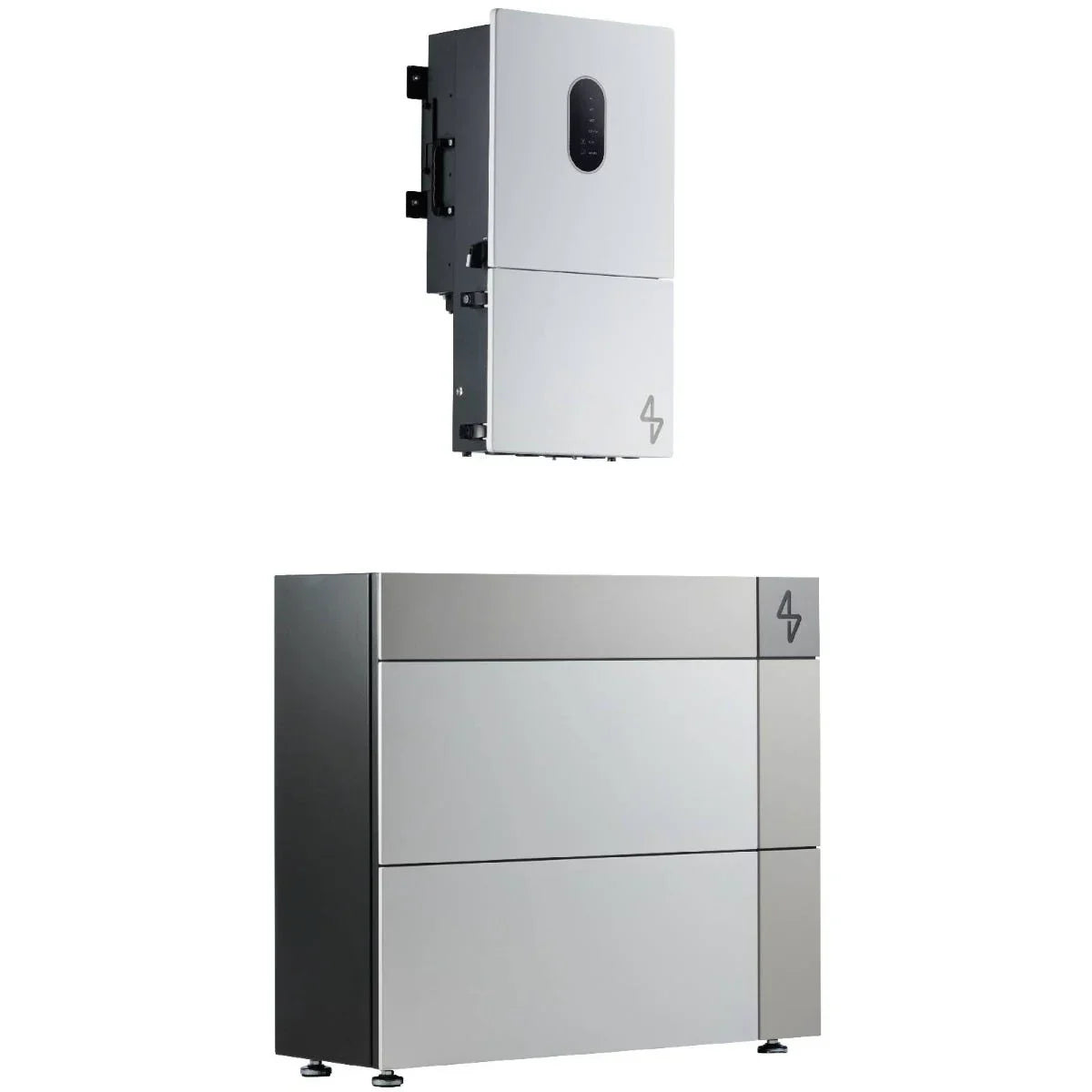

MeterHome Standard Residential Battery Backup System – 14.3 kWh LiFePO4 Energy Storage with Hybrid Inverter, 10 kW Output, 24/7 Remote Monitoring  – Whole-Home Solar & Grid Backup (Includes 1 ESS 10kw Inverter & 1 14.3kWh ESS Battery)

The MeterHome battery system delivers 10 kW continuous output and 14.3 kWh storage per enclosure, making it ideal for backup power, solar integration, or off-grid living. Built in the USA with safe, cobalt-free LiFePO₄ technology, it offers superior thermal stability and long-lasting performance. Enjoy 24/7 remote monitoring from a U.S.-based control center to ensure your system stays optimized and reliable.

Eligible for 30% federal tax credits and additional local incentives, MeterHome combines affordability with scalability—link up to 8 batteries and 9 inverters for massive 90 kW continuous power. A 10-year warranty, $1 million liability coverage for the first three years, and advanced safety features make it a dependable choice for uninterrupted home energy.

Inverter Mechanical Specs

  • Weight Approximation: 88 lbs. (40 kg)
  • Dimension (W x D x H): 16.5" x 9.4" x 31.5" (420mm x 240mm x 800mm)
  • Mounting: Wall bracket
  • Cooling Method: Fan Cooling
  • Ingress Protection Degree: NEMA 3R

Inverter Environment Specs

  • Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)
  • Maximum Operation Altitude: max 6,562ft (2000m)
  • Relative Humidity: 0~100%
  • Ingress Protection Degree: NEMA 3R

Inverter Performance Specs

  • Nominal AC Output (W): 10,000
  • Maximum PV Input Power (W): 15,000
  • Maximum Input Current per MPPT (A): 30/22/22
  • Nominal Grid Voltage (Vac): 120/240V (Split phase) / 208V (2/3 phase)
  • Nominal Grid Frequency (Hz): 50/60
  • Rated PV Input Voltage (Vdc): 600
  • Start Up DC Voltage (Vdc): 90
  • MPPT Voltage Range (Vdc): 70-540
  • Maximum PV Circuit Current (A): 44+44
  • Number of MPPT: 3
  • String per MPPT: 2/2/2
  • PV Connection Way: Terminals
  • Peak Power (off grid): 2 times of rated power, 10s
  • Power Factor: 0.8 leading to 0.8 lagging
  • DC Injection Current (mA): THD <3% (Linear load <1.5%)
  • Maximum Efficiency (PV to AC): 98.0%
  • Maximum Efficiency (BAT to AC): 94.5%
  • CEC. Efficiency: 96.5%
  • Communication Interface: CAN(for BMS), DRM/RS485 (for meter), RS485
  • Safety Certification: UL1741, CSA C22.2, UL1699B
  • Grid Regulation: UL1741SB, IEEE1547 :2018, HECO SRD 2.0
  • EMC: FCC Part 15 Class B
  • Protection Category: Class I
  • Connects up to: 9 Inverters



Battery Enclosure Mechanical Specs

  • Dimension (W x D x H): 39.6" x 16" x 34.5" (1006mm x 406mm x 876mm)
  • Weight Approximation: 463 lbs. (210 kg)
  • Installation Style: Indoor, Floor Mounted
  • Cooling: air-cooled

Battery Enclosure Environment Specs

  • Humidity: 5%-95%
  • Maximum Operation Altitude: max 6,562ft (2000m)
  • Enclosure Protection Rating: IP 44

Battery Enclosure Performance Specs

  • Energy Configuration (kWh): 14.3
  • Maximum Charging / Discharging Current (A): 150
  • Battery Operating Voltage (V): 40-58.4
  • Battery Chemistry: LiFePO4
  • Charging Temperature Range: 0°C to 35°C (32°F to 95°F)
  • Discharging Temperature Range: -30°C to 35°C (-22°F to 95°F)
  • Cycle Life: 25°C (77°F) 8000 cycles, 70% SOH / 45°C (113°F) 3000 cycles, 70% SOH
  • Safety Certification: UL60730, UL1973, UL9540, UL9540A, UN38.3
  • Warranty: 10 years (Standard)
  • Connects up to: 8 Battery Enclosures
More Information
Condition New
Country of Manufacture U.S.A.
Brand MeterHome
Warranty Life 10yr
Chemistry LiFePO4
Rechargeable Yes
Enclosure Rating IP44
Enclosure Protection IP 44
Certifications UL 1741, UL 9540, UL 9540A, UN 38.3, CSA 22.2, UL1973, UL1699B, UL60730
Cooling Fan Cooling (Inverter), Air Cooled (Enclosure)
Communication CAN(for BMS), DRM/RS485 (for meter), RS485
Mounting Options Wall Bracket (Inverter), Indoor Floor Mounted (Enclosure)
MeterHome hybrid solar battery and inverter energy storage system battery split phase wiring diagram technical details information.
MeterHome hybrid solar battery and inverter energy storage system battery split phase wiring diagram technical details information.
MeterHome hybrid solar battery and inverter energy storage system battery split phase wiring diagram technical details information.

MeterHome Residential Battery Energy Storage System FAQ's

How is Meter different from other batteries out there?

MeterHome batteries are proudly built in the United States, setting them apart with a commitment to local craftsmanship and quality. Every battery is fully self-monitored and remotely optimized for peak efficiency by our professional control center, ensuring top performance without user intervention. In the event of errors or performance drops, our engineers will either perform automatic maintenance or dispatch a technician for on-site service. Unlike many competitors, we use Lithium Iron Phosphate (LiFePO4) batteries, which offer superior safety advantages, are free of cobalt (addressing ethical concerns), and exhibit exceptional thermal stability and a higher thermal runaway temperature. Additionally, our batteries come with $1 million in liability insurance for the first three years, enhancing safety and peace of mind.

When will I receive my tax credit and state rebates?

The federal tax credit will be applied when you file your annual tax return. State rebates may take up to six months after project completion, depending on local regulations and processing times.

Are shipping, permitting, and installation included?

Shipping, permitting, and installation fees are subject to your local distributor. MeterHome provides support through our structured process, including consultation and needs assessment, to help you navigate these costs and requirements effectively.

What type of battery is inside?

We use Lithium Iron Phosphate (LiFePO4) batteries. In addition to their superior safety advantages, LiFePO4 batteries are free of cobalt, a toxic substance associated with significant humanitarian and ethical concerns, making them a sustainable and ethical choice.

Can my battery be used every day?

Yes, our batteries are designed for everyday use. They support prolonged battery life with no restriction on depth of discharge when used daily, and our safety features help prevent damages, ensuring consistent performance.

Is MeterHome safe?

Lithium Iron Phosphate (LiFePO4) is considered safer than other battery types, such as lithium cobalt batteries, due to its greater thermal stability and significantly higher thermal runaway temperature. Our commitment to safety is further demonstrated by the inclusion of $1 million in liability insurance for MeterHome batteries for the first three years. Additionally, our professional control center monitors health data and provides proactive alerts for any concerns.

Will it work with existing batteries from other companies?

MeterHome batteries are designed to operate exclusively with our MeterHome batteries to ensure optimal performance and safety. However, your MeterHome system will be compatible with most existing solar setups, allowing seamless integration into your current configuration.

How do I prolong the life of my battery?

We do not restrict the depth of discharge if the battery is used daily. If it is not used daily, we suggest a resting stage between 40% and 60% to prolong battery life. Our safety features also protect against damages, and our professional control center offers remote optimization and automatic maintenance to enhance longevity.

What is the warranty?

Each MeterHome battery comes with a 10-year warranty, reflecting our confidence in their durability and performance.

Can I participate in a program with my utility company where they deduct my energy contribution to the grid from my electric bill or otherwise compensate me?

Yes, our batteries support participation in such financial benefit programs. Please contact your local utility company to inquire about their specific offerings. Whether you are considering a single installation or a multi-unit deployment across an entire community, we can customize a pilot program to accomplish your goals. Our structured process includes:

  1. Consultation & Needs Assessment: During this no-obligation consultation, the Meter team, including technical and economic experts, will discuss your challenges and goals, review data like load profiles and outage history, identify use cases (e.g., peak demand reduction, resilience), and provide a customized preliminary plan outlining real-world benefits.
  2. Program Design & Proposal: We collaborate to design your tailored program, deciding on the model, sizing the pilot (including the number of units), crafting operational plans, and developing customer offerings and incentives. A comprehensive proposal with costs, milestones, and benefits is delivered for approval.
  3. Pilot Implementation Support: Meter provides project management, installation and commissioning training (or turnkey services with certified partners), IT system integration (e.g., VPN, DERMS, or MeterHome platform), safety and operational training, marketing support, and engineer-to-engineer assistance.
  4. Launch and Monitoring: We monitor initial performance, provide regular reports on battery usage and customer feedback, establish a communications protocol (including a dedicated support line), and offer ongoing check-ins for status updates and program adjustments.
  5. Evaluation and Scale-Up Planning: We analyze metrics like peak demand reduction and outage performance, gather feedback, host a debrief workshop, and refine the cost-benefit analysis with real-world data for potential expansion.
  6. The Timeline: From initial consultation to a live pilot, the process can take a few months with funding, or up to a year with regulatory approval, moving at your utility’s pace for a demonstration or multi-year rollout.
