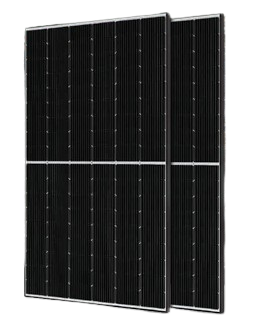

JA Solar JAM54D30-405/MB – 405W Silver Frame Bifacial Solar Panel

• Freight shipping calculated per order
• FEOC Compliant – Made in Vietnam

📄 Product Datasheet

Download Data Sheet (PDF)

JA Solar JAM54D30-405/MB – 405W Silver Frame Bifacial Mono PERC Half-Cell Double Glass Module

Datasheet Note: The manufacturer's datasheet shows the JAM54D30-405/MB silver-frame version. The panels offered in this listing are the Silver-frame version. The frame color is the difference noted for this listing.

The JA Solar JAM54D30-405/MB is a 405W bifacial Mono PERC half-cell double-glass solar module from JA Solar's DeepBlue 3.0 series. The module uses 11BB bifacial PERC cells and a half-cell configuration designed for reliable and stable power generation. The MB series datasheet covers the 390–415W range, including the 405W model.

Key Features

✔ 405W rated power output
✔ Bifacial Mono PERC technology
✔ 108 cells (6 × 18)
✔ 11BB bifacial PERC cells
✔ Half-cell configuration
✔ Double-glass construction
✔ 70% ± 10% bifaciality
✔ Lower temperature coefficient
✔ 12-year product warranty
✔ 30-year linear power output warranty
✔ 0.45% annual degradation over 30 years

Electrical Specifications — 405W Model

• Model: JAM54D30-405/MB
• Rated Maximum Power (Pmax): 405W
• Open Circuit Voltage (Voc): 37.23V
• Maximum Power Voltage (Vmp): 31.21V
• Short Circuit Current (Isc): 13.87A
• Maximum Power Current (Imp): 12.98A
• Module Efficiency: 20.7%
• Power Tolerance: 0 to +5W
• Temperature Coefficient of Isc: +0.045%/°C
• Temperature Coefficient of Voc: -0.275%/°C
• Temperature Coefficient of Pmax: -0.350%/°C
• STC: Irradiance 1000 W/m², cell temperature 25°C, AM1.5G

Mechanical & Environmental Specifications

• Cell Type: Mono
• Number of Cells: 108 (6 × 18)
• Dimensions: 1722 ± 2 × 1134 ± 2 × 35 ± 1 mm
• Weight: 26 kg
• Front Glass / Back Glass: 2.0 mm / 2.0 mm
• Junction Box: IP68, 3 diodes
• Connectors: QC 4.10-35I / MC4-EVO2A
• Maximum System Voltage: 1500V DC
• Operating Temperature: -40°C to +85°C
• Maximum Series Fuse Rating: 30A
• Maximum Static Load — Front: 5400 Pa (112 lb/ft²)
• Maximum Static Load — Back: 2400 Pa (50 lb/ft²)
• NOCT: 45 ± 2°C
• Bifaciality: 70% ± 10%
• Fire Performance: UL Type 29

Certifications

• IEC 61215
• IEC 61730
• UL 61215
• UL 61730
• ISO 9001:2015
• ISO 14001:2015
• ISO 45001:2018
• IEC 62941:2019

The JA Solar JAM54D30-405/MB is a 405W bifacial Mono PERC solar module designed for reliable power generation and long-term performance. Featuring a half-cell configuration, 11BB bifacial PERC cells, and double-glass construction, this module is suitable for residential, commercial, and other solar applications.
