ICON 2022-2024 Toyota Tundra, 2-3.5" Lift, Stage 4, 2.5 Suspension System, Tubular

ICON Vehicle Dynamics Stage 4 complete suspension system for the 2022-2025 Toyota Tundra builds upon the ICON threaded-body V.S. 2.5 Series Coilovers with the addition of ICON tubular front upper control arms. This system offers improved on- and off-road performance as well as improved alignment specs and a taller front-end lift height range for a proper stance and fitment of up to 35 inch tires. To complement the internal reservoir coilover shock and tubular control arm combo, a sway bar drop kit for the front of the truck is included along with our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.

This Stage 4 system features the 2022-2025 Toyota Tundra V.S. 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 2 to 3.5 inches of front lift height adjustability over stock when using the ICON tubular front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s vehicle-specific shock length and valving, along with the larger 2.5 inch shock body and increased piston area over stock components, yield the maximum travel possible (up to 40 percent increase over stock) along with superior ride quality and suspension performance both on- and off-road.

The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2022-2025 Toyota Tundra with corrected front-end geometry, built-in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.

The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.

Rounding out the Stage 4 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2022-2025 Tundra. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on- and off-road performance. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.

FEATURES and BENEFITS

• Vehicle-specific design for 2022-2025 Toyota Tundra
• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
• Adjustable front ride heights from 2 to 3.5 inches of front lift over stock when used with included tubular UCAs
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint PRO with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for up to 40 percent increase in front wheel travel over stock without overstressing OE components
• 2.0 Aluminum Series rear shocks provide balanced ride with front coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable
• 100 percent bolt-on system - no drilling, cutting, or welding necessary for install

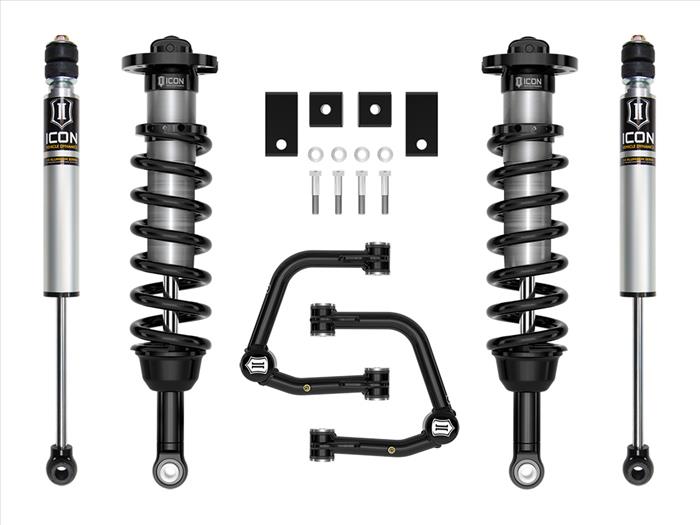

SYSTEM COMPONENTS

• 58670 (QTY: 1) 22-25 Tundra/23-24 Sequoia 2.5 V.S. IR Coilover Kit
• 58461DJ (QTY: 1) 22-25 Tundra/23-24 Sequoia Tubular UCA DJ PRO Kit
• 55154 (QTY: 1) 22-25 Tundra/23-24 Sequoia Sway Bar Drop Kit
• 56516 (QTY: 2) 22-25 Tundra 0-1.5/23-24 Sequoia 0-4 inch Rear 2.0 V.S. IR
