ICON 2021-2023 Ford Bronco, Non-Sasquatch, 3-4 inch Lift, Stage 3 Suspension System, Billet, Heavy Rate Rear Spring

The ICON Vehicle Dynamics Stage 3 Suspension System for the 2021–2023 Ford Bronco features our precision-manufactured, custom-valved internal reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3 to 4 inch of front lift and 2 to 3 inch of rear lift over stock 4-door Broncos without the Sasquatch Package.

To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 3 kit comes with Billet Aluminum Upper Control Arms which provide on-vehicle caster and camber adjustability and feature our patented Delta Joint PRO, which allows for up to 90 degrees freedom of movement. The rear coilovers are mounted in a shaft-up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics.

This suspension system is designed to provide up to 11.5 inch of front suspension travel and 14 inch of rear suspension travel when used with 35 x 12.50 tires. It may be safely used with 37 inch and larger tires if using the optional up-travel limiters (sold separately). The factory crash bars on non-Sasquatch equipped Broncos must be removed to clear 35 inch and larger tires, but ICON now offers a replacement High Clearance Crash Bar set for those who would like to run larger tires and retain the functionality of the crash bars.

Features & Benefits

• Improved suspension performance and ride quality over stock
• Up to 11.5 inch front / 14 inch rear wheel travel with 35 inch tire fitment
• Vehicle-specific tuned internal reservoir front and rear shocks for superior damping and vehicle control
• Adjustable coilovers yield up to 3 to 4 inch of front lift height and 2 to 3 inch of rear lift height over stock 4-door non-Sasquatch Broncos
• PTFE-lined spherical bearings and application-specific mounting hardware
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion-resistant CAD plated coilover shock bodies with 7/8 inch diameter shafts
• ICON engineered coil springs featuring a unique dual rate rear coil design with increased spring rates for heavier equipped Broncos
• High strength alloy CNC machined lower bar pins
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint PRO with 90 degrees of total articulation
• 100 percent Bolt-on system – no drilling, cutting, or welding necessary for install

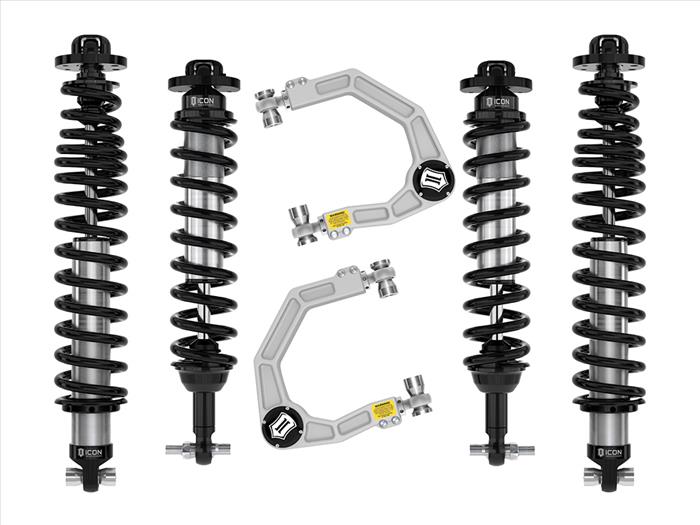

System Components

• 48600 (Qty: 1) | 21–23 BRONCO FRONT 2.5 VS IR COILOVER KIT
• 48500DJ (Qty: 1) | 21–23 BRONCO BILLET UCA DJ PRO KIT
• 48613 (Qty: 1) | 21–23 BRONCO REAR 2.5 VS IR COILOVER KIT HEAVY RATE SPRING
