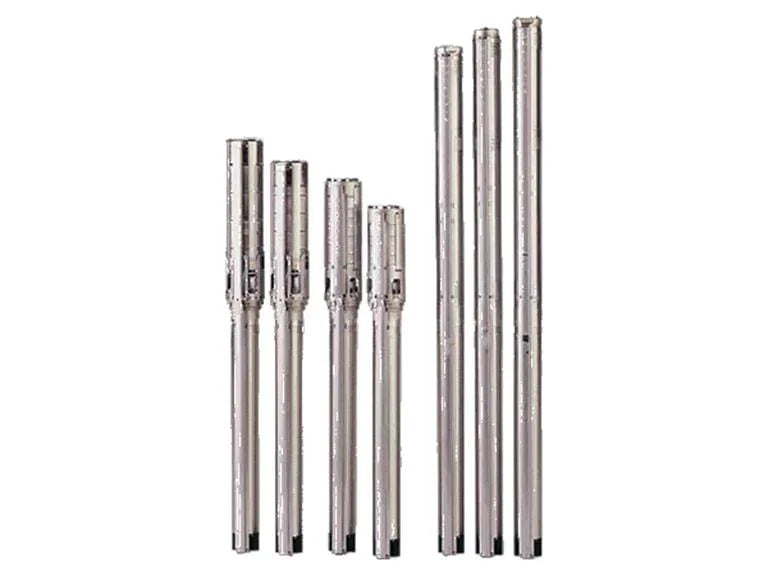

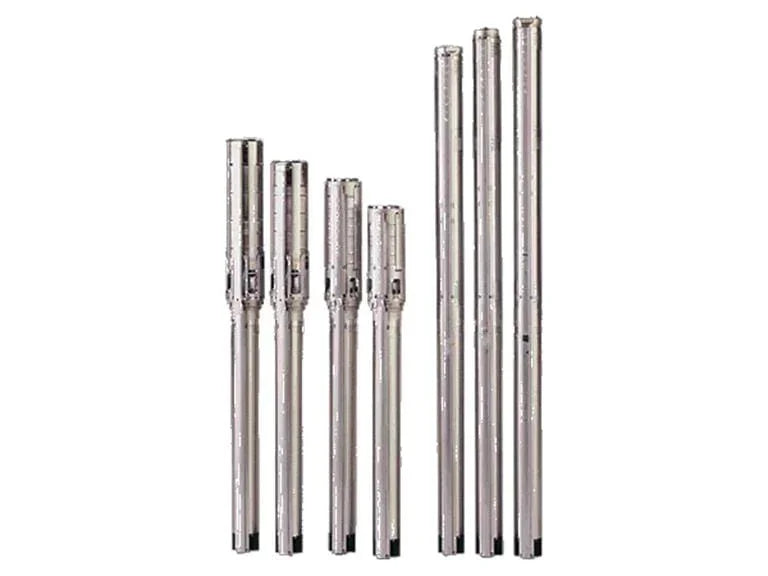

Grundfos 11SQF2 Well Pump, SQFlex AC/DC | 13 GPM | 395 Ft

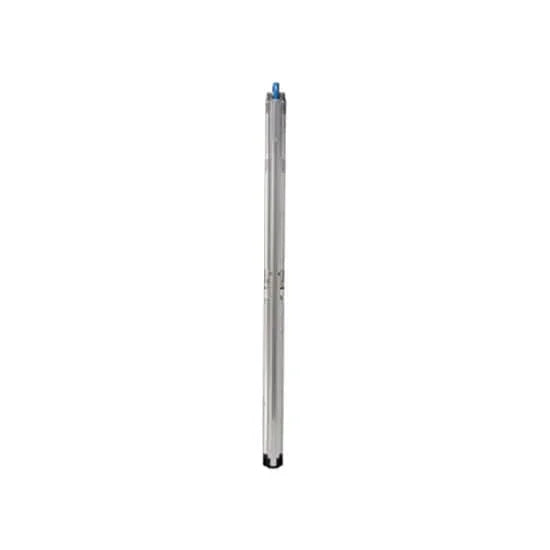

The 3" SQFlex pump with helical rotor is for high heads and low flow rates.

The SQFlex system is a reliable water supply system based on renewable energy sources, such as solar and wind energy. Thanks to its flexible energy supply and performance, the SQFlex system can be combined and adapted to meet any need on the installation site.

The SQFlex system has a wide voltage range, built-in maximum power point tracking (MPPT) as well as dry-running, voltage and overload protection.

Product Specifications

Product name: 11 SQF-2
Product No.: 95027335
EAN: 5700834791802

Technical

Stages: 2
Approvals: CE,EAC,CN RoHS Exempt
Pump Number: 95027416
Model: B
Return valve: Y
Zinc Anodes: No

Materials

Pump: Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Impeller: EN 1.4301
Motor: Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Rotor: Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Stator: Stainless steel / EPDM, DIN W.-Nr. 1.4301, AISI 304

Installation

Maximum ambient pressure: 217.56 psi
Maximum operating pressure: 217.56 psi
Type of connection: NPT(M)
Size of connection: 1 1/4 inch
Minimum borehole diameter: 2.99 in

Liquid

Pumped liquid: Water
Liquid temperature range: 32 .. 104 °F
Selected liquid temperature: 68 °F
Density: 62.29 lb/ft³

Electrical data

Motor type: MSF3
Power input - P1: 1.4 kW
Rated power - P2: 1.34 HP
Rated voltage AC: 1 x 90-240 V
Rated voltage DC: 30-300 V
Rated current: 8.4 A
Power factor: 1.0
Rated speed: 3600 rpm
Start. method: DOL
Enclosure class (IEC 34-5): IP68
Insulation class (IEC 85): F
Built-in motor protection: Y
Thermal protec: INT
Length of cable: 6.56 ft
Motor Number: 98163731
Udc: 300 V, 30 V

Others

Minimum efficiency index, MEI ≥ -.--
Net weight: 18.1 lb
Gross weight: 22 lb
Shipping volume: 0.85 ft³
Sales region: North America
Country of origin: MX
Custom tariff no.: 8413.70.2004

Product Manual

Grundfos 11SQF2 Well Pump, IO 101 SQFlex (Quick Guide)

Grundfos 11SQF2 Well Pump, SQFLEX (Product brochure)

GRUNDFOS SOLAR WATER SOLUTIONS, 5 SQF-8 solar submersible pump (Product brochure)

GRUNDFOS SOLAR WATER SOLUTIONS, SQFlex 1-8 solar submersible pump (Product brochure)

SQFlex, GRUNDFOS SOLAR WATER SOLUTIONS (Product brochure)

DBS, GRUNDFOS RESIDENTIAL BUILDINGS (Product brochure)

Grundfos 11SQF2 Well Pump, POWERED BY NATURE, DRIVEN BY INNOVATION (Brochure/Article)

Grundfos 11SQF2 Well Pump, SQFLEX SOLAR POWERED SUBMERSIBLE PUMP RANGE (Product brochure)

Grundfos 11SQF2 Well Pump, SQFlex battery back-up system (Data booklet)

Grundfos 11SQF2 Well Pump, SQFlex, Renewable-energy-based water supply systems (Data booklet)
