Fortress Power Avalon HV Pro ESS 7.6kW 14.7kWh Energy Storage System - Green Vista Living
Fortress Power Avalon HV Pro ESS 7.6kW 14.7kWh Energy Storage System - Green Vista Living

Fortress Power Avalon HV Pro ESS 7.6kW 14.7kWh Energy Storage System

Authorized Fortress Power Dealer | Full Vendor Warranty Included

Customers rate us 4.6/5 based on 413 reviews.
$12,699.00
$19,999.00
$12,699.00
Save $7,300.00
Hurry! Only a few left in stock
Order in the next h min to get this to you between and

Need Help? Talk to our experts today!

Live Chat:
Bottom Right Text or Call us:
513-743-2829
🚚
Shipping & Delivery Time Shipping timeline above is an estimate. Please live chat for precise ETAs and shipping costs.
🛡️
30-Day Return Guarantee
Check Policy
💲
Price Match Available
🏷️
Sales Tax Free! (Except OH, FL, CA)
🍃 SPRING SAVINGS SALE – LOWEST PRICES GUARANTEED 🍃
Spring prices are here! Shop now to grab the lowest prices of the season before the blowout ends.
Fortress Power Avalon HV Pro ESS 7.6kW 14.7kWh Energy Storage System - Green Vista Living

Fortress Power

Fortress Power Avalon HV Pro ESS 7.6kW 14.7kWh Energy Storage System

$19,999.00 $12,699.00
Fortress Power Avalon HV Pro ESS 7.6kW 14.7kWh Energy Storage System - Green Vista Living

Fortress Power

Fortress Power Avalon HV Pro ESS 7.6kW 14.7kWh Energy Storage System

$19,999.00 $12,699.00
  • Description
  • Why Buy From Us

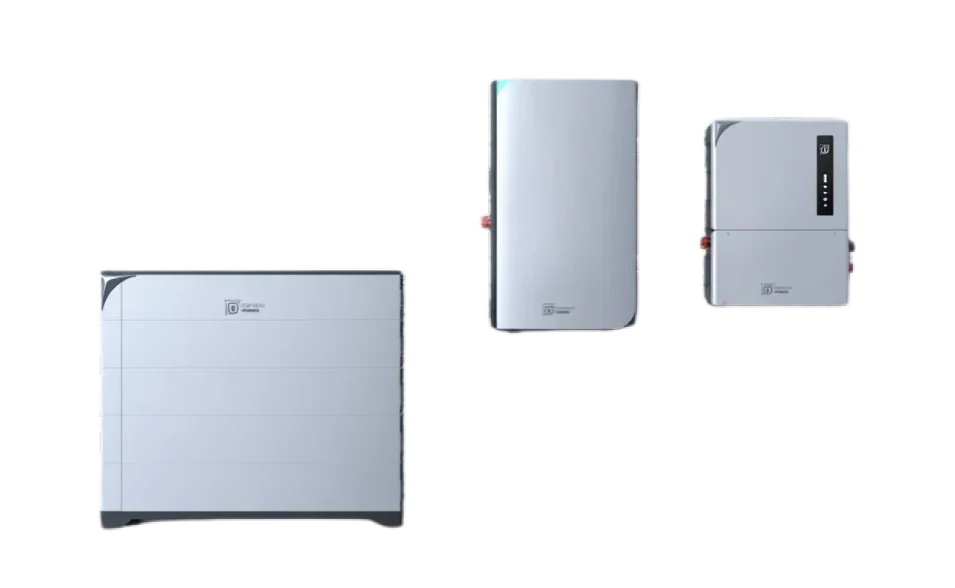

Fortress Power Avalon HV Pro ESS 7.6kW 14.7kWh Energy Storage System



Introducing the Fortress Power Avalon HV Pro ESS, a comprehensive energy storage solution designed for advanced energy management. This system combines a smart energy panel, a hybrid inverter, and a BMS and battery pack, offering a versatile and scalable approach to home energy storage.

  • 7.6kW Hybrid Inverter with dual functionality for both grid-tied and off-grid operations.
  • 14.7kWh Lithium Iron Phosphate (LFP) battery pack for safe, efficient, and long-lasting energy storage.
  • Smart Energy Panel with integrated rapid shutdown and load management for up to 12 circuits.
  • 4 MPPTs for optimal solar energy harvesting and flexible installation options.
  • User-friendly app for easy system monitoring and management.

Technology and Overview

Equipped with state-of-the-art technology, the Avalon HV Pro ESS offers seamless integration of solar energy generation, storage, and management, maximizing efficiency and reliability.

Installation and Compatibility Overview

Designed for both indoor and outdoor use, the system supports AC or DC coupling and is scalable, providing a customizable solution to meet energy needs.

Benefits and Applications Overview

This system not only enhances home energy independence but also contributes to significant cost savings and environmental sustainability, making it ideal for a wide range of applications.

Specifications

Fortress Power Avalon HV Hybrid Inverter Value
Model No. AV-INV-010224-7.6
Max. Input Voltage 600 V
Rated Voltage 380 V
Start-Up Voltage 80 V
MPPT Voltage Range 80 - 520 V A
Max. Input Current Per String 16 A
Max. Short Circuit Current Per String 25.6 A
Number Of MPPTs/Number Of Strings Per MPPT 4/1
Rated Output Power 7.6 kW
Max. Apparent Output Power (Grid) 7.6 kVa
Max. Apparent Output Power (Off-Grid) 12.2 kVa, 10 sec
Back-Up Switch Time <10 ms
Rated Output Voltage (L1-L2) 240 V
Rated Output Voltage (L1/L2-N) 120 V
Ac Output Voltage Range 211 - 264 V
Rated Frequency 60 Hz
Frequency Range 55 - 65 Hz
Rated Output Current 31.7 A
Max. Output Current (Grid) 31.7 A 47.5 A 31.7 A
Max. Output Overcurrent, 10 Sec (Off-Grid)  50.7 A
Max. Allowance Phase Configurations 100%
Backup Support Configurations whole-home and dedicated loads
Power Factor >0.99 (0.8 leading - 0.8n lagging)
THD <3%
Input Voltage Range 211 - 264 V
Frequency Range 58.8 - 61.2 Hz
PV Max. Efficiency 97.60%
PV CEC Efficiency 97.20%
Battery Charged By PV Max. Efficiency 98.50%
Battery Charged/Discharged To AC Max. Efficiency 97.00%
Ground Fault Detection yes
Residual (Leakage) Current Detection yes
Integrated AFCI (DC arc-Fault Circuit Protection) yes
DC Reverse-Polarity Protection yes (PV only)
Rapid Shutdown NEC 2017 integrated sunspec-certified transmitter
RSD Receiver APSmart or Tigo
Manual Inverter Bypass Switch yes
Battery Voltage Range 120-315 V
Maximum Charge/Discharge Current 50 A
Battery Communication CAN/RS485
Dimensions (W*H*D) 21.87*34.88*8.62 in (555.5*866*219mm)
Weight 89.59 Ibs (40.64 kgs)
Mounting wall mount
Topology transformerless
Operation Temperature Range -13°F to 140°F (-25°C to 60°C)
Ingress Protection TYPE 4X (IP66)
Noise Emission fan-less, <30 dB(A)
Cooling Method natural convection
Maximum Elevation 9,843 ft (3000m)
Compliance UL 1741, UL 1741 SA, UL 1741 SB, UL9540, IEEE 1547-2018, IEEE 1547.1-2020, UL 1699B, UL 1998, California Rule 21, HECO Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1, FCC Part 15 Class B
Generator Support yes
Limited Warranty 10 years
DC Connection 1 in. knockouts for conduit (x2) on the side and bottom; Spring clamp terminals
AC Connection 1.5 in. (or 1.25 in. with reducer) knockouts for conduit (x3) on the side and bottom; Spring clamp terminals
Interface Fortress App
Communication RS485, Cellular, Wi-Fi, Optional: LAN


Fortress Power Avalon HV Bms And Battery Pack Value
Model No. AV- BATT - 010224-3
Battery Modules 3
Nominal Voltage (V) 144
Operation Voltage Range (V) 119.25 ~ 157.5
Nominal Capacity (Ah) 102
Nominal Energy (Kwh) 14.7
Nominal Charge/Discharge Current (A) 50
Maximum Surge Rate 80A, 15 sec
Maximum Units In Parallel 4
Limited Warranty (Years) 15
Cycle Life @ EOL 70% 8,000
Communication Protocol CAN
Weight 302 lbs (137 kg)
Dimensions (LxHxD) 43 x 28.15 x 10.96 in (1092 x 715 x 278.4 mm)
Ingress Protection IP65
Operation Temperature charge: -10°C to 50°C
discharge: -20°C to 55°C
Certifications UL1973, UL9540. UL9540A, CEC, SGIP, AC156
Transportation Classification UN3480, Class 9


Fortress Power Avalon Smart Energy Panel Value
Model No. AV-EP-010224
AC Voltage 120/240 V
Feed-In Type split phase
Grid Frequency 60 Hz
Current Rating 200 A
Max Input Short Circuit Current 10 kA, 15 kA, or 25 kA*
Overcurrent Protection Device 100 - 200A; service entrance rated
AC Meter non-RGM is standard, Revenue Grade Meter is optional
Primary Connectivity ethernet / wifi / bluetooth
User Interface Fortress App
Backup Transition automatic transfer for backup
Expandability supports up to 3 Avalon HV hybrid inverters, up to 35 Kw backup load
Limited Warranty 5 years
Dimensions 35.4 x 22.2 x 9.45in (900 x 565 x 240mm)
Weight 55 lbs (25 kg)
Mounting Options wall mount
Smart Load Control 12 positions. Control up to 12 single phase loads (120V), 6 split phase loads (240V), or any combination, up to 50A**
Smart Load Control Modes automatic, scheduled, or manual control
Ev Charging Smart Load Provision up to 50A
Ac Coupling Smart Load Provision up to 50A
Generator Smart Load Provision up to 50A
Non-Backup Lug Connections included
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Operating Humidity up to 100%, condensing
Maximum Elevation 9,843 ft (3000m)
Environment indoor and outdoor rated
Enclosure Type NEMA 3R
Certifications UL67, UL1741 PCS, UL869A, UL916
Emissions FCC Part 15, ICES 003
