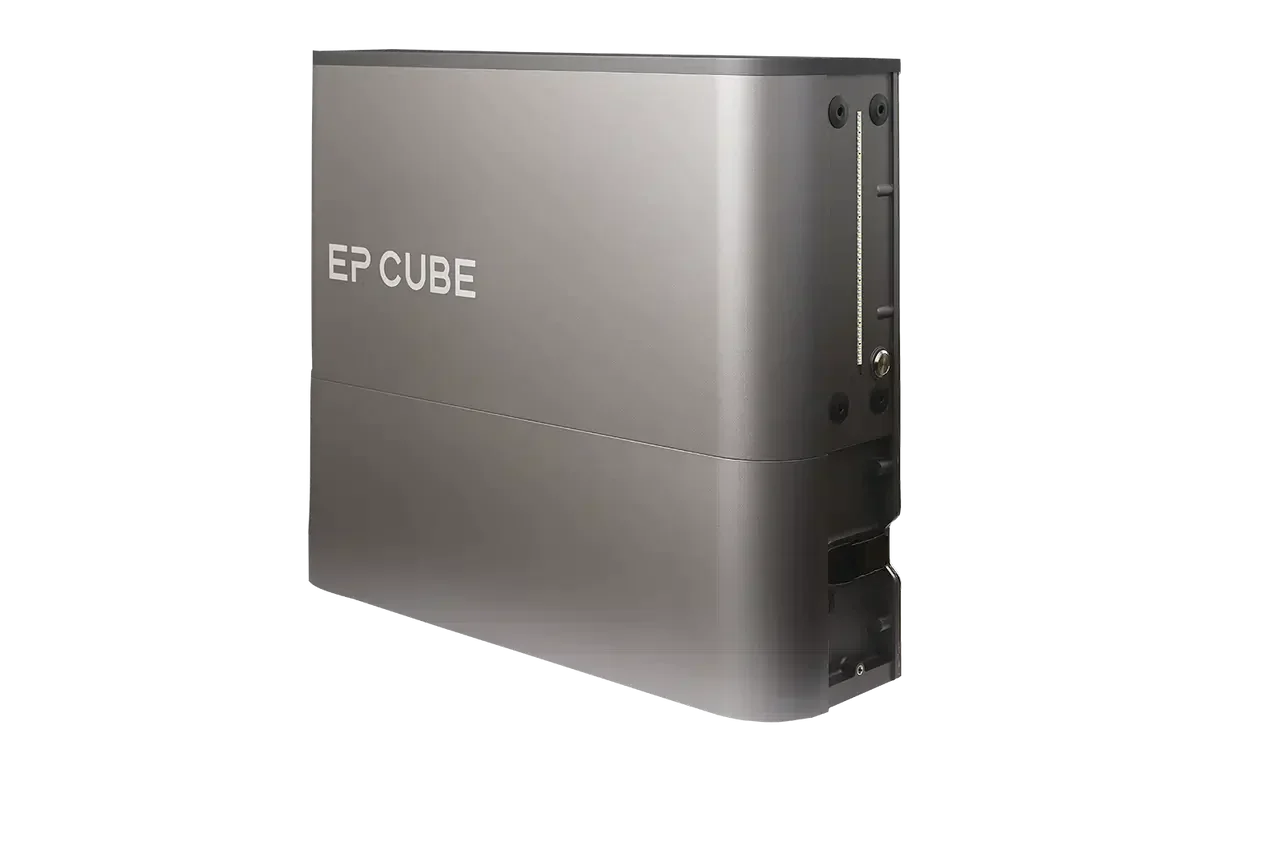

7.6kW Hybrid On/Off-Grid Inverter Canadian Solar EP Cube with APsmart RSD Transmitter

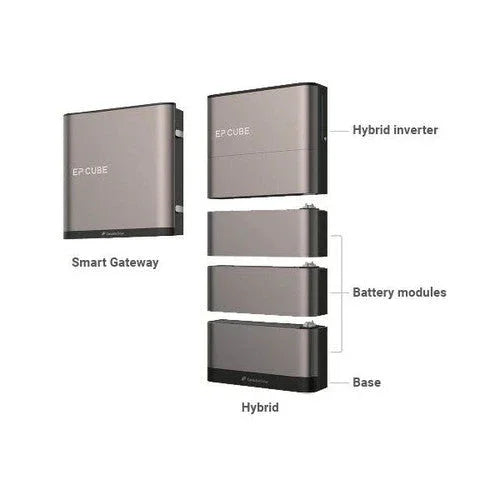

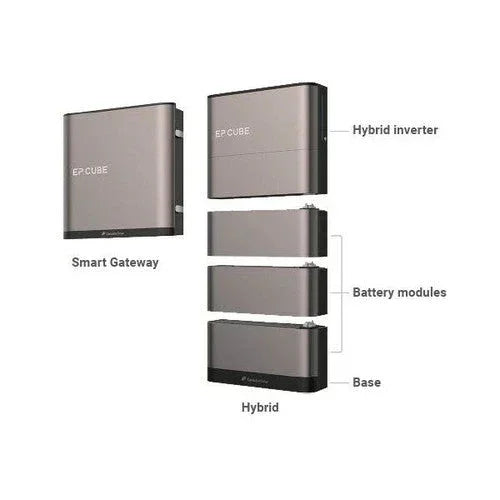

The Canadian Solar EP Cube is an all-in-one hybrid inverter designed for easy installation and seamless integration with stackable EP Cube battery modules. This hybrid inverters supports up to 16A per PV string and four MPPT connections, maximizing solar energy conversion and storage. With the EP Cube system, automatically store grid electricity when prices are low to reduce energy costs.

Ideal for new or retrofit solar systems, the EP Cube ensures continuous power by switching to backup during outages. With Wi-Fi and cellular connectivity, you can monitor and manage your energy remotely through a smart app. Compatible with generators, it offers reliable power even during extended outages. Order now online or by phone at 888-498-3331. UL Certified and backed by a limited warranty up to 10 years or 6,000 cycles.

Manufacturer:
Canadian Solar
Model SKU:
HNA7G-AT
Inverter Type:
Hybrid inverter
MPPTs:
4
Input current:
1 mp 16A / I sc 20A per MPPT
PV maximum input voltage:
600VDC
MPPT operating voltage:
90VDC - 550VDC
Allowable DC-AC ratio:
2
Nominal grid voltage:
240VAC
Frequency:
60 Hz
Maximum AC output, on-grid:
7.6 kW
Maximum inverter CEC efficiency:
93.93%
Imbalance for split-phase loads:
100%, maximum 3.8 kW for each phase
Energy storage:
ENERGY STORAGE
Total energy:
9.9 kWh - 19.9 kWh
AC output, PV + Battery:
AC OUTPUT, PV + BATTERY
Full Sun, off-grid:
7.6 kW, 31.6A (Continuous), 22 kVA (10s)
Safety & compliance:
SAFETY & COMPLIANCE
Protections:
Integrated arc fault circuit interrupter (AFCI), PV RSD
Certifications:
UL 1699B, UL 1741-SB, IEEE 1547, IEEE 1547-1, IEEE 2030.5, UL 1998, UL 1642, UL 1973, UL 9540, UL 9540A, UN 38.3, UL 60730-1 ANNEX H, FCC Part 15 (Class B), IEEE 693-2005 (high)
Listing:
CEC, HECO
General parameters:
GENERAL PARAMETERS
Enclosure:
NEMA 4X
Noise:
<50dB at 1m, front side
Battery module weight:
70lbs / 32kg
Inverter weight:
77lbs / 35kg
Base weight:
5.5lbs / 2.5kg
Mounting options:
Floor or wall mount
Max. elevation:
9,843 ft / 3,000 m
Ambient operating temperature:
14°F to 122°F / -10°C to 50°C
Recommended operating temperature:
32°F to 86°F / 0°C to 30°C
System limited warranty:
> 80% capacity, up to 10 years or 6,000 cycles



DOWNLOADS

pdf-icon.pngCanadian Solar EP Cube inverter datasheet

pdf-icon.pngCanadian Solar EP Cube installation preparation guide

pdf-icon.pngCanadian Solar EP Cube installation manual

pdf-icon.pngCanadian Solar EP Cube UL certificate

pdf-icon.pngCanadian Solar EP Cube Warranty
