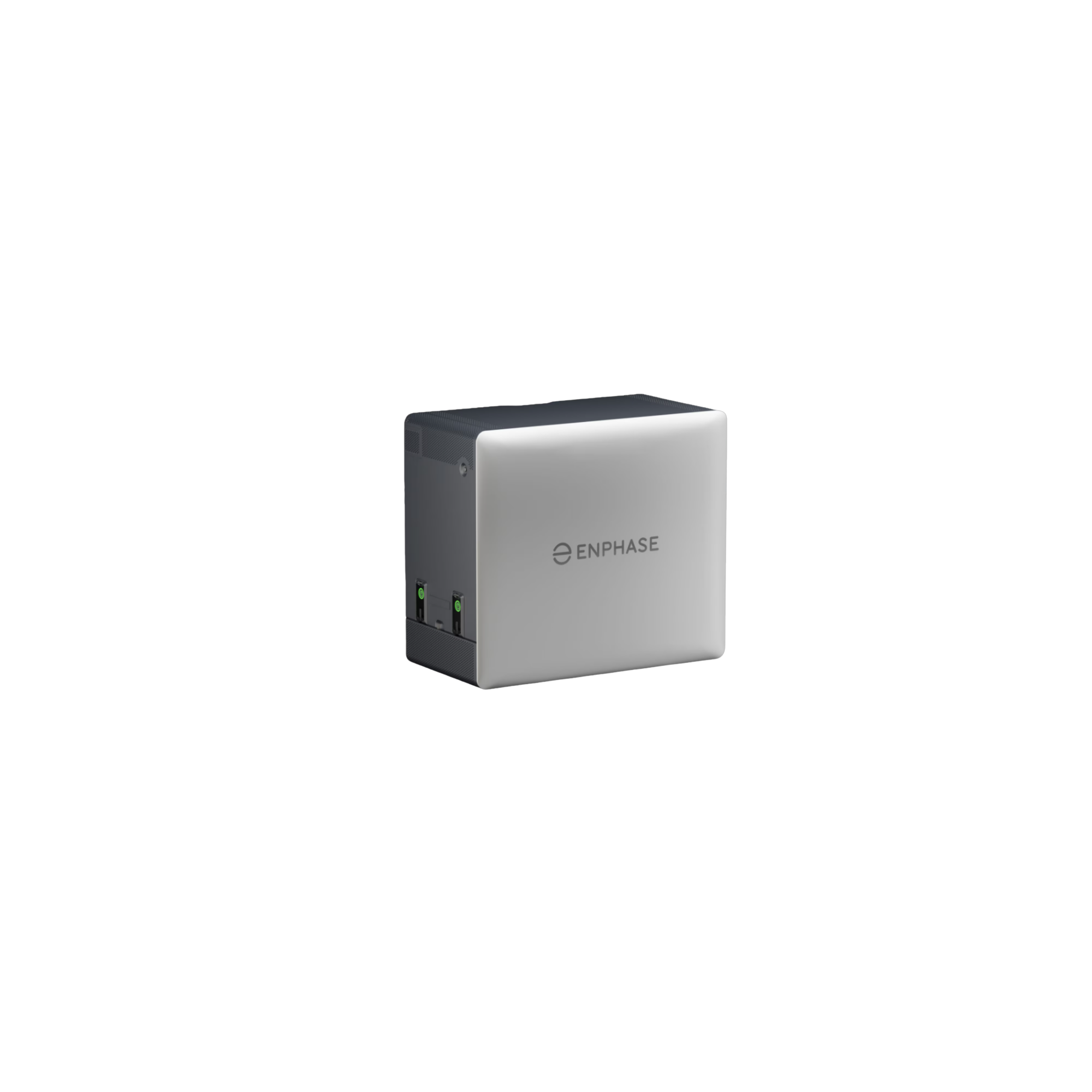

Enphase IQ Battery 10C – 5 kWh Battery Unit (Domestic)

The Enphase IQ Battery 10C – 5 kWh Battery Unit (Domestic) is a modular lithium iron phosphate (LFP) energy-storage battery designed as a building block for the Enphase IQ Battery 10C energy storage system. Each unit provides 5 kWh of battery capacity and includes one mounting bracket, allowing multiple units to be combined into a larger energy-storage solution.

Designed for residential solar and backup applications, the IQ Battery 10C platform combines high energy capacity, integrated power electronics, advanced battery management, and Enphase monitoring capabilities. The system is designed to store excess solar energy for later use, provide backup power during grid outages, and support energy-management strategies such as self-consumption and time-of-use operation.

This Domestic Content version is identified by SKU B05-C01-US00-1-3-DOM. The individual battery unit is supplied without the IQ Battery 10C ID cover. A complete IQ Battery 10C system requires two 5 kWh battery units plus a separate cover kit.

Key Features

• 5 kWh battery capacity per unit
• Lithium Iron Phosphate (LFP) battery chemistry
• Designed for the Enphase IQ Battery 10C system
• Two units required for a complete 10 kWh IQ Battery 10C system
• Includes one mounting bracket
• Domestic Content version
• Designed for residential solar energy storage and backup power
• Supports grid-connected and backup/off-grid operation when installed as part of a compatible Enphase Energy System
• Compatible with Enphase IQ and M Series Microinverters, IQ Meter Collar, IQ Combiner 6C, and IQ Gateway
• Outdoor-rated NEMA 3R enclosure
• Natural-convection cooling
• Wall-mount or pedestal-mount installation
• Enphase monitoring through the Enphase Installer Platform and Enphase App
• Designed for long service life with a warranty of up to 15 years or 6,000 cycles, subject to warranty conditions and capacity-retention requirements.

Energy Storage & Performance

The individual battery module has a 5 kWh nominal capacity. When two modules are installed together as an IQ Battery 10C system, the resulting system provides 10.0 kWh total and usable battery capacity.

The complete IQ Battery 10C system provides:

• 10.0 kWh total capacity
• 10.0 kWh usable capacity
• 7.08 kVA continuous AC output
• Up to 90 A Power Start capability
• 90% AC round-trip efficiency
• 96% DC round-trip efficiency
• 240 V nominal AC voltage
• Single-phase interconnection

The high power output of the complete system allows it to support substantial residential loads, including demanding loads such as HVAC equipment and pool pumps.

Battery Chemistry

The IQ Battery 10C uses Lithium Iron Phosphate (LFP) chemistry. LFP technology is widely used in stationary energy storage because of its combination of safety, durability, and long cycle life.

Temperature Range

The battery is designed for outdoor operation across a broad temperature range:

• Charging: −20°C to 50°C (−4°F to 122°F)
• Discharging: −20°C to 55°C (−4°F to 131°F)
• Optimum operating temperature: 0°C to 30°C (32°F to 86°F)

Charging and discharging performance may be reduced at temperature extremes.

Installation & Enclosure

The IQ Battery 10C uses an Outdoor NEMA 3R enclosure and natural-convection cooling. The system can be installed using wall mounting or a pedestal mount, with the pedestal sold separately.

The complete system has the following mechanical specifications:

• Dimensions: 621 × 708 × 365 mm
  24.5 × 28 × 14.4 in
• Maximum lifting weight: 57 kg / 125 lb
• Total installed system weight: approximately 144 kg / 317 lb
• Operating noise: less than 33 dBA at 1 meter
• Maximum installation altitude: 3,000 m / 9,842 ft

Monitoring & Energy Management

When integrated into a compatible Enphase Energy System, the IQ Battery 10C can support several energy-management modes, including:

• Backup power
• Solar self-consumption
• Time-of-use energy management
• Net energy metering support

System monitoring is available through the Enphase Installer Platform and Enphase App, with API integration also supported.

What's Included

This SKU includes:

• 1 × 5 kWh IQ Battery 10C battery unit
• 1 × mounting bracket

Not included:

• IQ Battery 10C ID/cover kit
• Second 5 kWh battery unit
• Other system-level components required for a complete installation

A complete IQ Battery 10C system requires:

2 × B05-C01-US00-1-3-DOM
1 × B10C-NC-0708-O-DOM cover kit
