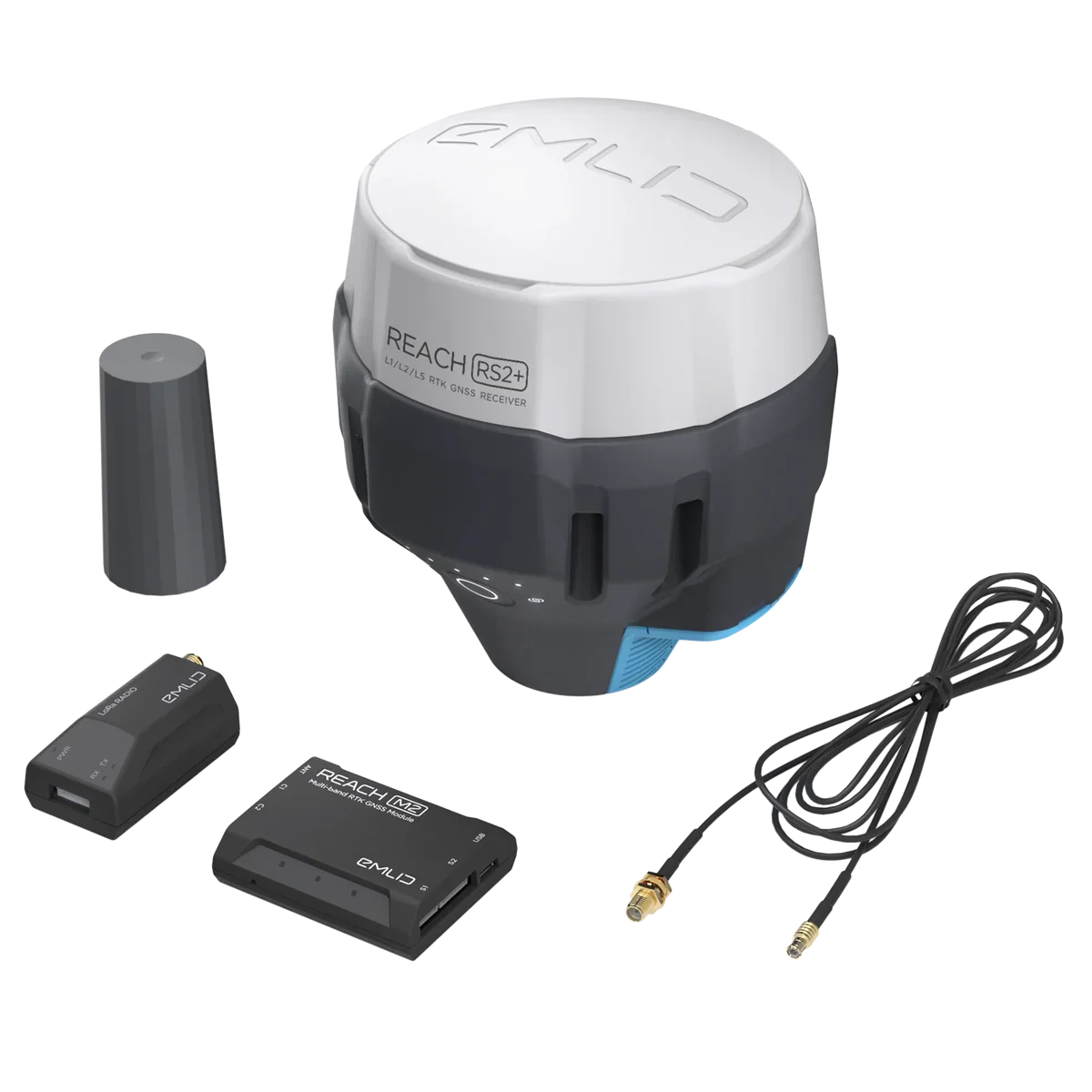

Emlid Reach RS2+ Multi-band RTK GNSS Receiver

The Emlid Reach RS2+ is a professional-grade multi-band RTK GNSS receiver designed to deliver centimeter-level positioning accuracy for surveying, mapping, construction, agriculture, drone operations, GIS data collection, and navigation applications. Combining advanced GNSS technology, long-range communications, and all-day battery life in a rugged, portable design, the Reach RS2+ provides reliable high-precision positioning in even the most challenging environments.

Supporting GPS, GLONASS, Galileo, BeiDou, and QZSS satellite constellations, the RS2+ delivers fast RTK fixes and dependable performance for both base and rover configurations. With integrated LoRa radio, Wi-Fi, Bluetooth, LTE connectivity support, and a user-friendly mobile application, it offers a complete solution for field professionals who require accurate positioning and efficient workflows.

Features

• Centimeter-level RTK positioning accuracy
• Multi-band GNSS receiver
• Supports GPS, GLONASS, Galileo, BeiDou, and QZSS
• Long-range LoRa radio communication
• Up to 8 km radio range
• Built-in Wi-Fi and Bluetooth connectivity
• LTE RTK rover capability
• Rugged field-ready design
• Mobile app for setup and operation
• USB Type-C charging
• LiFePO4 battery technology
• Compatible with surveying, mapping, drone, and GIS workflows

Multi-Band GNSS Performance

The Reach RS2+ tracks multiple satellite constellations simultaneously, improving accuracy, reliability, and performance in difficult environments such as urban areas, forests, and rugged terrain.

Supported GNSS Signals

• GPS/QZSS: L1C/A, L2C
• GLONASS: L1OF, L2OF
• BeiDou: B1I, B2I
• Galileo: E1-B/C, E5b

By receiving signals from multiple constellations and frequencies, the RS2+ achieves fast initialization times and highly reliable RTK positioning.

Centimeter-Level Accuracy

The Reach RS2+ provides professional-grade positioning accuracy suitable for:

• Land surveying
• Construction layout
• Topographic mapping
• Drone surveying and photogrammetry
• Precision agriculture
• GIS data collection
• Machine guidance and navigation

Its advanced RTK capabilities allow users to achieve precise measurements with confidence.

Long-Range LoRa Radio

Built-in LoRa radio technology enables reliable communication between base and rover units without requiring cellular coverage.

Radio Specifications

• Frequency: 868 MHz / 915 MHz
• Communication Range: Up to 8 km (5 miles)
• Reliable RTK corrections transmission
• Ideal for remote field operations

This allows survey teams to work efficiently in areas with limited network connectivity.

All-Day Battery Performance

The integrated LiFePO4 battery provides extended field operation while supporting flexible charging options.

Power System

• Up to 16 hours as an LTE RTK rover
• LiFePO4 battery technology
• 6–40V external power input
• USB Type-C charging
• Designed for full-day field use

The robust battery system ensures uninterrupted productivity during demanding projects.

Wireless Connectivity

The Reach RS2+ offers multiple connectivity options for seamless integration with mobile devices, controllers, and field software.

Connectivity Options

• Wi-Fi
• Bluetooth
• USB Type-C
• LTE RTK Rover Support
• Long-range LoRa Radio

These communication options provide flexibility for a wide range of workflows and field environments.

Mobile App Integration

The included mobile application simplifies setup, configuration, and operation of the receiver.

Benefits include:

• Easy base and rover setup
• Coordinate system management
• Data collection workflows
• Real-time status monitoring
• Survey project management
• Quick field deployment

Rugged Field-Ready Design

Built for professional use, the Reach RS2+ is engineered to withstand demanding outdoor conditions while maintaining consistent performance and reliability.

Ideal Applications

• Land Surveying
• Construction and Site Layout
• GIS Data Collection
• Precision Agriculture
• Drone Mapping and Photogrammetry
• Utility Mapping
• Environmental Monitoring
• Infrastructure Inspection
• Navigation and Positioning

Key Advantages

• Centimeter-level positioning accuracy
• Multi-constellation, multi-frequency GNSS support
• Long-range LoRa communication up to 8 km
• Up to 16 hours of operation on a single charge
• Wi-Fi, Bluetooth, and USB-C connectivity
• Lightweight and portable field design
• Easy-to-use mobile application
• Reliable performance in challenging environments

The Emlid Reach RS2+ Multi-band RTK GNSS Receiver delivers the precision, reliability, and flexibility professionals need for high-accuracy surveying, mapping, navigation, and geospatial applications in the field.
