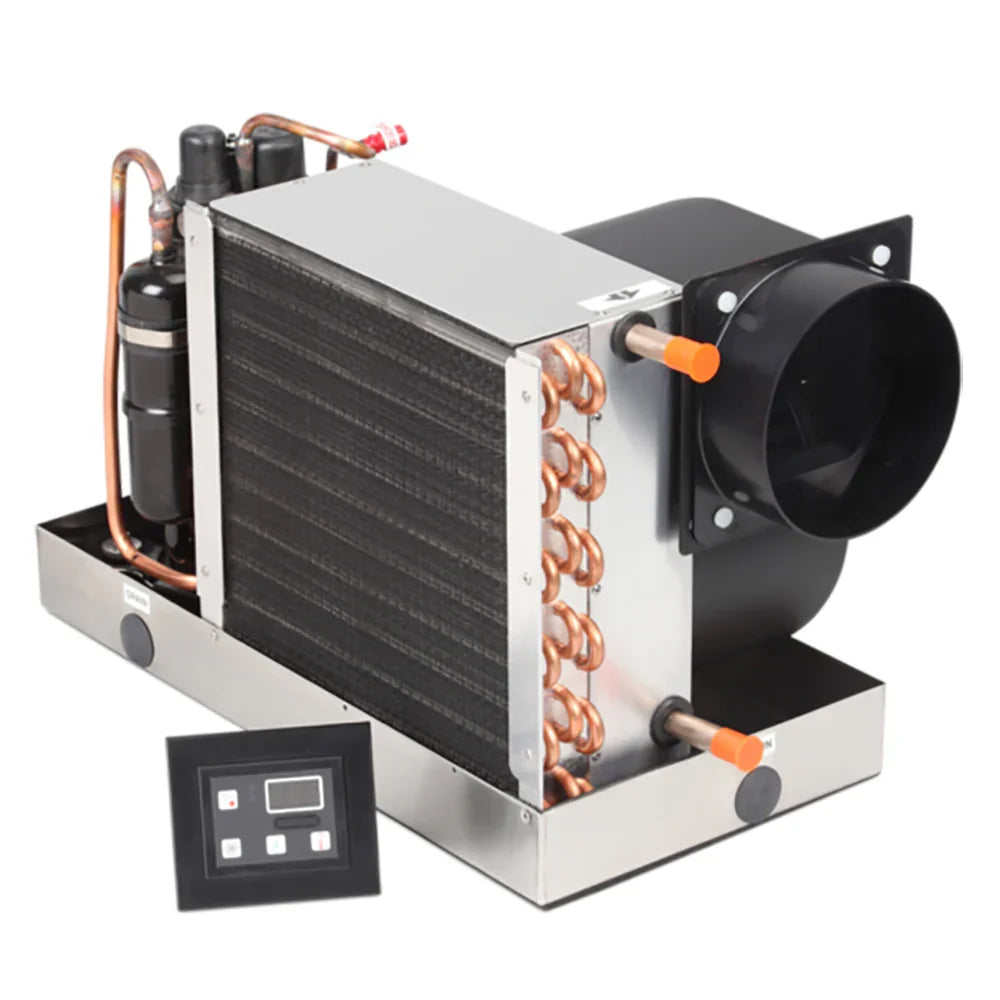

EnviroComfort ECD16KZ-HV AC Retrofit Kit - 230 V - 16,000 BTU

The Dometic Marine Air 16,000 BTU EnviroComfort Air Conditioning Retrofit Kit provides reverse-cycle cooling and heating capability so you stay comfortable onboard year-round. This 16,000 BTU unit replaces an older self-contained air conditioner of comparable capacity in the 12,000 to 16,000 BTU range.

All units have high-velocity blowers with internal motors for a more compact installation footprint.  The blower can be rotated to a horizontal or vertical position for greater installation flexibility.  Units are built on an easy-to-plumb stainless-steel drain pan, and the pre-installed return-air filter is removable for cleaning.

ECD kits are ideal for replacing an existing air conditioning system or for a new air conditioning installation.  The Retrofit Kit includes the ECD self-contained air conditioning unit and digital control with bezel and is intended to replace an older self-contained air conditioner of comparable capacity.

Legacy Part Number - 207500017

Features:

  • High-velocity, rotatable blower for horizontal or vertical installation
  • Environmentally friendly R-410A refrigerant
  • Easy to use Dometic Passport I/O digital control and display (P/N 9600005997)
  • Plastic remote electrical box for convenience in mounting
  • Stainless-steel drain pan
  • Pre-installed return-air filter, easily removable and cleanable
  • Small, compact, space-saving design

Specifications:

  • Input voltage - 230 V
  • Starting amps - 34 A
  • Fuse Max./Min. - 20 A/12 A
  • Input frequency 50/60 Hz
  • Refrigerant type - R410A
  • Colling capacity - 16,000 BTU
  • Min. supply duct size - 6"
  • Seawater inlet connection - .625"
  • Dimensions - Height 13.5" x Width 20" x Depth 11.25"

In the Box:

  • Self-contained AC unit
  • Digital control with bezel and 15' cable
  • Instruction manual

*Sold as an Individual

WarningWARNING: This product can expose you to chemicals including ARSENIC which is known to the State of California to cause cancer or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Capacity (BTU): 16,000 BTU
  • Maximum Air Flow: 260 CFM
  • Refrigerant Type: R410A
  • Sea Water Flow Rate: 5.3 GPM
  • Voltage - Input Range (Volts): 230v
  • Box Dimensions: 18"H x 19"W x 30"L WT: 70 lbs
  • UPC: 713814210908

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
