DJI AGRAS T20 Drone

Intelligent and Powerful

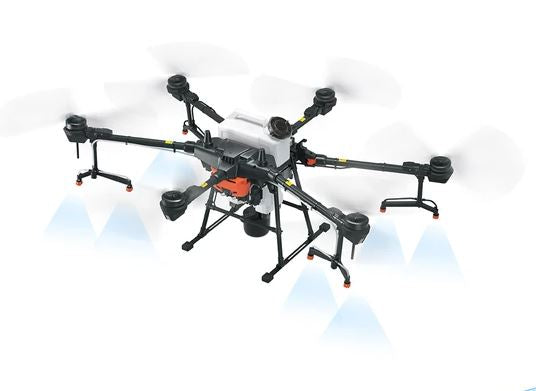

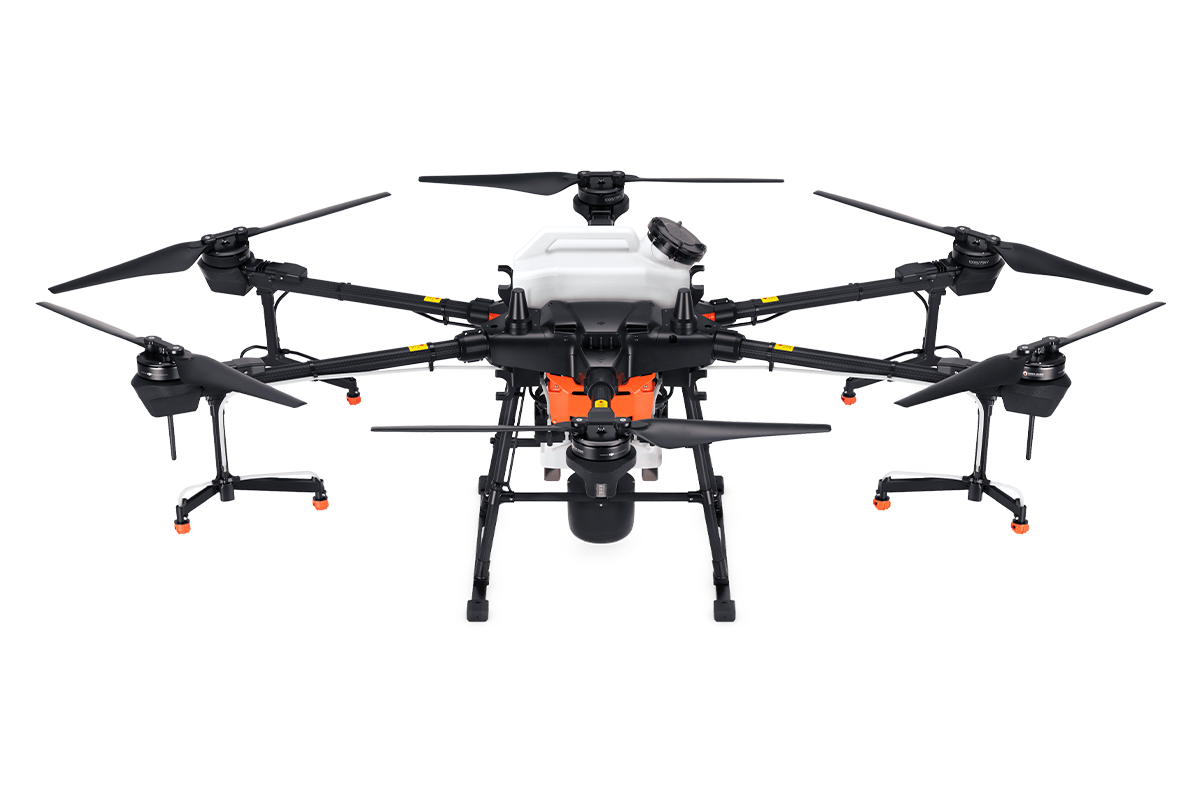

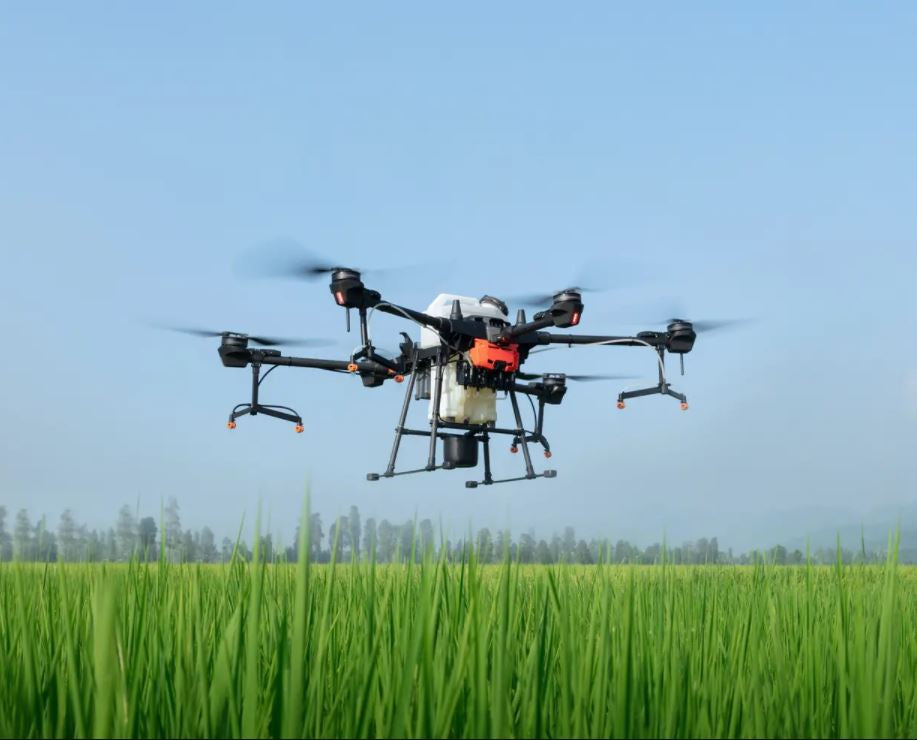

With its powerful performance and outstanding spraying capabilities, the T20 can conduct autonomous operations over a variety of terrains, such as broadacre farmlands, terraces, and orchards. New features, like an omnidirectional digital radar, have helped the T20 take stability and flight safety to the next level, providing users with highly efficient results.

Improved Efficiency

The T20 features a payload of 20 L coupled with a spray width of 7 m, making the operation more efficient

Effortless and Precise

Being a comprehensive spraying system, the T20 allows users to set flight and operation parameters easily. With a built-in RTK centimeter-level positioning system and RTK dongles, centimeter-level waypoint recording is enabled, strengthening operations greatly and ensuring precision spraying.

Great Power, Great Performance

The T20 comes equipped with 8 nozzles and high-volume pumps that can spray at a rate of up to 6 L/min. A highly optimized wind field produces droplets ideal in size and consistency. The T20 is also equipped with a new 4-channel electromagnetic flow meter, which monitors and controls four hoses individually, ensuring an efficient flow rate for each nozzle.

Increased Flight Safety

The T20 is equipped with an omnidirectional digital radar, which is able to detect obstacles from all horizontal directions. It can also automatically circumvent obstacles while flying over various terrains, ensuring a high level of operational safety. With this radar, the T20 can adapt to most environments, 24/7, thanks to its strong resistance to dust and water. The T20 also comes with a real-time FPV camera and two searchlights, providing users with comprehensive live views even at night.

All-New Agras Smart Controller

DJI has successfully elevated the performance of the T20 thanks to the new programmable Agras Smart Controller 2.0 and the DJI Agras app. The user interface runs smoothly and is incredibly intuitive. In addition, the smart controller comes with an ultra-bright 5.5-inch display, visible even under strong sunlight. It also supports external battery packs and can last twice as long as other remote controllers, perfect for lengthy or heavy workloads.

Incredibly Durable, Improved Portability

With a robust modular design, the T20 folds and unfolds in seconds, making it more portable than other agricultural drones. The spray tank and battery are both swappable, reducing downtime and increasing workflow significantly. All core modules are IP67 rated. They can also withstand splashes when cleaning the aircraft body, which can be done easily with water. [2] Thanks to a 4-channel electromagnetic flow meter, 4 electromagnetic exhaust valves, and replaceable diaphragms for pumps, calibration and maintenance have become incredibly easy. Additionally, air bubbles can be discharged with a single press of a button.

Spreading System 2.0

The Spreading System 2.0 elevates the efficiency of the T20 significantly by utilizing a payload of 16 L [7] and a dispense rate of up to 15 kg/min. For direct seeding with grains 0.5-5 mm in size, the Spreading System 2.0 performs 70 times faster than manual operations. [1] This improved form of planting is designed for multiple application scenarios, such as grassland reseeding, granular fertilizer spreading, and the spreading of feed for fish and shrimp. Installation of the system can be completed in under three minutes, proving that it is always ready for the task ahead.
