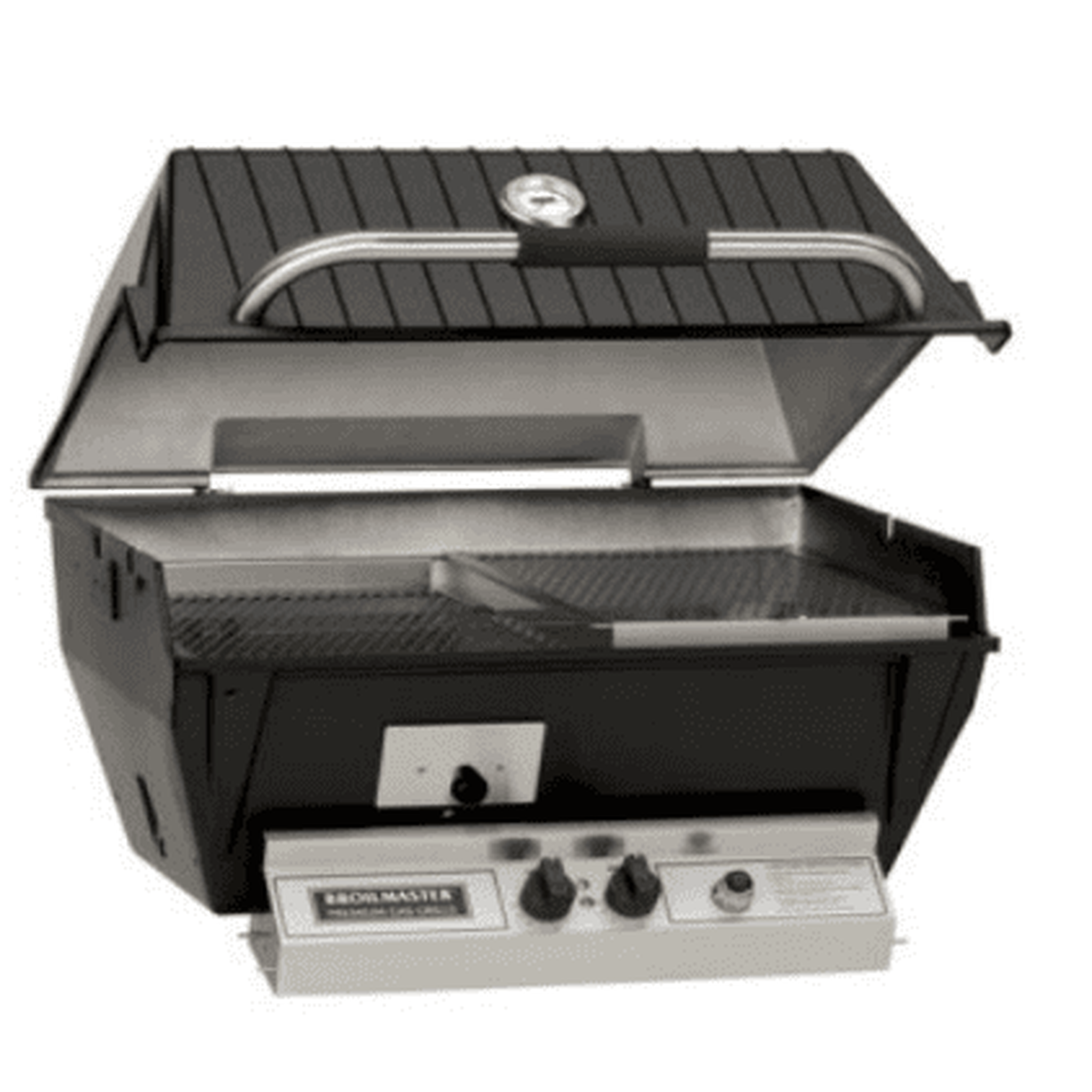

Broilmaster Q3X Slow Cooker Built-In Grill
Since 1966, grilling enthusiasts have trusted Broilmaster for exceptional performance, durability, and unmatched support. Backed by quality and support, Broilmaster owners grill on their Broilmaster for decades and pass them on to the next generation.
Historically, Broilmaster’s cast-aluminum grill head featured a deep bottom casting that allowed more uniform temperature across the cooking grid. The original Broilmaster G-1000 also featured the now legendary Bow Tie Burner, known for even heat distribution. Variations of both can be found on most modern Broilmaster grills.
Throughout the years Broilmaster expanded the cast-aluminum offerings to include a full line up of gas, infrared, and charcoal grills. Each Broilmaster grill incorporates a variety of features such as multi-level cooking grids, retract-a-rack, separate burner controls, stainless steel griddles, and the patented Smoker Shutter.
In 2018 we introduced the Broilmaster Stainless gas grill series. Broilmaster Stainless gas grills combine the distinctive features of an original Broilmaster with a sleek, contemporary design. The versatile multi-level cooking grids, retract-a-rack, and timeless Bow Tie Burner live on in this new generation of stainless steel grills.
With the combination of versatile cooking capabilities, convenient features, and unmatched customer service, a Broilmaster grill is truly the grill of a lifetime.
The Broilmaster Slow Cooker Q3X allows you to achieve traditional barbecue flavor with a low temperature, moisture, and a long cooking time. The thick aluminum casting maintains a consistent cooking temperature all day with a maximum output of 26,500 BTUs and a minimum of 7,500 BTUs. Up to 695 square inches of total cooking area, several standard features, and optional accessories provide a variety of cooking options for any size crowd.
Standard Features
|
Heavy-Duty Cast Aluminum Construction
Designed To Last and Maintain Cooking Temperature
|
|
Multi Level Stainless Steel Cooking Grids
Provide Control Over Food Distance To The Flame
|
|
|
Stainless Steel Oval Burner
Cooks More Than 50 Hours On One Tank On Low
|
|
Smoker Tray
Provides Real Wood Smoke Flavor
Smoker
|
|
|
Full Are Drip Pan with Drain Valve
Eliminates Flare-Ups As Drippings Fall
|
|
|
External Drip Bucket
Eliminates Flare-Ups As Drippings Fall
|
Other Features
- 26,500 BTU to 7,500 BTU
- 420-695 Sq. In. of Total Cooking Area
- Built-in Smoker Tray for Wood Chips or Pellets
- External Drip Bucket
- Full-area, Stainless Steel Drip Pan with Drain Valve
- Heavy Duty Cast Aluminum Construction
- Multi-level Stainless Steel Cooking Grids
- Stainless Steel Oval Burner
Technical Specifications
| Fuel Type: |
Propane or Natural Gas |
| Maximum BTU Output: |
26,000 |
| Minimum BTU Output: |
7,500 |
| Total Grilling Area |
420-695 Sq. Inches |
| Color: |
Black |
| Item Weight: |
87 lbs. |
| Overall Dimension: |
W 26 3/4" x D 18 3/4" x H 20 1/2" |
| Main Burner Configuration: |
Conventional |
| Number of Main Burners: |
1 Burner |
| Ignition: |
Electronic |
| Cooking Grid Material: |
Stainless Steel |
| Warming Rack Material: |
Stainless Steel |
| Burner Material: |
Stainless Steel |
| Material: |
Cast Aluminum |
Q3X Built-In Includes:
- Two Stainless Steel Diamond Cooking Grids - 2-Level Adjustable (420-695 Sq. In. of Total Cooking Area)
- Stainless Steel Drip Pan with Drain Valve and Bucket
- Stainless Steel Slide-In Smoker Tral for Wood Chips or Pellets
- Stainless Steel Oval Burner - 26,500 to 7,500 Btu for low, slow cooking
- Electronic Ignition
- Stainless Steel Lid Prop
- Stainless Steel Built-In Kit
BROILMASTER WARRANTY
|
| LIMITED LIFETIME Against Rust-through |
Aluminum Grill Housing (except paint), Stainless Steel Cooking Grids and Stainless Steel Griddles, Select Stainless Steel Components – Cart, Mounting, Bow Tie Burner, Side Burner (DPA150), Side Burner (DPA151), Side Shelf (DPA153), and Warming Rack, Stainless Steel Built-In Components – Built-In Kits for 3-Series Grill Heads, Side Burner Surround (DPA152), Door Kit, Tilt-Out LP Tank Door, and Vent Register Kit |
| 10 YEARS Against Rust-through |
Stainless Steel Burners for H-Series and R3B |
| 5 YEARS Against Rust-through |
Infrared Burners on R3 and R3B, and Side Burner (DPA151), Flare Buster™ Ceramic Flavor Enhancer , Painted Electro-Galvanized Steel Components, Stainless Steel Smoker Shutter |
| 2 YEARS Against Rust-through |
Porcelain Coated Steel Briquet Racks, Chrome-Plated Warming Rack, Stainless Steel Flavor Screen, Stainless Steel Heat Shield |
| 1 YEAR Against Rust-through |
Valves, knobs, ignitors, labels, hoses, fittings, grease cups, drip buckets, and all other parts and accessories – including those made from stainless steel – unless specified above, paint on aluminum grill head |
Options and Accessories
Click to see Side Burners
 |
Infrared Side Burner
- 10,000 BTU burner output
- Electronic ignition
- Compatible with Propane or Natural Gas installation
- Requires Broilmaster DPA152 Built-In Sleeve*
- Weight: 12.5 lbs
- Dimensions: 17 × 12.5 in
- Fuel Type: Propane, Natural Gas
- External Material: Stainless Steel
- Grilling Surface BTUs: 10,000
- Main Burner Material: Stainless Steel
- Total Grilling Area: 200 Sq. Inches
- Ignition Type: Continuous Spark
|
 |
Blue Flame Side Burner
- 15,000 BTU burner output
- Electronic ignition
- Emits blue flame with conversion kit
- Compatible with Propane or Natural Gas installation
- Requires Broilmaster DPA152 Built-In Sleeve*
- Weight: 9.5 lbs
- Dimensions: 17 × 12.5 in
- Fuel Type: Propane, Natural Gas
- External Material: Stainless Steel
- Grill Surface BTUs: 15,000
- Main Burner Material: Stainless Steel
- Total Grilling Area: 200 Sq. Inches
- Ignition Type: Continuous Spark
|
 |
DPA152 Stainless Steel Built-In Sleeve
When adding a Broilmaster built-in side burner, such as the DPA150 Blue Flame or DPA151 Infrared, to your outdoor built-in island, the DPA152 sleeve or surround is required. It is stainless steel and is 14 3/4" x 14".
Compatibility Unit:
|
Click to see Island Accessories
 |
BDA Built-In Stainless Steel Single Door Kit
- Orientation: Vertical
- Dimension: W 16.5625" x H 21.5625"
- Material: Stainless Steel
|
 |
BBA Built-In Stainless Steel Tilt-Out Tank Door
- LP Tank bin conceals 20LB LP tank or will hold a trash container.
- Tilt-out design allows for easy tank changes.
- Stainless steel construction
- Outside Frame Dimensions: 26.60" x 16.625"
- Conceals propane tank
|
 |
BRB Built-In Stainless Steel Register Kit
- Stainless steel construction
- Two registers for island ventilation
- Width: 16 5/8 Inch
- Height: 3 Inches
|
 |
BRB Built-In Stainless Steel Register Kit
- Grill Configuration: Built-In
- Grill Size: Medium
- Shape: Rectangle
- Weight: 4 lbs
- Cover Width: 32 Inch
- Cover Height: 17 Inch
- Cover Depth: 19 Inch
|
Click to see Other Accessories
 |
Heavy Duty Rotisserie Kit
Add the motorized rotisserie kit allows you to roast a whole chicken, pork loin, roast, and much more in the convenience of your Broilmaster Stainless gas grill. The rotisserie kit and included counterweight evenly roasts large cuts of meat from every angle.
|
 |
|
 |
Stainless Steel Griddle
From bacon, eggs, and pancakes to cookies, this super-duty griddle adds versatility to your Broilmaster grill. Made from thick stainless steel, the griddle includes a large cooking surface and drip tray.
|
 |
Broilmaster Stainless Steel Retrack-A-Rack Warming Rack
- Stainless Steel Rod Multi-Level Cooking Grids for Size 3 grill
- Stainless Steel Retract-A-Rack, Fold-Out
- Fits C3, Q3, P3, R3, T3 and D3 sized Grill Heads
- Dimensions: 8 x 16 x 16 inches
|
 |
Broilmaster DPA106 Adjustable Lid Stop for P3, Q3, H3, P4, H4, D3, D4 and T3
This replacement stainless steel lid stop is designed for all Broilmaster gas grills. Keeps the lid up when it is open to free up your hands for other tasks.
|
 |
Broilmaster DPA147 Scraper Tool for Q3
This Qrave scraper tool is designed to help clean grease, drippings, and residue from the grease pan of Broilmaster Q3X grills. Made of durable, rust-resistant stainless steel. Dishwasher safe.
|
 |
Broilmaster DPA22 Flexible Bristle Brush for Q3X
This flexible bristle cleaning brush make it easy to remove build-up from the drain pipe and valve of your gas grill to help prevent clogging. Use it to also keep your cooking grids clean and gristle free. The brush's durable, wiry construction is perfect for getting between grid bars and its slim shape is easy to store away. Features a comfort grip handle.
|
