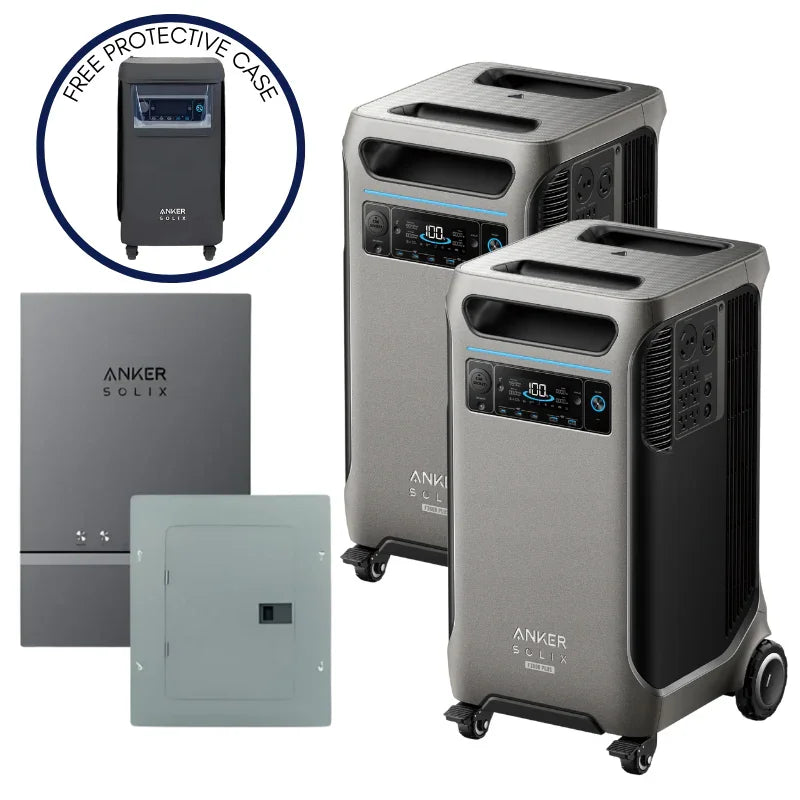

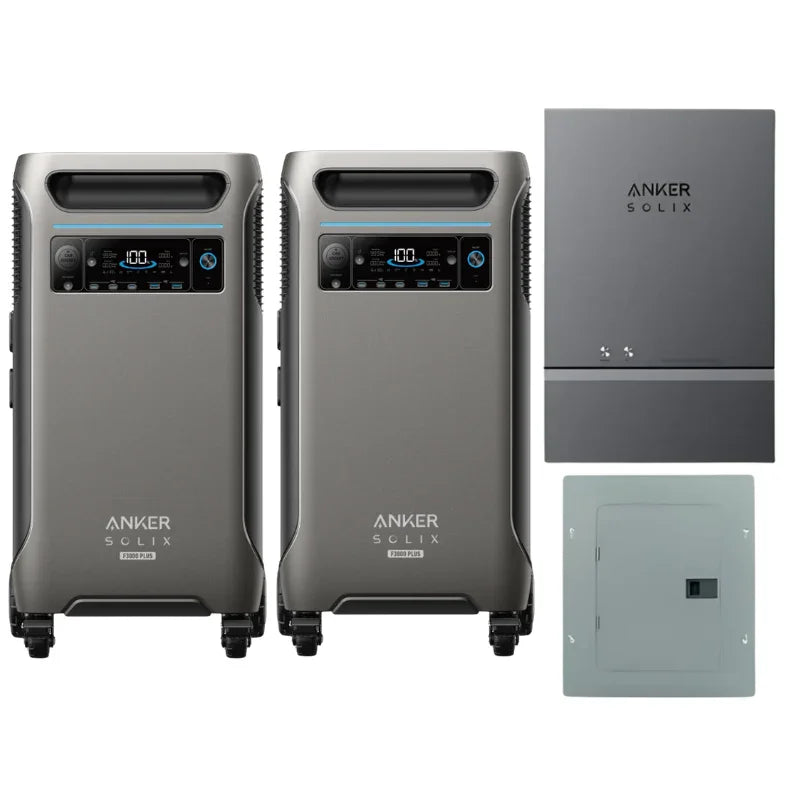

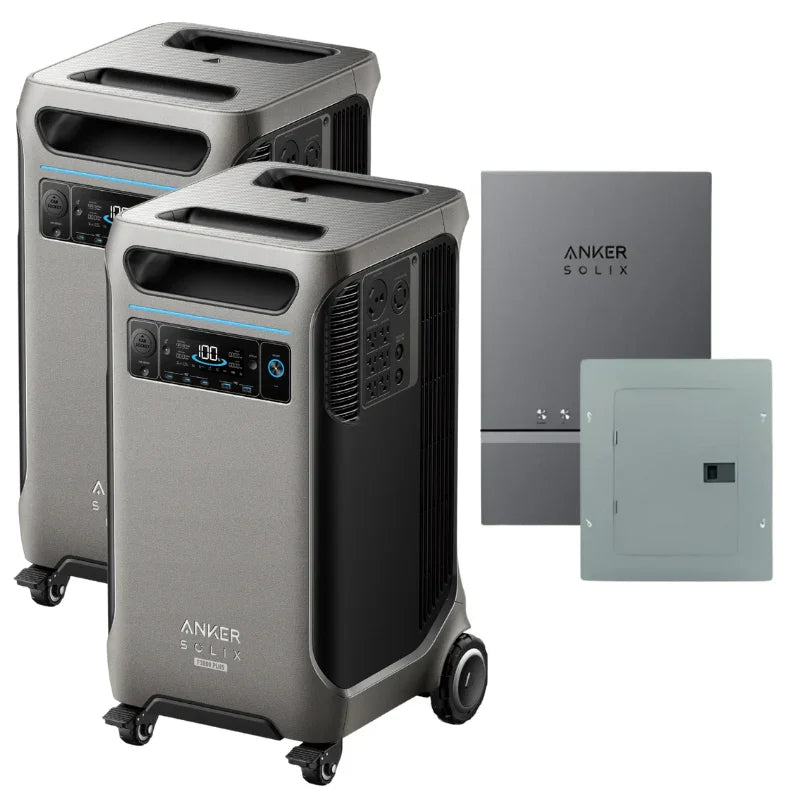

Anker SOLIX F3800 Plus x2 + Home Power Panel + Sub Panel

The Anker SOLIX F3800 Plus x2 + Home Power Panel + Sub Panel is a high-capacity, whole-home backup power solution designed for ultimate energy resilience. With two SOLIX F3800 units, this system delivers massive expandable energy storage, reliable home backup, and intelligent energy management. Whether you're preparing for power outages, living off-grid, or optimizing solar energy storage, this package ensures seamless power distribution with 240V split-phase output and smart home integration.

Placeholder Image

Anker SOLIX F3800 Plus x2 + Home Power Panel + Sub Panel Features

Dual F3800 Power Stations for Maximum Energy Storage

With two F3800 units, enjoy a total of 7.7kWh battery capacity, expandable up to 26.9kWh with additional BP3800 Expansion Batteries.

Whole-Home Backup with Sub Panel Integration

Power up to 12 circuits with seamless home energy management using the Home Power Panel and Sub Panel.

Massive 240V Split-Phase Power

Capable of handling high-powered appliances like HVAC systems, well pumps, and heavy-duty tools.

Flexible Charging Options

Supports 3000W AC charging, 2400W solar input, and generator charging for continuous energy availability.

Placeholder Image

Anker SOLIX F3800 Plus x2 + Home Power Panel + Sub Panel Applications

  • Whole-home power backup for extended outages.
  • Off-grid solar-powered home energy storage.
  • Running high-power appliances (240V compatibility).
  • Sustainable energy independence with solar integration.
  • RVs, mobile homes, and remote cabins.
Placeholder Image
Placeholder Image
Placeholder Image

What's Included

Everything you need is included with your product.

  • (2) Anker SOLIX F3800 Plus Portable Power Station
  • (1) Anker SOLIX Home Power Panel
  • (1) Anker SOLIX Sub Panel
  • (1) AC Charging Cable
  • (1) MC4 3-Port Solar Charging Connector
  • (1) User Manual
Placeholder Image

Anker SOLIX F3800 Plus Portable Power Station Specifications

BATTERY

Specifications Details
Battery Type LiFePO4 Cell
Cell Part Number 32140FS-15000mAh
Charging Cycle 3000+ (to 80%)
Cell Capacity 51.2Vdc 75Ah/3840Wh

INPUT

Specifications Details
AC Input 120V~ 15A Max (< 3hrs) / 12A Max (continuous), 60Hz, L+N+PE
AC Input Power (Charging) 1800W Max
AC Input Power (Bypass Mode) 1440W Max
Solar Panel Input 1 11-165V - 17A Max (1600W Max Each)
Solar Panel Input 2 11-165V - 17A Max (1600W Max Each)
DC Input Port 60V Max, 120A Max

OUTPUT

Specifications Details
Car Charger Output 12V - 10A
Home Panel Power Port 6000W Max (AC Input), 6000W Max (AC Output), 120V/240V, L1+L2+N+PE
AC Output Power (Total) 6000W Max
AC Output 1 120V~ 20A Max, 60Hz, 2400W Max
AC Output 2 120V~ 20A Max, 60Hz, 2400W Max
AC Output (NEMA L14-30R) 120V/240V~ 25A Max, 60Hz, 6000W Max
USB-A Output 5V - 2.4A (12W Max Per Port)
USB-C Output 5V - 3A / 9V - 3A / 15V - 3A / 20V - 3A / 20V - 5A (100W Max Per Port)

UPS

Specifications Details
UPS 20ms

ENVIROMENTAL OPERATION

Specifications Details
Discharging Temperature -4°F-104°F / -20°C-40°C
Charging Temperature 32°F-104°F / 0°C-40°C

DIMENSION

Specifications Details
Size 27.6×15.3×15.6 in / 70.2×38.8×39.5 cm
Net Weight 62kg / 136.7lb

Frequently-Asked Questions

How long can the dual F3800 setup power my home?

With 7680Wh capacity, the system can run a full home setup for an extended period, depending on energy consumption.

Can I expand this system later?

Yes! The dual F3800 setup supports up to 6 BP3800 expansion batteries, allowing for a total storage capacity of 26.9kWh.

Is professional installation required?

Yes, for the Home Power Panel and Sub Panel, professional installation is recommended for safe and optimal performance.

Can I run 240V appliances with this setup?

Yes! The system provides 240V split-phase power, making it ideal for AC units, dryers, well pumps, and heavy-duty appliances.
