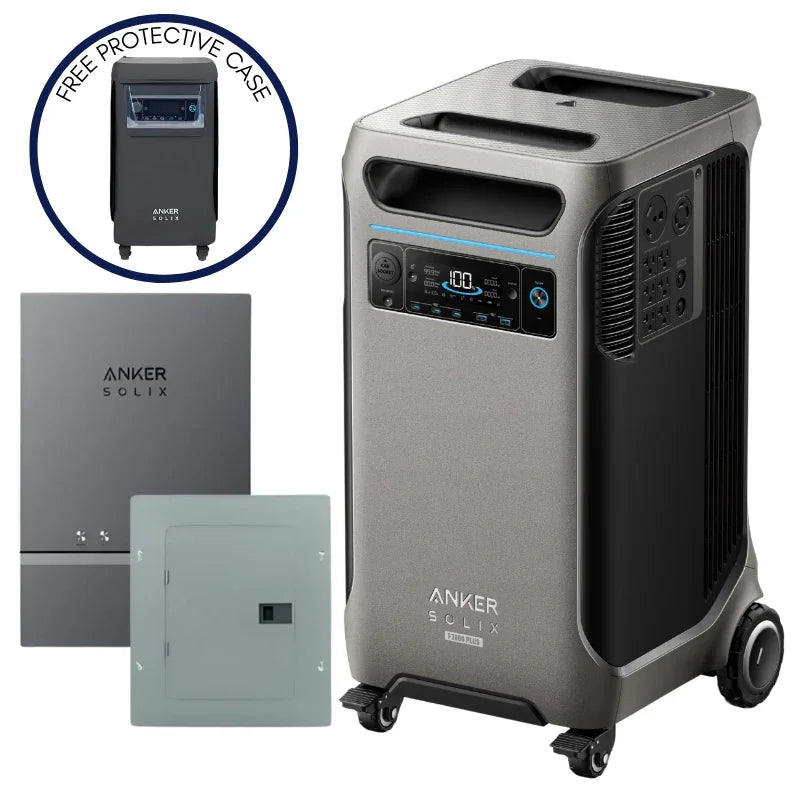

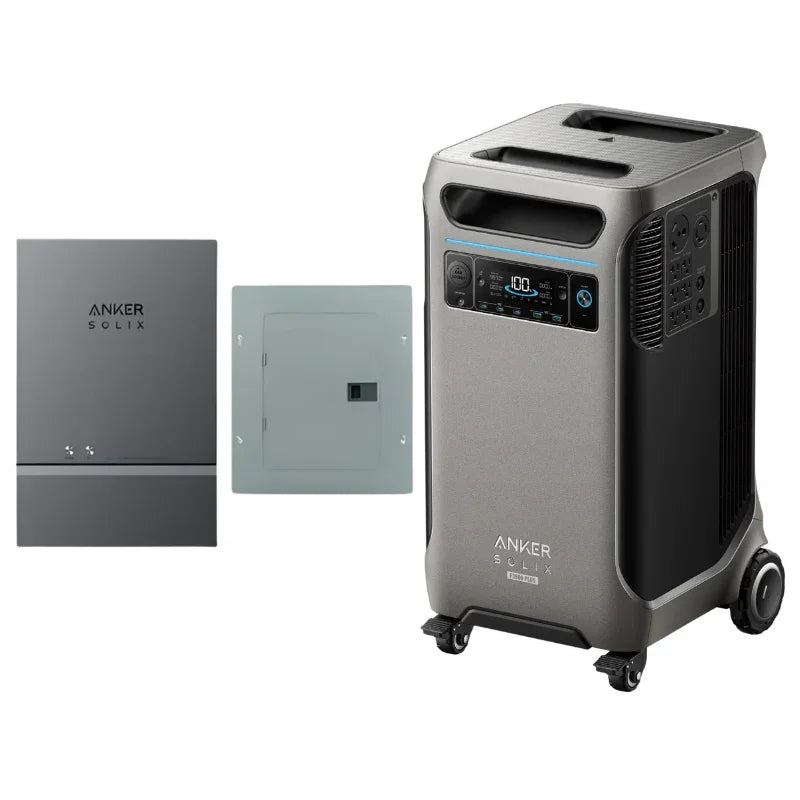

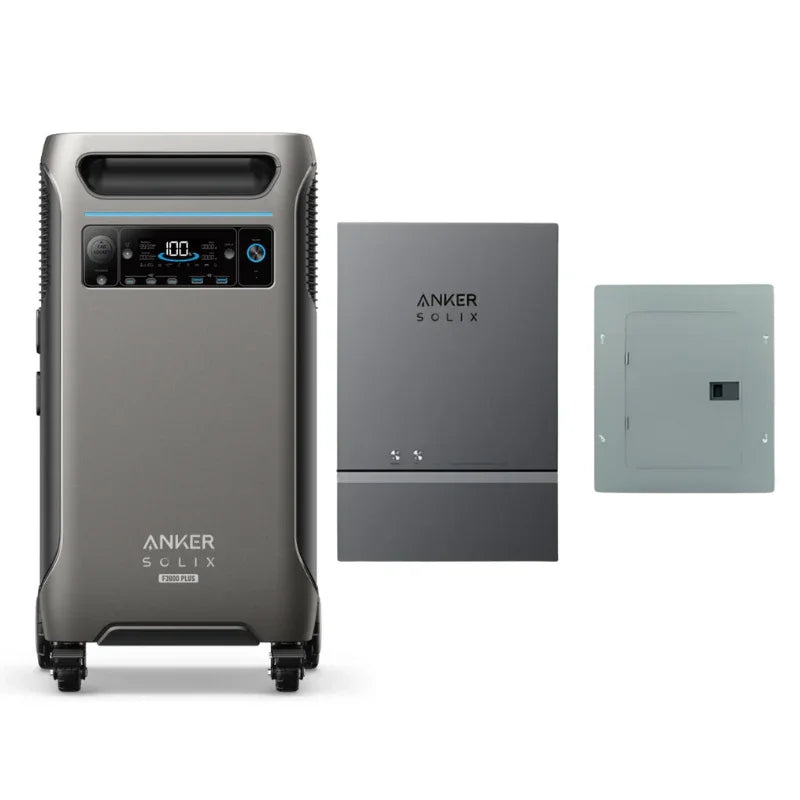

Anker SOLIX F3800 Plus + Home Power Panel + Sub Panel

The Anker SOLIX F3800 Plus + Home Power Panel + Sub Panel is a powerful and versatile home energy solution designed to provide reliable backup power and off-grid energy independence. This all-in-one system seamlessly integrates the F3800 Portable Power Station with the Home Power Panel and Sub Panel, enabling whole-home backup, solar energy storage, and efficient energy management.

Placeholder Image

Anker SOLIX F3800 Plus + Home Power Panel + Sub Panel Features

Whole-Home Backup Power

Easily power your entire home during outages with a seamless integration into your electrical system. Supports up to 12 circuits with the included Sub Panel.

Expandable Energy Storage

Supports up to 6x BP3800 expansion batteries, delivering a massive 26.9kWh capacity for extended backup power.

Fast & Flexible Charging

Recharge via solar (2400W max), AC (3000W), or generator input, ensuring you always have power when you need it.

Grid-Tied & Off-Grid Capabilities

Operate as a whole-home backup system or in off-grid mode with solar and battery storage.

Placeholder Image

Anker SOLIX F3800 Plus + Home Power Panel + Sub Panel Applications

  • Whole-home backup power for emergencies and outages.
  • Off-grid living and energy independence.
  • Solar energy storage and optimization.
  • High-power appliance operation (AC units, well pumps, refrigerators, etc.).
  • RVs, cabins, and mobile home power solutions.
Placeholder Image
Placeholder Image
Placeholder Image

What's Included

Everything you need is included with your product.

  • (1) Anker SOLIX F3800 Plus Portable Power Station
  • (1) Anker SOLIX Home Power Panel
  • (1) Anker SOLIX Sub Panel
  • (1) AC Charging Cable
  • (1) MC4 3-Port Solar Charging Connector
  • (1) User Manual
Placeholder Image

Anker SOLIX F3800 Plus Portable Power Station Specifications

BATTERY

Specifications Details
Battery Type LiFePO4 Cell
Cell Part Number 32140FS-15000mAh
Charging Cycle 3000+ (to 80%)
Cell Capacity 51.2Vdc 75Ah/3840Wh

INPUT

Specifications Details
AC Input 120V~ 15A Max (< 3hrs) / 12A Max (continuous), 60Hz, L+N+PE
AC Input Power (Charging) 1800W Max
AC Input Power (Bypass Mode) 1440W Max
Solar Panel Input 1 11-165V - 17A Max (1600W Max Each)
Solar Panel Input 2 11-165V - 17A Max (1600W Max Each)
DC Input Port 60V Max, 120A Max

OUTPUT

Specifications Details
Car Charger Output 12V - 10A
Home Panel Power Port 6000W Max (AC Input), 6000W Max (AC Output), 120V/240V, L1+L2+N+PE
AC Output Power (Total) 6000W Max
AC Output 1 120V~ 20A Max, 60Hz, 2400W Max
AC Output 2 120V~ 20A Max, 60Hz, 2400W Max
AC Output (NEMA L14-30R) 120V/240V~ 25A Max, 60Hz, 6000W Max
USB-A Output 5V - 2.4A (12W Max Per Port)
USB-C Output 5V - 3A / 9V - 3A / 15V - 3A / 20V - 3A / 20V - 5A (100W Max Per Port)

UPS

Specifications Details
UPS 20ms

ENVIROMENTAL OPERATION

Specifications Details
Discharging Temperature -4°F-104°F / -20°C-40°C
Charging Temperature 32°F-104°F / 0°C-40°C

DIMENSION

Specifications Details
Size 27.6×15.3×15.6 in / 70.2×38.8×39.5 cm
Net Weight 62kg / 136.7lb

Frequently-Asked Questions

How long can the F3800 Plus power my home?

The runtime depends on the total power load. With 3840Wh capacity, it can run a refrigerator for up to 60 hours or power essential circuits for a full night.

Can I add more batteries later?

Yes! The F3800 supports up to 6x BP3800 expansion batteries, expanding capacity to 26.9kWh.

Is professional installation required?

For the Home Power Panel and Sub Panel, professional installation is recommended for safe integration with your home’s electrical system.

Can this work completely off-grid?

Yes! With solar input (2400W max), you can create a sustainable, off-grid energy system.
