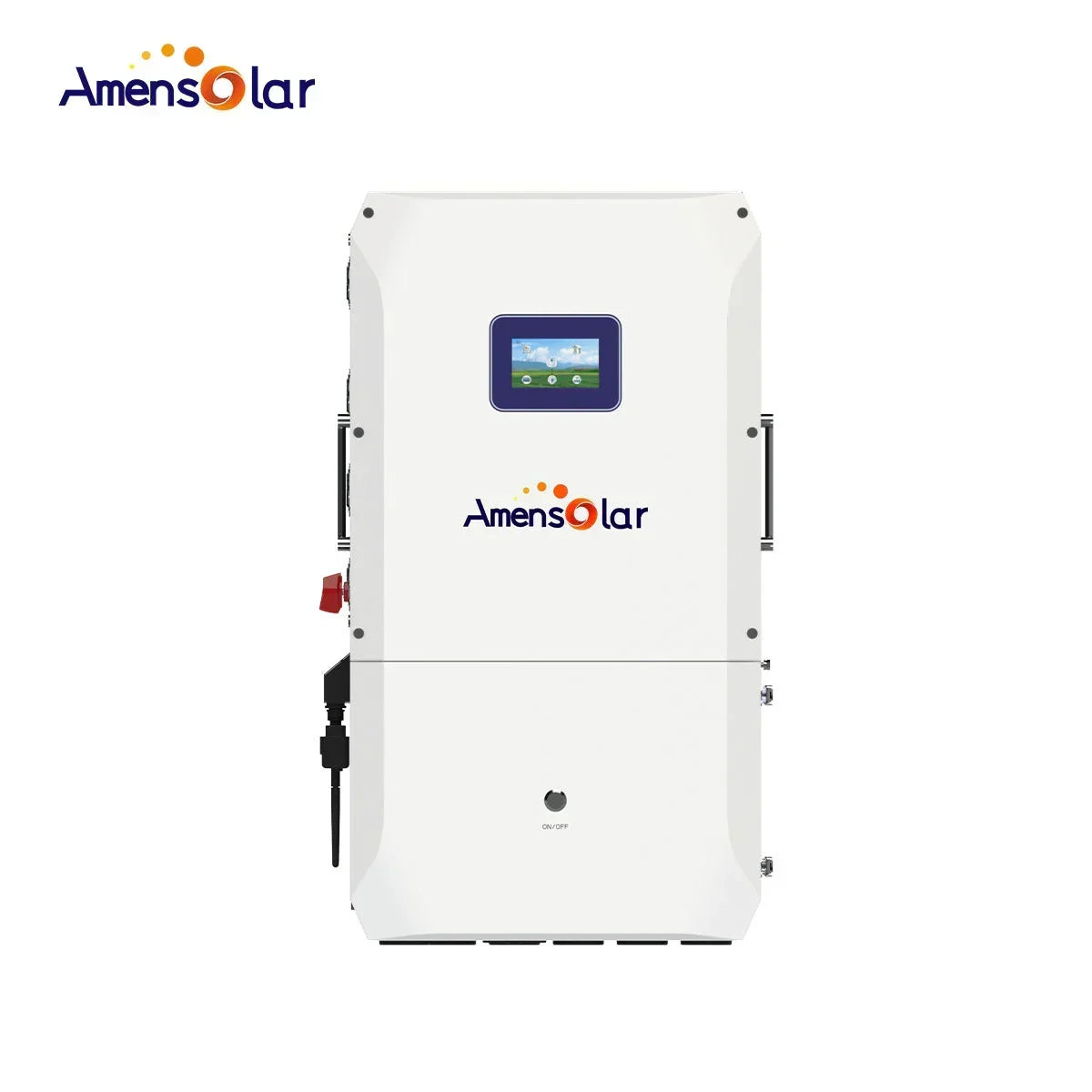

AmenSolar N3H-X10US 10KW Split Phase Hybrid Solar Inverter

● Certificate: UL1741 UL1699B CSA IEEE Hawaii
● Inverter power: 10KW
● Maximum number of parallel inverters: 4
● Communication:Can,Rs485
● support split phase 110/220V ,208V and 230V voltage.
● support OEM for customers with their own brand.
● support customer to do UL multiple listing.
● support parallel and generator function.
● support peak shifting function for customer to use extral electricity to earn money .
● Max grid pass though current(A): 200
● Mainly recommended models: N3H-X10US
● Technical support: 24-hour professional technical online guidance service
● Shelf life: 10 years  MOQ:5
● Partners: distributors, wholesalers, installation companies, not recommended for personal purchase and use

solar inverter manufacturer

solar inverter manufacturer

1 (3)
solar inverter manufacturer



AmenSolar N3H-X10US 10KW Split Phase Hybrid Solar Inverter - Green Vista Living
AmenSolar N3H-X10US 10KW Split Phase Hybrid Solar Inverter - Green Vista Living
Technical Data N3H-X10US
PV Input Data
MAX.DC Input Power 15KW
No.of MPPT Trackers 4
MPPT Range 120 - 430V
MAX.DC Input Voltage 500V
MAX.Input Current 14A×4
Battery Input Data
Nominal Voltage(Vdc) 48V
MAX.Charging/Discharging Current 190A/210A
Battery Voltage Range 40-60V
Battery Type Lithium and Lead Acid Battery
Charging Strategy for Li-Ion Battery Self-adaption to BMS
AC Output Data(On-Grid)
Nominal Output Power Output to Grid 10KVA
MAX. Apparent Power Output to Grid 11KVA
Output Voltage Range 110-120V/220-240V split phase, 208V(2/3 phase), 230V(1 phase)
Output Frequency 50/60Hz (45 to 54.9Hz / 55 to 65Hz)
Nominal AC Current Output to Grid 41.7A
Max.AC Current Output to Grid 45.8A
Output THDI < 2%
 AC Output Data(Back-Up)
Nominal. Apparent Power Output 10KVA
MAX. Apparent Power Output 11KVA
Nominal Output Voltage L-N/L1-L2 120/240V
Nominal Output Frequency 60Hz
Output Power Factor 0.8leading …0.8lagging
Output THDU < 2%
Efficiency
Europe Efficiency >=97.8%
MAX. Battery to Load Efficiency >=97.2%
Protection
Grounding Detection YES
Arc Fault Protection YES
Island Protection YES
Battery Reverse Polarity YES
Insulation Resistor Detection YES
Residual Current Monitoring Unit YES
Output Over Current Protection YES
Back-up Output Short Protection YES
Terminal Temperature Detection YES
Output Over Voltage Protection YES
Output Under Voltage Protection YES
General Data
Output Conduit 25.4mm
PV Input Conduit 25.4mm
BAT Input Conduit 34.5mm
Operating Temperature Range -25 ~ +60°C
Relative Humidity 0-95%
Operating Altitude 0~4000m
Ingress Protection IP65/NEMA 3R
Weight 48kg
Size (Width*Height*Depth) 450mm x 820mm x 261mm
Cooling Air Cooling
Noise Emission <38dB
Display LCD
Communication With BMS/Meter/EMS CAN,RS485
Supported Communication Interface RS485, WLAN, 4G (optional)
Self-consumption at Night < 25W
Safety UL1741SA all options , UL1699B, CSA 22.2
EMC FCC Part 15 ClassB
Grid Connection Standards IEEE 1547, IEEE 2030.5, Hawaii Rule 14H, Rule 21 Phase I,II,III
