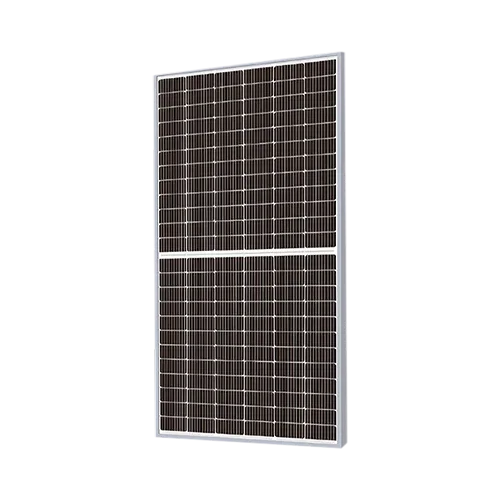

ZNShine Solar ZXM7-SHDB144-550-M 550Watt 144 1/2 Cells Bifacial Double Glass Monocrystalline 30mm Silver Frame Solar Panel



Manufacturer Part#: ZXM7-SHDB144-550-M

The ZNShine Solar ZXM7-SHDB144-550-M monocrystalline bifacial module is the best in terms of power output and long-term reliability. The ZNShine solar panel features a 10 busbar. The ZNShine solar panel is designed for better weak illumination response to produce more power output in weak light conditions, such as within haze, cloudy weather, and mornings. The ZXM7-SHDB144-550-M premium solar panel operates at 21.29% efficiency to maximize the light absorption area. This solar panel is recommended for ground mount and commercial installation.

  • Excellent Cells Efficiency - MBB technology reduce the distance between busbars and finger grid line which is benefit to power increase
  • Anti-PID - Ensured PID resistance through the quality control of cell manufacturing process and raw materials
  • Better Weak Illumination Response - More power output in weak light condition, such as haze, cloudy, and early morning



Specifications

Full data sheet can be found in the Document(s) tab above.

Mechanical Data
Solar Cells Mono PERC
Cells orientation 144(6×24)
Module Dimensions 2278×1134×30mm (With Frame)
Weight 25.5±1kg I 56.2±2.2lb
Glass 3.2mm, High Transmission
AR Coated Tempered Glass
Junction box IP68,3 diodes
Cables 4 mm² ,350 mm
(With Connectors)
Connectors MC4-compatible



Temperature ratings
NOCT 44℃ ±2℃
Temperature Coefficient of Pmax -0.35%/℃
Temperature Coefficient of Voc -0.29%/℃
Temperature Coefficient of Isc 0.05%/℃
Refer.Bifacial Factor 70±5%



Electrical Characteristics I STC*
Nominal Power Watt Pmax 550 W
Maximum Power Voltage Vmp 41.90 V
Maximum Power Current Imp 13.13 A
Open Circuit Voltage Voc 50.20 V
Short Circuit Current Isc 13.89 A
Module Efficiency 21.29 %



Electrical Characteristics I NMOT*
Maximum Power Pmax 410.80 Wp
Maximum Power Voltage Vmpp 38.90 V
Maximum Power Current Impp 10.56 A
Open Circuit Voltage Voc 46.90 V
Short Circuit Current Isc 11.22 A



Documents:

View Data Sheet
