• Description

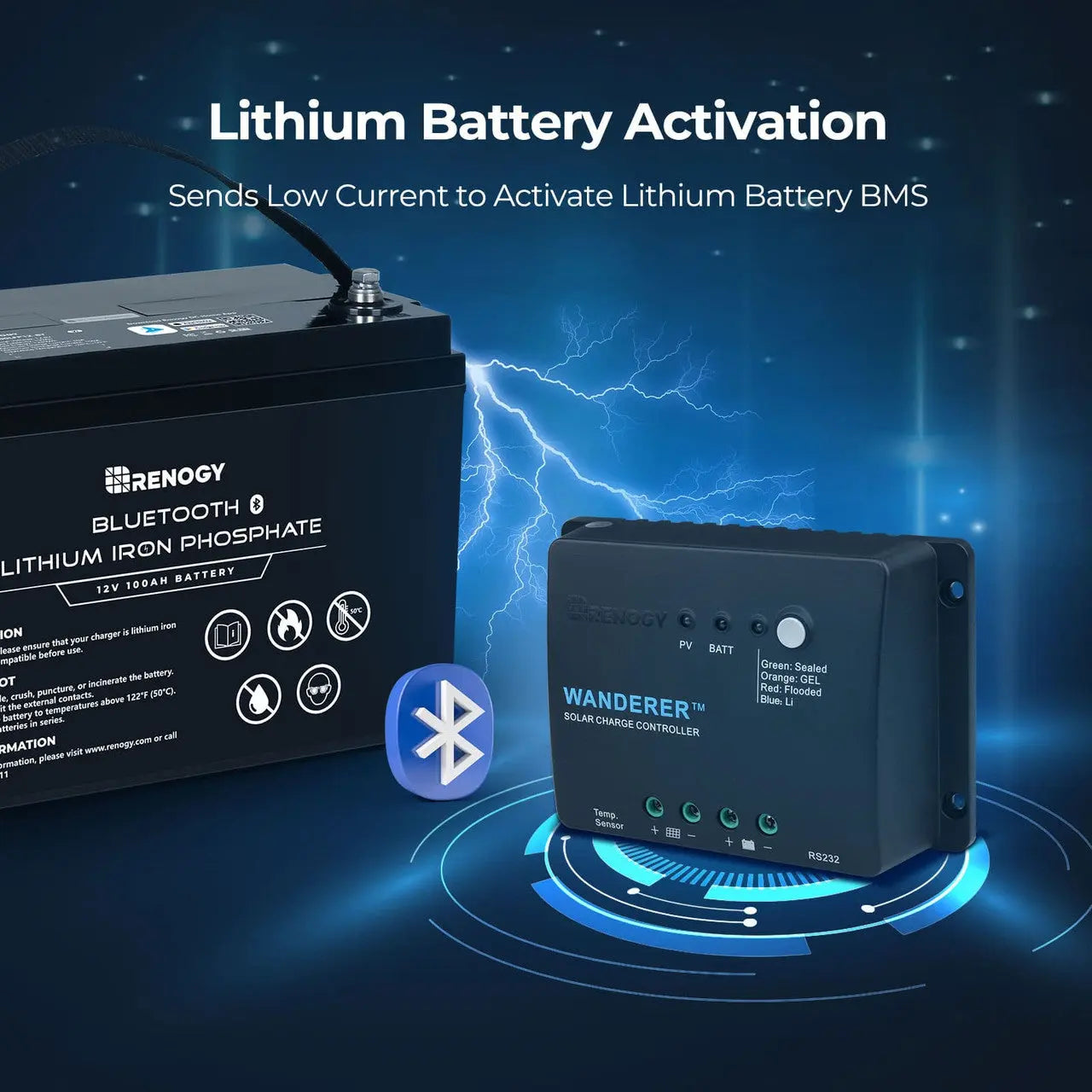

- Optimized for 12V Batteries, including lithium batteries.
- Full system protection to safeguard your energy system.
- Smart 4-Stage PWM charging improves system performance.

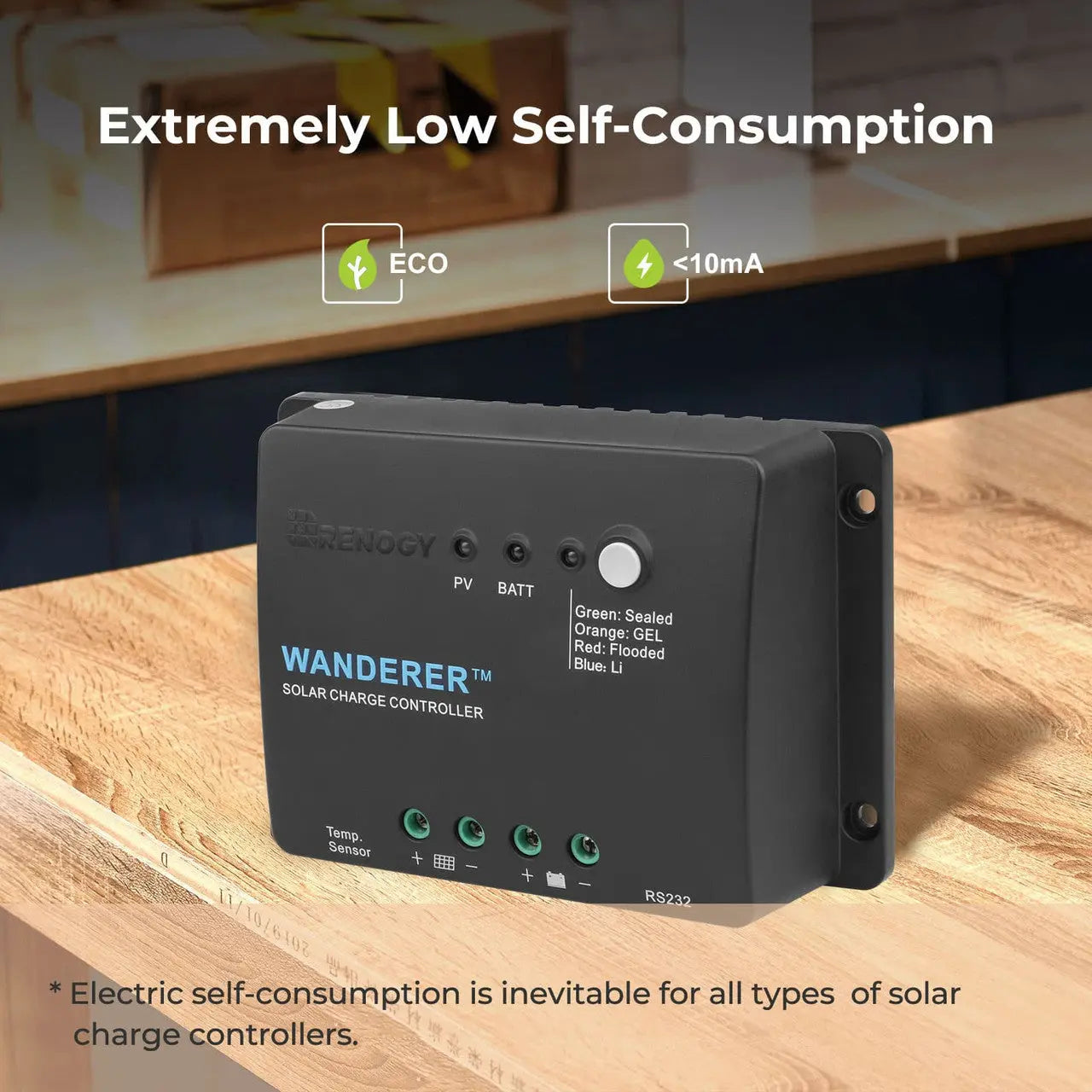

- Extremely low self-consumption.

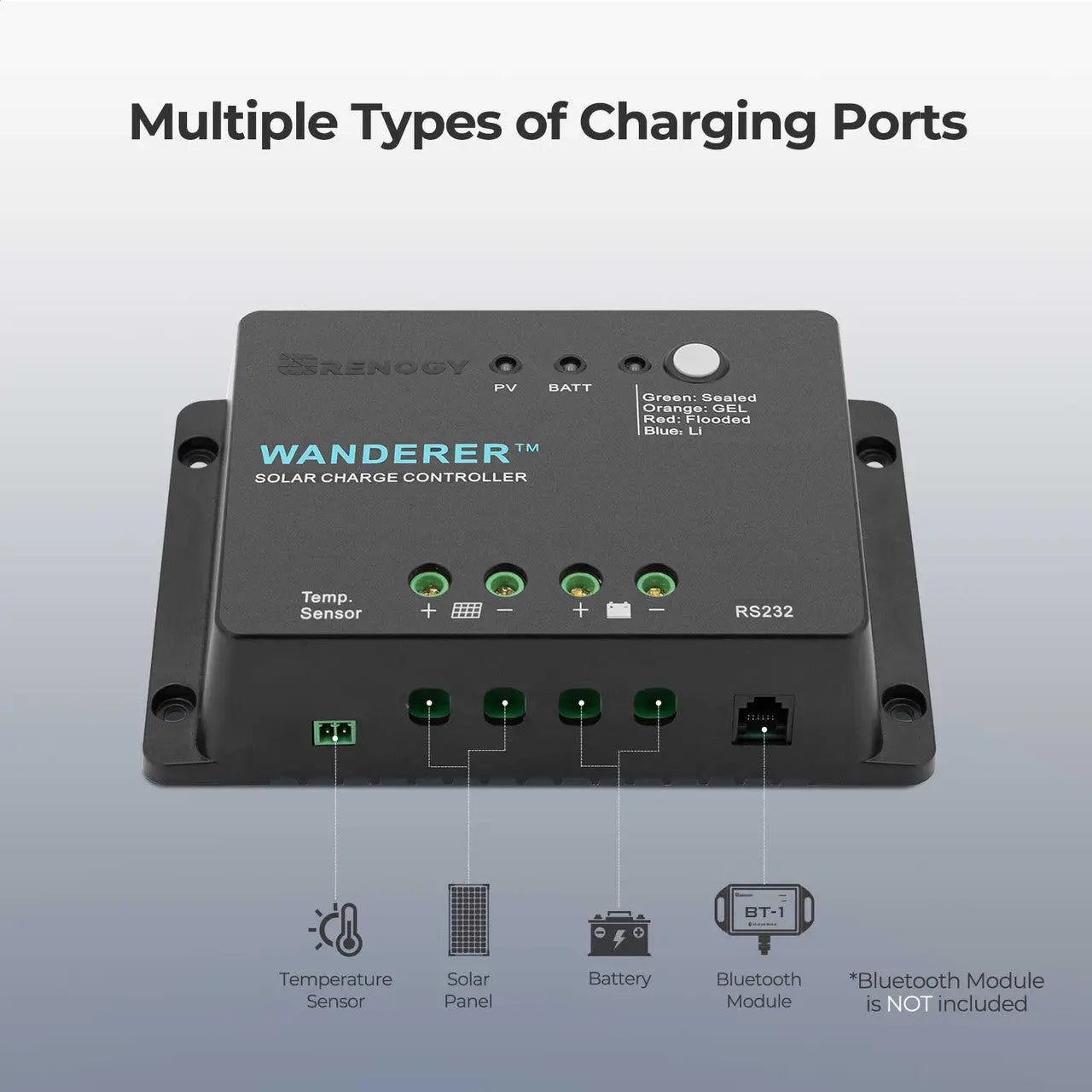

- Real-time monitoring with integrated RS232 port.

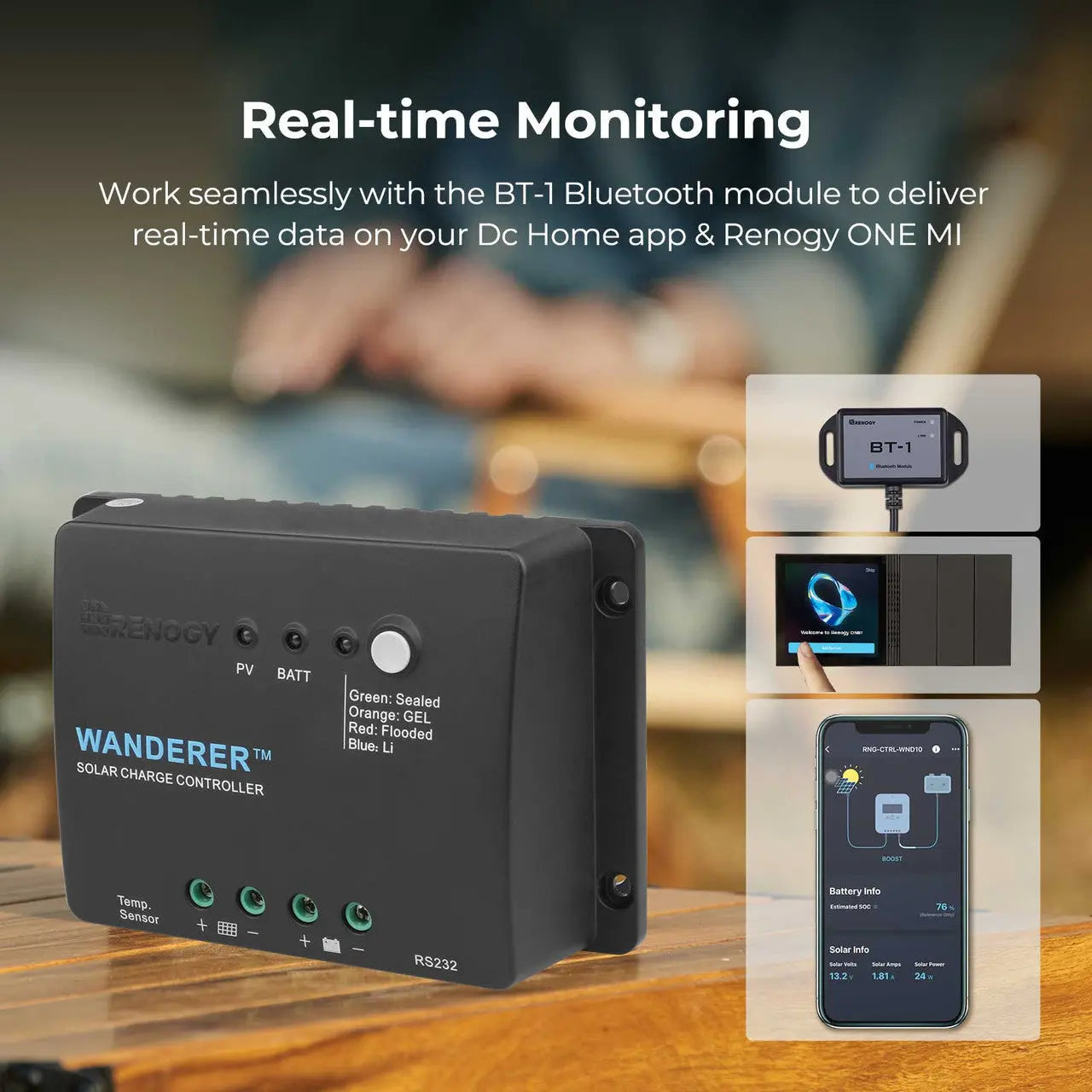

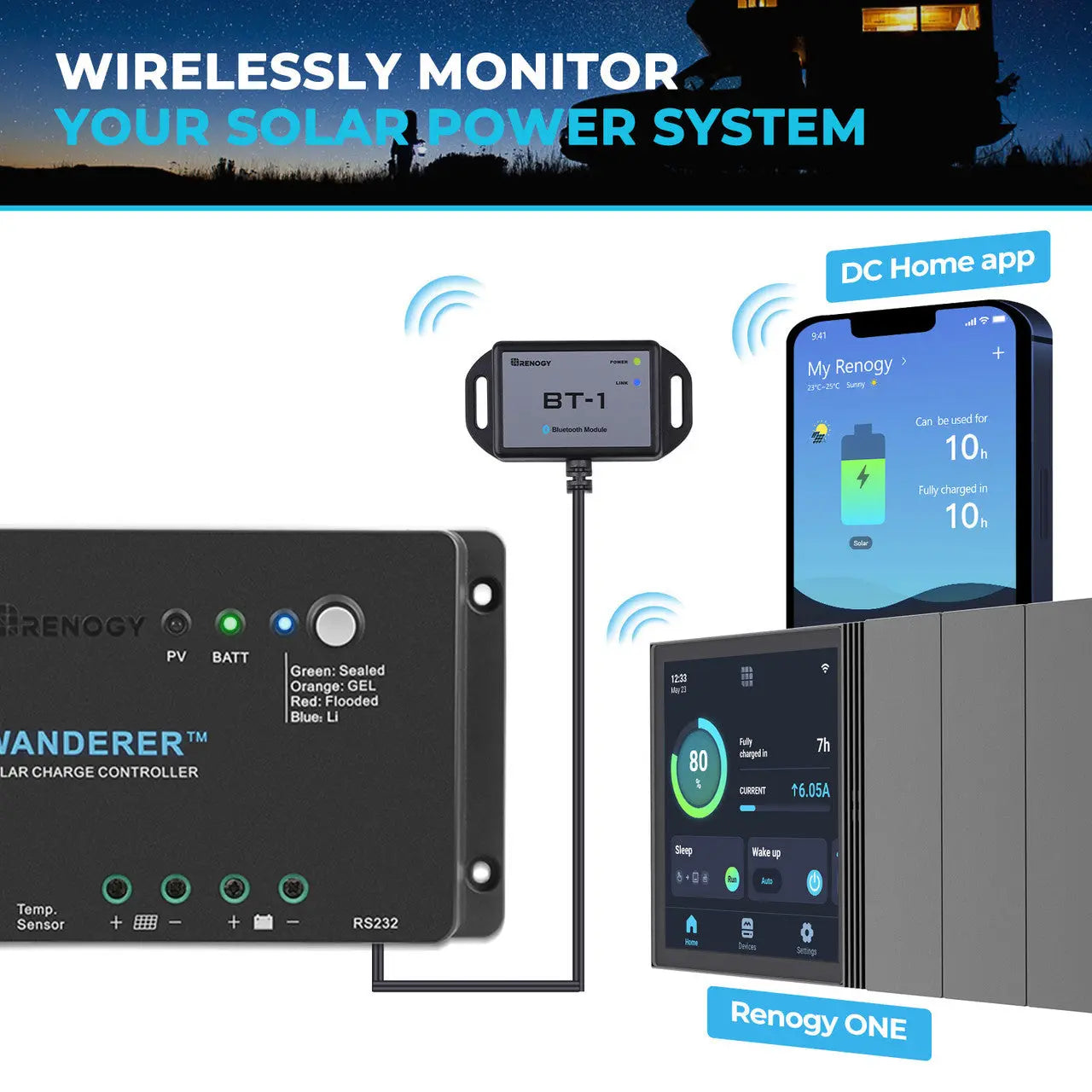

Monitoring Your Energy System Anytime and Anywhere
Seamlessly integrate with the BT-1 to provide instant data on your DC Home app & Renogy ONE M1.

Impeccable Functional Versatility
Offering five load modes, catering to various power needs. With a lightweight design of 0.27 lbs, it operates efficiently in temperatures ranging from -20°F - 113°F.
Dynamic Temperature Compensation
Precisely measure battery temperature for optimal performance and extended lifespan.
Strict Quality Control

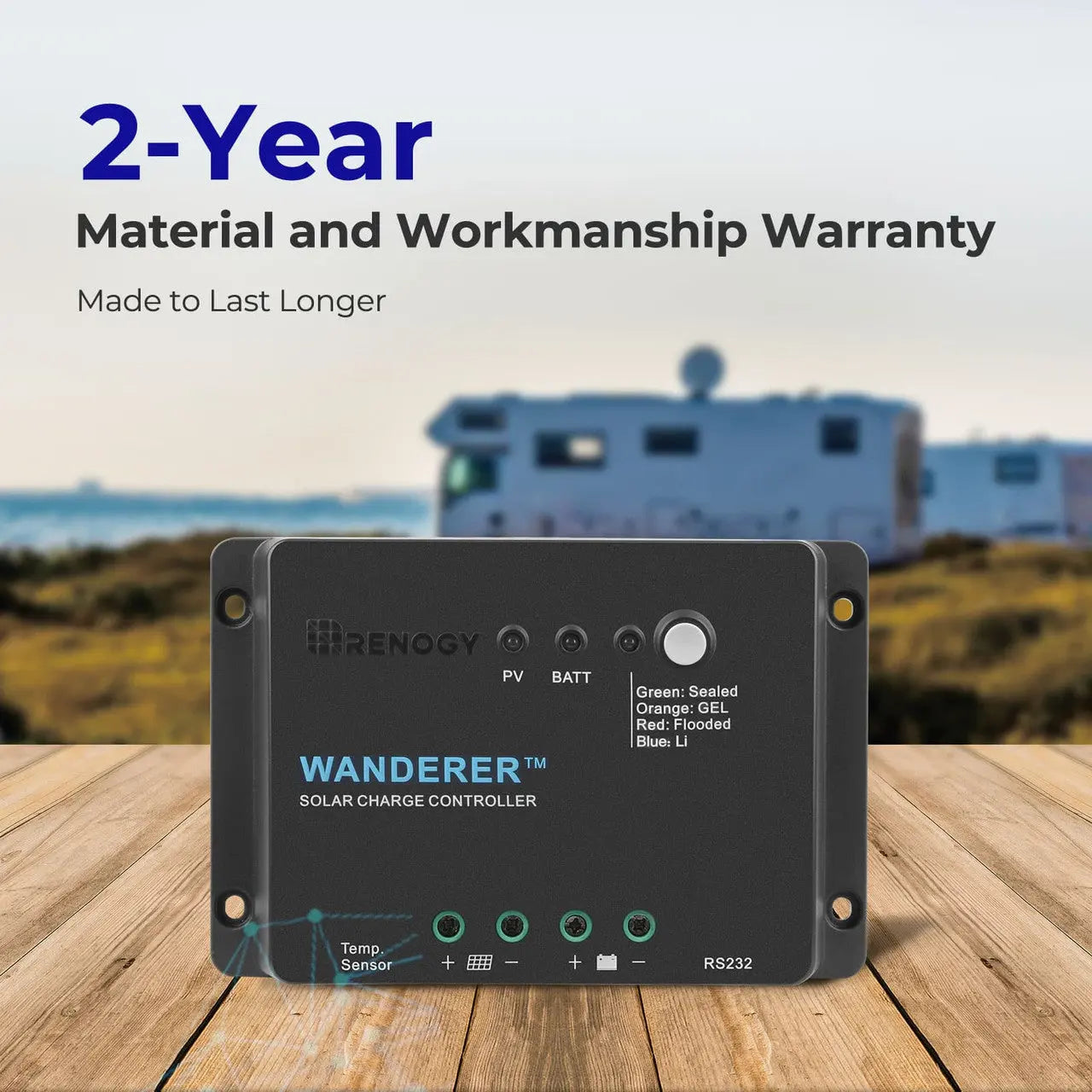

Exceptional quality control ensures reliability. Renogy Wanderer 30A Charge Controller ensures a 2-year material and workmanship performance.
All-round Protection for Your Batteries
Providing all-round protections against overcharging, over-discharging, short-circuit, overload, reverse polarity, reverse current, and temperature compensation.
Prolong Lifespan
Wanderer 30A Charge Controller gives you stable power output, prolonging the lifespan of sensitive electronic devices.

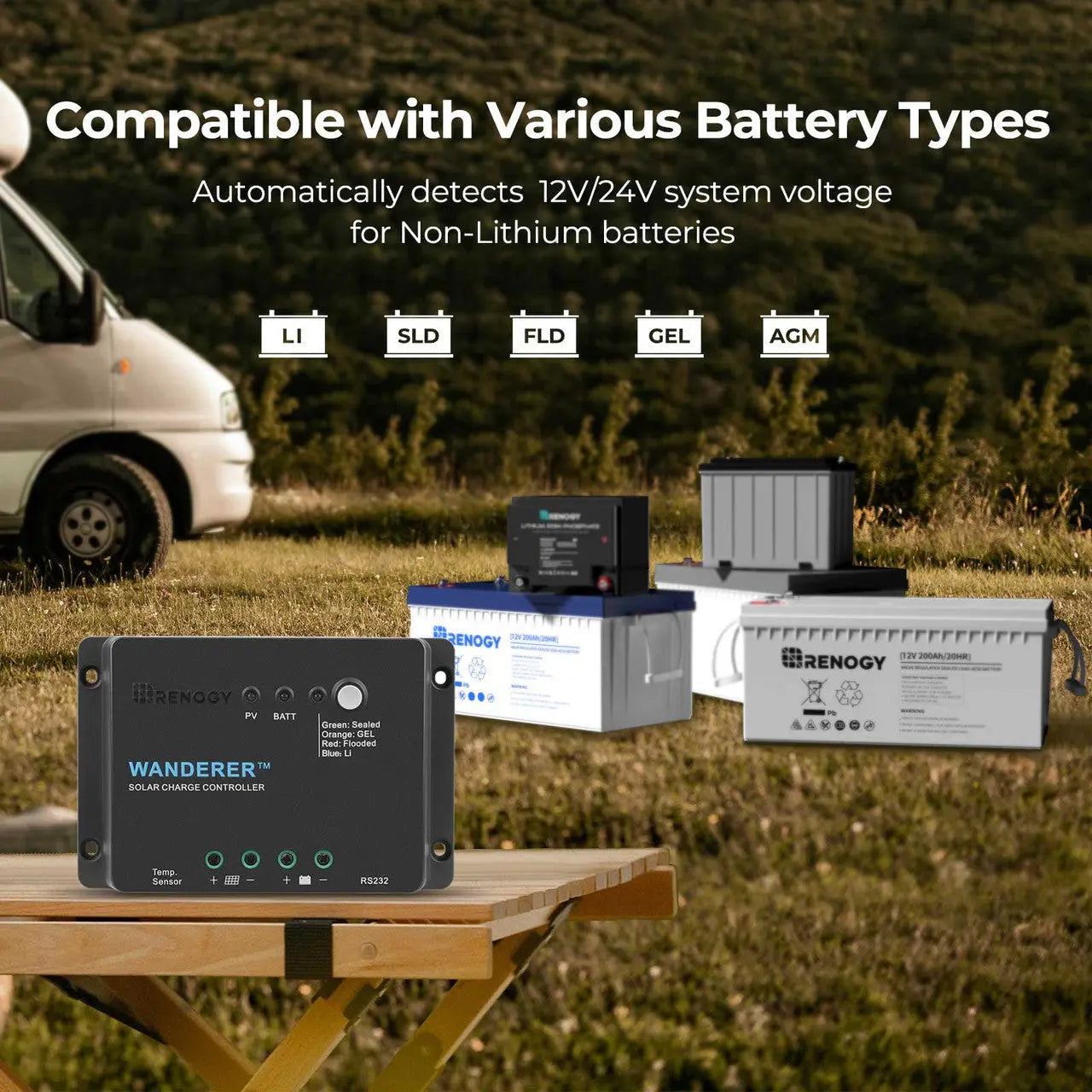

PWM (Pulse-Width Modulation) charge controllers are an essential component of solar power systems, as they help to regulate the amount of energy that is transferred from the solar panels to the battery. The Renogy Wanderer PWM Charge Controller constantly monitors the battery voltage and adjusts the pulse width accordingly, so that the battery is charged safely and efficiently, extending their lifespan and improving the overall performance of the system. It is the most cost-effective option for those seeking an affordable, yet feature-rich charge controller. With a price point that is far lower than MPPT charge controllers on the market, the Wanderer offers exceptional value for its price. It supports multiple battery types including Gel, Sealed, Flooded, Lithium, and offers various load control modes for optimized efficiency. The LCD screen displays real-time charging parameters and error codes for easy monitoring. The controller also features a rugged aluminum housing with eight built-in electronic protections. This product is perfect for anyone in need of a reliable and efficient charge controller for small off-grid systems. With its affordable price point, user-friendly interface, and durable construction, the Renogy Wanderer is an excellent choice for those seeking a high-quality charge controller without breaking the bank.
Empower Your Off-Grid Life
Perfect for a variety of scenarios including RVs, boats, cabins, farming, and gardening scenarios. Explore more solar power possibilities.
Trailer
RV
Cabin
Boat
Learn more

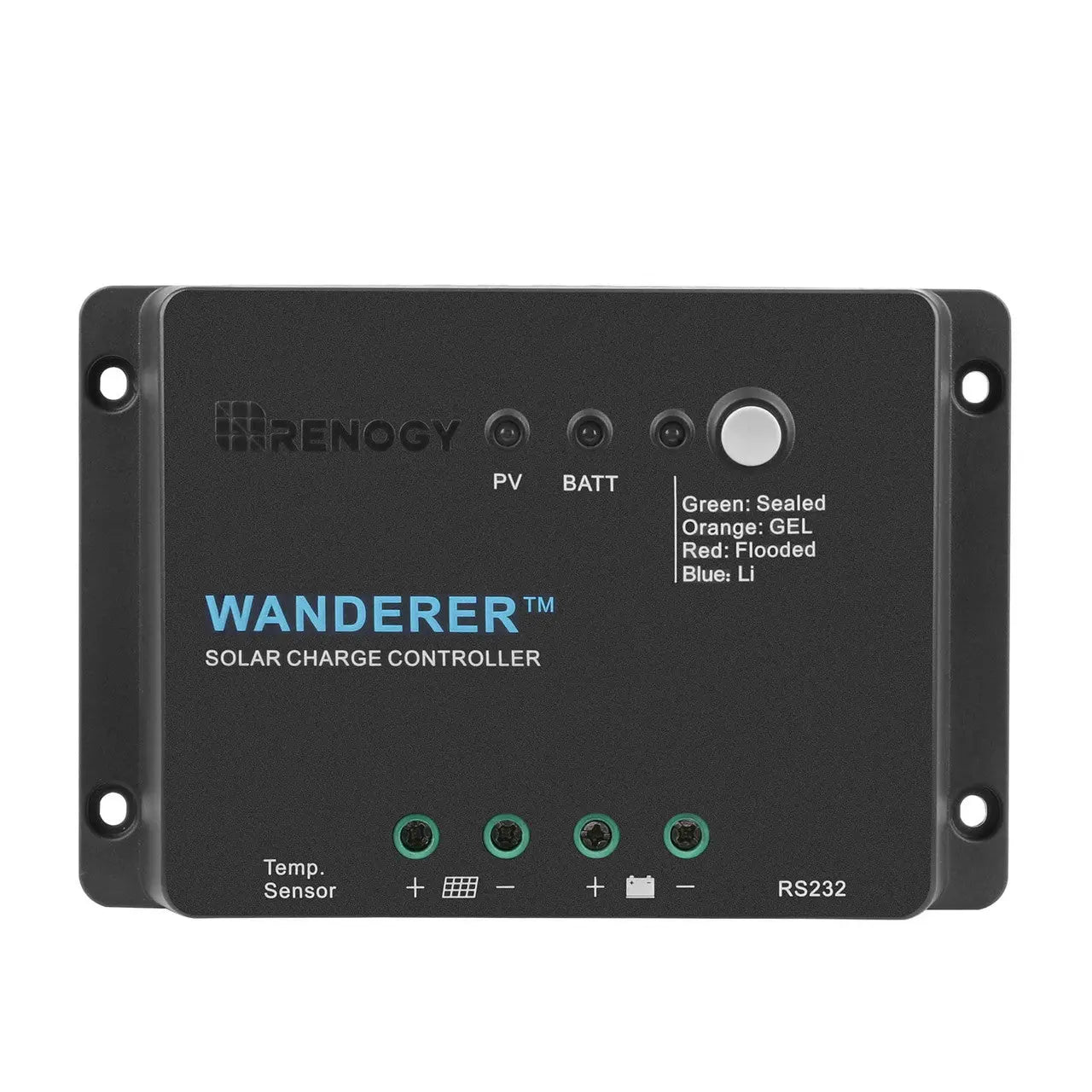

THE RENOGY WANDERER LI 30A NEGATIVE PWM CHARGE CONTROLLER


Nominal Voltage: 12 VDC Nominal Voltage: 12 VDC
Rated Charge Current: 30A Max. PV Input Voltage: 25 VDC
Self-Consumption: <10mA High Voltage Disconnect: 16V
Boost Duration: 120 min Temperature Compensation: -3mV/°C/2V
Working Temperature: -20°F - 113°F Storage Temperature: -31°F - 176°F
Max Gauge Size: Up to 8AWG Weight: 0.65 lbs
Dimensions: 6.45 x 4.31 x 1.76 inches Enclosure: IP20
Compatible bluetooth: Renogy BT-1 Bluetooth module
WARRANTY INFORMATION
Warranty: 1-year material and workmanship warranty Charge Controllers: Wanderer



Package Includes

NOTE:
  • If you have any questions regarding this product, please call us at 1 (909) 287-7111 or submit a ticket for troubleshooting assistance.
  • More questions about your off-grid power system? Learn more from Renogy Learning Center!

Wanderer 30A PWM Charge Controller


1 x
