  • Description

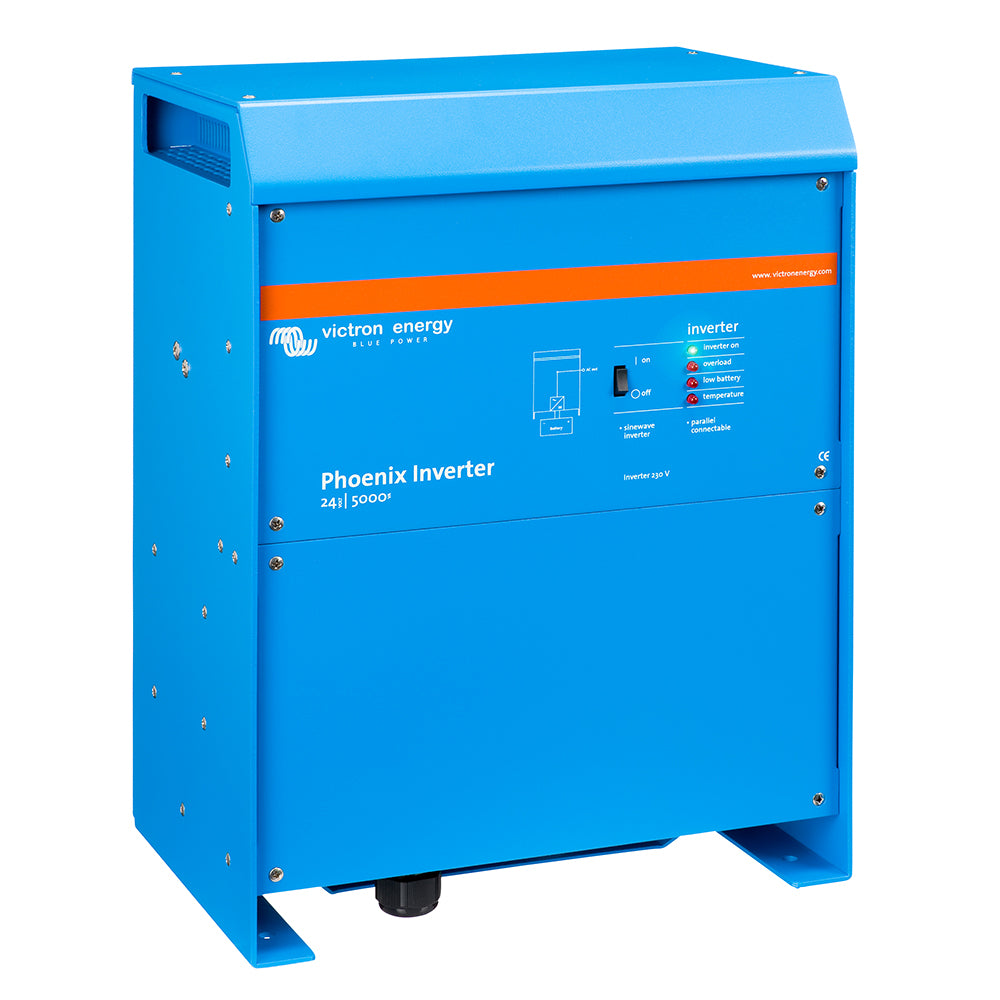

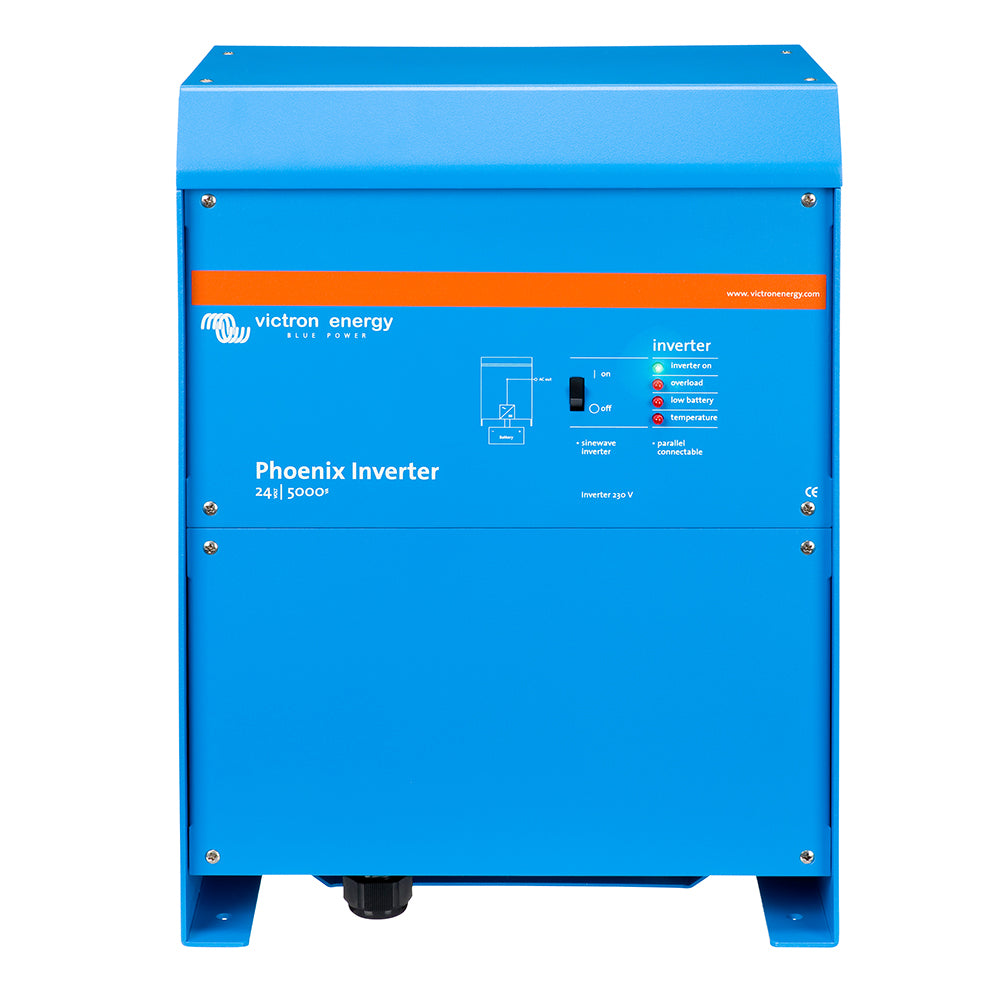

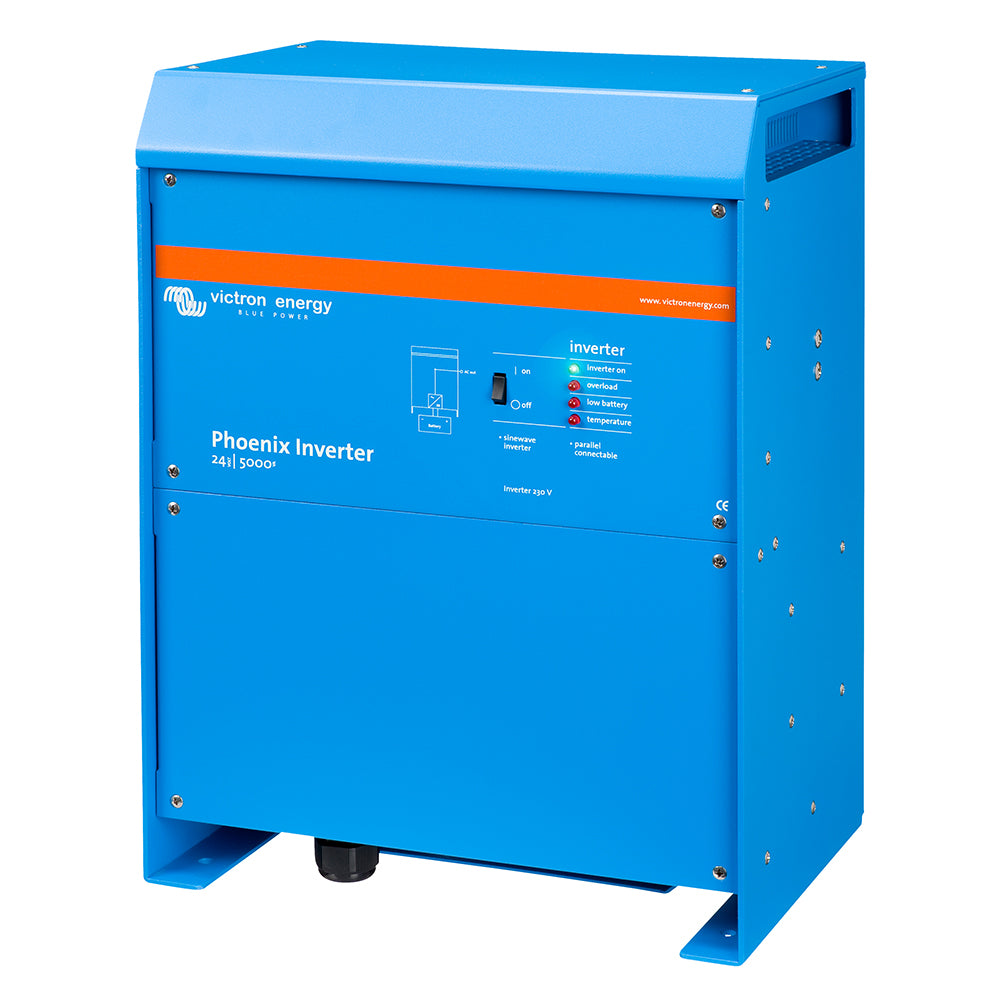

Phoenix Inverter 24 VDC - 5000W - 230 VAC - 50Hz

Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.

SinusMax - Superior Engineering

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.

Parallel and 3-phase operation capability

Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.

Warranty Info

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications:

  • AC Connection Type: Hardwire
  • Inverter Output Voltage: 230v
  • Waveform: Pure Sine Wave
  • Inverter Surge Rating: 10000w
  • Inverter Input Voltage: 19-33v
  • Inverter Cont. Output Wattage: 5000w
  • DC Connection Type: Hardwire
  • Outlet Qty: None
  • GFCI: No
  • Box Dimensions: 13"H x 17"W x 21"L WT: 73 lbs
  • UPC: 8719076023760

Quick Guide (pdf)
Brochure (pdf)
