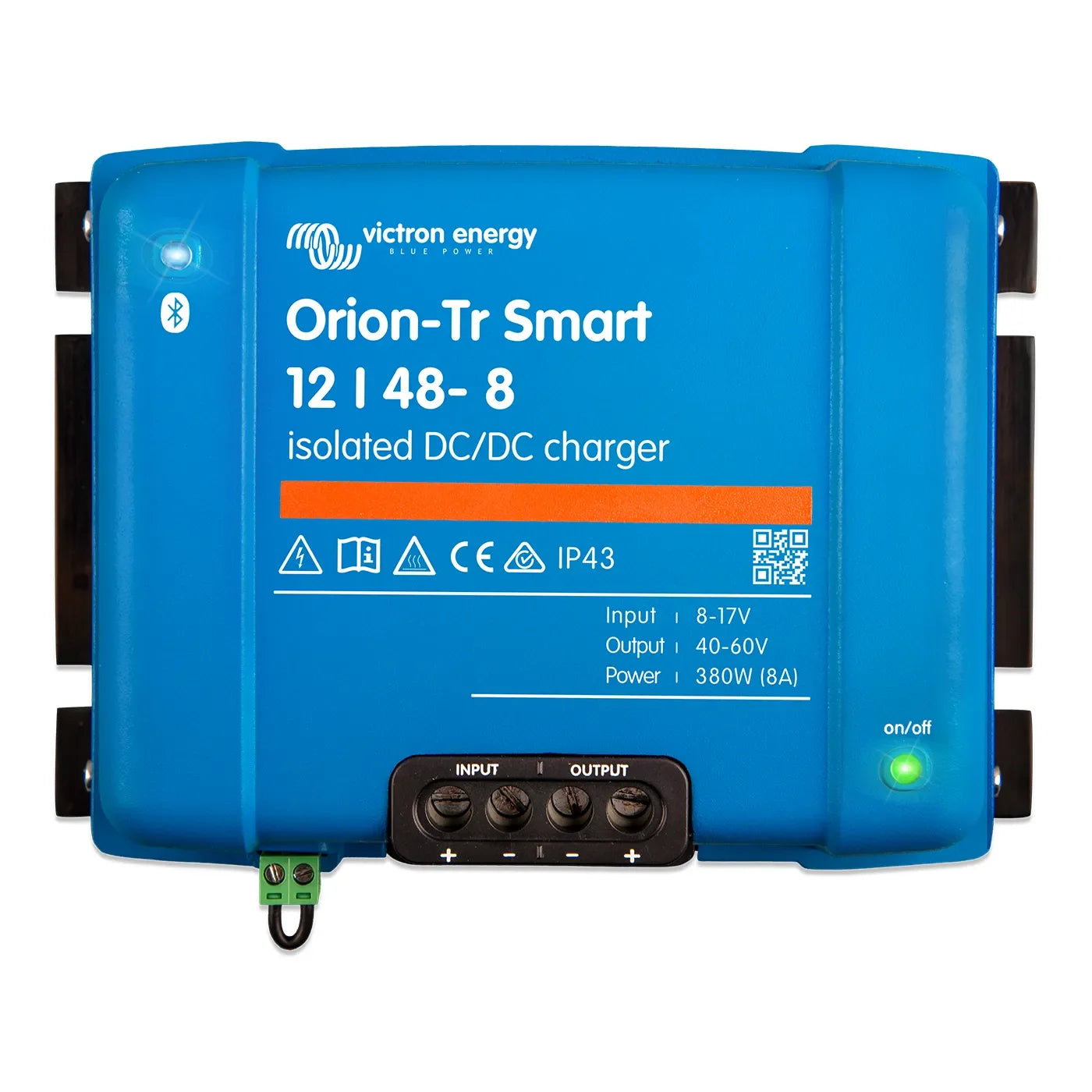

Victron Orion-Tr Smart 12/48-8A (360W) Isolated DC-DC Charger

The Victron Orion-Tr Smart 12/48-8 is a professional isolated DC-DC charger designed to charge a 48V service battery from a 12V battery or alternator. Its galvanically isolated design keeps the input and output electrically separated, allowing separate chassis grounds.

With built-in Bluetooth, the Orion-Tr Smart can be monitored, configured, and programmed using the VictronConnect app. It features an adaptive 3-stage charging algorithm and supports both lithium and lead-acid batteries, making it ideal for off-grid, automotive, marine, RV, and dual-battery applications.

Key Features

  • 12V input → 48V output
  • 8A continuous output
  • 360W continuous output at 40°C
  • 430W continuous output at 25°C
  • Galvanically isolated input and output
  • Built-in Bluetooth
  • Configuration and monitoring through the VictronConnect app
  • Adaptive 3-stage charging: Bulk, Absorption, and Float
  • Suitable for lithium and lead-acid batteries
  • Compatible with smart alternators
  • Built-in engine-running detection
  • Remote on/off capability
  • Programmable charging algorithm or fixed output voltage
  • Adjustable output voltage from 40–60V
  • Multiple units can be connected in parallel for higher output current
  • IP43 protection when installed with terminals facing downward
  • Operating temperature: -20°C to +55°C

Specifications

Specification Details
Brand Victron Energy
Model Orion-Tr Smart 12/48-8
SKU ORI124838120
Type Isolated DC-DC Charger
Nominal Input Voltage 12V
Input Voltage Range 8–17V
Nominal Output Voltage 48.2V
Adjustable Output Voltage 40–60V
Continuous Output Current 8A
Continuous Output Power @ 25°C 430W
Continuous Output Power @ 40°C 360W
Galvanic Isolation 200V DC
Bluetooth Yes
Charging Algorithm Adaptive 3-stage
Battery Compatibility Lithium & Lead-acid
Operating Temperature -20°C to +55°C
Dimensions 130 × 186 × 80 mm
Weight 1.8 kg



Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
