  • Description

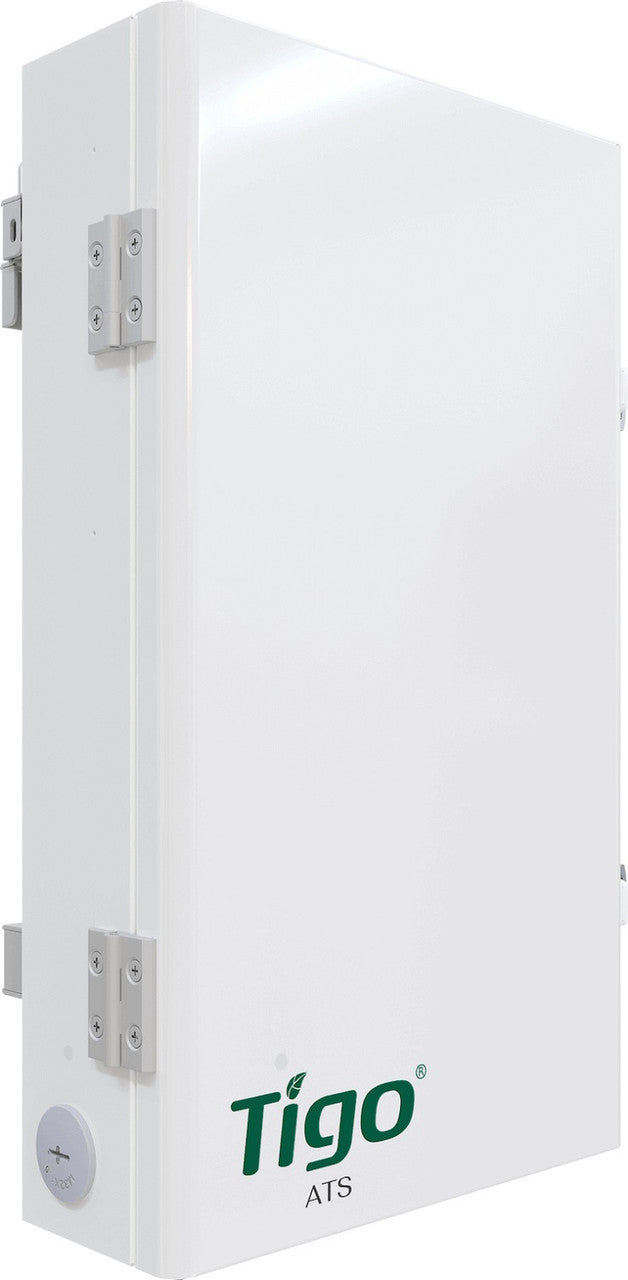

Tigo EI 200A Automatic Transfer Switch 801-200200-0301

The Tigo ATS 200A model enables entire-home or large critical-load backup during grid outages. It automatically detects grid failure and transfers power from grid + battery to battery-only, ensuring seamless backup with minimal disruption. Built for compatibility with Tigo’s Energy Intelligence platform, it includes RS485 communication and indoor/outdoor-rated protection.

Key Benefits

High-Power Backup: Supports up to 48 kVA and 160A output for large residential or commercial applications.

Rapid Transfer: Fast switchover time under 400ms ensures minimal disruption during outages.

Robust Housing: IP65/NEMA 4X enclosure allows for indoor or outdoor wall-mount installation.

Integrated Metering: Includes 1% accuracy import/export energy meter and RS485 communication.

Applications

Whole-Home Backup: Ideal for large residences or buildings needing high-capacity uninterrupted power.

Hybrid Solar Systems: Compatible with grid-connected solar + battery setups using Tigo EI systems.

Specifications Table

Specification Data
Part Number 801-200200-0301
Model TSS-200-US
Input Voltage 240V nominal
Frequency 50/60 Hz
Max Power Output 48,000 VA
Max Continuous Output Current 160 A
Switchover Time <400 ms
Output Voltage 120/240 Vac split-phase
Manual Bypass Switch Included
Enclosure Rating NEMA 4X / IP65
Installation Wall Mount
Operating Temperature -40°F to 122°F (-40°C to 50°C)
Dimensions (W × H × D) 17.9 × 21.65 × 9.7 in
Weight 65 lbs
Certifications UL1741, CSA C22.2 NO 107.1:2016, UL869A
Communication RS485
Energy Metering Import/Export, 1% Accuracy
Warranty 132 Months
