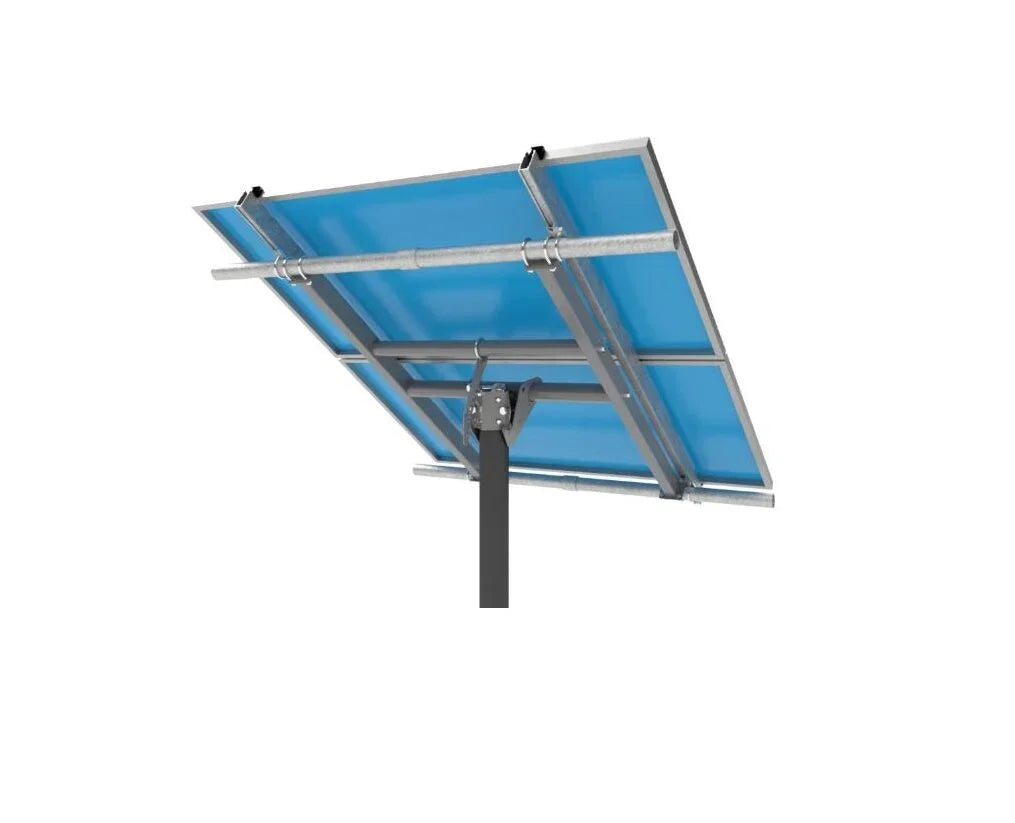

Tamarack Solar TTP-A-6-70 Top of Pole Mount | 6-Module Solar Panel Mounting System

The Tamarack Solar TTP-A-6-70 Top of Pole Mount provides a rugged, adjustable, and highly efficient solution for mounting up to six solar modules on a single 6-inch Schedule 40 or Schedule 80 steel pole. Designed for durability and flexibility, this heavy-duty mount is ideal for off-grid systems, ground-mounted arrays, and remote installations where pole mounting is preferred.

Key Features

• Holds up to 6 solar panels (maximum array area of 149 sq. ft.)
• 140-inch rails support modules up to 46.16 inches wide
• Adjustable tilt angle from 10° to 60° for year-round solar optimization
• Heavy-duty steel structure with Tamarack 3.1 aluminum module rails ensures long-term strength and corrosion resistance
• Engineered for high performance — withstands up to 160 mph wind speeds and 200 psf snow loads*
• Universal fit for module frame depths between 30 mm – 40 mm
• Easy ordering — no need to send module datasheets or complex sizing documents
• UPS-shippable in multiple boxes for lower freight costs

Installation Details

• Mounts to a 6-inch Schedule 40 or 80 steel post (user-supplied)
• Module rails attach to 2-inch Schedule 40 or 80 horizontal steel pipe (not included)
• Purchase pipe locally to reduce shipping costs, or use Tamarack Pipe Kits for pre-cut compatibility
• • For modules up to 78 inches long: use two 10-ft pipes
  • For modules up to 98 inches long: use two 12-ft pipes

Applications

Perfect for residential, agricultural, or commercial solar installations requiring a top-of-pole design that optimizes exposure and minimizes ground disturbance. Ideal for battery-based, off-grid, and stand-alone power systems.

Spec Sheet: Download

Manual: Download

Wind and Snow Load Summary Tables: Download

Engineering Stamps: Download
