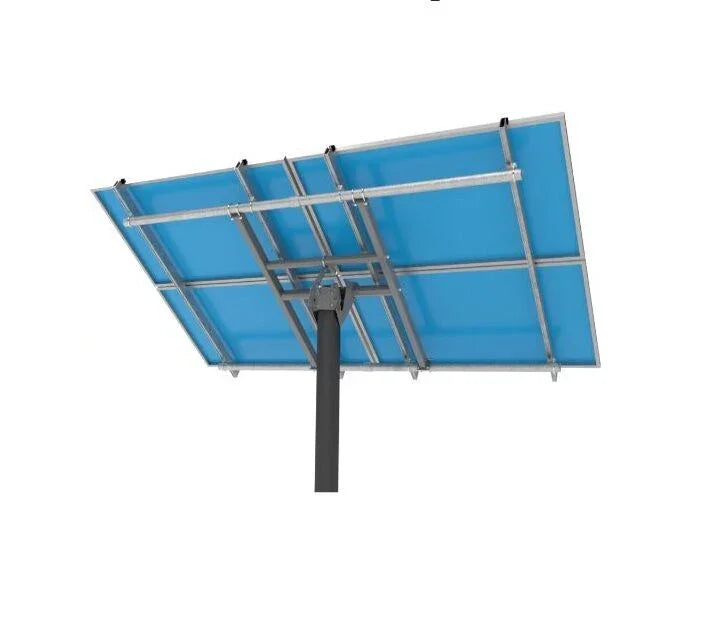

Tamarack Solar TTP-A-4-93 Top of Pole Mount | 4-Module Solar Panel Mounting System

The Tamarack Solar TTP-A-4-93 Top-of-Pole Mount is a rugged, adjustable solar mounting solution engineered to support up to four solar modules with a combined area of 100 square feet or less. Designed for maximum strength and versatility, this heavy-duty racking system is perfect for off-grid, residential, or remote power installations where pole mounting provides optimal sun exposure and minimal ground disturbance.

Key Features

• Supports up to 4 solar panels (maximum array area: 100 sq ft)
• 93-inch aluminum rails accommodate modules up to 45.5 inches wide
• Adjustable tilt angle from 10° – 60° for optimal year-round energy capture
• Durable steel structure with Tamarack 3.1 aluminum module rails ensures longevity and corrosion resistance
• Compatible with 30–40 mm module frame depths
• Engineered for up to 160 mph wind speeds and 200 psf snow loads*
• No complex sizing required — simply order and mount
• Ships in four boxes (total weight: 166 lbs) and UPS-shippable for reduced freight cost

Installation Details

• Mounts to a user-supplied 6-inch Schedule 40 or Schedule 80 vertical steel post
• Module rails attach to 2-inch Schedule 40 horizontal steel pipes (not included)
• For local sourcing and cost savings, purchase pipe from a nearby supplier, or order Tamarack’s pre-cut pipe kits
• • Use two 10-ft pipes for modules up to 78 inches long
  • Use two 12-ft pipes for modules up to 98 inches long

Applications

Ideal for residential, agricultural, and commercial solar projects needing a top-of-pole racking system that balances strength, flexibility, and value. Perfect for off-grid, battery-based, and stand-alone solar power systems requiring a compact yet robust mounting solution.

Spec Sheet: Download

Manual: Download

Wind and Snow Load Summary Tables: Download

Engineering Stamps: Download
