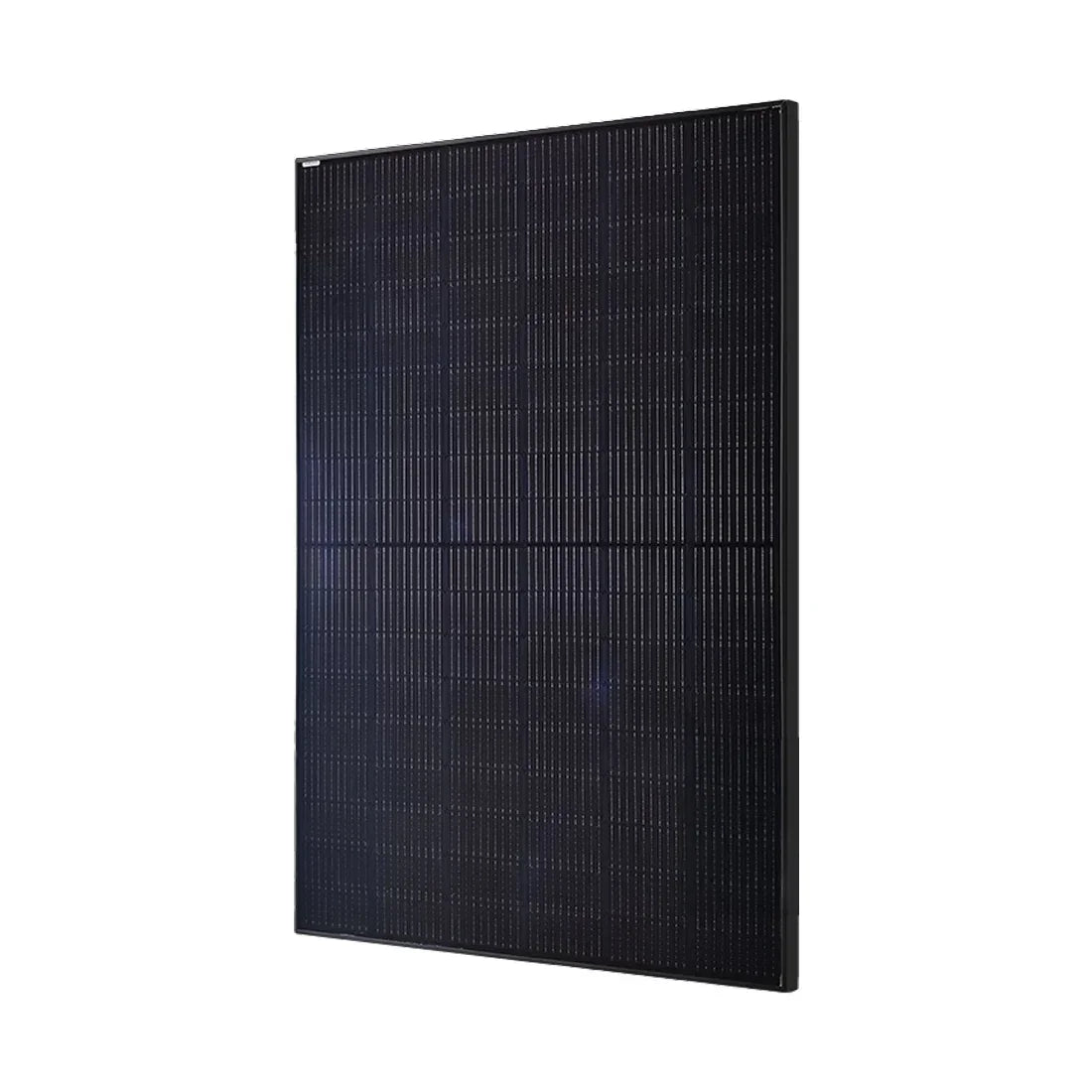

TaleSun 445W Bifacial Full Black Solar Panel – TM7G54M | High-Efficiency N-Type TOPCon Module

The TM7G54M 445W bifacial full black solar panel delivers premium performance, durability, and aesthetics in a compact residential- and commercial-ready format. Built with N-type TOPCon bifacial cell technology and 16BB half-cut cells, this module achieves higher energy yields, reduced degradation, and excellent low-light performance. Its dual-glass, full-black design makes it ideal for rooftops where both efficiency and appearance matter.

With up to 25% rear-side power gain depending on installation conditions and albedo, the TM7G54M 445W significantly lowers the levelized cost of energy (LCOE) while ensuring long-term reliability backed by industry-leading warranties.

Key Features & Benefits

• 445W Rated Power Output (STC) for high energy density installations
• Bifacial N-Type TOPCon Cells generate additional power from reflected light
• 16BB Half-Cut Cell Technology improves current collection and reduces resistive losses
• Ultra-Low Degradation: ≤1% first-year degradation, ≤0.4% annual linear degradation
• Full Black Dual-Glass Design for premium aesthetics and enhanced durability
• Excellent Anti-PID Performance, tested for 192 hours
• IP68 Junction Box with 3 bypass diodes for superior environmental protection
• High Mechanical Strength: 5400 Pa front load / 2400 Pa rear load
• Designed for Harsh Environments, including high humidity, wind, and dust

Electrical Specifications (STC)

• Maximum Power (Pmax): 445 W
• Module Efficiency: 22.8%
• Operating Voltage (Vmpp): 33.07 V
• Operating Current (Impp): 13.46 A
• Open-Circuit Voltage (Voc): 39.45 V
• Short-Circuit Current (Isc): 13.82 A
• Power Tolerance: 0 ~ +5 W

Bifacial Rear-Side Power Gain

(Reference: 445W front side)

• 5% gain: 467 W
• 10% gain: 490 W
• 15% gain: 512 W
• 20% gain: 534 W
• 25% gain: 556 W

Mechanical Specifications

• Cell Type: N-type Mono-Crystalline (16 Busbar)
• Number of Cells: 108 (6 × 18)
• Dimensions: 1722 × 1134 × 30 mm (67.8 × 44.65 × 1.18 in)
• Weight: 24.5 kg (54.0 lbs)
• Front Glass: 2.0 mm AR-coated semi-tempered glass
• Back Glass: 2.0 mm glazed semi-tempered glass
• Frame: Anodized aluminum alloy
• Connectors: MC4 / MC4-EVO2 compatible
• Output Cables: 4 mm² (IEC), 12 AWG (UL)

Temperature & Operating Conditions

• Maximum System Voltage: 1500 V DC
• Operating Temperature: −40°C to +85°C
• Temperature Coefficient (Pmax): −0.29% / °C
• Nominal Operating Cell Temperature (NMOT): 43 ± 2°C

Certifications & Warranty

• Certifications: IEC 61215, IEC 61730, UL 61730
• Quality & Safety Systems:
  ISO 9001, ISO 14001, ISO 45001
• Product Warranty: 15 years
• Performance Warranty: 30-year linear power output warranty

Ideal Applications

• Residential rooftop solar systems
• Commercial and industrial rooftops
• Carports and canopies
• Ground-mount systems
• High-humidity or coastal environments

Specifications: Download
