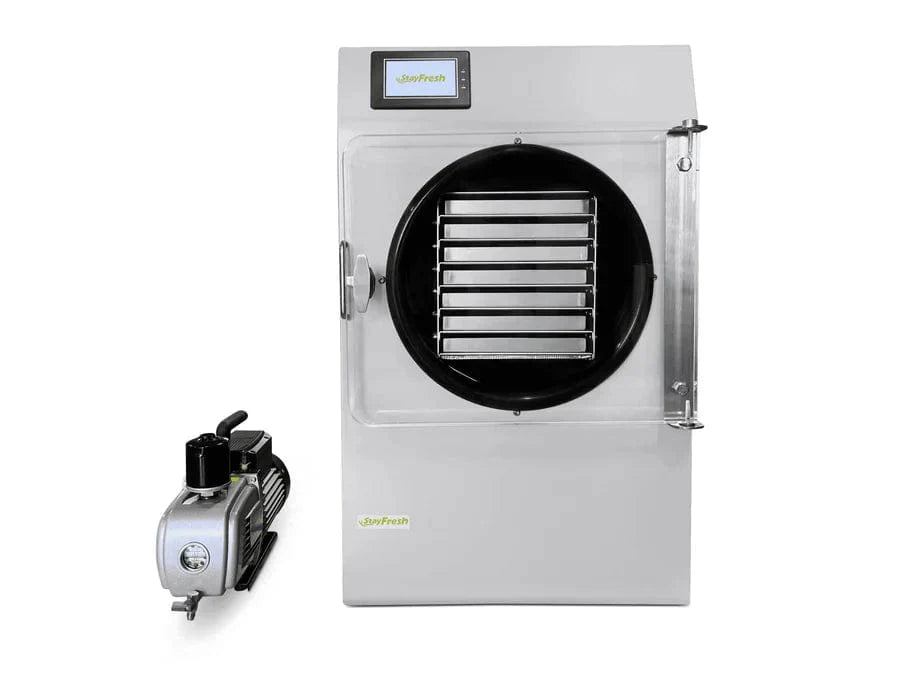

Stay Fresh Home Freeze Dryer 7 Shelf with Standard Oil Pump
Description
Ships in 6-8 weeks
Freeze drying at home has never been easier with the patented StayFresh automated freeze drying technology (U.S. 11,287,185).
For beginners, just prepare the food, press a few buttons, and you're all set. The machine will figure out the rest of the work to freeze dry your food. When it stops, it beeps to let you know your freeze dried food is ready!
For advanced users, there are options for you to run the drying process by trial and error in order to find the optimal solution, which can significantly reduce cost/time and increase yield in production runs. For more options, explore Stay Fresh Freeze Dryers product range.
Features
- Patented smart freeze drying algorithm.
- Multiple drying methods for beginners and advanced users.
- Motorized ball valve for oil contamination prevention.
- RTD temperature sensors for drying assistance.
- Industrial grade glass-to-metal seal feed-through.
- Solid state relay for the heater. All replaceable relays.
- Stainless steel/aluminum construction for major parts.
- Independent vacuum valve for pressure normalization.
- Candy mode makes freeze-drying sweets easy and quick.
- Stainless steel drain line.
Product Specifications
Stay Fresh Freeze Dryer 7 Shelf with Standard Oil Pump Product Specifications
| Feature |
Details |
| Ice Capacity |
12 lb. |
| Food Processing Capacity |
Up to 18 lb. per batch |
| Main Drying Time |
16 - 30 hours for 8 lb. of food |
| Shelf Spacing |
1.2 in. |
| Trays Included |
Include 7 trays as one set. Tray size 8 in. x 20 in. x 0.75 in.
|
| Shelf Temperature Range |
-50°F to 150°F |
| Freeze Dryer Weight |
170 lb. (vacuum pump excluded) |
| Freeze Dryer Dimensions |
W 20 in. x D 26 in. x H 31 in. |
| Cold Trap Temperature |
-40°F |
| Industrial Pump |
$1295 included |
| Vacuum Pump Weight |
36 lb. |
| Vacuum Pump Dimensions |
W 5.5 in. x D 15.5 in. x H 10 in. |
| Oil Mister Filter Dimensions |
W 5.5 in. x D 15.5 in. x H 10 in. |
| Vacuum Pump Flow Rate |
7.2 CFM |
Installation requirement:
- A dedicated 15/20 Amp electrical outlet is recommended.
Free Accessories:
- An oil filter, an impulse sealer, and 50 mylar bags.
Shipping:
The freeze dryer is shipped in two boxes on a pallet: a 180lb freeze dryer box of size 25"x29"x36", and a 45lb accessory box of size 18"x8.5"x14.5". The pallet size 40"x26"x41". The entire shipment weighs about 260lb.
Product Manual
Stay Fresh Product Guide
Product Warranty
Stay Fresh Product Warranty
The freeze dryer (vacuum pump included) is covered by a one year full warranty and limited three year warranty (U.S.).
For one year from the date of delivery, Stay Fresh Technology LLC,, at its option during the warranty period, will repair or replace without charge (except for a fee for shipping, handling, packing, return postage, and insurance which will be incurred by the customers in Alaska, Hawaii, and Puerto Rico) any parts of the freeze dryer that prove to be defective in materials or workmanship when it is installed, used, and maintained in accordance with the provided instructions. In addition, the refrigeration system of the freeze dryer (compressor, condenser, evaporator, etc) is covered by a two through three year limited warranty. During the second through third year from the date of delivery, Stay Fresh Technology LLC, at its option during the warranty period, will repair or replace without charge (except for a fee for shipping, handling, packing, return postage, and insurance which will be incurred by the customer) any parts of the refrigeration system which has proven to be defective in materials or workmanship when it is installed, used, and maintained in accordance with the provided instructions.
The freeze dryer (vacuum pump included) is covered by a one year limited warranty (International).
International customers are responsible for shipping, handling, packing, return postage, and insurance of the freeze dryer and parts. For one year from the date of delivery, Stay Fresh Technology LLC,, at its option during the warranty period, will diagnose and send any replacement parts of the freeze dryer that prove to be defective in materials or workmanship when it is installed, used, and maintained in accordance with the provided instructions. In addition, the refrigeration system of the freeze dryer (compressor, condenser, evaporator, etc) is covered by a two through three year limited warranty. During the second through third year from the date of delivery, Stay Fresh Technology LLC, at its option during the warranty period, will diagnose and send any replacement parts of the refrigeration system which has proven to be defective in materials or workmanship when it is installed, used, and maintained in accordance with the provided instructions.
This warranty does not include:
- Any condition resulting from incorrect or inadequate maintenance or care.
- Damage resulting from misuse, abuse, negligence, accidents, transportation damage, inadequate power supply, fires, or acts of God.
- Dissatisfaction due to buyer’s remorse.
- Normal wear and tear, e.g., scratches on the acrylic door.
- Damages incurred during assembly or maintenance.
-
Products with original serial numbers that have been removed, altered or cannot be readily determined.
- Product that has been transferred from its original owner to another party.
- Any modifications, changes, or improper use of the freeze dryer.
- Damages caused by: services performed by unauthorized service companies; use of parts other than genuine parts provided by Stay Fresh Technology LLC. or parts obtained from persons other than authorized service companies.
Stay Fresh Technology LLC shall not be liable for consequential or incidental damages such as property damage and incidental expenses resulting from any breach of this written limited warranty or any implied warranty. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration of implied warranties, so these limitations or exclusions may not apply to you. This written warranty gives you specific legal rights. You may also have other rights that vary from state to state.
Claim procedures:
- Claims for missing parts must be made within 60 calendar days after the merchandise is received.
- Any claim for defective merchandise returns must be packed in original packaging.
- We reserve the right to specify that items be returned to the original warehouse for inspection or be inspected by our representative in the field.
- Pictures are required to claim defective merchandise, along with a copy of the original invoice.
- If the claim is justified, the item(s) or part(s) will be repaired or replaced or a credit will be issued. It is our policy to replace parts whenever possible.
If you need service keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Stay Fresh Technology LLC at the phone number or email below. Obligations for service and parts under this warranty must be performed by Stay Fresh Technology LLC or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice.
Product FAQs
Stay Fresh Product FAQs
How to Warm Your Pump for Optimal Performance?
-
Access the Function Screen:
- From the main screen of your Stay Fresh freeze dryer, press 'Functions' to enter the function screen.
-
Warm the Pump:
- Activate the pump by pressing the 'Pump' button. Allow the pump to run for 15-30 minutes, depending on the current room temperature.
-
Turn Off the Pump and Start Your Batch:
- After the pump has sufficiently warmed up, press the 'Pump' button to stop the pump.
- Press ‘Back’ to return to the main screen.
- You can now start your freeze-drying cycle with the confidence that your pump is ready to perform optimally.
How to Clean Your Freeze Dryer's Industrial Pump?
Step 1: Drain the Oil
Remove the drain screw with a hex key to completely drain the oil. Tilt the pump to ensure all oil is removed.
Step 2: Remove the Front Cover
Unscrew the four screws securing the front cover. Use a sturdy hex key for leverage, then carefully remove the cover.
Step 3: Clean the Interior
Wipe the inside with a dry towel, removing any gunk. Clean the cylinder and ensure no water remains. If rust is present, gently clean with a non-scratch sponge.
Step 4: Unblock the Oil Intake Hole
Check and unblock the oil intake hole at the bottom of the cylinder. Use a stick to ensure it's clear.
Step 5: Reassemble the Pump
Ensure the black seal is properly positioned, then replace the front cover and securely fasten the screws.
Regular cleaning extends the lifespan and performance of your pump. Follow these steps annually or when necessary to keep it in optimal condition.
When to change Oil?
To ensure optimal performance, oil changes should be made periodically:
-
Standard Pump: Filter or change the oil after 3-5 cycles or if it appears murky in the sight glass.
-
Industrial Pump: Change the oil every 30 batches or after 1000 hours of drying. Additionally, drain the oil in the demister after every batch and monitor the pump oil level.
Note: If the oil appears yellow but remains clear, it is still usable. Oil color can change due to pigments from the food, which does not affect its effectiveness. However, if water from the food mixes with the oil and causes it to look murky, then it is necessary to change/filter the oil.
