Solis S6 12K 48V Hybrid String Inverter with Tigo Transmitter | S6-EH2P12K03-SV-YD-L-US-RSS

Power Your Home, Your Way — Even When the Grid Goes Down.

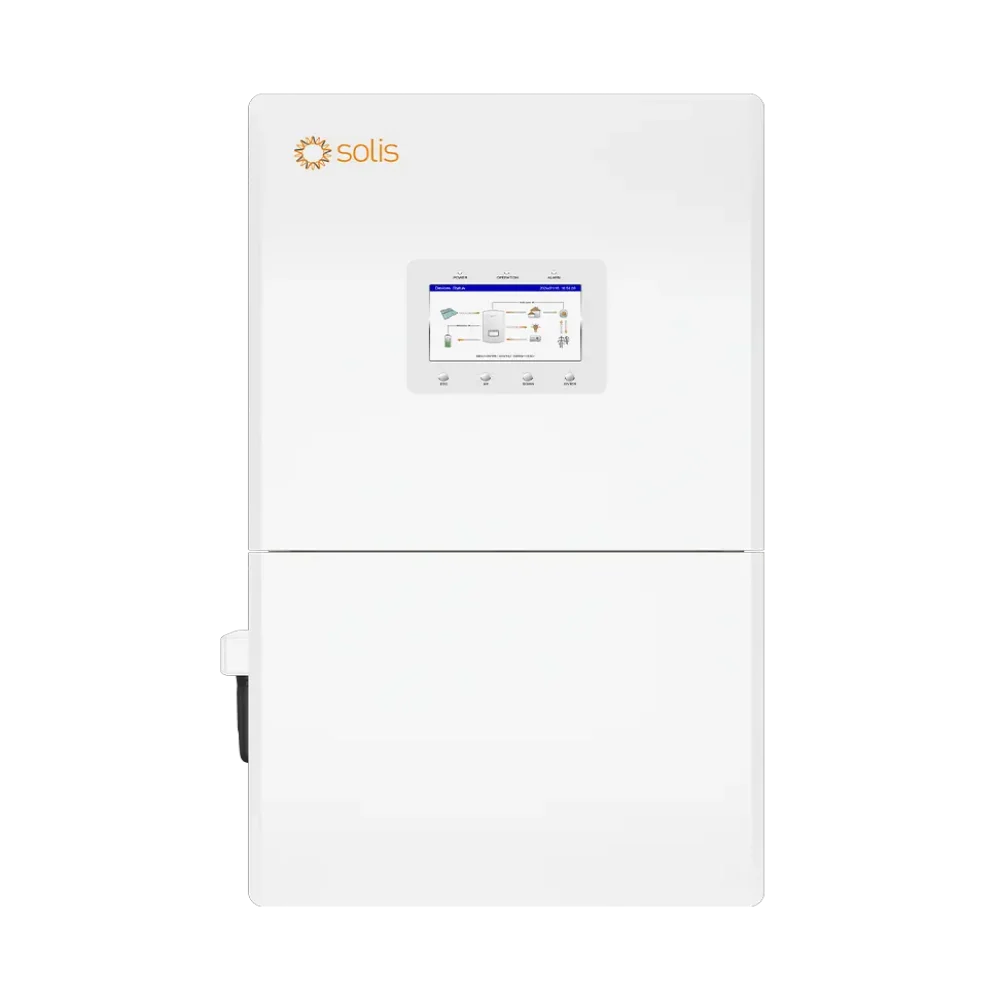

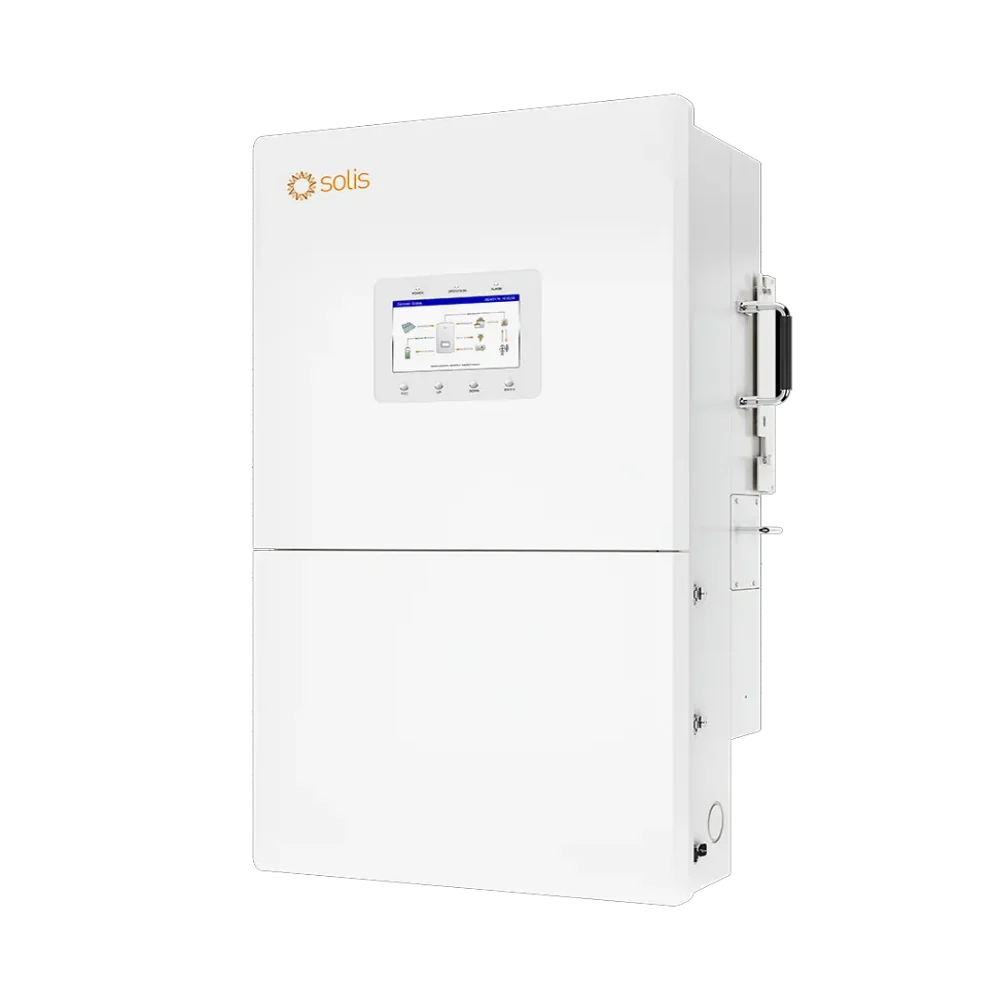

The Solis S6 48V Hybrid String Inverter is designed to deliver true energy independence for North American homeowners. Offering flexible power classes from 12kW, this versatile solution supports whole-home backup, lightning-fast switchover during outages, and intelligent ports for seamless integration with existing PV, sheddable load, or generator. Rated for 200A pass-through and compatible with a wide range of battery types and brands. The S6 48V Hybrid makes resilient, cost-effective solar + storage installations easier than ever.

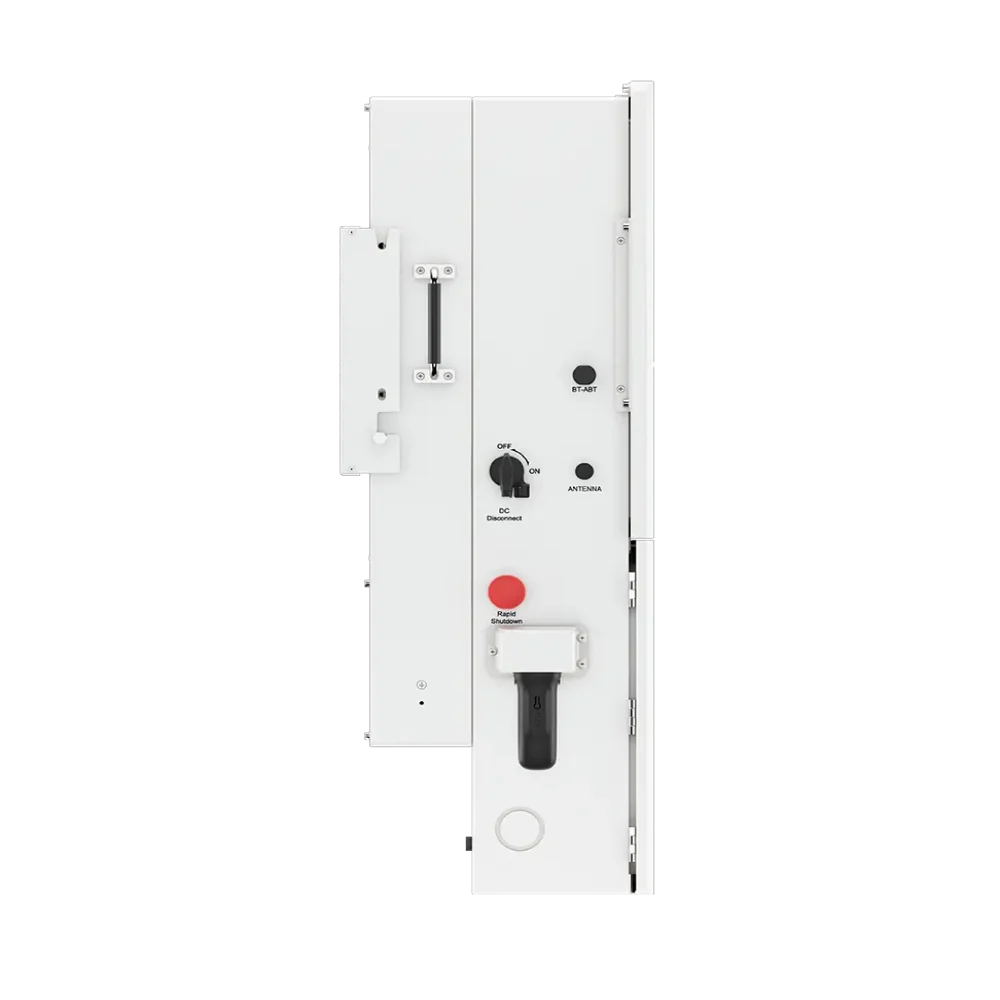

This model includes an integrated Tigo Energy RSS (Rapid Shutdown System) PLC transmitter. It communicates natively with Tigo TS4-A-F or TS4-A-2F fire safety/rapid shutdown receivers attached to the rooftop modules.

Product Overview

Key Features:

• Max. efficiency 96.02% (CEC efficiency 95.45%)
• 48V Hybrid can function on-grid, off-grid or act as aMicrogrid
• High input current (20A) supports larger modules, improving power density and eliminating clipping
• The battery's DC side can handle a maximum charge/discharge current of up to 250A, allowing it to store more surplus energy generated by PV systems for better efficiency
• Integrated 200A pass-through and bypass function fully integrated to limit external hardware, save costs and streamline storage

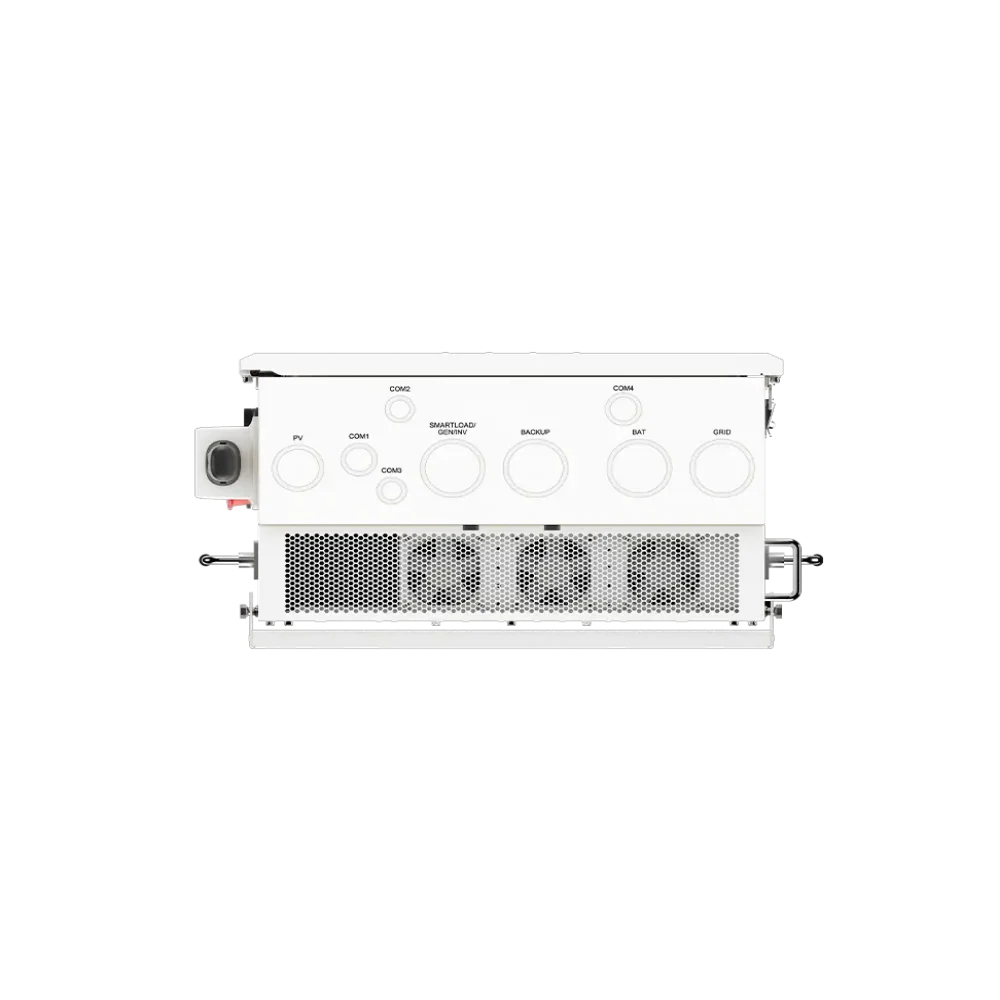

• Smart port for supporting flexible configurations like AC coupling or generators

Product Specifications:

INPUT (PV SIDE)

• Max Input Voltage: 550V
• Rated voltage: 380V
• MPPT Voltage Range: 100~450V
• Start-up Voltage: 100V
• Max Input Current per MPPT: 40A
• Max Short-circuit Current per MPPT: 50A
• MPPT number/Number of strings per MPPT:3/2

BATTERY

• Battery type: Li-ion / Lead-acid
• Battery voltage range: 40 - 60V
• Max. charge / discharge current: 250A
• Communication: CAN / RS485
• Number of batteries per inverter : See Battery Compatibility Sheet

AC OUTPUT(GRID SIDE)

• Rated Output Power: 12kW
• Max. Apparent Output Power: 12kVA
• Max. output power: 12kW
• Rated grid output current: 50A
• Max. output current: 50A
• Locked rotor amp rating: 150A

INPUT AC (GRID SIDE)

• Input voltage range: 211 - 264V

• Max. input current: 200A
• Frequency range: 58.8 - 61.2Hz

OUTPUT AC (BACK-UP AND OFF-GRID)

• Rated output power: 12kW

• Back-up switch time: L1/L2/N(PE), 120 V / 240 V (split phase
• Rated output voltage (L1-L2): 240V
• AC output voltage range: 211 - 264V
• Rated output current: 50A
• Max. output over current protection, 10 sec: 100A
• Max. continuous AC passthrough: 200A
• Max. allowable phase imbalance: 50%

INPUT GENERATOR

• Max. input power: 24kW
• Max. input current: 100A
• Rated input frequency: 60Hz

GENERAL DATA

• Dimensions(W*H*D): 21.02 × 36.61 × 11.69 in (534 × 930 × 297 mm)
• Weight: 145.06 lbs (65.8 kg)
• Communication with Portal: RS485, Optional: Cellular, Wi-Fi, LAN
• DC connection: Terminal Block (PV port) / Terminal Block (BAT port)
• AC connection: Terminal Block
• Interface: 7.0" LCD display & Bluetooth + APP
• Revenue grade meter: Optional
• Monitoring platform: SolisCloud (modbus map and API sharing available upon request)

Download:
Datasheet:
S6-EH2P_9_6-16_K-US-datasheet-V2_2.pdf
User Manual:
Solis_Manual_S6-EH2P(9,6-16)K-SV-YD-H-US_V2,7_20260305.pdf
Certificate:
Solis_UL1741_96-16_S6-EH2P_12-16_K03-SV-YD-L-US-E_US_V01.pdf
Solis_FCC_PART_B_96-16-18_K03-SV-YD-L_US_V03.pdf
2026_Master_Product_Compatibility_Sheet_20260608.pdf
