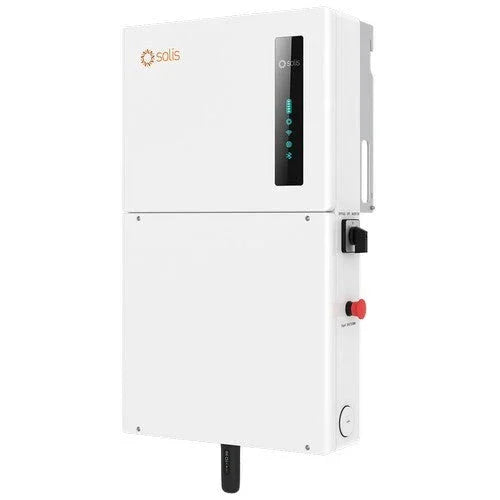

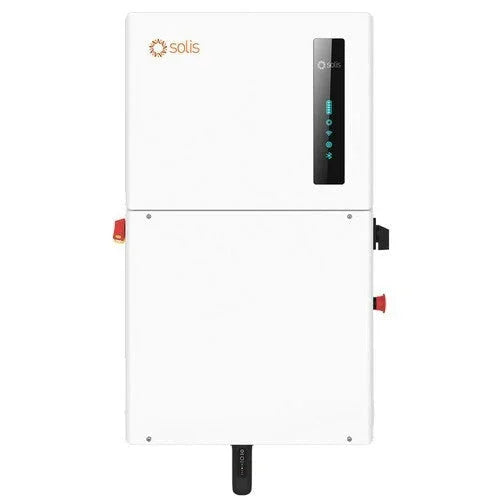

Solis S6-EH1P7.6K-H-US-RSS, 7.6kW Single Phase Four MPPT Hybrid Inverter with Tigo Transmitter
The S6 (Series 6) hybrid energy storage inverter is the latest Solis US model certified to IEEE 1547-2018, UL 1741 SA & SB, and SunSpec Modbus, providing economical zero-carbon power from an all-weather (NEMA 4X / IP 66) high-efficiency PV string inverter. This new PV / Battery inverter can be dc-coupled to a variety of certified high-voltage Lithium batteries. The S6 hybrid is a grid-forming inverter that supports the latest large PV modules with high current (16 amp) dc inputs at each MPPT.
Product Features:
- Four MPPTs allows for versatile PV array design
- UL 1741 SB certified, California Rule 21 compliant
- Maximum PV input current up to 16A per string
- High DC:AC ratio of 1.6 for more PV power capacity
- Transfer time is 10ms for all backed up loads
- SunSpec modbus certified with the latest SunSpec models
- Provides split-phase backup power without an external ATR
- Multiple working modes to meet different use case scenarios
- Third-party tested and validated for product reliability
- Can be used for both whole-home and dedicated loads backup systems
- DC to DC battery charging for optimal use of PV-generated energy
- Reverse DC polarity protection and software-based AFCI detection
- Offers all of the smart inverter functions detailed in IEEE 1547-2018
- Solis app allows for remote system configuration and firmware upgrading
- Generates up to 50A/11.4kW of continuous backup power with just one inverter
- Capable of frequency-watt control for interoperability with other smart devices
- NEC 2017 compliant with multiple integrated PLC transmitter options available

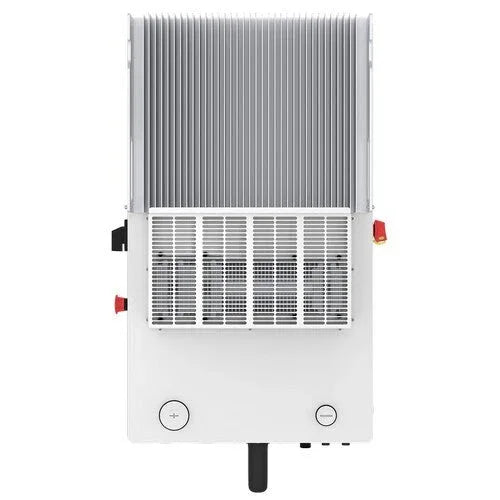

- Fanless design using convection cooling for lower failure rate and complexity
- Utilizes an energy management system that maximizes efficiency and offers multiple operating modes
- UL 9540 certified with multiple battery brands to provide up to 150 kWh of storage capacity per inverter
- Supports generator interconnection and allows the generator to function as the grid source if utility power is lost
Product Specifications
Solis S6-EH1P7.6K-H-US-RSS, 7.6kW Single Phase Four MPPT Hybrid Inverter with Tigo Transmitter Product Specifications
| Technical Data |
S6-EH1P7.6K-H-L-US |
| Rated output power |
7.6kW |
| Max. apparent output power |
12.2 kVA, 10 sec |
| Back-up switch time |
＜10 ms |
| Phase Power |
240V Split-Phase |
| Rated output voltage(L1-L2)/(L1/L2-N) |
240 V/120 V |
| AC output voltage range |
204-276 V |
| Rated grid frequency |
60 Hz |
| Rated AC output current (continuous) |
31.7A |
| Max. output current for 10 seconds |
50.7A |
| Max. output current for 300 milliseconds |
57.06A |
| Max. allowable phase imbalance |
100% |
| Backup support configurations |
Dedicated loads and whole-home |
| Power Factor |
>0.99 (0.8 leading - 0.8 lagging) |
| THDv(@linear load) |
<3% |
| Efficiency |
|
| PV Max. efficiency |
97.6% |
| PV CEC efficiency |
97.2% |
| BAT charged by PV Max. efficiency |
98.5% |
| BAT charged/discharged to AC Max. efficiency |
97.0% |
| Protection |
|
| Ground fault detection |
Yes |
| Residual (leakage) current detection |
Yes |
| Integrated AFCI (DC arc-fault protection) |
Yes |
| DC reverse-polarity protection |
Yes (PV only) |
| Rapid Shutdown NEC 2017 |
Integrated SunSpec-certified Transmitter |
| Compatible Rapid Shutdown Receivers |
See MLRSD compatibility sheet |
| Protection class/Over voltage category |
I/II |
Â
Product Warranty
Solis Inverter are manufactured by Ginlong (Ningbo) Technologies Co., Ltd. (The Company) (refered to as Ginlong) provides the following Warranty to the purchaser (The Customer) of the Inverter (The Goods). (The Customer is deemed to be the owner of the installed Goods at first sale
Warranty Terms
The Company warrants all Goods to be free from defects in material or workmanship under normal use and service for a period of 5 years from the date of sale to the
Customer.
The Warranty covers the cost of repairs or replacement parts. The Goods must be returned to the Company for inspection.
The company may repair or replace faulty components at its discretion.
This warranty extends the Customer’s statutory rights and cannot be construed so as to diminish such statutory rights.
Warranty Extension
The purchaser may apply for a warranty extension within 12 months of purchase by providing the serial number of the unit along with proof of purchase. An extended
warranty can be purchased for a further 5 years (Total 10 years).Â
Warranty Limitations
The Warranty is valid only for Goods purchased either directly from the Company or from an authorized reseller of the company.Â
The Warranty is not transferable and applies to brand new Goods only.
Defective parts replaced under Warranty become the property of the Company.
The Warranty does not cover:
- The Warranty does not cover:
- Consequential damages including but not limited to loss of revenue;
- Claims by third parties other than the Customer;
- Defects of installation. (Except where the installation is performed by the Company);
- Goods damaged as a consequence of incorrect installation. (Except where the installation is performed by the Company);
- Items ancillary to installation not supplied by the Company;
- Duties, import/export fees or costs and other general administrative costs;
- Damage to Goods caused by misuse, improper handling or unauthorized modification;
- Loss or damage occurring whilst in transit;
- Accidental or willful damage;
- Any Goods described in a quotation or delivery note as 'ex-display' or ‘reconditioned’. (A separate Warranty extension may have been issued
to cover such Goods.)
Labour, travel and delivery (to and from customer) will be charged if goods returned found to be not faulty following a warranty claim.
Warranty Claims Procedure
To make a warranty claim the following information needs to be provided:
- Completed RTM Inspection Form
- Product Model (ie. Solis 1.5kW) and Product Serial Number (ie. A1110011)Â
- Copy of the invoice for the inverter
- Copy of the installation report and installation certificateÂ
The authorized reseller will liaise with the Company regarding repair or replacement. The cost of repair or replacement will be borne by the Company provided the Warranty has been validated and the Warranty period has not expired.
Where repairs must be effected at the Company’s headquarters, the Company will endeavor to minimize the down time for the Goods.
