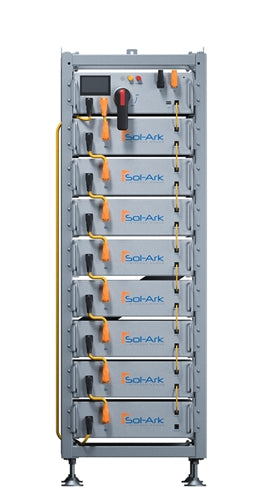

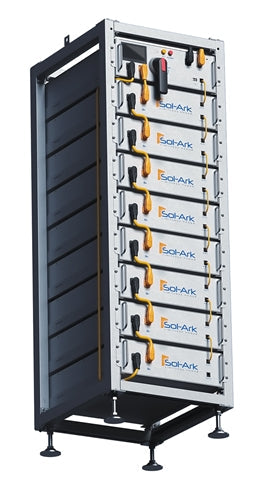

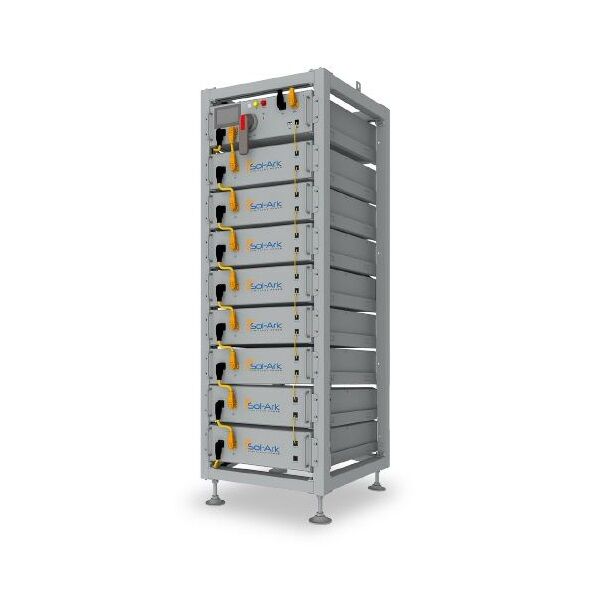

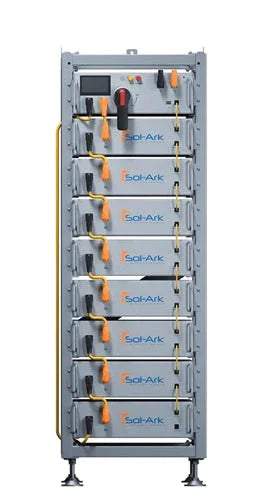

Sol-Ark L3-HV-40-KWH High Voltage Battery

The Sol-Ark L3-HV-40-KWH is a high-voltage modular solar battery system that can store energy from solar panels and convert it into AC electricity. The L3-HV-40-KWH battery is made up of several (8) 51.2 kWh batteries to make 40kWh. The BOS-G(HV) is easily scalable, and you can expand your power setup with the attachment of additional battery modules.

The Sol-Ark L3-HV-40-KWH is designed for various energy storage needs and offers flexibility and scalability to cater to different applications. It has a wide temperature range of -20°C to 55°C, with excellent discharge performance and cycle life. The system is non-toxic, non-polluting, and environmentally friendly.

Features / Innovations:

  • Prismatic cells offer maximum reliability, efficiency, and safety
  • Automatic configuration of batteries and BMS
  • 5kW packs include built-in fire suppression
  • Supports USB and wifi upgrade (optional), remote upgrade
  • Modular batteries can easily be connected in parallel or series to increase capacity or voltage
  • 10-Year Warranty

Technical Specifications:

  • Cell Chemistry: LiFePO4

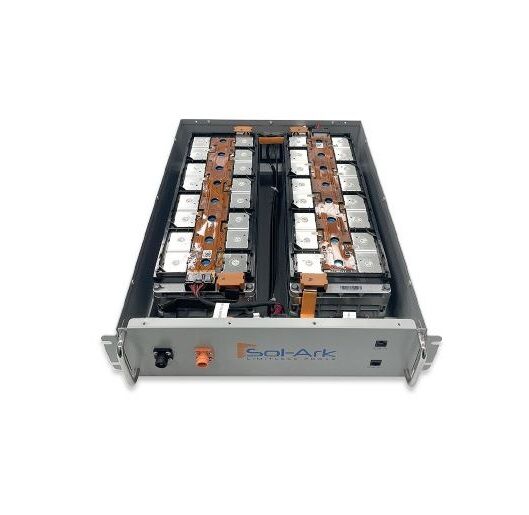

  • Module Energy: 5.12kWh
  • Module Nominal Voltage: 51.2V
  • Module Capacity: 100Ah
  • Battery Module Qty In Series (Optional): 8
  • System Nominal Voltage: 409.6V
  • System Operating Voltage: 332.8 ~ 467.2V
  • System Energy: 40.96kWh
  • System Usable Energy: 36.86kWh
  • Charge/Discharge Current: Recommend: 50A, Nominal: 100A, Peak Discharge: 125A
  • Communication Port: CAN2.0/RS485
  • IP Rating of Enclosure: IP20
  • Dimension (Inches): 23.19W x 23.2D x 62.52H
  • Weight Approximate: 994.28
  • Certification: CE, IEC62619, VDE2510-50, UL1973, UL9540A, UN38.3, UL9540
  • Warranty: 10 Years

Manuals:

Sol-ark L3-HV-40-KWH Brochure

Sol-ark L3-HV-40-KWH Overview

Sol-ark L3-HV-40-KWH Data Sheet

Sol-Ark L3 Installation Guide
