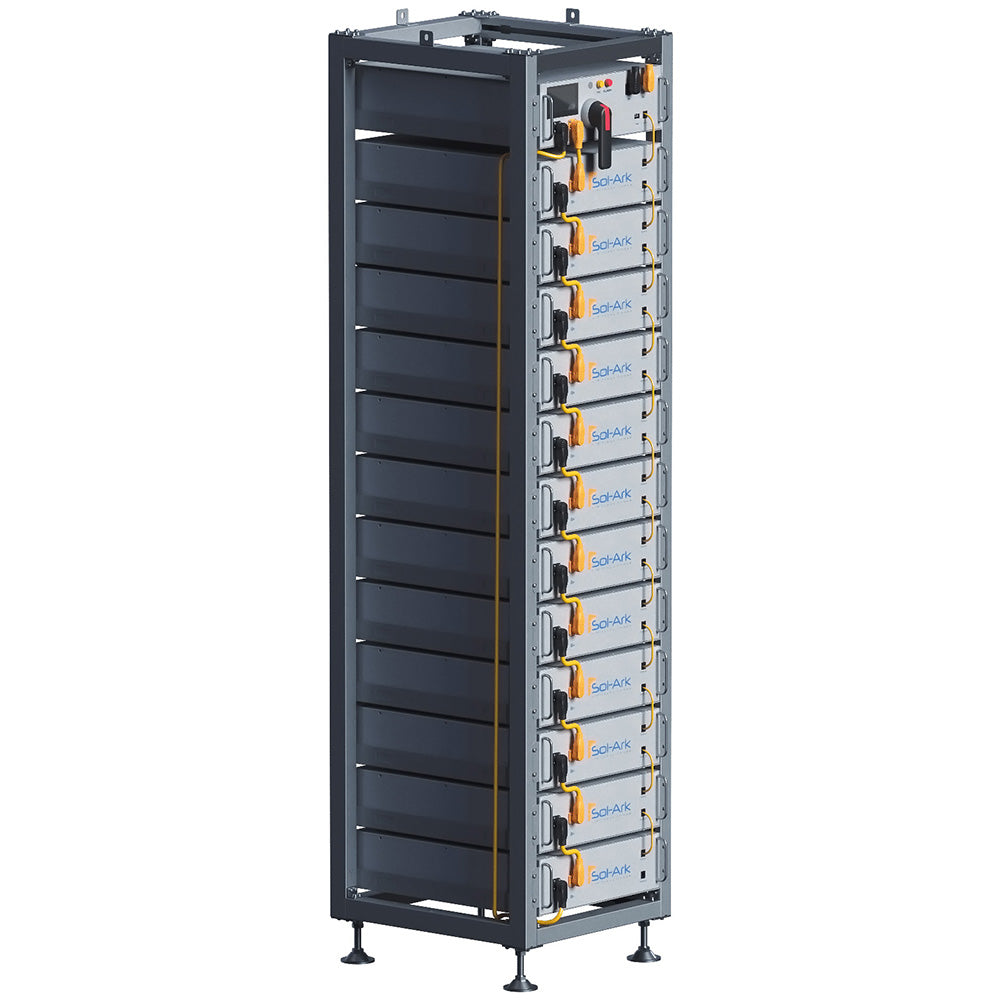

Sol-Ark L3-HV-60kWh battery storage system with modular rack design

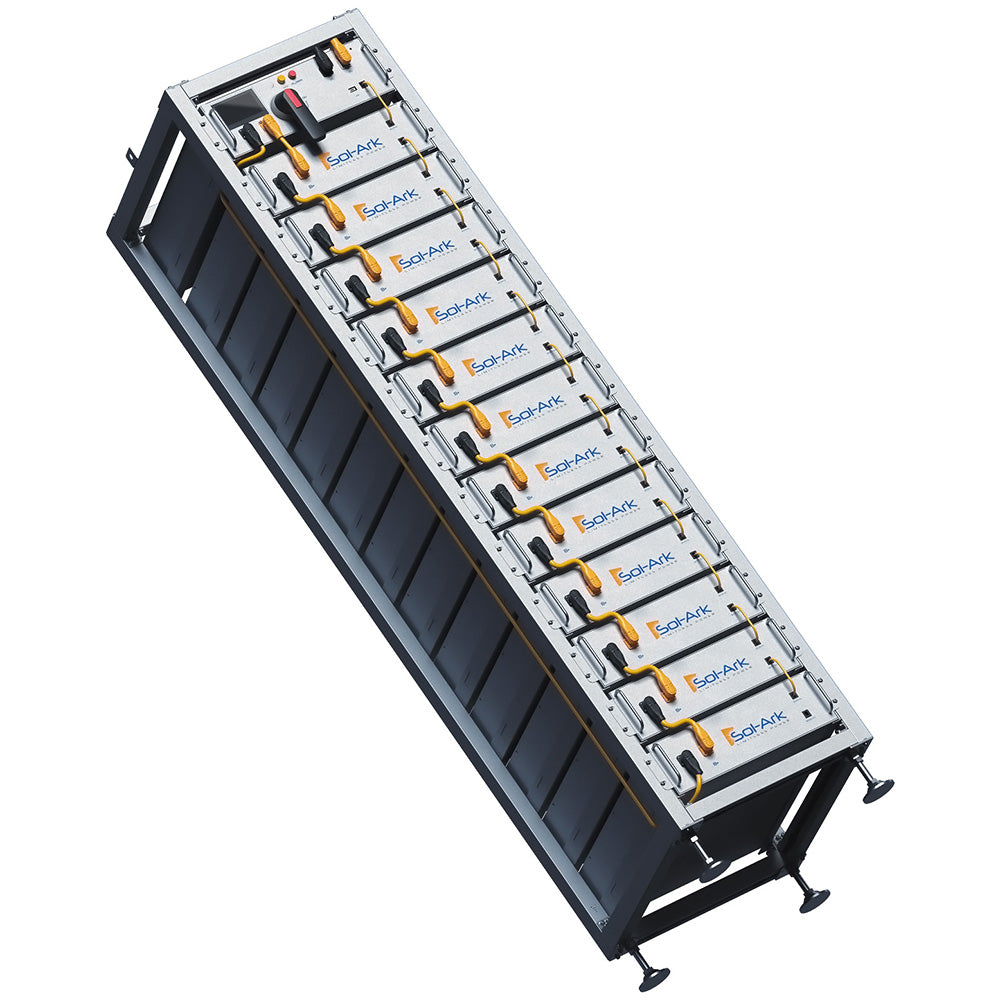

Sol-Ark L3-HV 60kWh high voltage modular battery system with metal frame and connectors

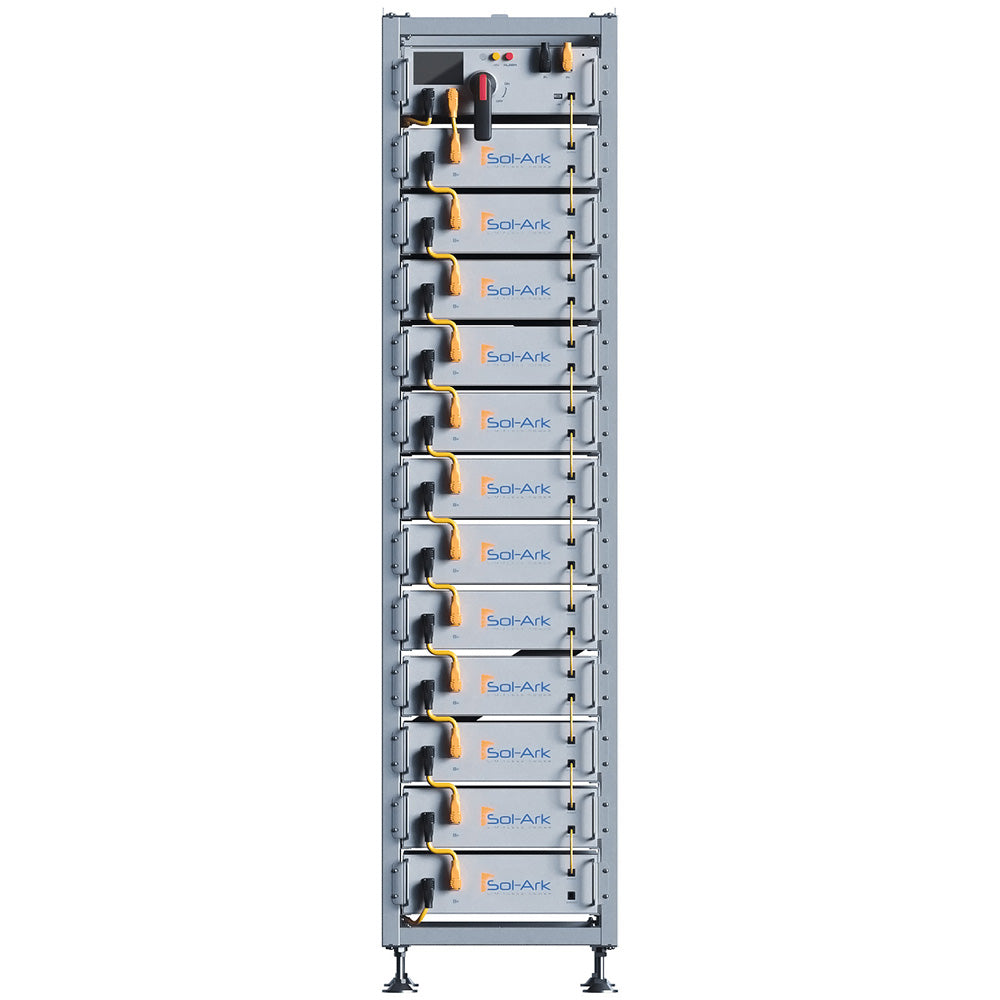

Sol-Ark L3-HV-60kWh battery system, tall rack-mounted energy storage unit, front view
Sol-Ark L3-HV-60kWh battery storage system with modular rack design
Sol-Ark L3-HV 60kWh high voltage modular battery system with metal frame and connectors
Sol-Ark L3-HV-60kWh battery system, tall rack-mounted energy storage unit, front view

Sol-Ark 60kWh Battery Bank IP20 Indoor L3-HV-60KWH-60K

Authorized Sol-Ark Dealer | Full Vendor Warranty Included

Customers rate us 4.6/5 based on 413 reviews.
$26,500.00
$26,500.00
Hurry! Only a few left in stock
Order in the next h min to get this to you between and

Need Help? Talk to our experts today!

Live Chat:
Bottom Right Text or Call us:
513-743-2829
🚚
Shipping & Delivery Time Shipping timeline above is an estimate. Please live chat for precise ETAs and shipping costs.
🛡️
30-Day Return Guarantee
Check Policy
💲
Price Match Available
🏷️
Sales Tax Free! (Except OH, FL, CA)
☀️ SUMMER DEALS ARE HERE – LOWEST PRICES GUARANTEED ☀️
Summer prices are here! Shop now to grab the lowest prices of the season before the sun sets.
Sol-Ark L3-HV-60kWh battery storage system with modular rack design

Sol-Ark

Sol-Ark 60kWh Battery Bank IP20 Indoor L3-HV-60KWH-60K

$26,500.00
Sol-Ark L3-HV-60kWh battery storage system with modular rack design
Sol-Ark L3-HV 60kWh high voltage modular battery system with metal frame and connectors
Sol-Ark L3-HV-60kWh battery system, tall rack-mounted energy storage unit, front view

Sol-Ark

Sol-Ark 60kWh Battery Bank IP20 Indoor L3-HV-60KWH-60K

$26,500.00
  • Description

Sol-Ark 60KwH Battery Bank IP20 Indoor L3-HV-60KWH-60K

SPECIAL ORDER

The Sol-Ark L3-HV-60KWH-60K is a high-capacity indoor energy storage solution engineered for large-scale commercial and industrial operations. This advanced system pairs a robust 60kWh lithium iron phosphate battery with the Sol-Ark 60K-3P-480V inverter, delivering up to 60kW of continuous AC power—ideal for supporting critical infrastructure and demanding energy loads.

Optimized for indoor deployment, the system features a durable IP20-rated enclosure, making it well-suited for climate-controlled environments such as utility rooms and electrical enclosures. Its modular and scalable architecture supports up to 10 inverters and 160 battery cabinets, providing a highly flexible energy storage platform that can scale alongside your business needs.

Specs

  • Model Number: L3 HV-60KWH-60K
  • Compatible Inverter Model: Sol-Ark 60K-3P-480V
  • Nameplate Energy Capacity (DC): 61.44 kWh
  • Usable Energy Capacity (DC): 55.30 kWh
  • Cell Chemistry: Lithium Iron Phosphate
  • Max. # Battery Units Per Inverter: 16
  • Max. # Inverters in Parallel: 10
  • Built-In DC Disconnect Rating: 200A
  • Product Dimensions (WxDxH): 23x23x86 in
  • Mounting Type: Freestanding Rack Mount
  • Enclosure Rating: IP20
  • Warranty: 10 Years
  • UL Certifications: UL1973, UL9540, UL9540a, UN38.3, FCC, Prop 65

Features

  • High Capacity: 60kWh of lithium battery storage for extended power backup and energy management.
  • Highly Scalable: Supports up to 10 inverters and 160 battery cabinets, enabling configurations up to 600kWac and 9.6MWh of storage.
  • Smart Monitoring: Advanced remote monitoring and control features for proactive system management.
  • Safe Chemistry: Reliable and safe LiFePO4 cell chemistry for peace of mind.
  • Outdoor Rated: IP20 enclosure for reliable performance in challenging outdoor environments.

Guide

Item Documents Brochure

The Sol-Ark L3 HV-60KWH-60K comes with comprehensive warranty coverage. The system includes a 10-year product warranty. Additionally, it offers a performance warranty of 6 to 10 years or 196MWh throughput, whichever comes first. This warranty guarantees that your energy storage system will maintain its capacity and performance over time.
