Sol-Ark 60K 3-Phase Hybrid Inverter | 60K-3P | 10 Year Warranty

Top Authorized Dealer | Manufacturer Warranty Included

$18,750.00
$24,687.50
$18,750.00
Save $5,937.50
(-24%)
Please hurry! Only 4 left in stock

Price Match

Free Shipping*

Free 30-Day Returns*

All orders are sales tax free!

Shipping timeline listed above is an estimate. Please call or message us for precise ETAs.

Sol-Ark 60K 3-Phase Hybrid Inverter | 60K-3P | 10 Year Warranty

Vendor: Sol-Ark

Sol-Ark 60K 3-Phase Hybrid Inverter | 60K-3P | 10 Year Warranty

$24,687.50 $18,750.00

Vendor: Sol-Ark

Sol-Ark 60K 3-Phase Hybrid Inverter | 60K-3P | 10 Year Warranty

$24,687.50 $18,750.00

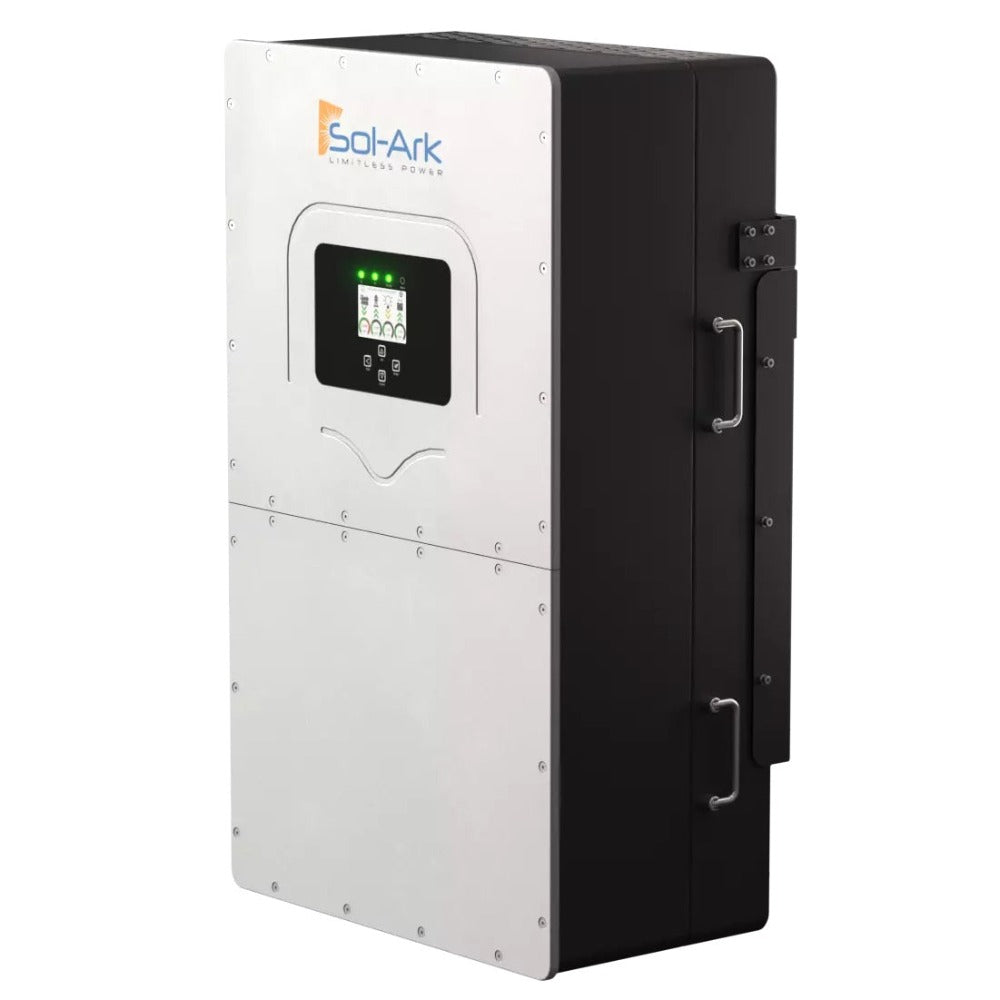

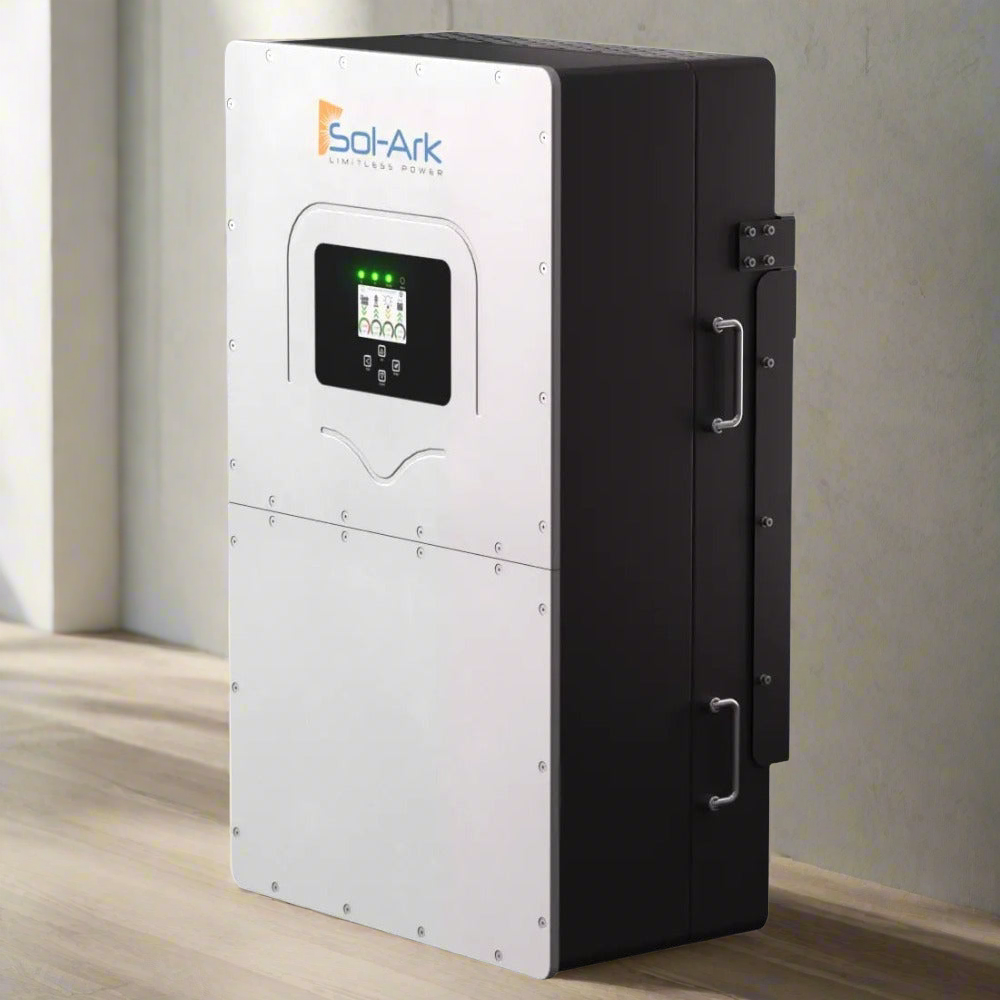

SOL-ARK 60K-3P Hybrid Inverter Overview

Introducing the Sol-Ark 60K All-In-One Hybrid - a high-performance and dependable solar inverter that seamlessly combines solar, storage, and generator power. Utilizing the latest technology, the Sol-Ark 60K is ideal for a wide range of applications, from residential to commercial and industrial settings. Let's examine its features more closely.

SOL-ARK 60K-3P Hybrid Inverter Features & Benefits

Easy Install

The Sol-Ark INVERTER comes with everything you need to install it. Nicely packaged for added efficiency.

Fleet Management

With Sol-Ark’s remote access features and app you are never out of touch to quickly repair or adjust any system without being on site.

Battery Agnostic

Sol-Ark inverters also do not have expensive battery restrictions like other solar inverters do. With our 30k and 60k high voltage systems, closed-loop communications with the batteries are required.

SOL-ARK 60K-3P Hybrid Inverter Specifications

Input Data (PV)

  • Max. Allowed PV Power (STC): 78,000W
  • MPPT Voltage Range: 150 - 850V
  • Startup Voltage: 180V
  • Max. Input Voltage: 1,000V
  • Max. Operating Input Current per MPPT: 36A
  • Max. Short Circuit Current per MPPT: 55A
  • No. of MPP Trackers: 4
  • No. of PV Strings per MPPT: 2
  • Max. AC Coupled Input: 60,000W

Output Data (AC)

  • Nominal AC Voltage (3Φ): 277/480V
  • Grid Frequency: 50 / 60Hz
  • Real Power, max continuous (3Φ): 60,000W
  • Max. Output Current: 72.3A
  • Peak Apparent Power (10s, off-grid, 3Φ): 90,000VA
  • Max. Grid Passthrough Current (10min): 200A
  • Continuous Grid Passthrough Current: 180A
  • Power Factor Output Range: +/- 0.8 adjustable
  • Backup Transfer Time: 5ms  (adjustable)
  • CEC Efficiency: 96.5%
  • Max Efficiency: 97.5%
  • Design (DC to AC): Transformerless DC
  • Stackable: Up to 10 in parallel

Battery Input Data (DC)

  • Battery Technologies: Lithium iron phosphate
  • No. of Battery Inputs: 2
  • Battery Input Terminal Rating: 50A
  • Nominal DC Voltage: ≥600V
  • Operating Voltage Range: 160 - 800V
  • Capacity: 50 — 9900Ah
  • Max. Battery Charge / Discharge Current: 100A (50A per input)
  • Charging Controller Type: 3-Stage with Equalization
  • Grid to Battery Charging Efficiency: 96.0%
  • Automatic Generator Start (AGS): 2 Wire Start - Integrated
  • BMS Communication: CANBus & RS485 MODBUS

General Data

  • Dimensions (H x W x D): 894 x 528 x 295 mm (35.2 x 20.8 x 11.6 in)
  • Weight: 80 Kg / 176 lb.
  • Enclosure: IP65 / NEMA 3R
  • Ambient Temperature: -25~55°C, > 45°C Derating
  • Noise: < 30 dB @ 25°C (77°F)
  • Idle consumption: - No Load 60W
  • Communication and Monitoring: Wi-Fi & LAN Hardware Included
  • Standard Warranty: 10 Years (15 Years)

Protection and Certifications

  • Certifications and Listings: UL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16,
    IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP
  • PV DC Disconnect Switch — NEC 240.15: Integrated
  • Ground Fault Detection — NEC 690.5: Integrated
  • PV Rapid Shutdown Control — NEC 690.12: Integrated
  • PV Arc Fault Detection — NEC 690.11: Integrated
  • PV Input Lightning Protection: Integrated
  • PV String Input Reverse Polarity Protection: Integrated
  • Surge Protection: DC Type II / AC Type II

Warranty and Reliability

Comes with our award winning iron clad warranty and our 7 day a week live Engineering Support to assist you in all your needs.

What's in The Box

  • 1 x SOL-ARK 60K-3P Hybrid Inverter

User Manual

  • SOL-ARK 60K-3P Hybrid Inverter User Manual
  • SOL-ARK 60K-3P Hybrid Inverter Certification
  • SOL-ARK 60K-3P Hybrid Inverter Spec Sheet
  • SOL-ARK 60K-3P Hybrid Inverter Brochure
