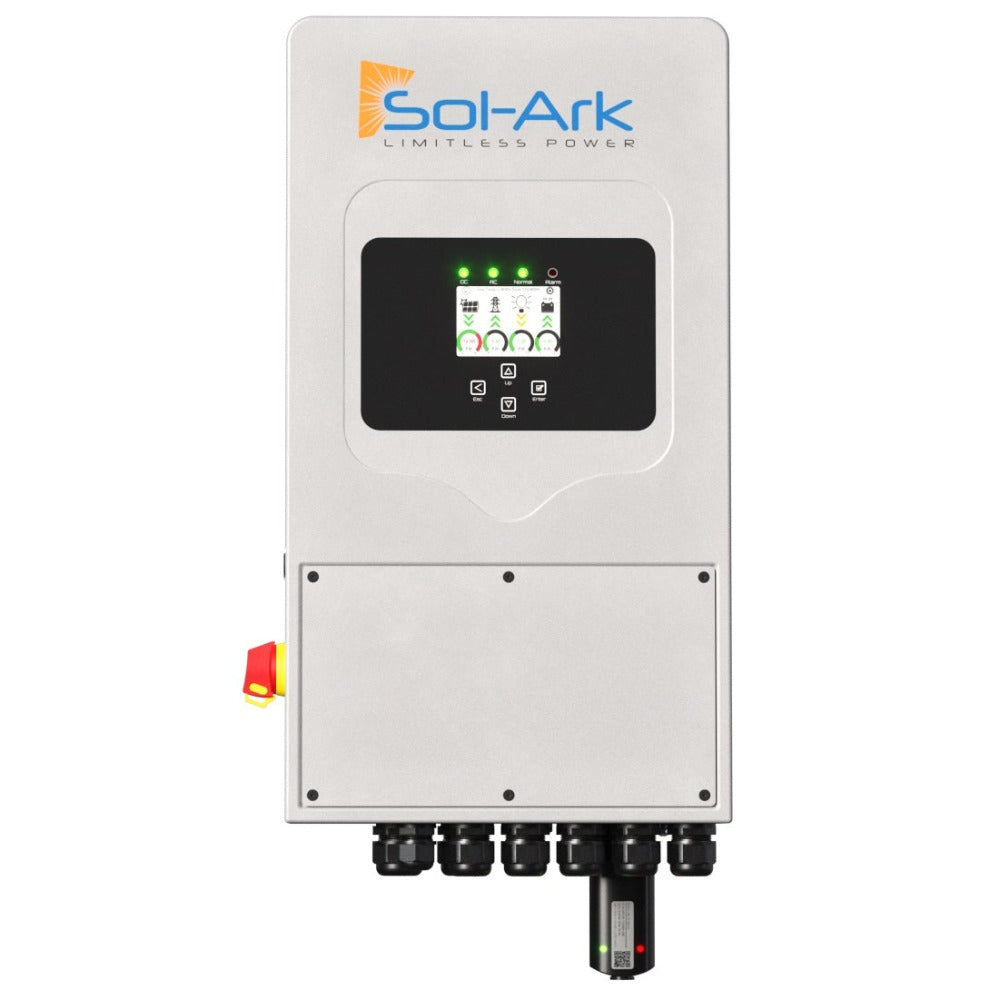

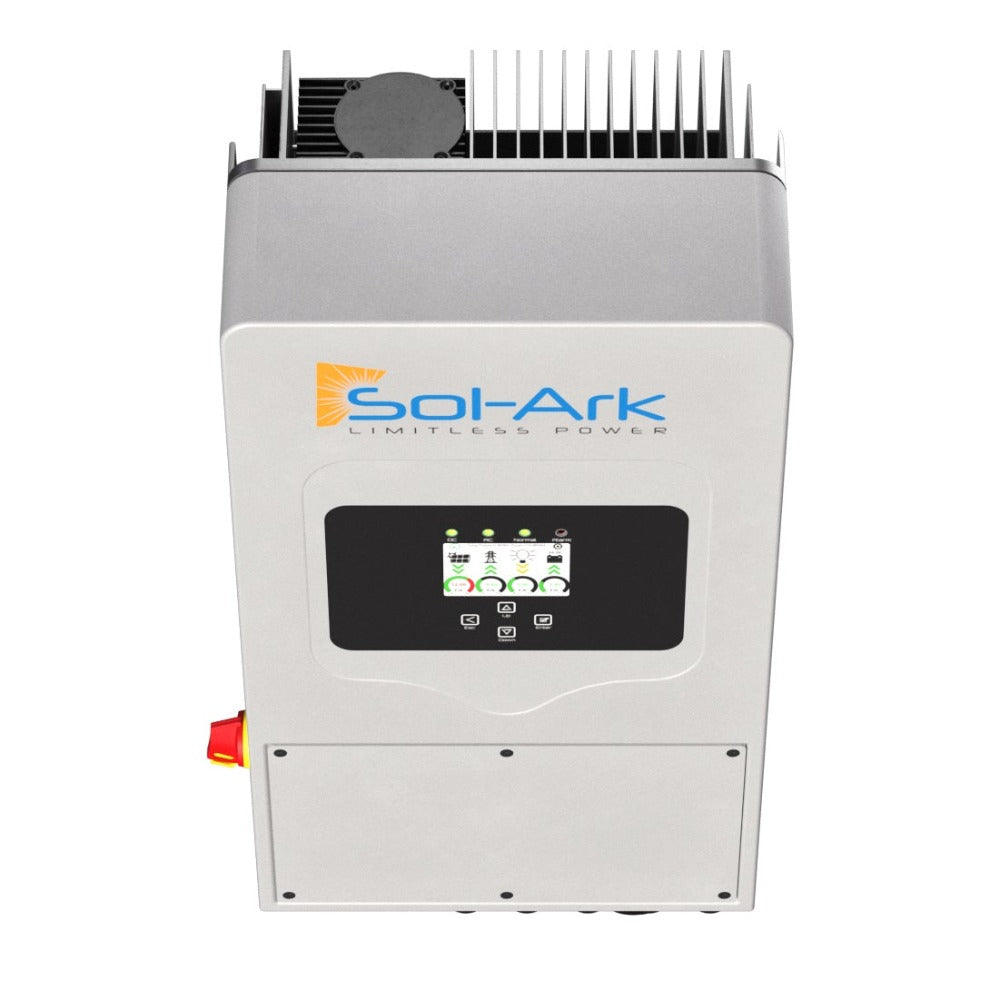

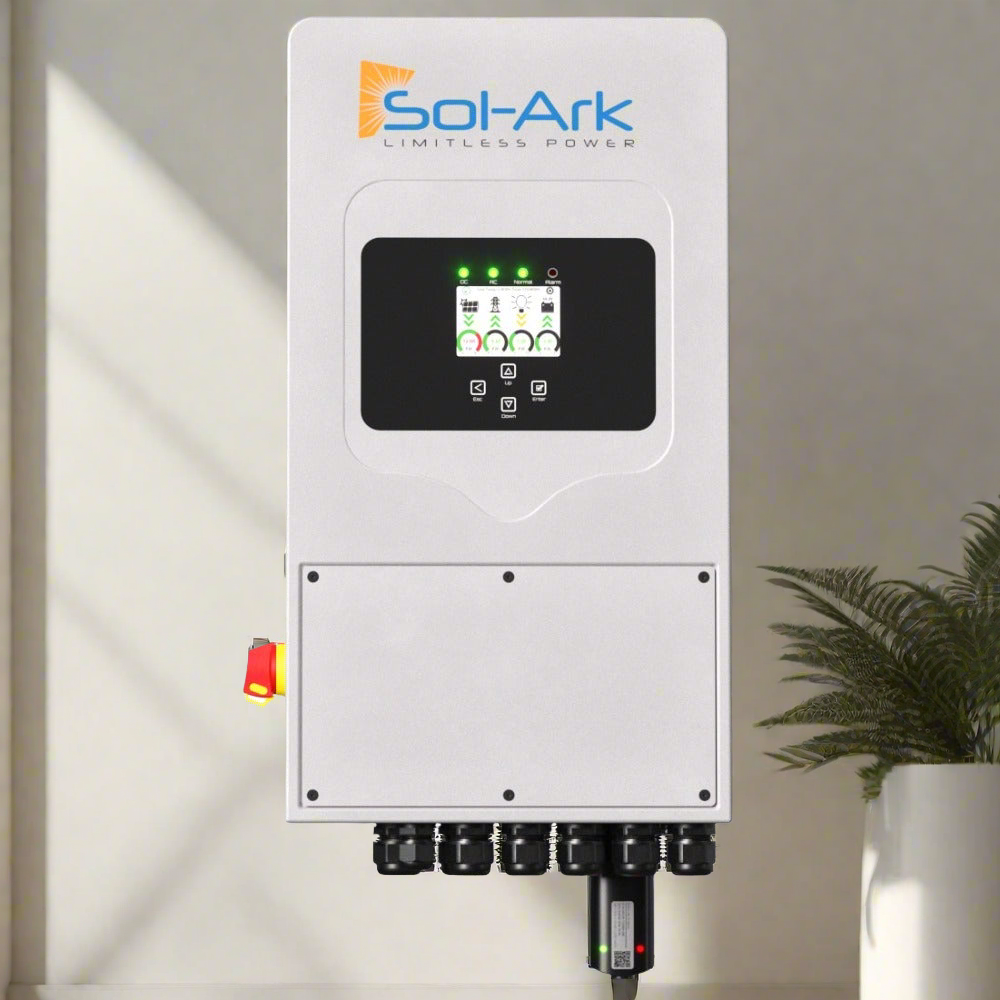

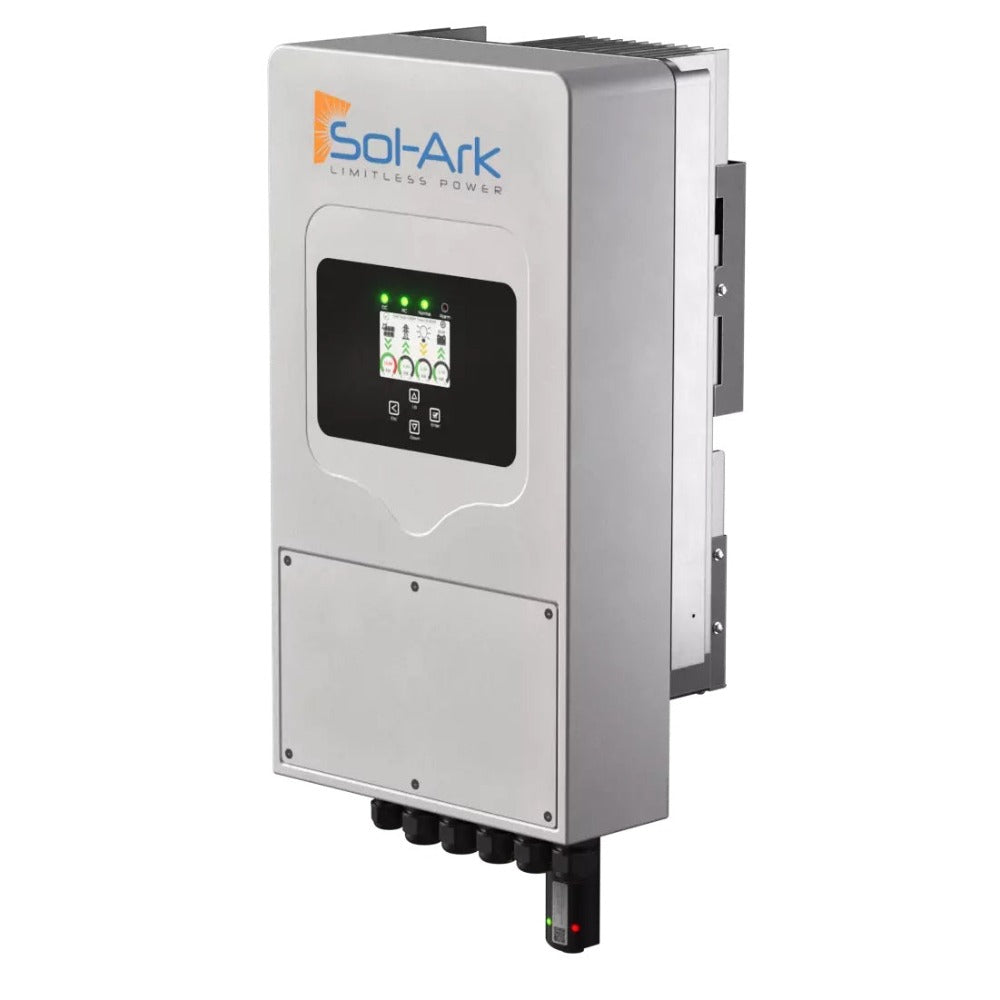

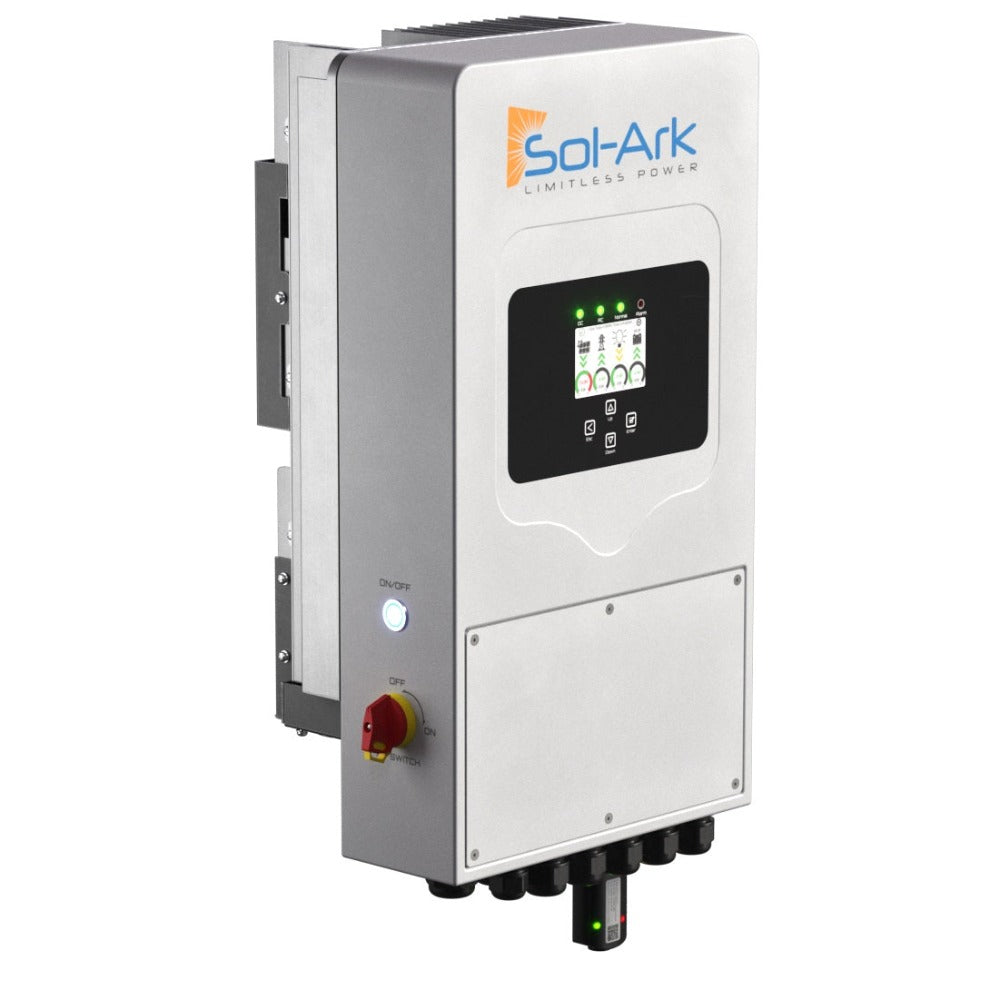

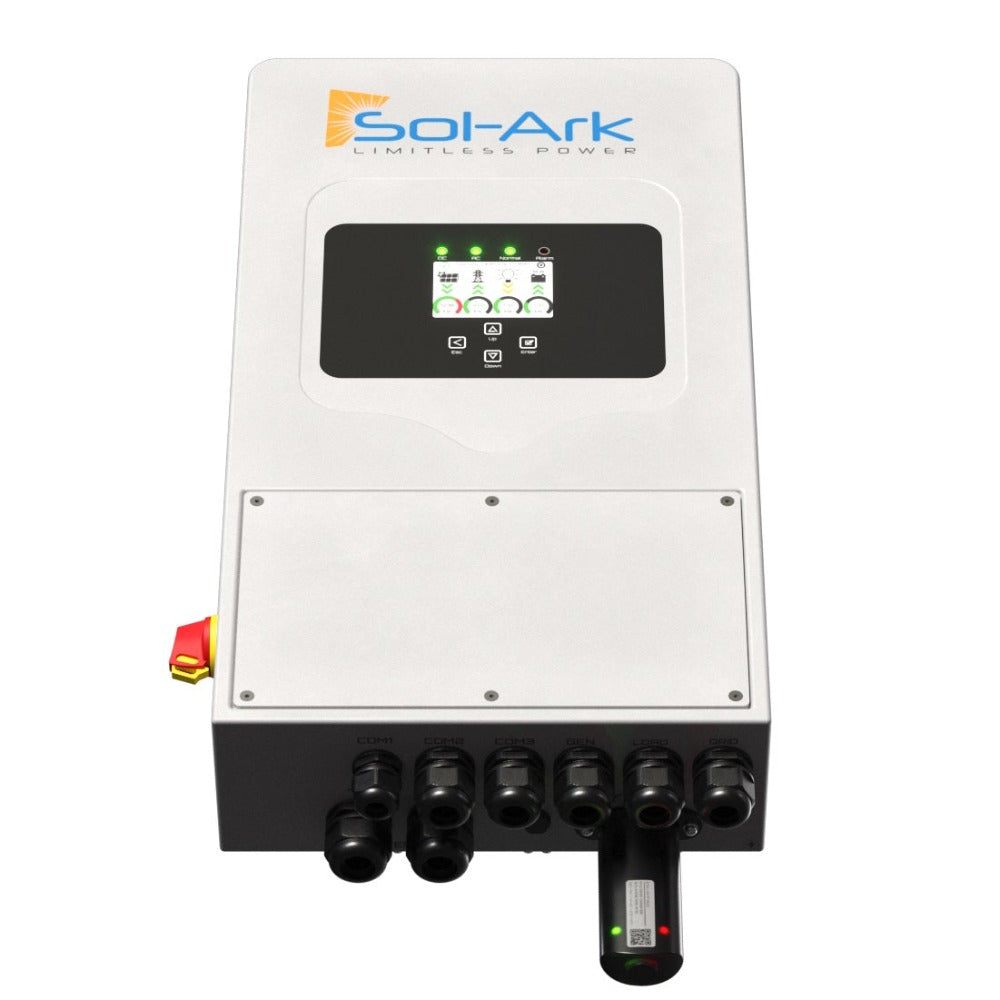

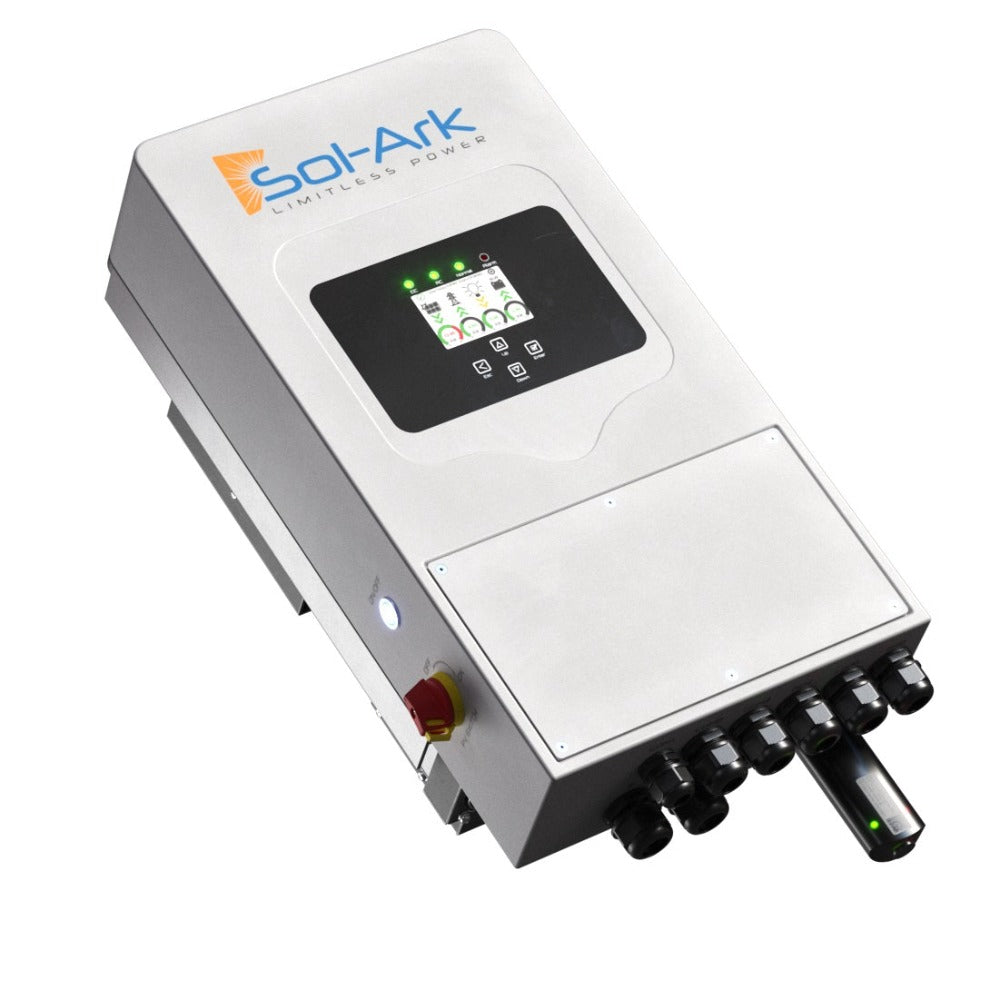

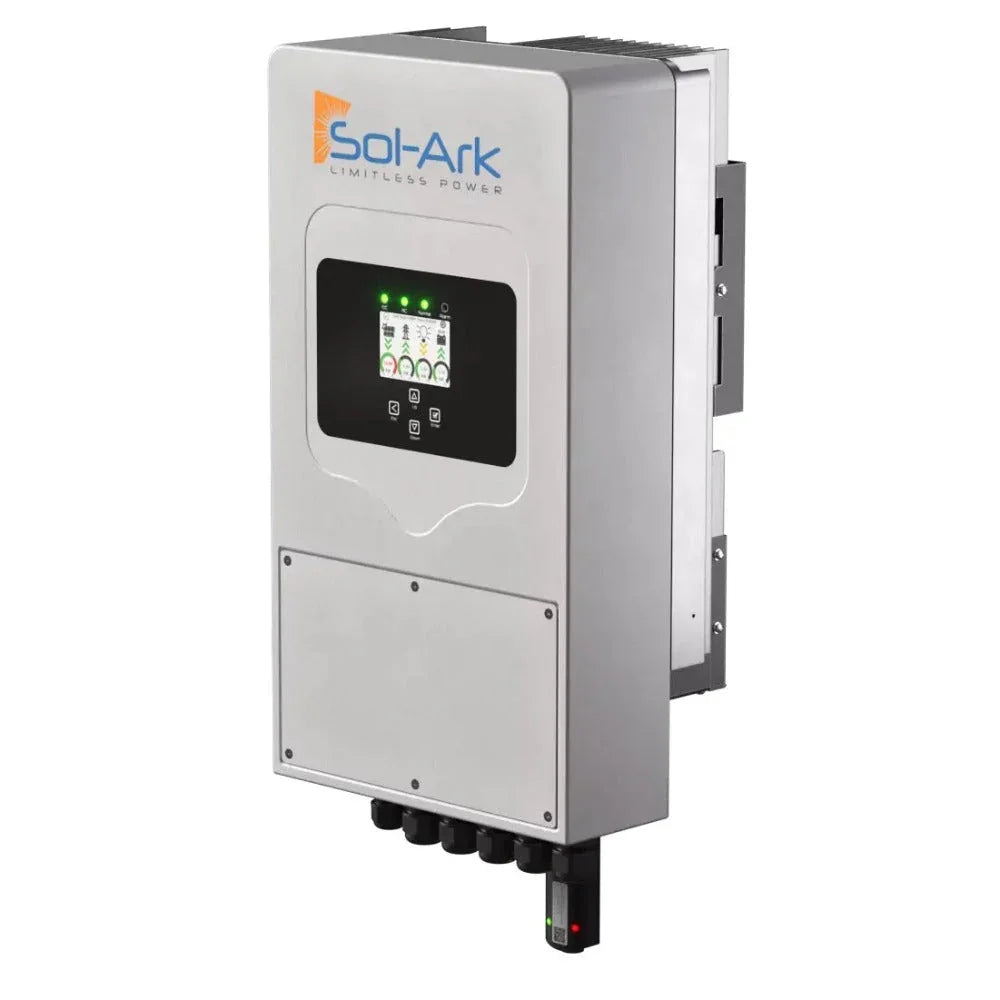

Sol-Ark 5K/8K-1P Hybrid Inverter Overview

An economical and reliable single-phase solar hybrid inverter designed for homeowners.

SOL-ARK 5K/8K-1P Hybrid Inverter Features & Benefits

Easy Install

The Sol-Ark INVERTER comes with everything you need to install it. Nicely packaged for added efficiency.

Fleet Management

With Sol-Ark’s remote access features and app you are never out of touch to quickly repair or adjust any system without being on site.

Battery Agnostic

Sol-Ark inverters also do not have expensive battery restrictions like other solar inverters do, and can be used with a wide variety of 48V battery chemistries, from lead to lithium.

SOL-ARK 5K/8K-1P Hybrid Inverter Specification

Characteristics:

  • Manufacturer: Sol-Ark
  • Model: SA-5K-1P-N
  • Rated Power Output [W]: 4800
  • Length [mm (in)]: 579.12 mm (22.8 in)
  • Width [mm (in)]: 330.2 mm (13 in)
  • Depth [mm (in)]: 231.14 mm (9.1 in)
  • Weight [kg (lb)]: 28.12 kg (62lb)
  • Warranty [Years]: 5

Inverters:

  • Inverter Type: Hybrid inverter
  • Maximum/Peak Efficiency [%]: 97.6
  • Transformer / Transformerless: Transformerless DC
  • DC Power Rating [W]: 10400
  • Max. Input Power [W]: 10400
  • Max. Input Voltage [V]: 500
  • Max. Input Current [A]: 40
  • Min. DC voltage / start voltage [V]: 150
  • Min. DC voltage / start voltage [V]: 150
  • Number of DC String Inputs (Inlets): 4
  • Number of MPP Trackers: 2
  • Max. Input Power per MPPT [W]: 5200
  • Max. Input Voltage per MPPT [V]: 500
  • Max. Input Current per MPPT [A]: 20
  • Voltage Lower Limit for MPP Range [V]: 125
  • Voltage Upper Limit for MPP Range [V]: 425
  • DC Disconnection Type: Integrated
  • Reverse-Polarity Protection: true
  • AC Power Rating [W]: 4800
  • Nominal AC Power [W]: 4800
  • Max. AC Power [W]: 4800
  • AC voltage range [V]: 114-123
  • AC grid frequency [Hz]: 60
  • Max. output current [A]: 40
  • Nominal AC Voltage [V]: 120
  • Maximum AC Voltage Range [V]: 123
  • Nominal AC Frequency [Hz], range [Hz-Hz]: 60
  • Max. AC Line Current [A]: 50
  • AC Connection Type: L1/Neutral/Ground
  • AC Input Wire Gauge Range [AWG]: 8 AWG - 6 AWG
  • Sleep (Night) Consumption [W]: 60
  • NEMA Enclosure Rating: IP65 / NEMA 3R
  • Cooling Method: Integrated Fans
  • Ambient Temperature Range [°C(°F)]: -25°C to +60°C (-13°F to +140°F)
  • Display: LCD Touch Screen
  • Communication: Wi-Fi, LAN, CanBus, RS485
  • Basic Warranty [Years]: 5
  • Compliances: UL1741-2010/2018, IEE-E1547a-2003/2014, FCC 15 Class B
  • AC grid range [Hz]: 55-65
  • Max. recommended PV power (@ module STC): 10400

Warranty and Reliability

Comes with our award winning iron clad warranty and our 7 day a week live Engineering Support to assist you in all your needs.

What's in The Box

  • 1 x SOL-ARK 5K/8K-1P Hybrid Inverter

Installation Videos

User Manual

Sol-Ark SA-5K-1P-N Product Brochure

Sol-Ark SA-5K-1P-N Product Specifications

Sol-Ark SA-5K-1P-N Product Manual

Sol-Ark Inverter Programming Guide

Sol-Ark Battery Communications Integration Guide

Warranty PDF for Sol-Ark 5K-1P-N

Sol-Ark My Sol-Ark User Guide
