Sol-Ark inverters also do not have expensive battery restrictions like other solar inverters do. With our 30k and 60k high voltage systems, closed-loop communications with the batteries are required.

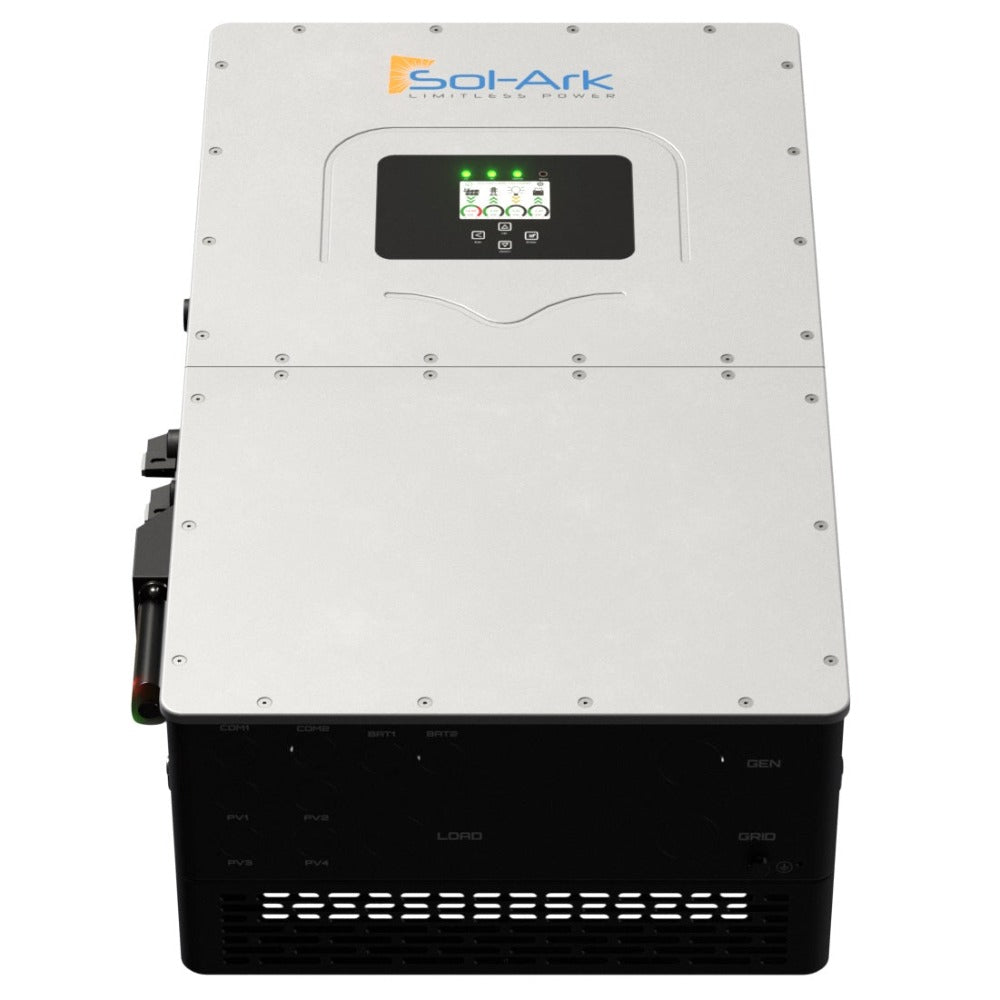

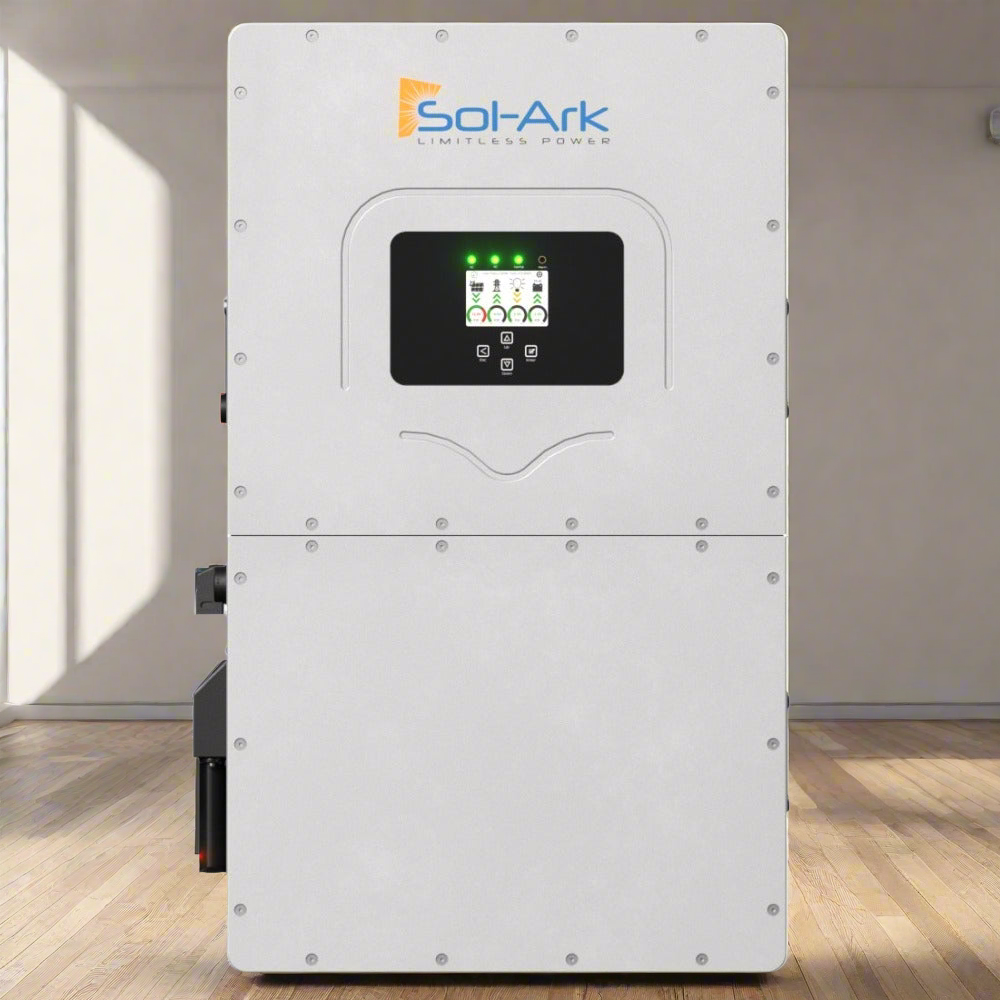

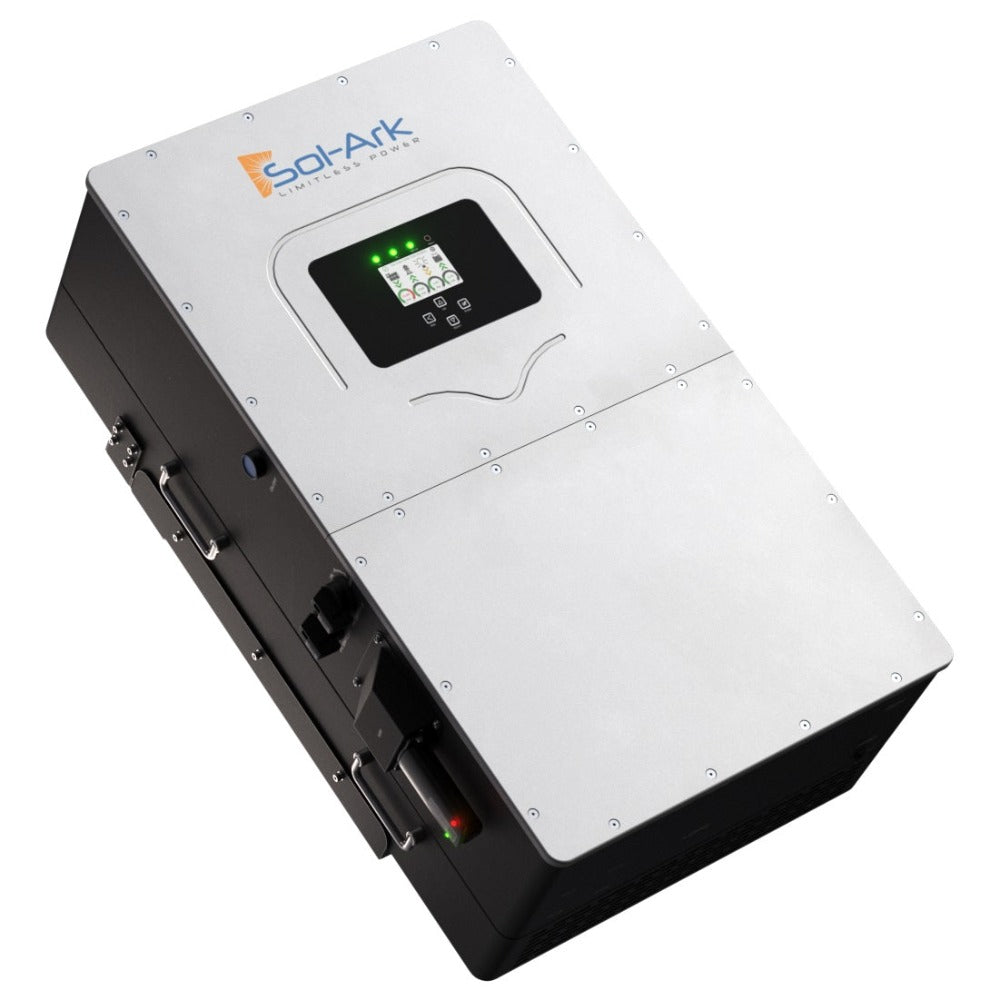

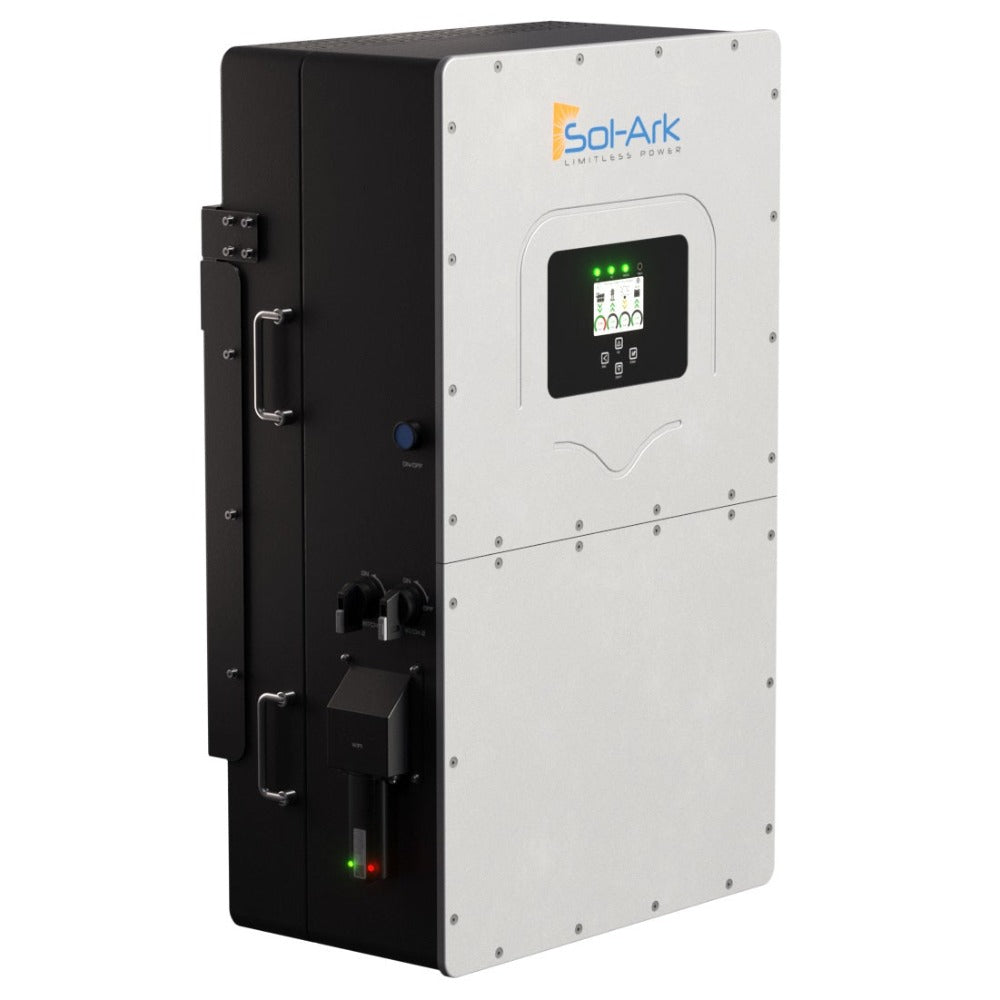

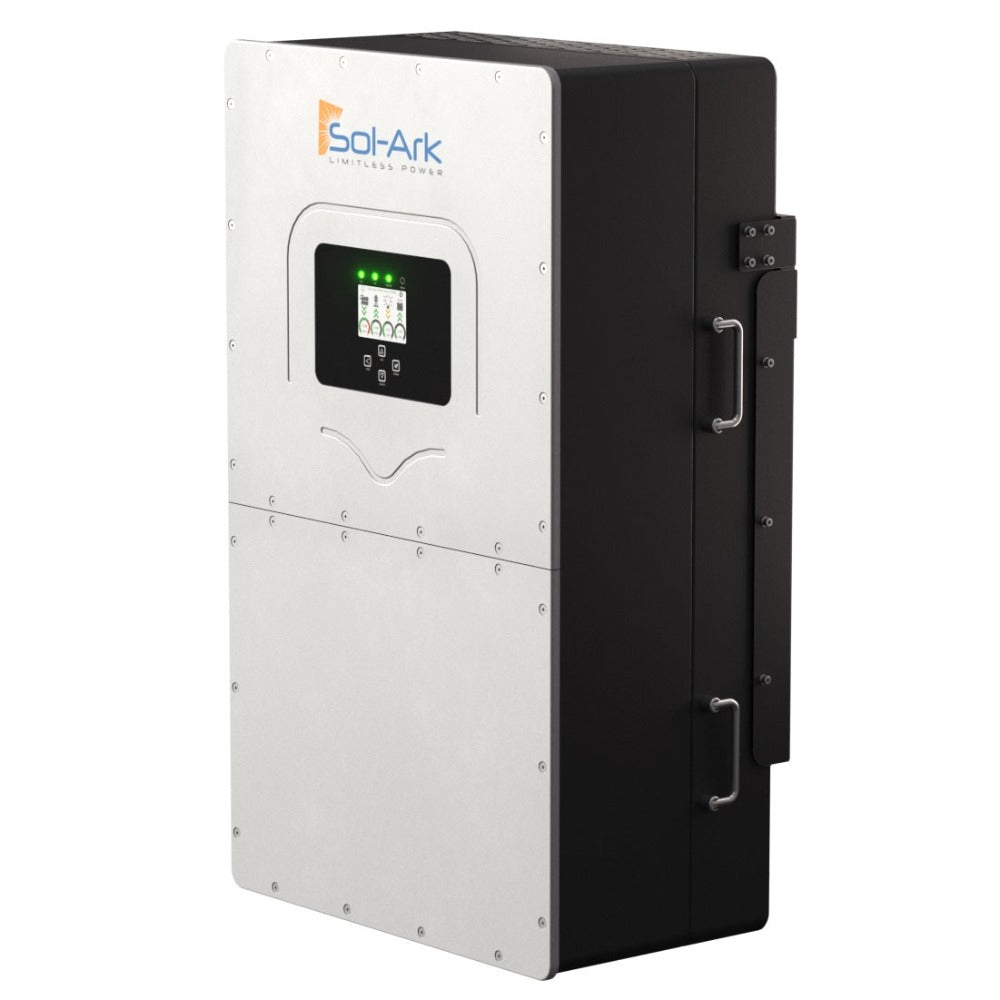

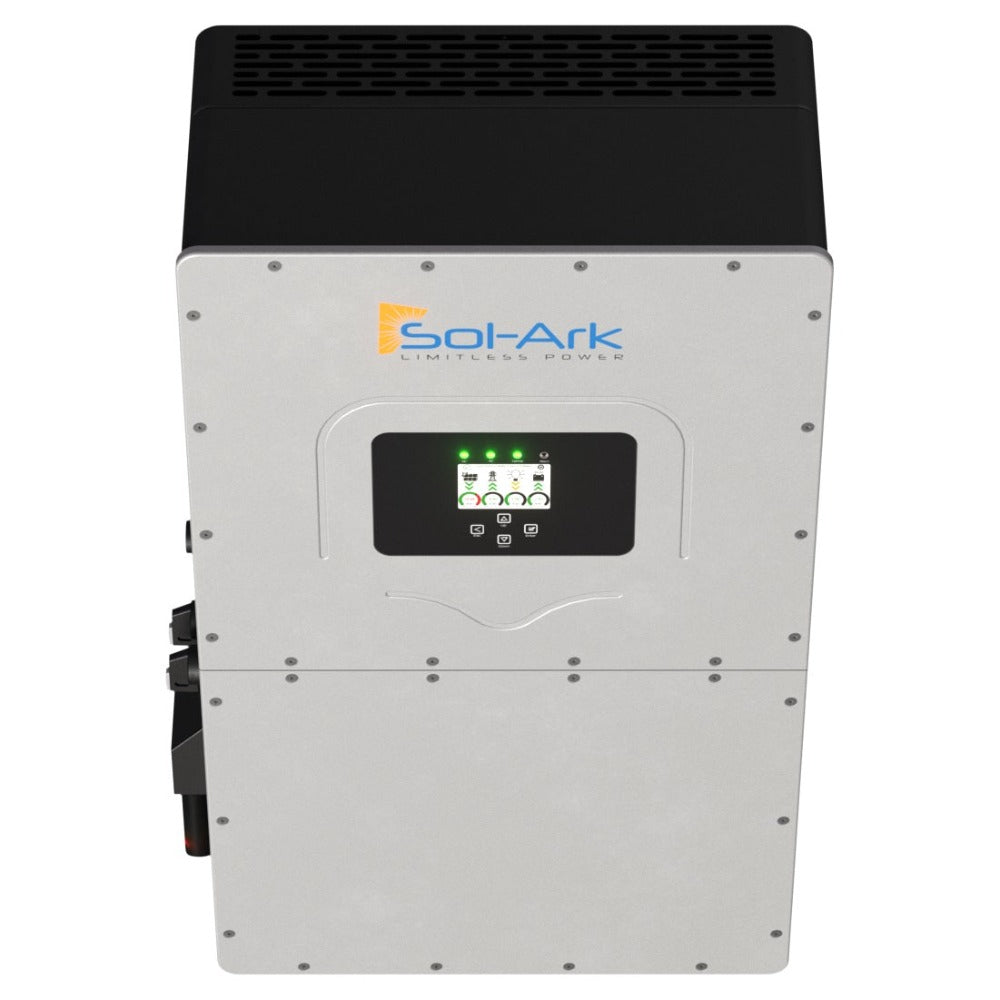

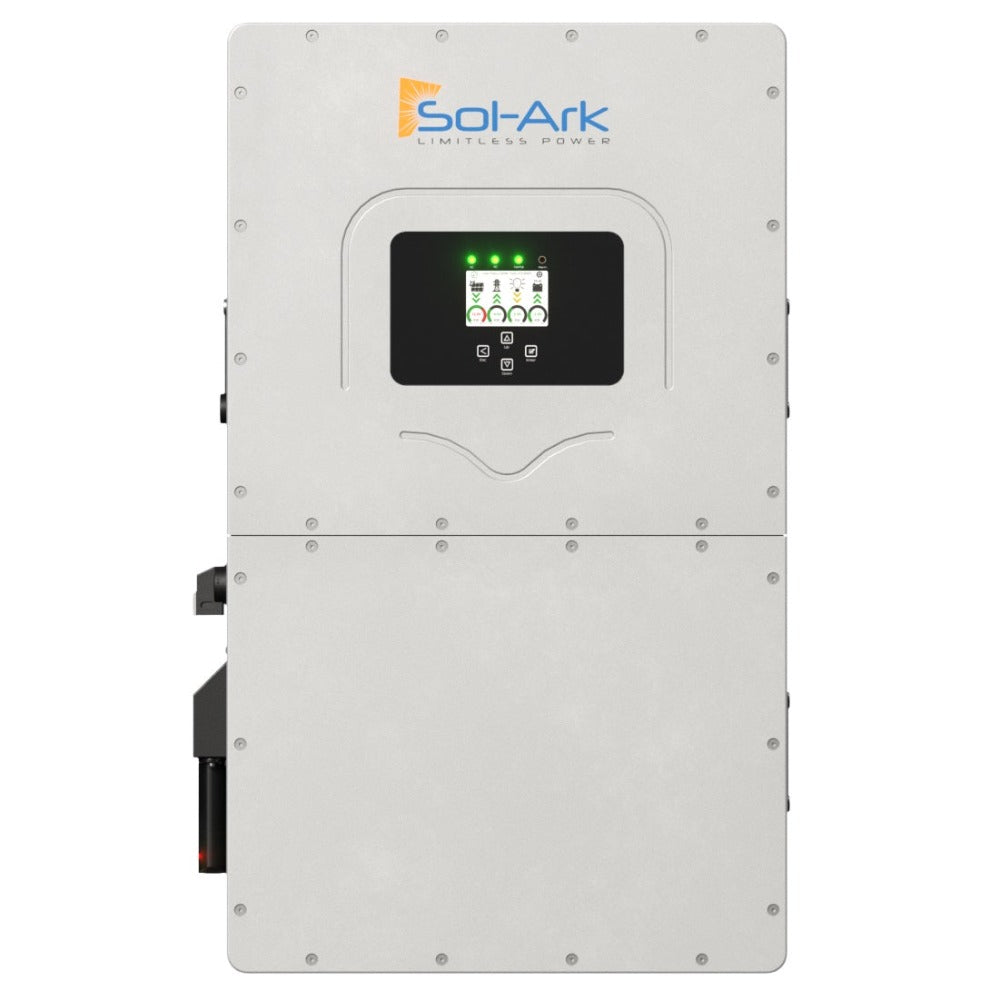

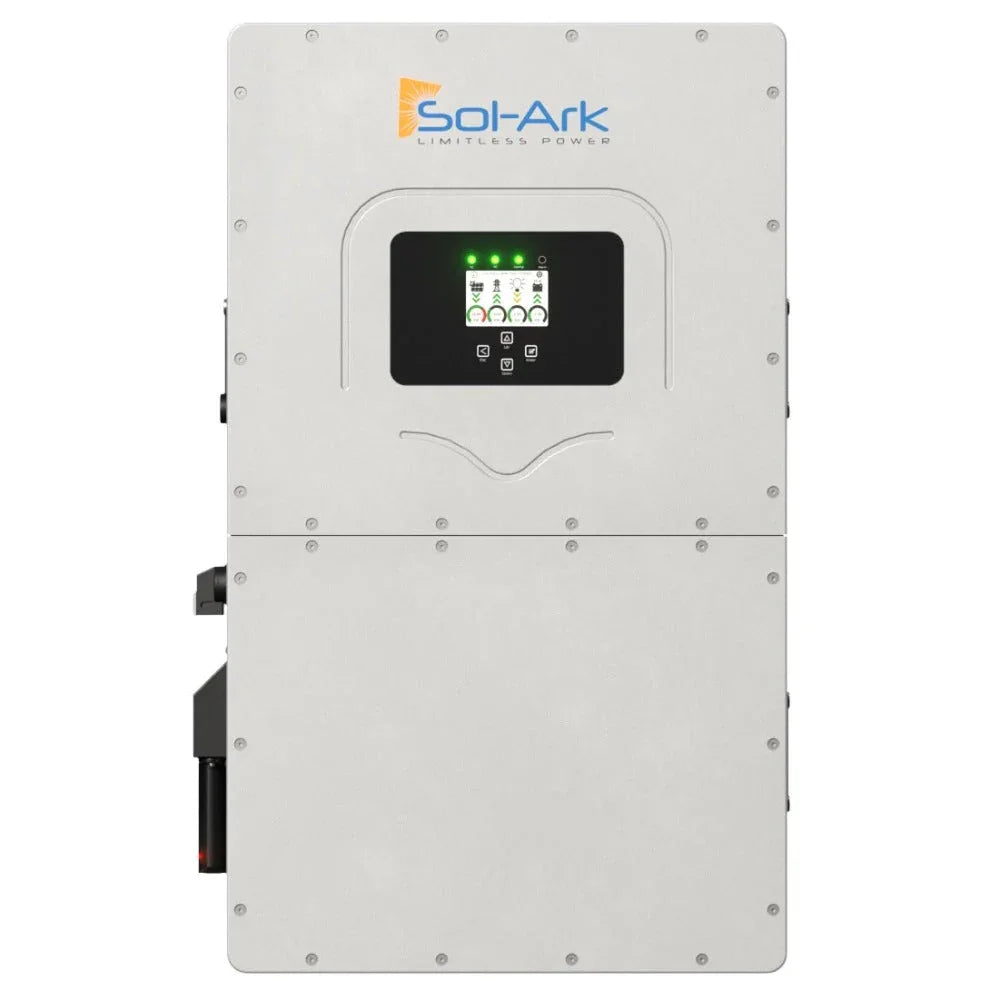

SOL-ARK 30K-3P Hybrid Inverter Specifications

Input Data (PV)

• Max. Allowed PV Power (STC): 39,000W
• MPPT Voltage Range: 150 - 500V
• Startup Voltage: 180V
• Max. Input Voltage: 550V
• Max. Operating Input Current per MPPT: 36A
• Max. Short Circuit Current per MPPT: 55A
• No. of MPP Trackers: 4
• No. of PV Strings per MPPT: 2
• Max. AC Coupled Input: 30,000W

Output Data (AC)

• Nominal AC Voltage (3Φ): 120/208V
• Grid Frequency: 50 / 60Hz
• Real Power, max continuous (3Φ): 30,000W
• Max. Output Current: 83.4A
• Peak Apparent Power (10s, off-grid, 3Φ): 45,000VA
• Max. Grid Passthrough Current (10min): 200A
• Continuous Grid Passthrough Current: 180A
• Power Factor Output Range: +/- 0.8 adjustable
• Backup Transfer Time: 5ms  (adjustable)
• CEC Efficiency: 96.5%
• Max Efficiency: 97.5%
• Design (DC to AC): Transformerless DC
• Stackable: Up to 10 in parallel

Battery Input Data (DC)

• Battery Technologies: Lithium iron phosphate
• No. of Battery Inputs: 2
• Battery Input Terminal Rating: 50A
• Nominal DC Voltage: ≥300V
• Operating Voltage Range: 160 - 500V
• Capacity: 50 — 9900Ah
• Max. Battery Charge / Discharge Current: 100A (50A per input)
• Charging Controller Type: 3-Stage with Equalization
• Grid to Battery Charging Efficiency: 96.0%
• Automatic Generator Start (AGS): 2 Wire Start - Integrated
• BMS Communication: CANBus & RS485 MODBUS


General Data

• Dimensions (H x W x D): 894 x 528 x 295 mm (35.2 x 20.8 x 11.6 in)
• Weight: 80 Kg / 176 lb.
• Enclosure: IP65 / NEMA 3R
• Ambient Temperature: -25~55°C, > 45°C Derating
• Noise: < 30 dB @ 25°C (77°F)
• Idle consumption: - No Load 60W
• Communication and Monitoring: Wi-Fi & LAN Hardware Included
• Standard Warranty: 10 Years (15 Years)


Protection and Certifications

• Certifications and Listings: UL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16,
  IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP 4
• PV DC Disconnect Switch — NEC 240.15: Integrated
• Ground Fault Detection — NEC 690.5: Integrated
• PV Rapid Shutdown Control — NEC 690.12: Integrated
• PV Arc Fault Detection — NEC 690.11: Integrated
• PV Input Lightning Protection: Integrated
• PV String Input Reverse Polarity Protection: Integrated
• Surge Protection: DC Type II / AC Type II
