Sol-Ark 15K All-In-One Hybrid Solar Inverter | 120/240/208V 48V Pre-Wired | 10-Year Warranty

Top Authorized Dealer | Manufacturer Warranty Included

$6,999.00
$9,900.00
$6,999.00
Save $2,901.00
(-29%)
Please hurry! Only 4 left in stock

Price Match

Free Shipping*

Free 30-Day Returns*

All orders are sales tax free!

Shipping timeline listed above is an estimate. Please call or message us for precise ETAs.

Sol-Ark 15K All-In-One Hybrid Solar Inverter | 120/240/208V 48V Pre-Wired | 10-Year Warranty - Green Vista Living

Vendor: Sol-Ark

Sol-Ark 15K All-In-One Hybrid Solar Inverter | 120/240/208V 48V Pre-Wired | 10-Year Warranty

$9,900.00 $6,999.00

Vendor: Sol-Ark

Sol-Ark 15K All-In-One Hybrid Solar Inverter | 120/240/208V 48V Pre-Wired | 10-Year Warranty

$9,900.00 $6,999.00

Overview

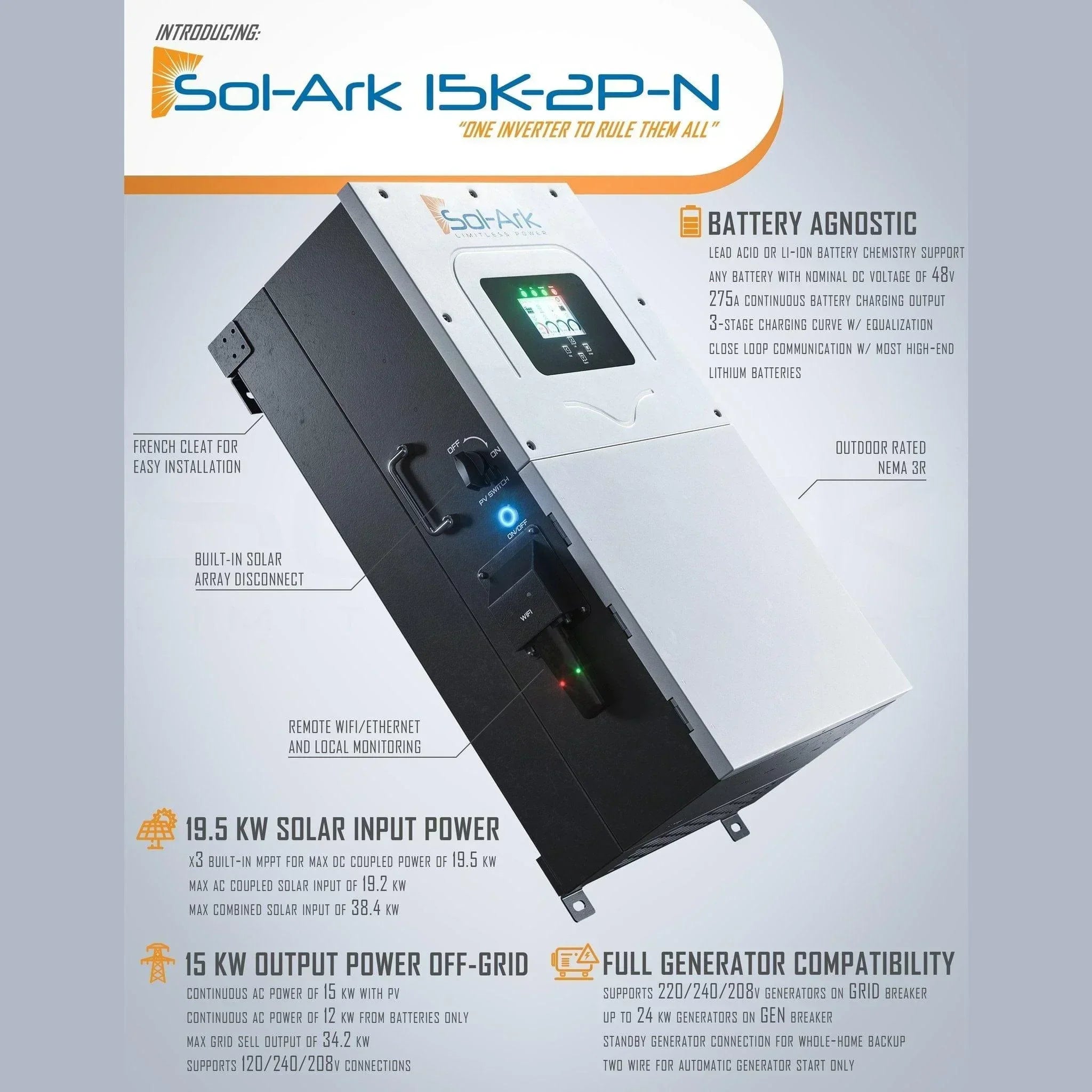

Sol-Ark All-In-One Hybrid Inverter

The Sol-Ark 15K All-In-One Hybrid Inverter streamlines installation by combining an inverter, charge controller, and other essential components into a single pre-assembled unit. This integrated design eliminates the need for external fuses, breakers, or combiner boxes, making the installation process simpler and reducing the requirement for additional equipment.

With its integrated design, this all-in-one inverter system offers high efficiency and cost-effectiveness, outperforming other inverters in the market.

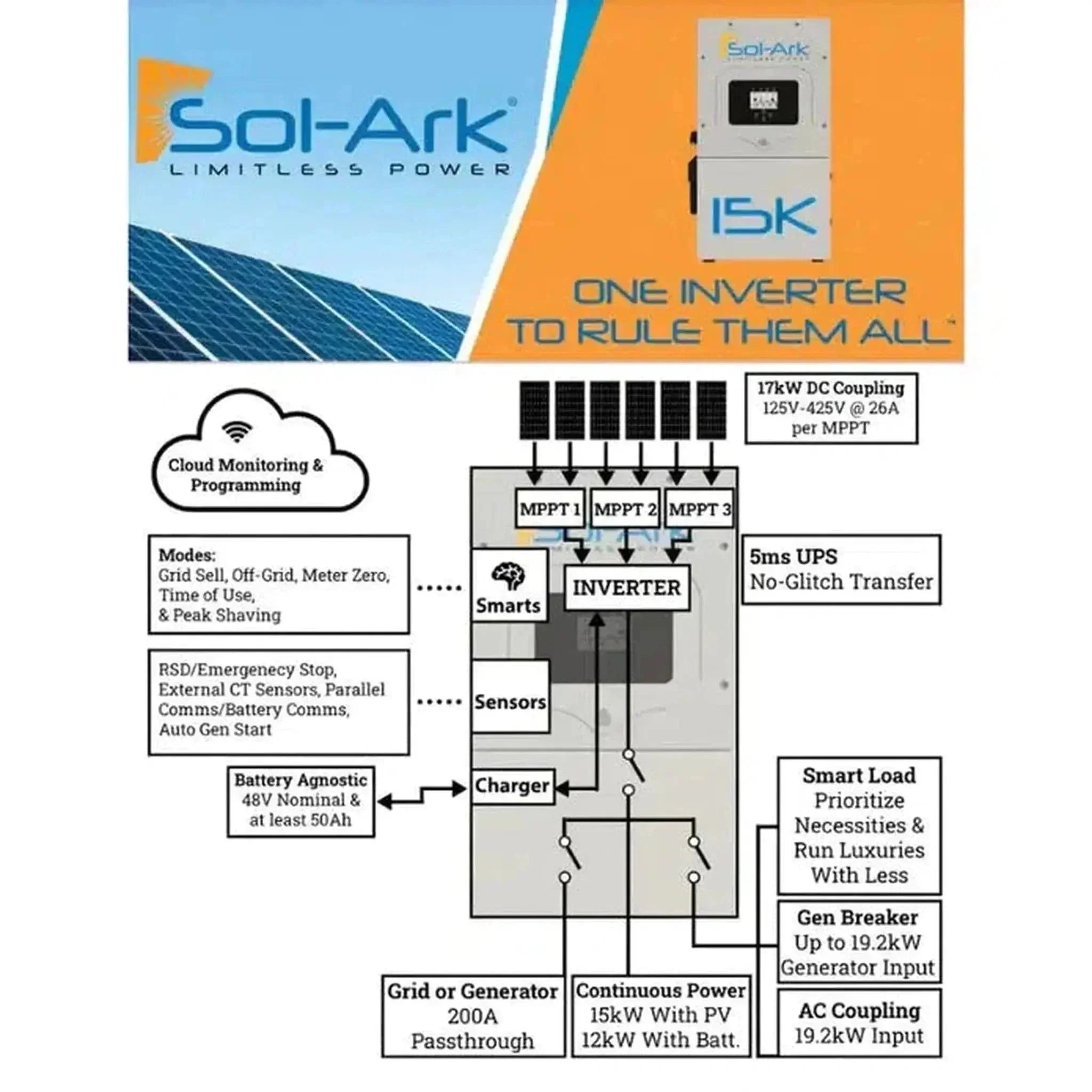

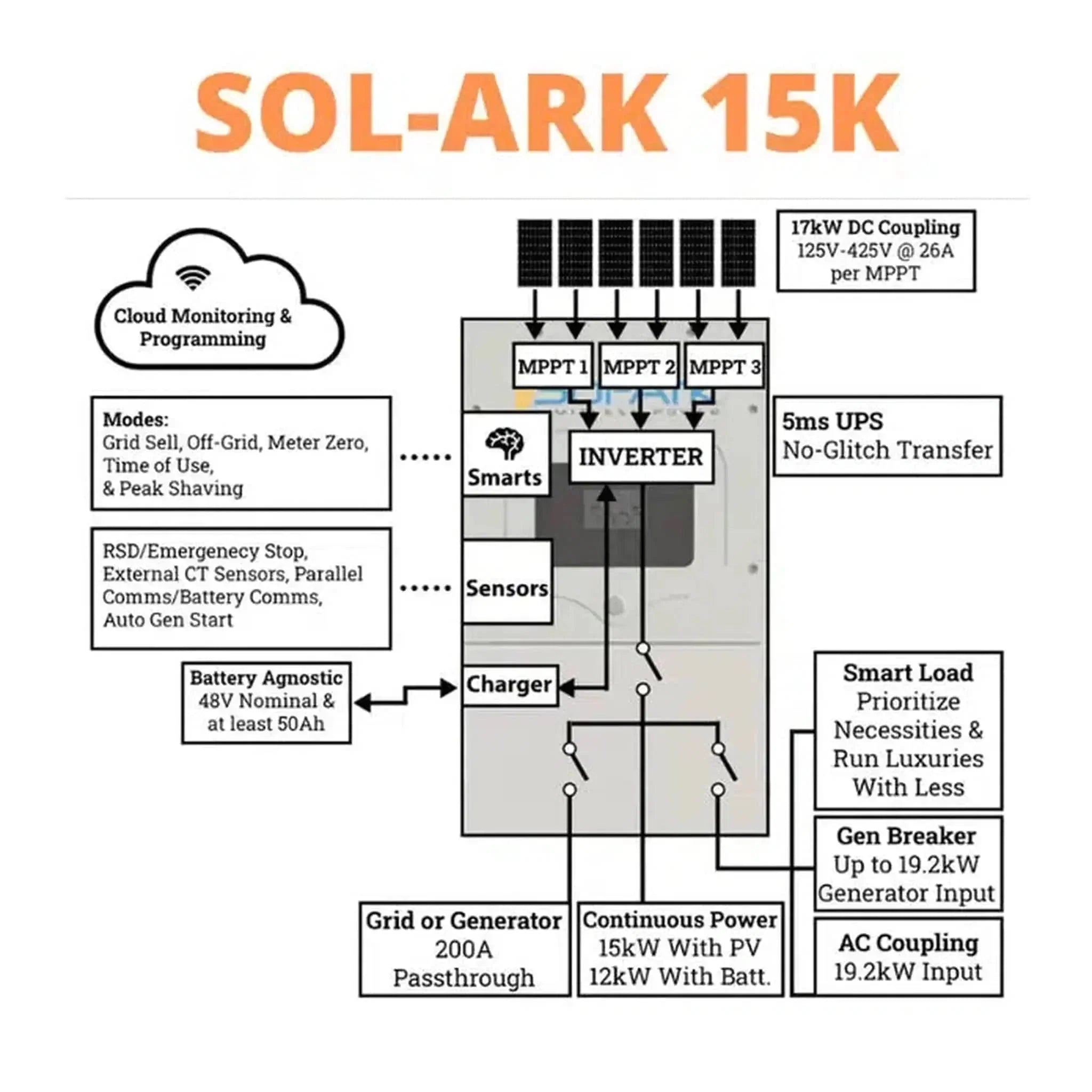

Flexible Power -- Off-Grid & On-Grid

Built for versatility, the Sol-Ark 15K suits off-grid, on-grid, or hybrid setups. Features include:

  • 200A Passthrough: Whole-home backup without a subpanel.
  • Grid Export: Sell excess power back to the grid.
  • Meter Zeroing: Cut electricity bills without adding a smart meter.
  • Time-of-Use Management: Minimize grid power usage during peak hours.
  • Smart Load Control: Direct high-power loads when solar production is optimal.
  • AC Coupling: Easily integrates with existing grid-tied systems.

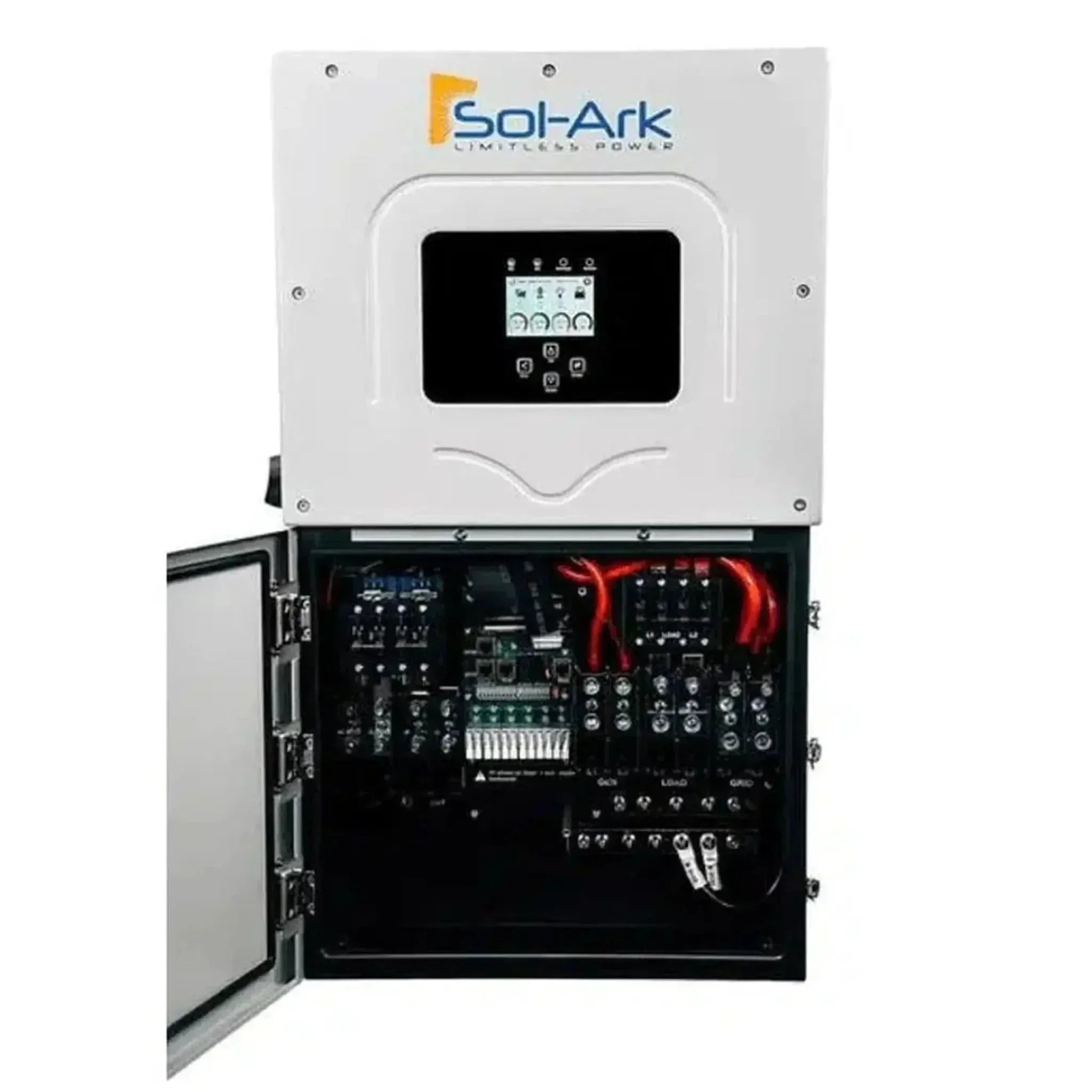

All-In-One - Simplify Your Installation

The Sol-Ark 15K Inverter comes with everything needed for installation, neatly packaged for efficient setup.

It's an all-inclusive system, pre-wired with the inverter, charge controller, and essential components.

This design eliminates the need for fuses, breakers, or combiner boxes, simplifying installation and reducing the required extra hardware.

Universal Compatibility with All Batteries

The Sol-Ark inverter stands out by offering compatibility with a wide range of 48V battery chemistries, from lead to lithium, unlike many other solar inverters. This versatility eliminates the need for expensive batteries and enhances the system's flexibility.

Life Testing - Proven to Last

Proven to last well beyond the standard 10-year warranty

Engineered, Serviced, And Tested In The USA

Talk to a US Based Engineer 7 days a week about any technical issues you have even after purchase.

Built for Any Application

Optimal uses for the Sol-Ark 15k include off-grid scenarios, substantial savings, and time-of-use applications. We strongly advise the Sol-Ark 15k for smaller-scale setups.

  • Grid-Tied Mode – Sell power back to the Utility to reduce your electric bill
  • Meter Zero Mode – Zero your electric bill without adding an additional smart meter
  • Time-Of-Use Mode – Use solar and batteries to minimize grid power usage when it’s most expensive
  • Smart Load Mode – Use a programmable output for high-power off grid loads or grid
  • Time-of-use loads – to run only when there is optimum solar – use excess PV power when batteries are full
  • Off Grid applications – battery agnostic
  • AC Coupling – retrofits to existing grid tie systems
  • Battery backup

Operate Your System with Your Phone!

With Sol-Ark’s remote access and mobile app, you are never out of reach to repair or adjust your system without being on-site.

Technical Features

  • Transformerless inverter
  • Pure sine wave
  • 120/240/208V
  • Grid-tie, off-grid, or hybrid applications (can be with or without batteries)
  • Wide variety or 48V battery chemistries, from lead to lithium
  • Simultaneously manages power to battery, loads, and grid
  • Expandable
  • Highly efficient

User Features And Integrations

  • Color touch screen
  • Remote monitoring from smart device
  • Battery disconnect
  • Battery temp sensor
  • Auto-generator start
  • Rapid shut down signal
  • Current sensors
  • Battery communication
  • PV Disconnect
  • Wiring knockouts
  • WiFi

Reliable Support, Anytime

With Sol-Ark’s 24/7 US-based customer support, help is always available. Whether you have technical questions or need guidance after purchase, Sol-Ark’s expert engineers are ready to assist.



Sol Ark 15K: Ultimate Grid-tie or Off-grid Inverter

How to Install a Sol-Ark 15K || Sol-Ark Install Guide

The primary steps for configuring a Sol-Ark 15K hybrid inverter with batteries are demonstrated in this concise video.

The Sol-Ark 15k delivers as promised!

15K Generator Integration || Sol-Ark Quick Start Guide

This video provides a brief overview of how Sol-Ark facilitates the integration of generators into its system.

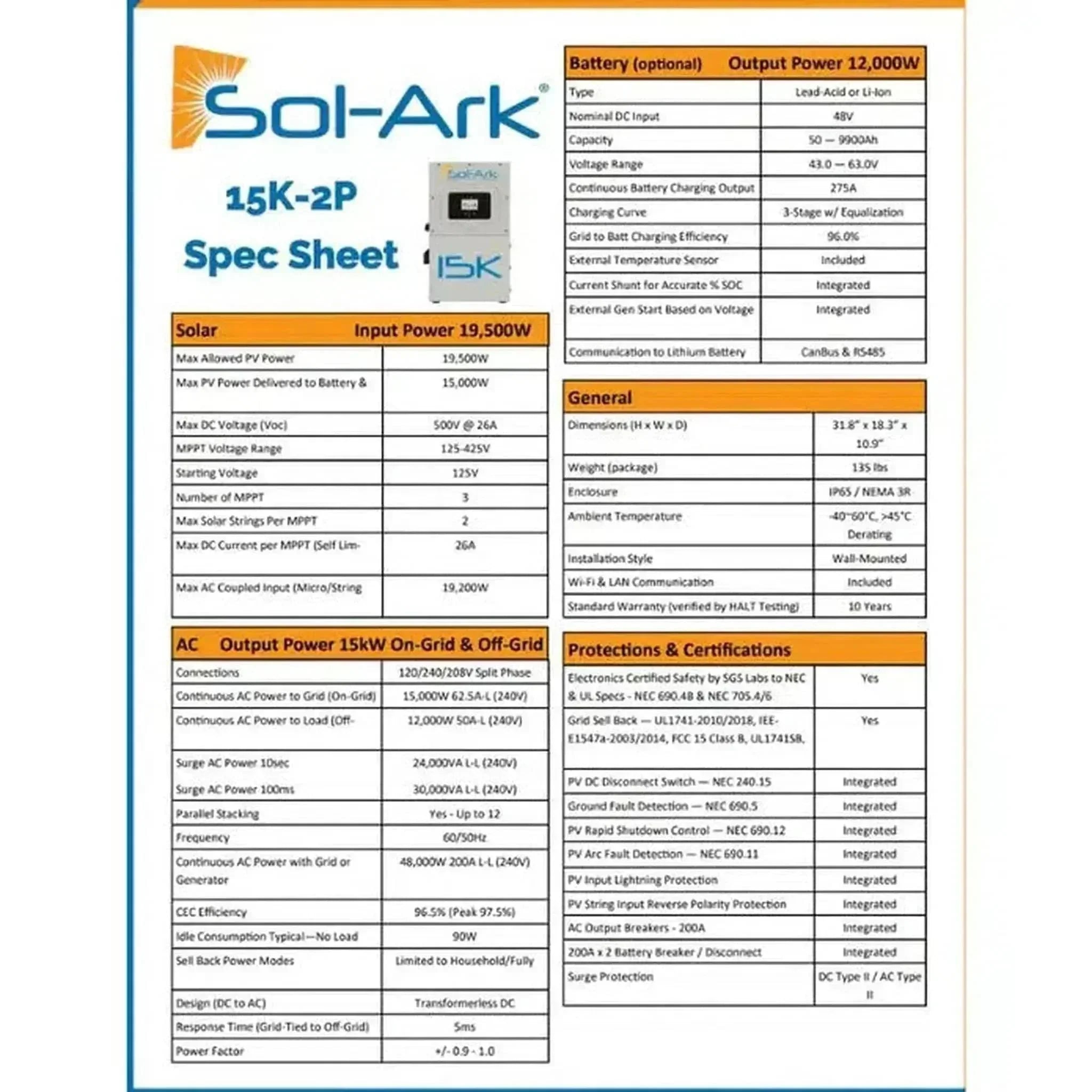

Specifications and Manuals

Specification Sheets

  • Link To Spec Sheet
  • Link To Spec Sheet - español

Manuals

  • Link To Installation Manual
  • Link To Installation Manual - español

Certificates

  • Anti-Islanding Protocol Letter for 5K-2P-N, 8K-2P-N, & 12K-2P-N (Signed)
  • JA12 Battery Storage Declaration Statement (2023)

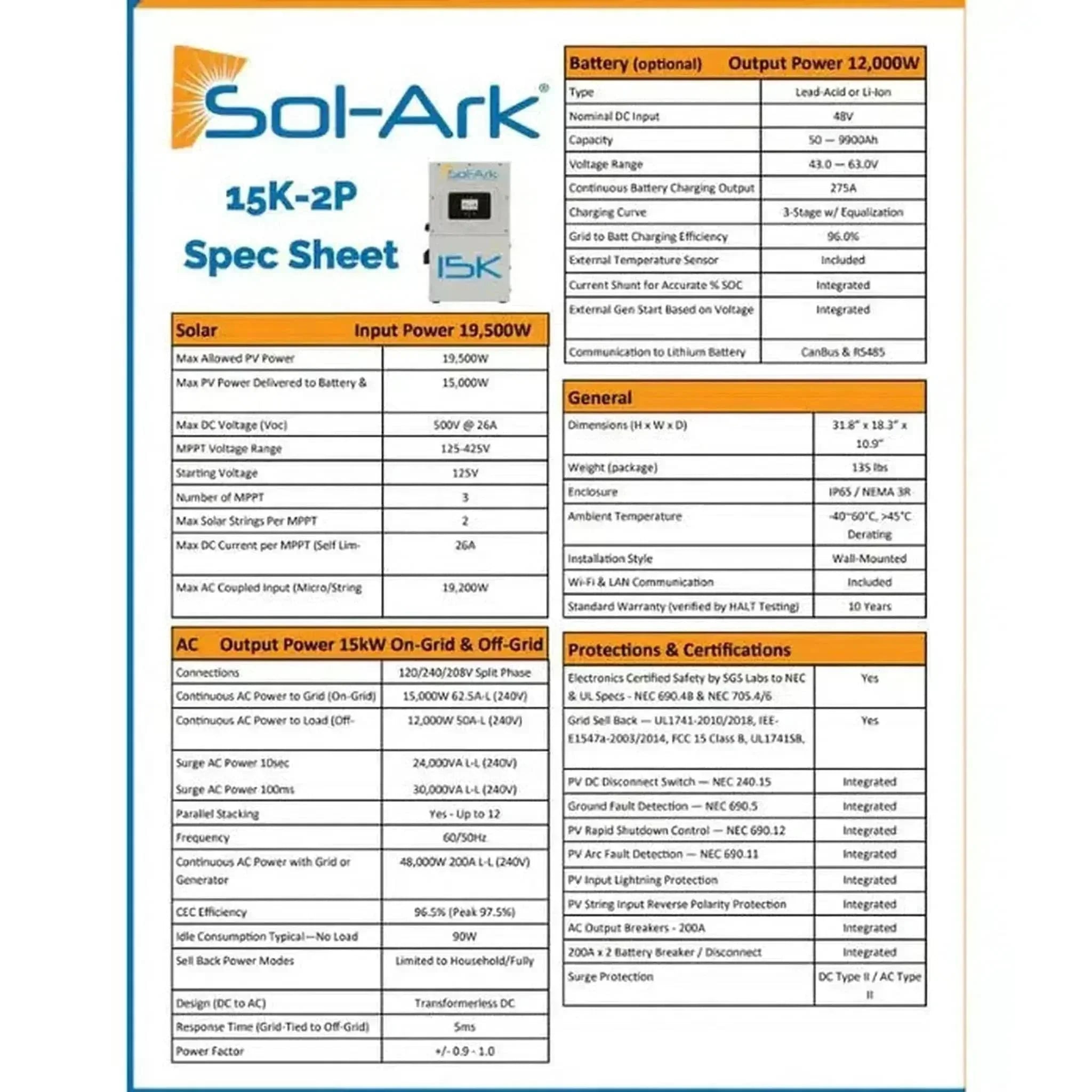

Specification Details
Max Allowed PV DC Capacity 19,500W
Max PV Power to Battery & AC Outputs 15,000W
Max DC Voltage 500V @ 26A
MPPT Voltage Range 125 - 425V
MPPT Starting Voltage 125V
Number of MPPT 3
Max Solar Strings per MPPT 2
Max AC Coupled Input 19,200W
Nominal AC Output Voltage 120/240V split-phase, 120/208V 3-phase, 220V single-phase
Continuous AC Power (PV) 15,000W (62.5A-L @ 240V)
Continuous AC Power (Battery Only) 12,000W (50A-L @ 240V)
Surge AC Power (10s) 24,000VA @ 240V
Surge AC Power (100ms) 30,000VA @ 240V
Parallel Stacking Yes - Up to 12
Frequency 50 / 60Hz
CEC Efficiency 96.5% (Max 97.5%)
Idle Consumption (No Load) 90W
Battery Compatibility 48V battery banks (lead-acid, lithium)
Battery Voltage Range 43 - 63V
Battery Capacity 50 - 9900Ah
Battery Charging Output 275A
Grid to Battery Charging Efficiency 96.0%
Dimensions (H x W x D) 31.8” x 19.4” x 12” (807 x 494 x 306 mm)
Weight 135 lbs (61.2 Kg)
Operating Modes Grid-tie, off-grid, hybrid (with or without batteries)
Display Color touchscreen
Monitoring Wi-Fi, LAN, Remote via Sol-Ark App
Warranty 10 Years
Certifications UL1741, IEEE1547, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H

 What's Included?

  • (1) Sol-Ark 15K Hybrid Inverter
  • (2) Limiter Sensors included: 5/8" CT sensors (Included)
  • (2) Limiter Sensors, if purchased: 15/16" CT sensors (Available upon request)
  • (2) Limiter Sensors, if purchased: 2" CT sensors (Available upon request)
  • (1) Battery Temperature Sensor: for voltage adjustment
  • (2) Battery Cable Toroid
  • (1) CAT 5 cable for parallel communications
  • (1) WIFI Dongle: For software updates and remote monitoring (use M4x10 screws to hold in)
  • (1) French Cleat: For wall mounting the Sol-Ark 15K
  • (1) Allen Key: For tightening the AC connections

FAQ's

  1. Can the Sol-Ark 15K inverter handle both solar and grid power at the same time?
    Yes, the Sol-Ark 15K can supply power from both the solar array and grid simultaneously if demand exceeds solar output. It can deliver up to 200A in grid pass-through mode.

  2. Is the Sol-Ark 15K compatible with all 48V battery brands?
    Yes, the Sol-Ark 15K inverter is battery-agnostic, allowing it to work with any 48V battery, giving flexibility based on budget and requirements.

  3. Can the Sol-Ark 15K inverter be installed outdoors?
    Yes, the Sol-Ark 15K is rated IP65, making it water-resistant and suitable for outdoor installation. However, consider covering the display to protect it from direct sunlight.

  4. Does the Sol-Ark 15K support closed-loop communication with EG4 batteries?
    Closed-loop compatibility is not officially supported with EG4 batteries, and it may affect warranty coverage. Running EG4 in open-loop mode is the recommended safe option.

  5. Is a generator required for the Sol-Ark 15K inverter?
    No, a generator is not required but is supported if desired. If you add one, ensure its output aligns with the inverter's specifications.
