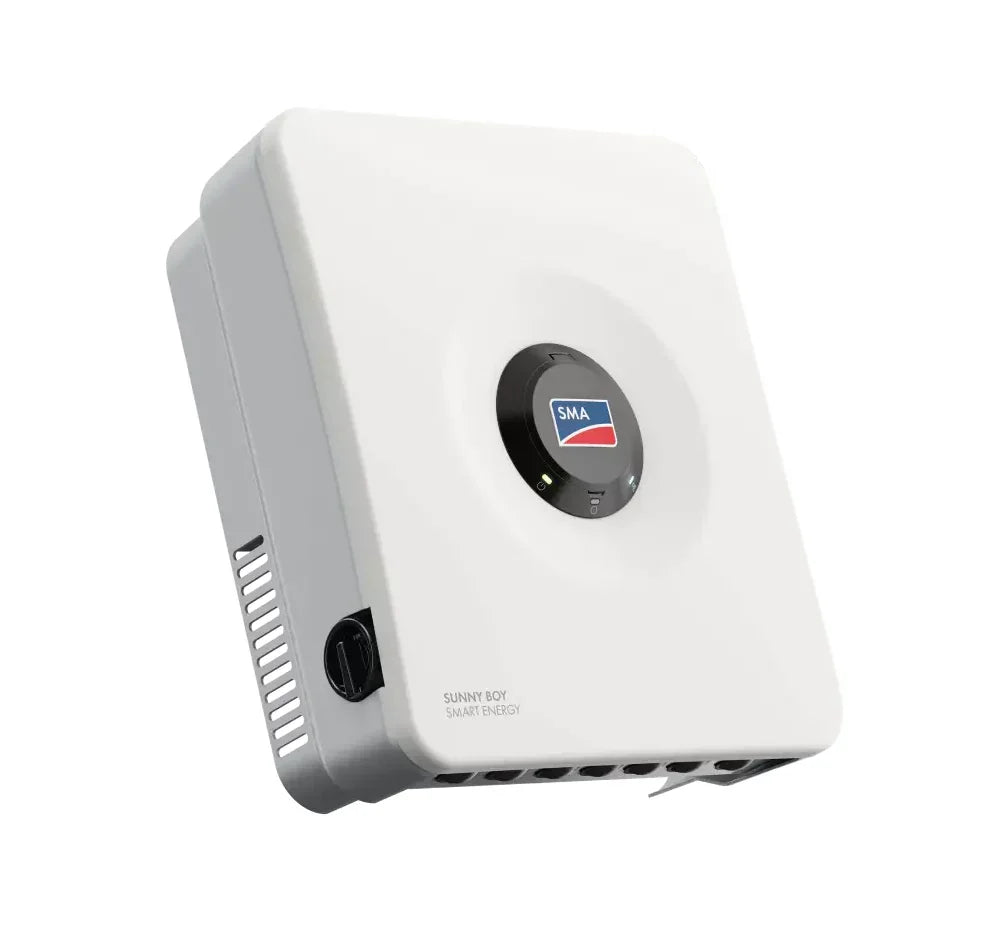

SMA SBSE3.8-US-50 Sunny Boy Smart Energy Hybrid Inverter
Introducing the SMA SBSE3.8-US-50 Sunny Boy Smart Energy, a cutting-edge hybrid inverter designed for advanced residential solar systems. This innovative inverter integrates seamlessly with solar panels and battery storage, delivering unparalleled efficiency and reliability.
- 200% DC/AC oversizing capability enables flexible and efficient system design.
- Easy installation and space-saving design thanks to its 2-in-1 inverter solution.
- Rapid commissioning with the built-in SunSpec Certified RSD transmitter.
- 10-year warranty, extendable up to 25 years, assures long-term reliability.
- SMA Backup Secure offers energy security, ensuring power even without a battery.
Technology and Overview
Equipped with SMA's pioneering technologies like SMA ShadeFix and Smart Connected, the SBSE3.8-US-50 optimizes solar energy production and system monitoring, enhancing your home's energy independence.
Installation and Compatibility Overview
This hybrid inverter simplifies installation processes, compatible with a wide array of battery types and PV systems, making it a versatile choice for homeowners.
Benefits and Applications Overview
The SMA SBSE3.8-US-50 is ideal for those seeking to maximize their solar investment, offering energy savings, reduced electricity bills, and a sustainable energy solution for residential applications.
Specifications
| Specification | Value |
| Model No. | SBSE3.8-US-50 |
| Max. PV array power (200% oversizing) | 7680 Wp |
| Max. DC voltage | 600 V |
| Rated MPP voltage range | 91 V - 480 V |
| Min. / Startup DC Voltage | 60 V / 66 V |
| Max. usable current input per MPPT | 15 A |
| Max. short-circuit current input per MPPT | 30 A (the sum at all inputs must not exceed 60 A) |
| Independent MPPT inputs / inputs per MPPT | 3 / 1 |
| Connection of MPPT inputs in parallel | A and B* |
| Battery type | BYD Battery-Box Premium HVL 12.0, 16.0, 20.0, 24.0, 28.0, 32.0 (UL9540) |
| Voltage range | 90 V to 500 V |
| Max. charging current / max. discharging current | 30 A / 30 A |
| Number of independent battery inputs | 1 |
| Max. charging power / max. discharging power | 10000 W / 4042 W |
| Max. apparent AC power | 3840 VA |
| AC Rated power (at 240 V, 60 Hz) | 3840 W |
| AC Rated power (at 208 V, 60 Hz) | 3328 W |
| AC voltage rated and range | 240 V (211 V to 264 V) or 208 V (183 V to 229 V) |
| AC grid frequency / range | 60 Hz / 55 Hz to 66 Hz |
| Max. rated output current | 16 A |
| Breaker (overcurrent protection) | 20 A |
| Power factor at rated power | 1 / adjustable 0.8 overexcited to 0.8 underexcited |
| Max. efficiency | 98.10% |
| CEC efficiency (240/208V) | 96.5% / 97% |
| DC disconnect / DC reverse polarity protection | Standard feature |
| DC AFCI arc-fault protection | Standard feature |
| Ground fault monitoring / Grid monitoring | Standard feature |
| AC short circuit current capability | Standard feature |
| All-pole-sensitive residual-current monitoring unit | Standard feature |
| Protection class | I |
| Overvoltage category grid / battery / PV | III / II / II |
| Dimensions (W / H / D) / Weight | 19.7 x 23.1 x 9.3 in / 38.6 lb |
| Operating temperature range | ?13 °F to +140 °F (?25 °C to +60 °C) with derating |
| Topology / cooling method | Transformerless / Natural convection |
| Environmental protection rating | IP65 / Type 3R |
| Communication protocols | Modbus (SMA, SunSpec), Speedwire / Webconnect, SMA Battery Interface |
| Interfaces: WLAN / Ethernet / BAT-CAN / RS-485 | Standard feature |
| 2.4 GHz WLAN | Standard feature |
| Ethernet ports / Number of outputs | 2 / 1 (Multi function relay 30 Vdc /1 A) |
| Warranty: 10 / (+5 / +10 / +15 years) | Standard feature / (Optional) |
| Certificates and approvals | UL 1741 SB/SA, UL 62109-1, UL 1998, UL 1699B Ed. 1, UL9540, IEEE1547, FCC Part 15 (Class A & B), CAN CSA-C22.2, CA Rule 21, HECO Rule 14H, PV Rapid Shutdown System Equipment in accordance with UL1741, NEC 2020, NEC 2023 compliant |
| SMA Smart Connected | Standard feature |
| SMA ShadeFix (integrated shade optimization) | Standard feature |
| SunSpec certified transmitter (Rapid Shutdown) | Standard feature |
| Rated power (at 120 V, 60 Hz) | 1920 W |
| Max. apparent AC power | 1920 VA |
| Nominal AC voltage | 120 V |
| AC grid frequency | 60 Hz |
| Activation mode | Manual |
