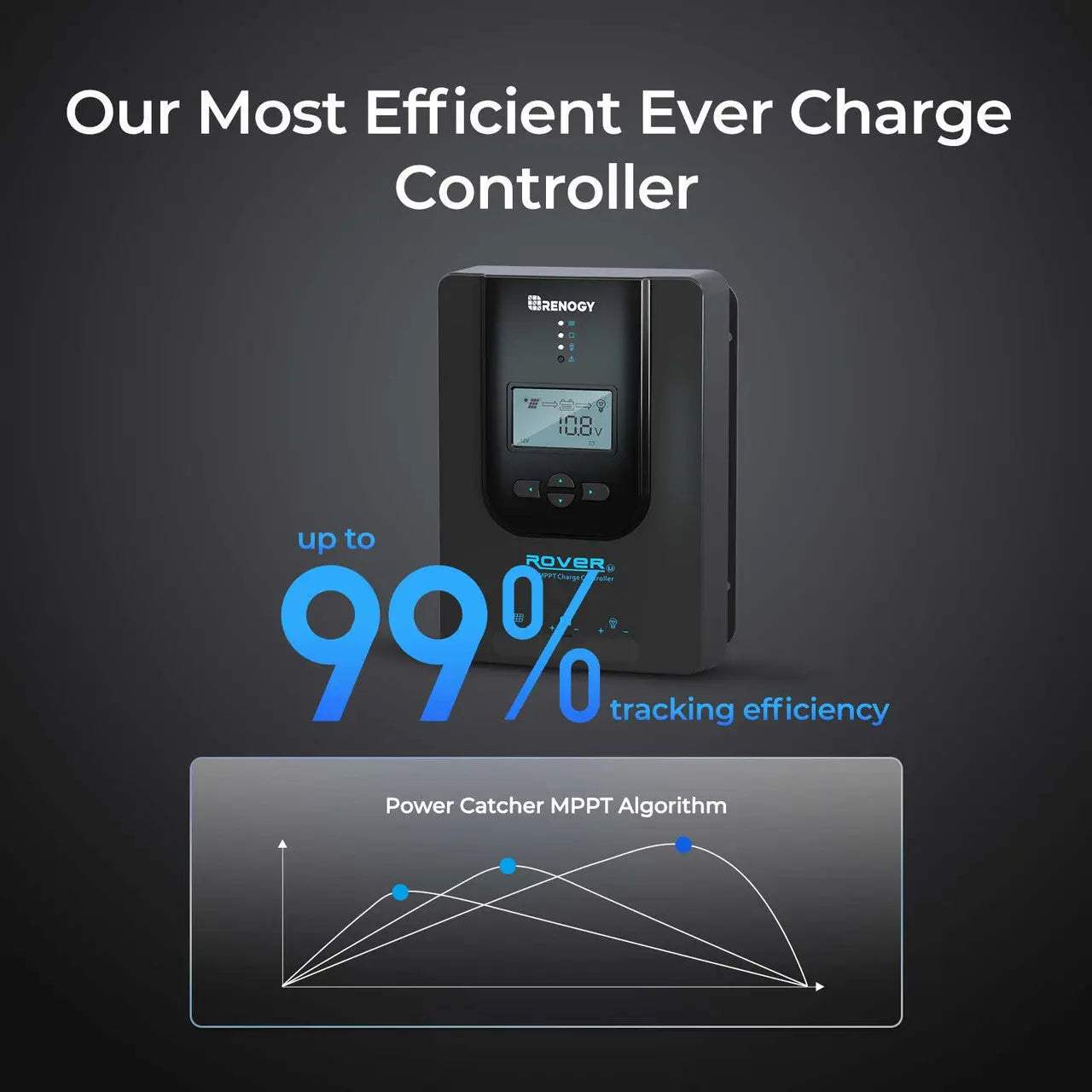

- MPPT: tracking efficiency up to 99%, peak conversion efficiency 98%

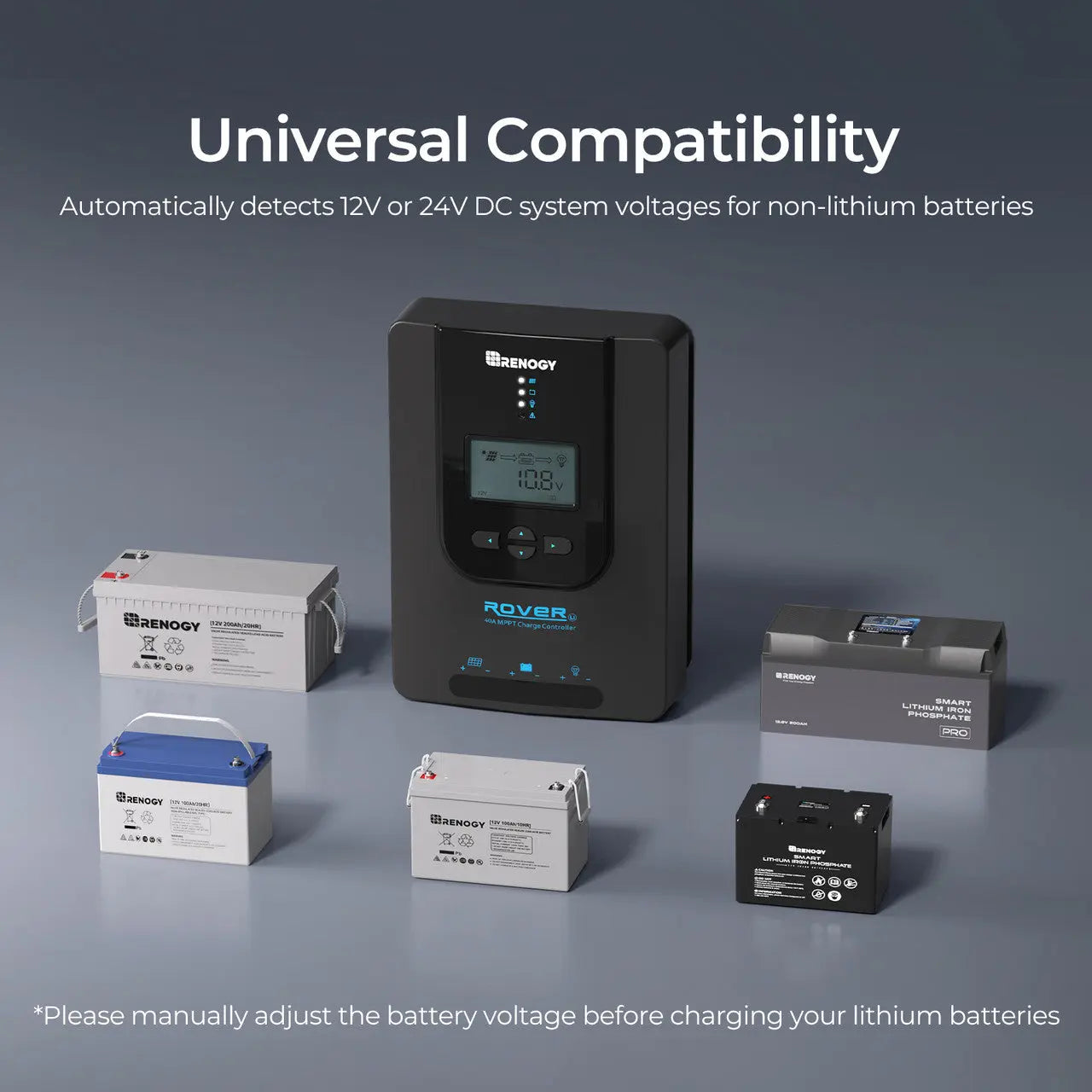

- Automatically detects 12V/24V system (non-lithium batteries)
- Comprehensive system protection designed to secure your system.
- Safe and efficient charging with the 4-stage charging feature.

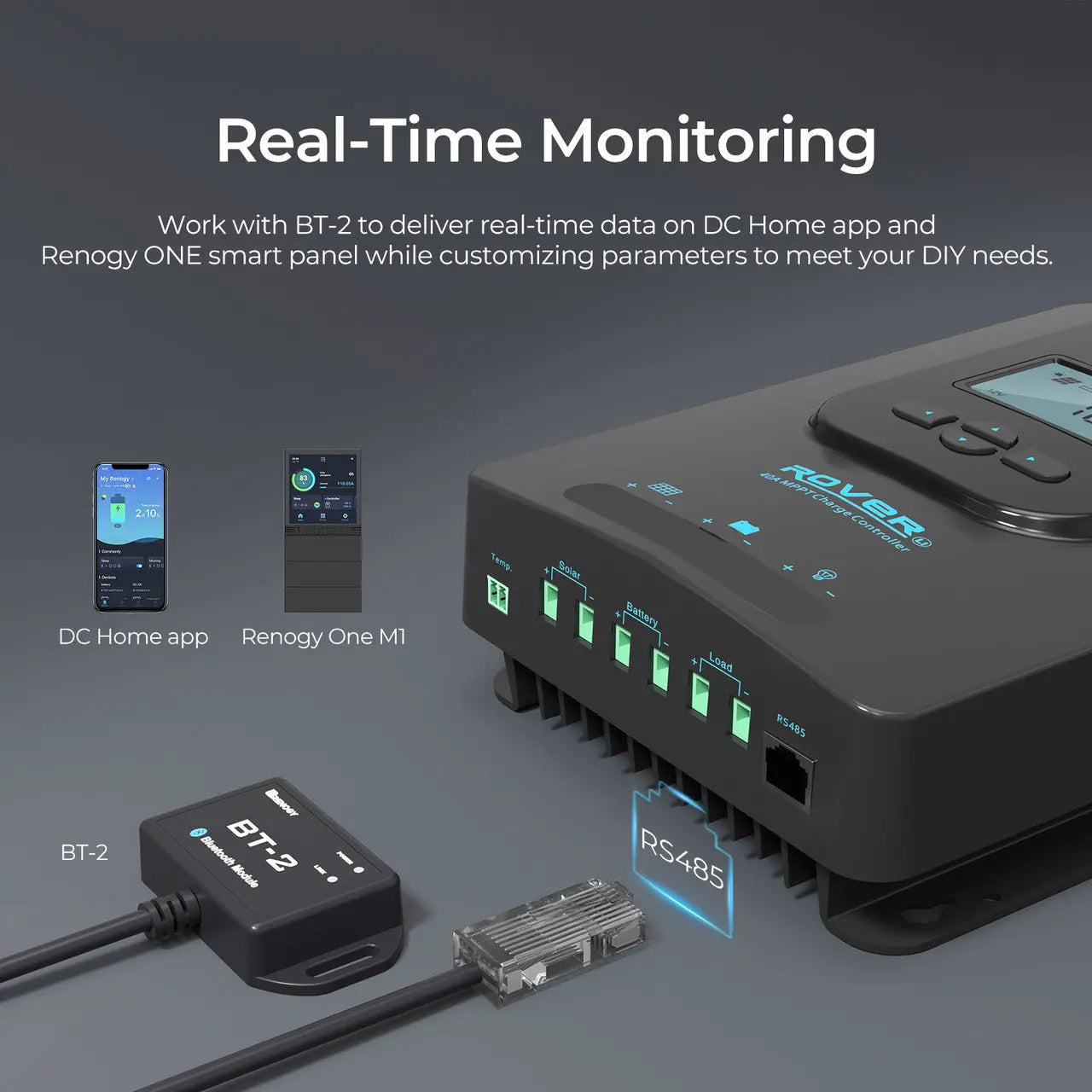

- Diverse load control & remote monitoring

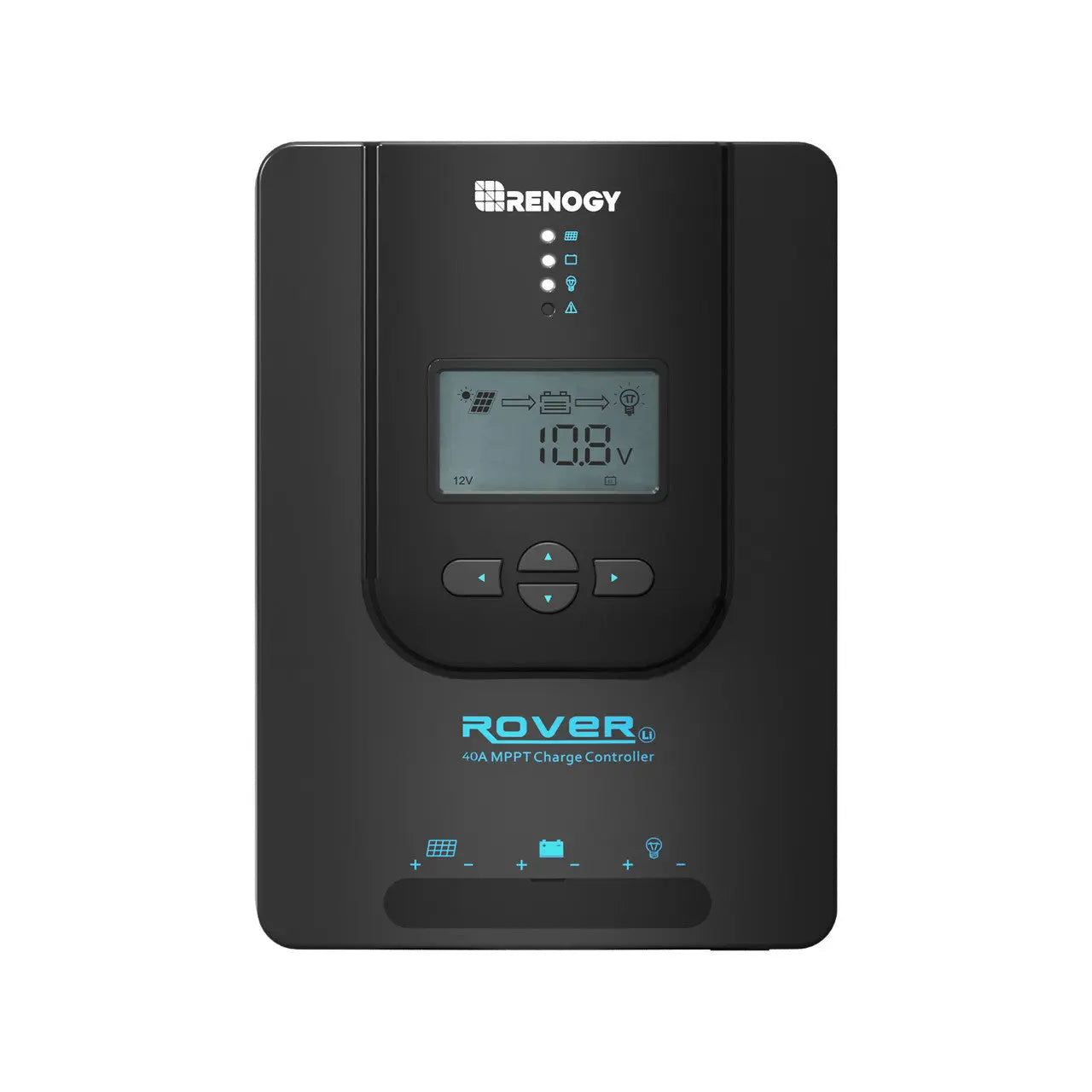

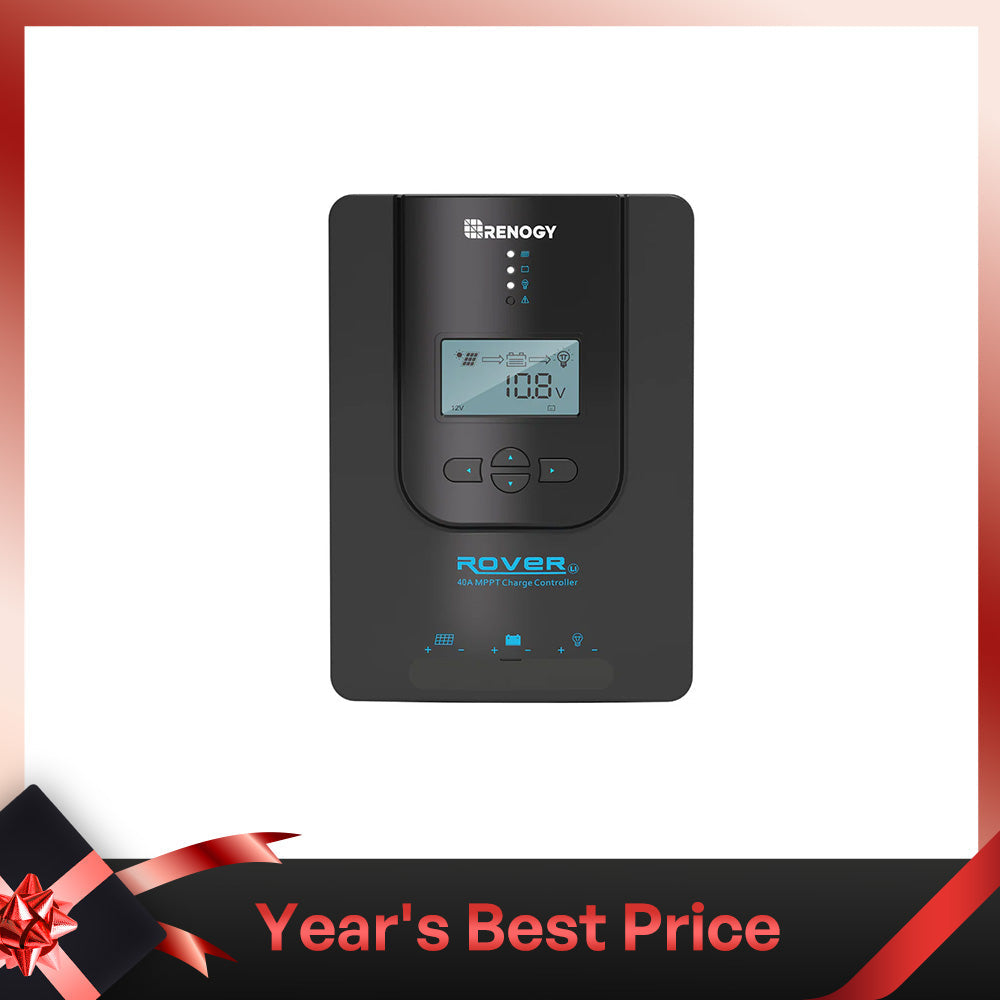

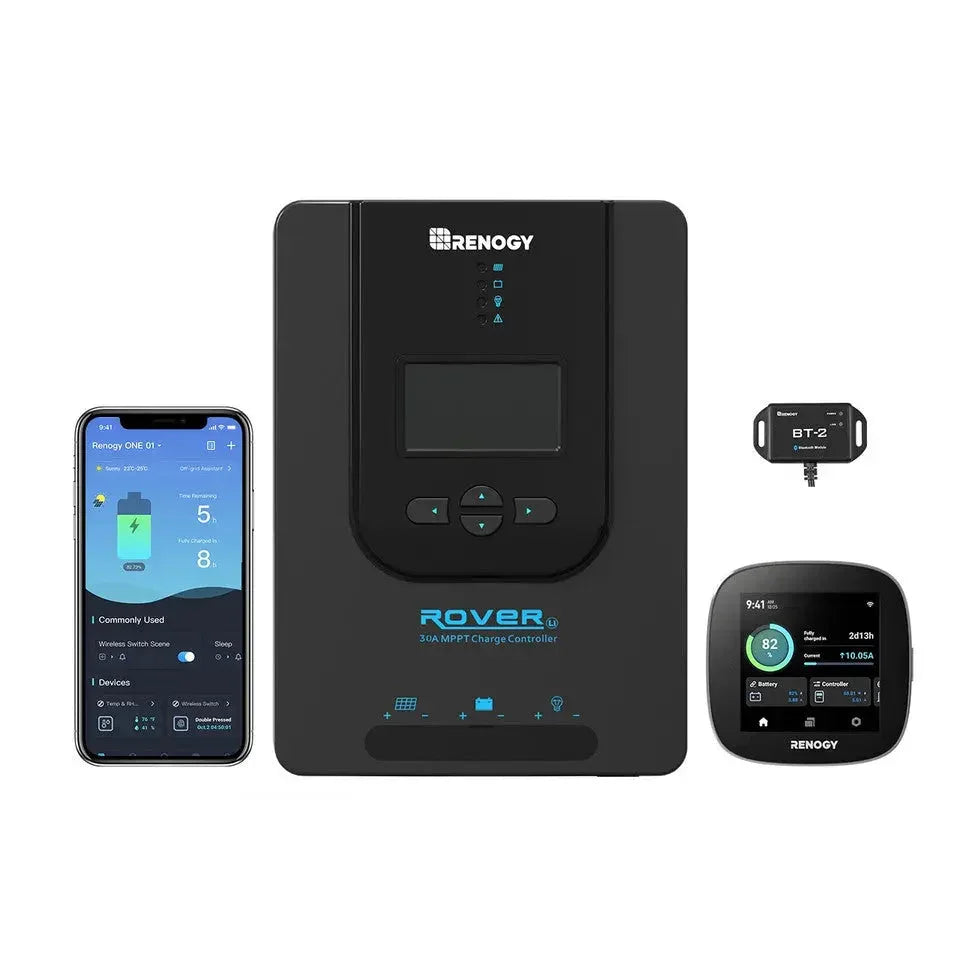

Rover Li 40 Amp MPPT Solar Charge Controller
An advanced charge controller that maximizes the performance of your solar system.

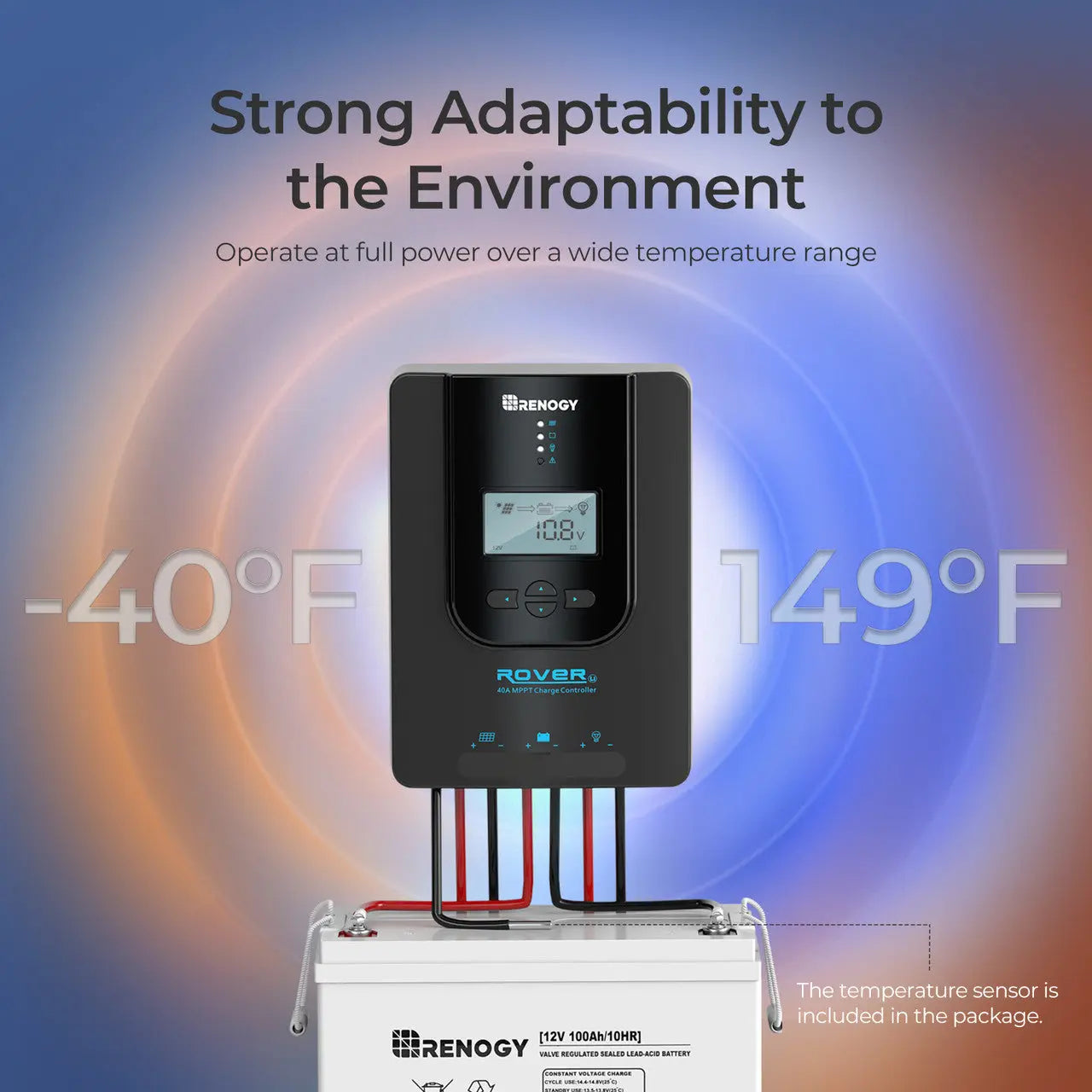

Powerful Heat Dissipation
Operates at peak performance even in extreme temperatures, ensuring your system is always running smoothly and efficiently.
Bring Dead Batteries to Life
Operates with 0 Volt batteries by sending small current to get them out of protection mode triggered by the battery management system (BMS).

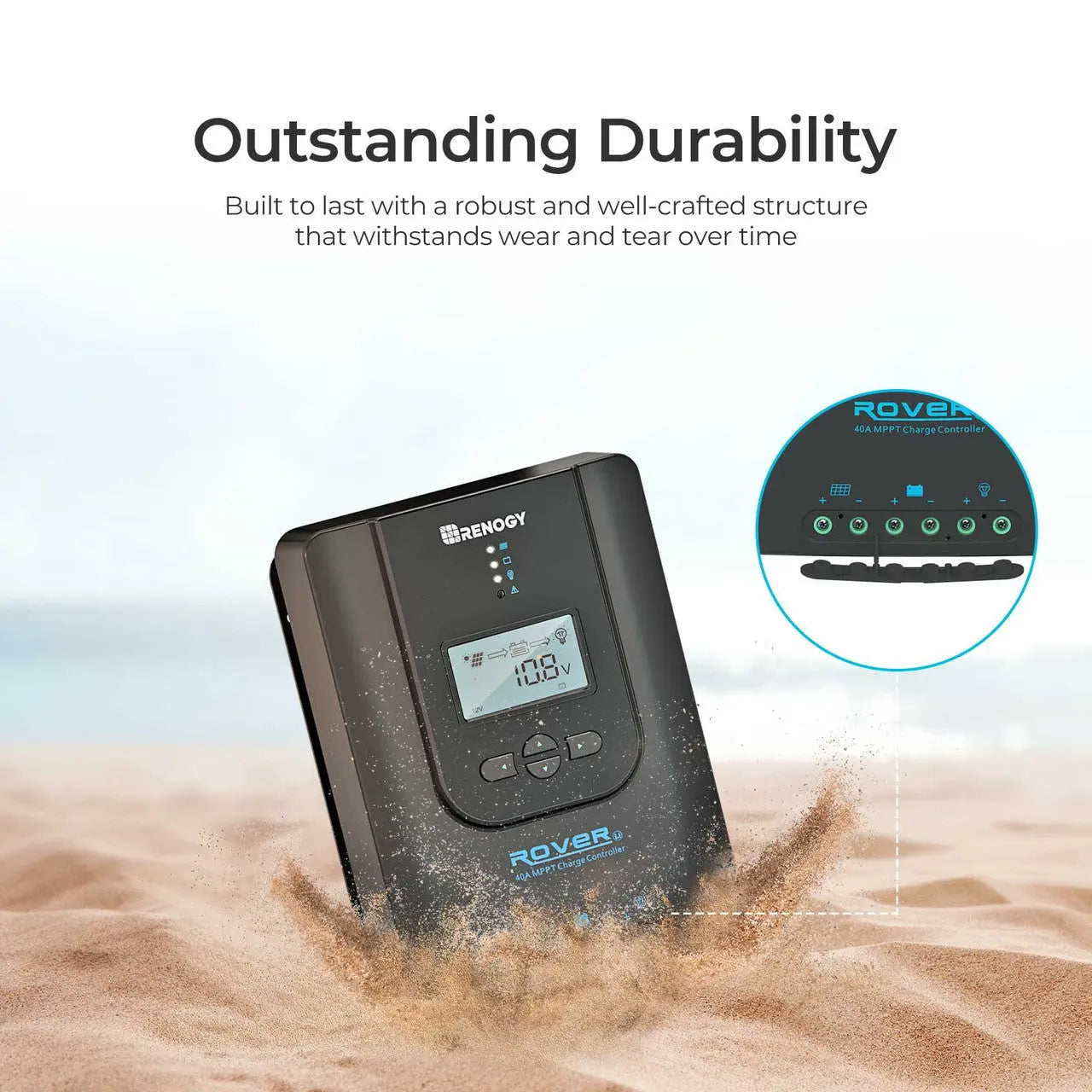

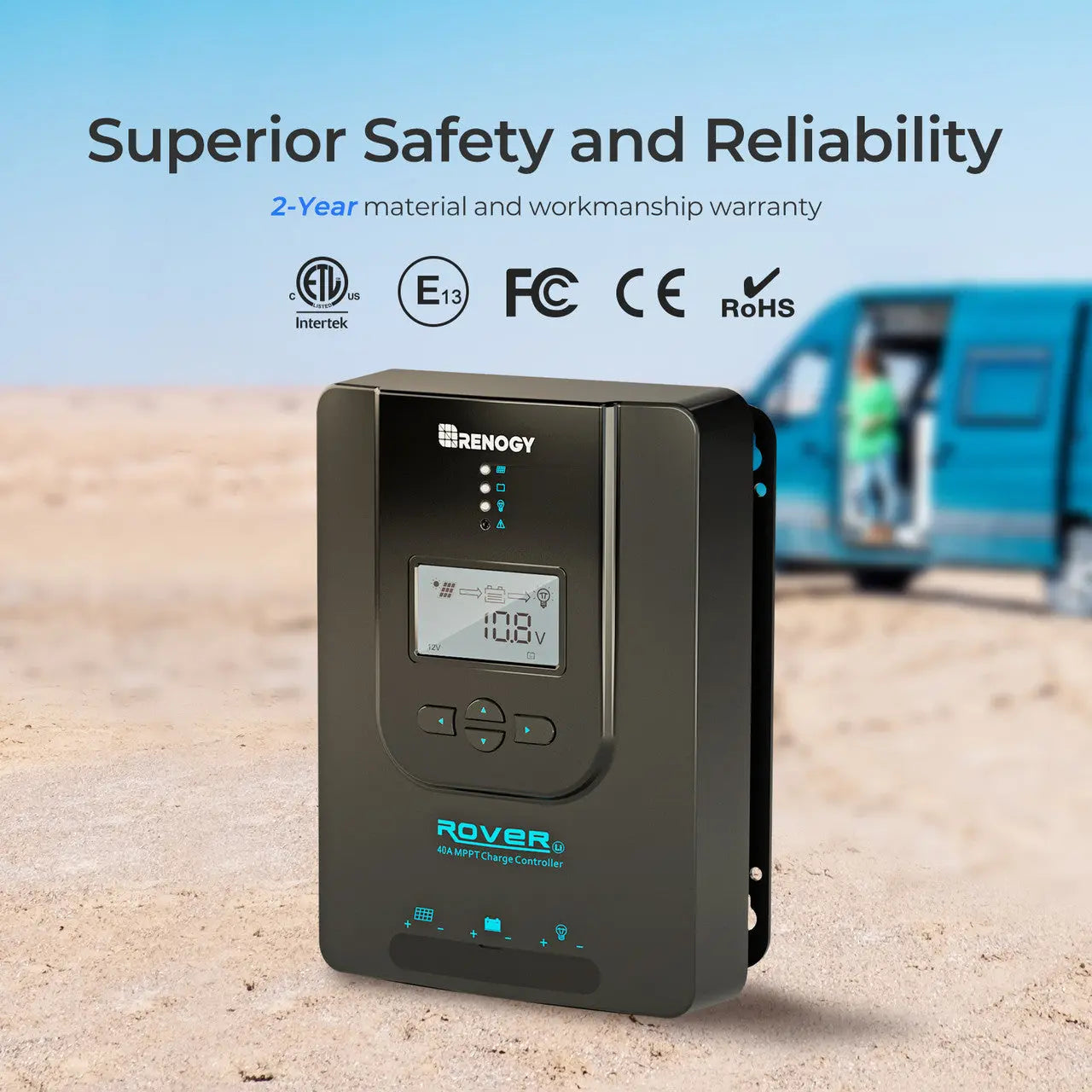

Exceptional Resilience and Long-lasting Performance
Designed with materials and coatings that prevent rust and corrosion, ensuring your solar energy system is durable and reliable.
Maximize Your System Efficiency
The Rover 40A Solar Charge Controller is the ultimate solution for both 12V and 24V systems, offering unparalleled versatility. It harnesses the maximum power from your solar panels, ensuring optimal charging efficiency.
Prioritize Safety with Battery Voltage Setting
It is essential to set the battery voltage before connecting the Rover Charge Controller. This crucial step ensures enhanced safety and optimal performance.
Multiple Protections for Various Battery Types
Ensuring the utmost protection for your batteries, safeguarding against overcharging, over-discharging, short-circuiting, overloading, reverse polarity, and reverse current, and providing temperature compensation.
Wiring Steps
Do not insert the wires into the space below the socket/hatch, which will damage terminals because of loose connections.
Step 1
Loosen the screws above the terminals to make the socket/hatch descend.
Step 2
Insert the wires into the socket/hatch. The terminals on the Rover 40A can accept up to 8AWG of wires.
Step 3
Tighten the screws to elevate the socket/hatch to complete the wiring.
Power Your Wild Adventures
Designed to excel in a variety of scenarios including RVs, yachts, cabins, and camping. Embrace the freedom of renewable energy wherever your adventures take you.
Cabin
Yacht
RV
Camping
Learn more

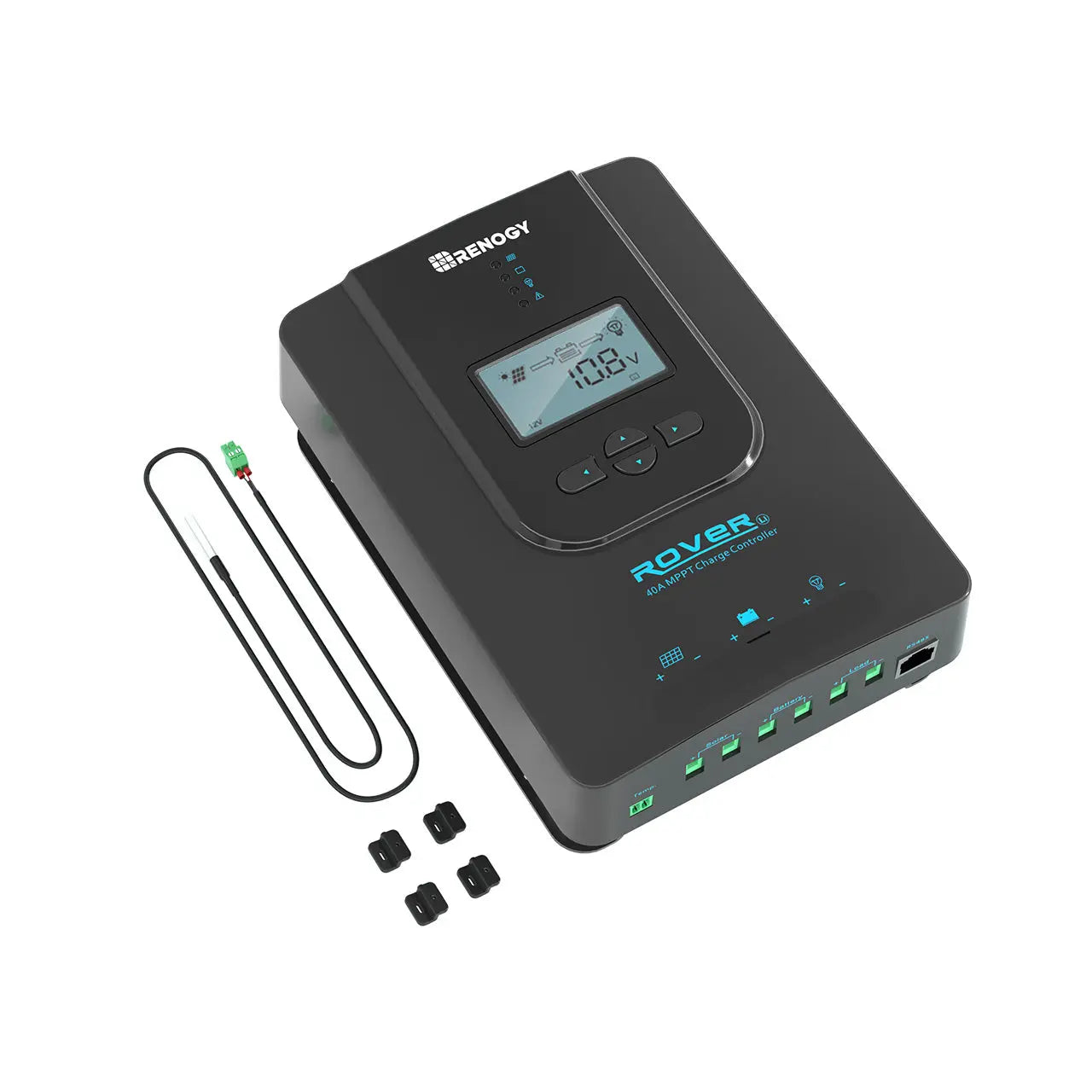

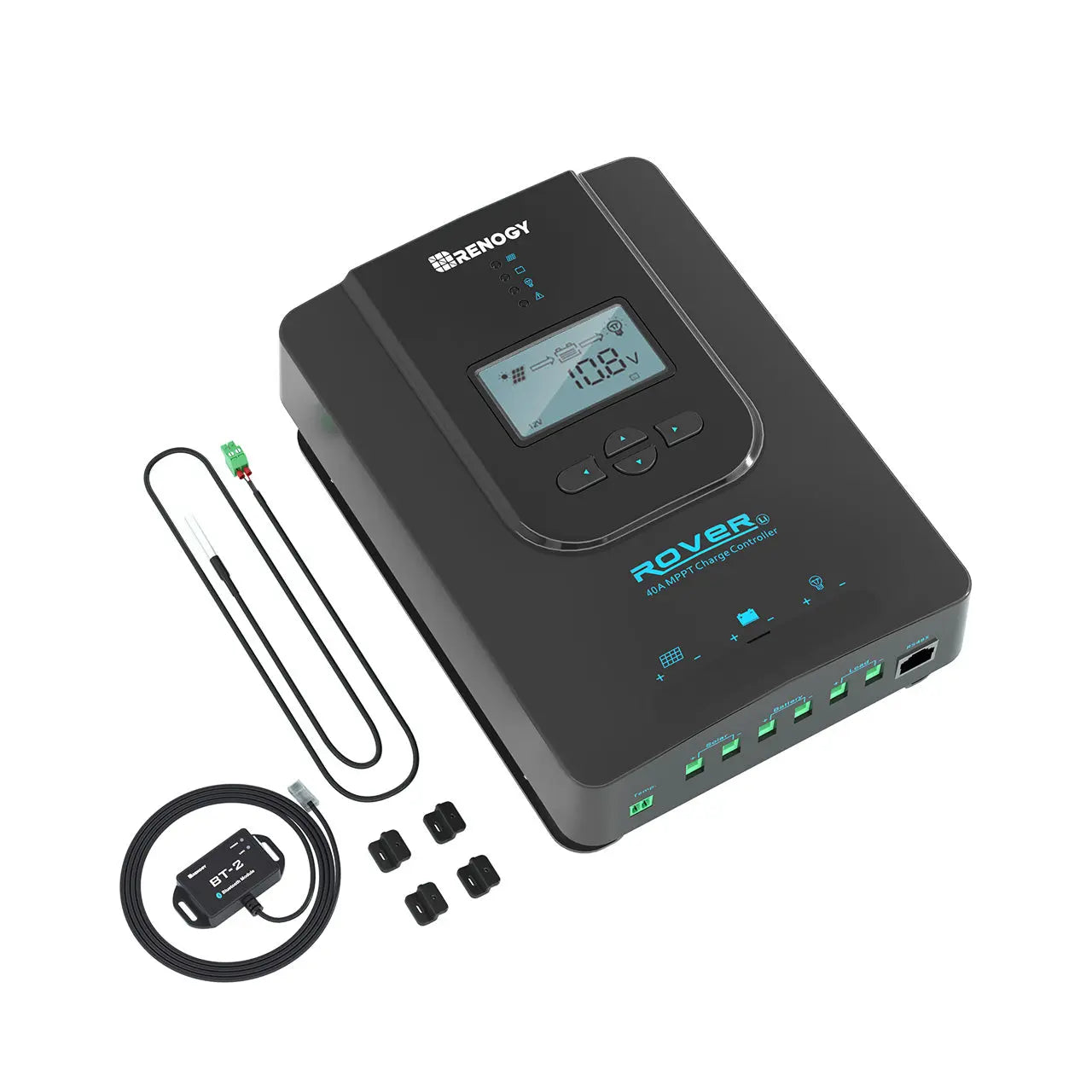

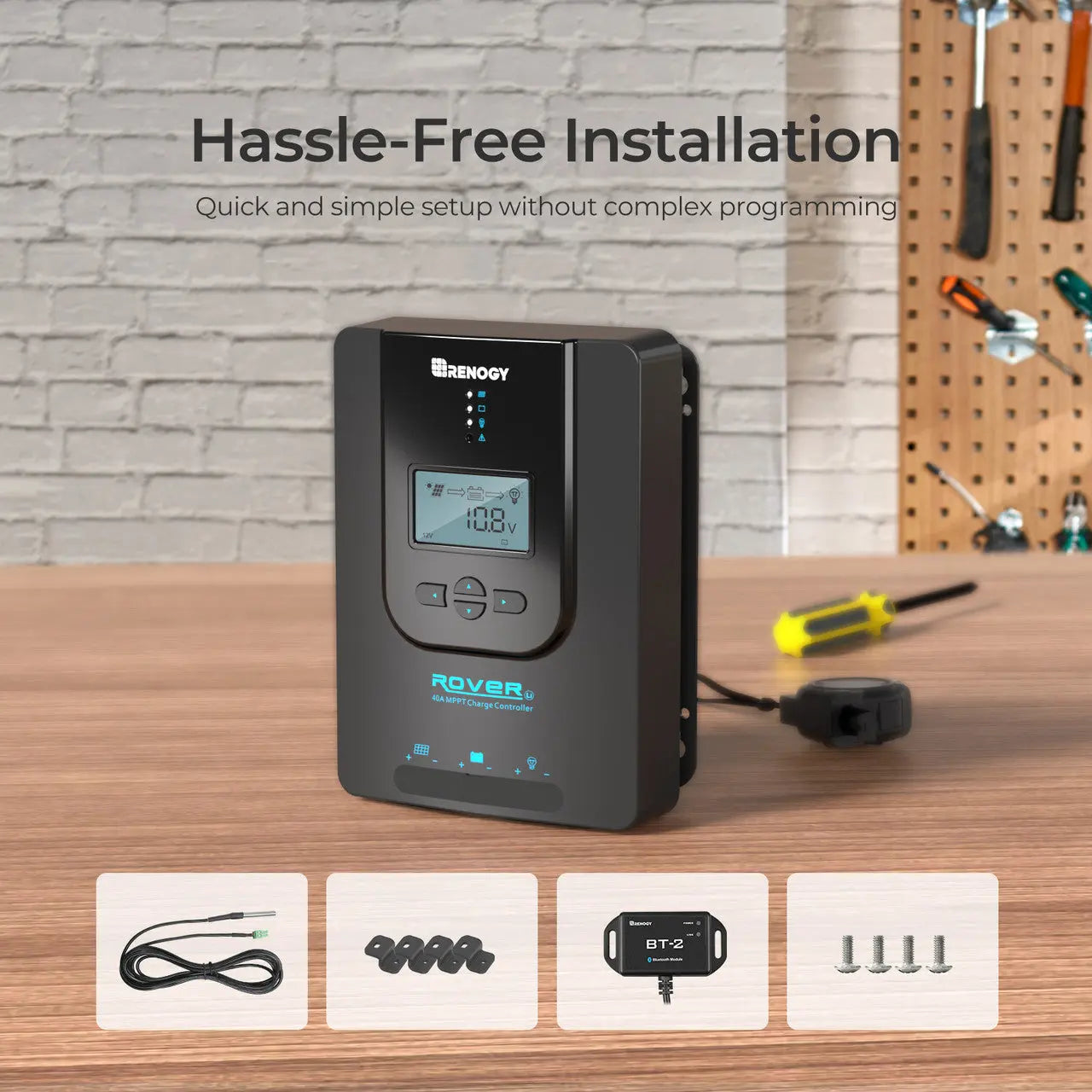

Package Includes

Rover 40 Amp MPPT Solar Charge Controller

Rover 40 Amp MPPT Solar Charge Controller

1 x



Remote Temperature Sensor

Remote Temperature Sensor

1 x



Mounting Brackets

4 X

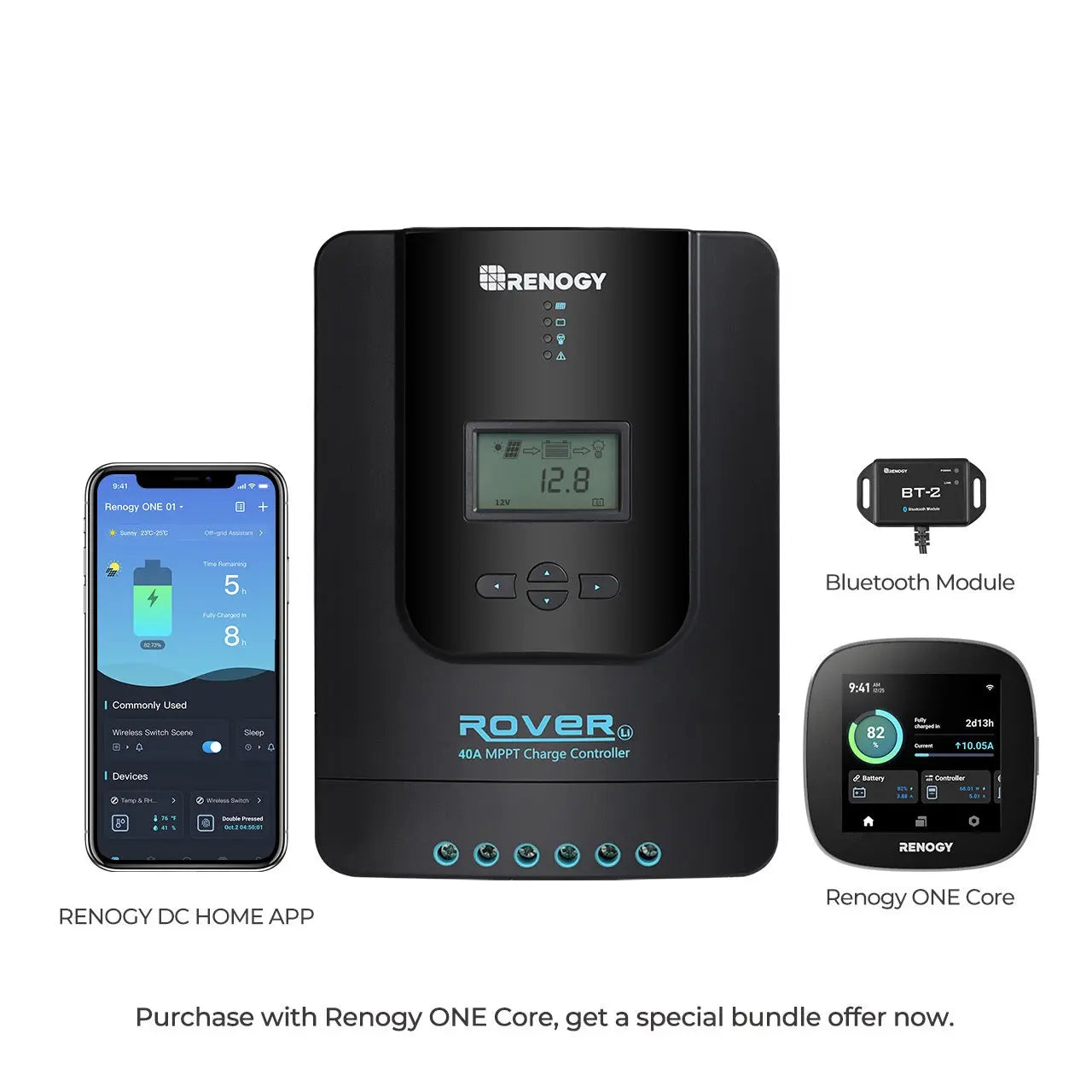

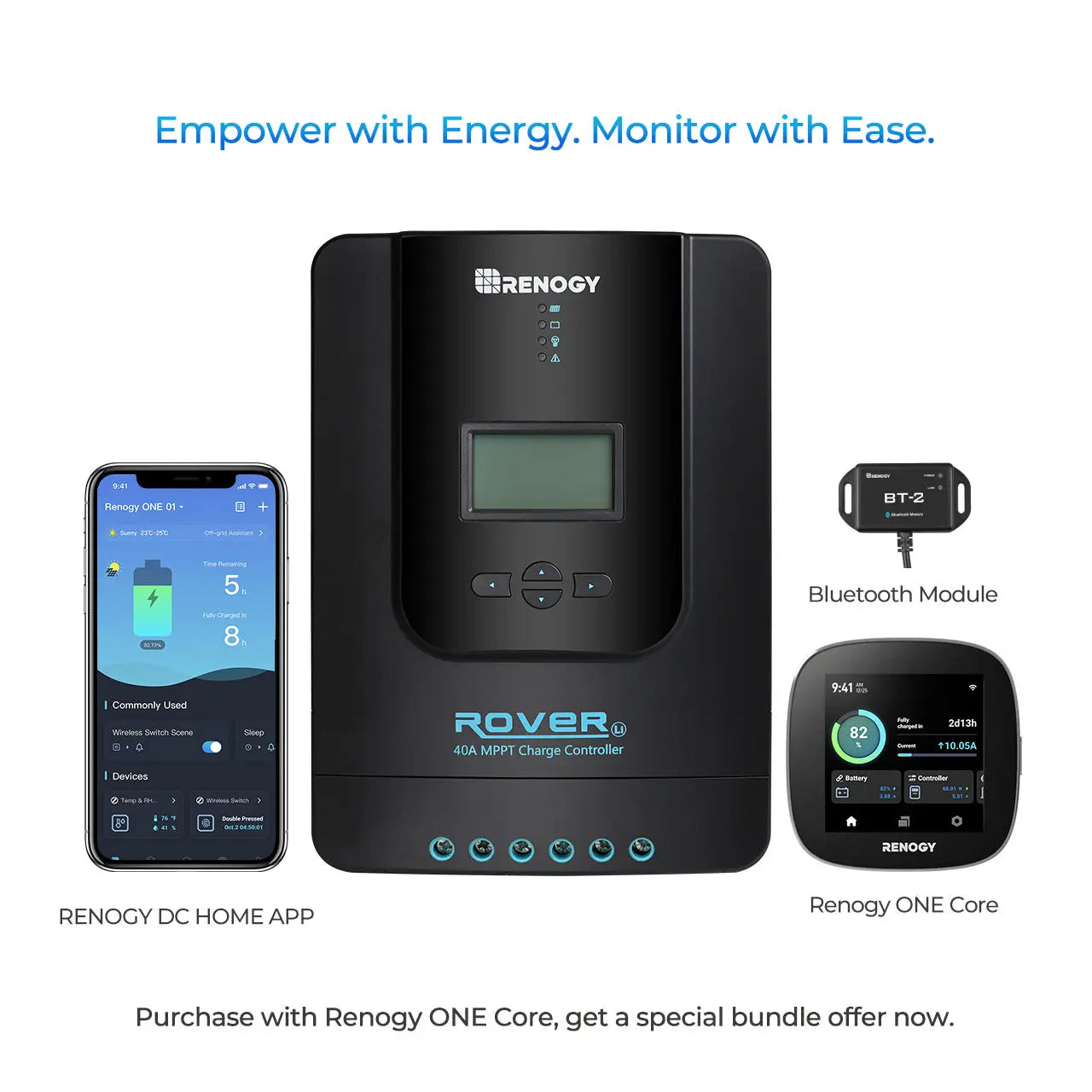

Options: BT-2 Bluetooth Module

BT-1 Bluetooth Module

1 x





Module Performance


Operating Voltage 8-60 VDC (5 VDC for USB Type-C)
Power Consumption at 12V Operating, WiFi On, 100% illumination: 3.2 W
Operating, WiFi On, 50% illumination: 2.4 W
Operating, WiFi On, 0% illumination: 1.9 W
Off, logger still active: 1.5 W
Communication Wi-Fi (IEEE 802.11b/g/n 2.4 GHz)
Bluetooth LE and Bluetooth Mesh
Zigbee 3.0 (IEEE 802.15.4)
RS-485
Touch Screen 4 inches (480 x 480p)
Leveling Range and Accuracy ±89°, 0.1°
Warranty
Model
Operating Temperature -4℉ to 158℉ (-20℃ to 70℃)
Operating Humidity 0% to 95% RH
Operating Altitude Less than 5000m above sea level
Installation Flush mount or place on a table
Dimensions 4.17 x 4.17 x 1.05 in (106 x 106 x 26.6 mm)
Weight 4.41 lb (2kg)
Certification CE, FCC, RoHS, TSCA, BQB, IC-ID
Warranty 2 years



1. How should I wire my panels with an MPPT charge controller?


The panels can be wired either in series or parallel or a combination of series/parallel.

2. What is the max wattage input on the Rover 40?


The Renogy Rover 40A MPPT Solar Charge Controller can accept input of up to 520W for a 12V system, and up to 1040W for a 24V system.

3. Does the Rover 40A MPPT charge controller have a built-in 40A fuse for the rated 40A load output?


No. Please always add a fuse between the charge controller and batteries. To determine the fuse size, you can match it to the amperage rating of the charge controller. If you have one of our 40A charge controllers, we recommend using a 40A ANL fuse.

4. What are the advantages of Renogy MPPT technology?


Renogy Rover Series solar charge controllers use Power Catcher MPPT algorithm to always ensure the charge controller converts most energy by locking to the most optimal maximum power point.

5. How many watts can Renogy Rover 40 amp charge controller handle?


The Rover MPPT charge controller can work with standard off-grid 12/24V solar panels with high voltage or multiple panels with voltage up to 100V. And the maximum combined input solar power is 520W for a 12V battery system or 1040W for a 24V system. In particular, this controller will significantly increase the efficiency of a solar system where the solar panel voltage is much higher than the battery voltage.

6. What is a Solar Charge Controller and what is MPPT?


The Charge Controller takes the power made by the solar panels and transform the ‘solar panel power’ into a form of power that the batteries can use. MPPT stands for Maximum Power Point Tracking, and it relates to the solar cell itself. Each solar cell has a point at which the current (I) and voltage (V) output from the cell result in the maximum power output of the cell. MPPT ensures that you get the most power possible from your solar panels at any point in time. It is particularly effective during low light level conditions.

7. What does 40A on MPPT charge controller mean?


40A represents the max amount of amps the controller can output going INTO THE BATTERIES.

8. What are the advantages of Renogy MPPT technology?


Renogy Rover series solar charge controller uses the most advanced Maximum Power Point Tracking (MPPT) technology to track solar panels' maximum power voltage point as it varies depending on sunlight exposure and temperature. This technology ensures the maximum efficiency of your solar system and significantly outperforms standard PWM solar controllers. Another benefit of MPPT technology is the wide solar input voltage range. This controller can work with standard off-grid 12/24V solar panels and with high voltage or multiple panels with voltage up to 100V.
  • More questions about your off-grid power system? Learn more from Renogy Learning Center!
