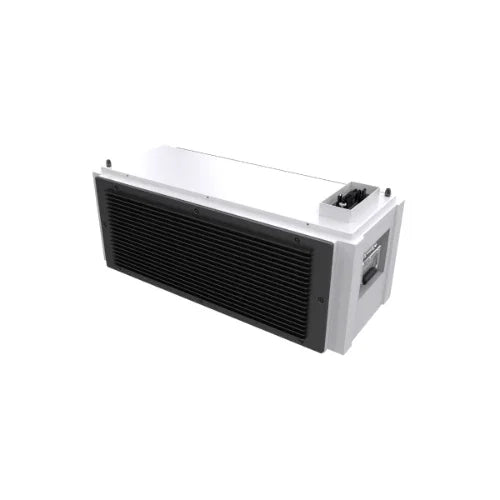

Renon 5.12kWh Xtreme LV LFP Battery Module

The Xtreme LV series is a lithium iron phosphate battery-based energy storage product developed and produced by RENON, it can supply reliable power for nearly all kinds of household appliances and equipment.

The Xtreme LV series consists of a main controller and several battery modules, each battery module has a built-in BMS battery management system, which can manage and monitor cells information including voltage, and a DC-DC converter, current and temperature, used to limit the balance current between different batteries when parallel use.

Multiple battery stacks are allowed to be connected to expand capacity and power to meet the requirements of longer power supporting duration and higher power consumption.

📄 Download Datasheet 🔧 Download Installation Manual

Product features:

● With a DC-DC converter inside, users can extend or change battery modules whenever they want, no need to consider the quality or SOC of old modules.
● The whole product is non-toxic, pollution-free and environment-friendly.
● The battery chemistry is made from LiFePO4 with safety performance and long cycle life.
● Small volume, plug & play embedded design module, easy to install and maintain.
● Working temperature range between -4°F to 122°F (-20°Cto 50°C) with excellent discharge performance.
● Battery management system (BMS) has protection functions for over-discharge, over-charge, and over-current and high/low temperature.
● The battery has less self-discharge up to 3 months without charging. It has no battery memory effect, excellent performance of shallow charge and discharge.
● The system can automatically manage battery charge and discharge state; and save energy cost by various control strategy.
