• Description
  • Why Buy From Us
-A dual charging solution with 12V/24V boost and buck logic.
-Compact & lightweight with IP67 waterproof rating.
-Auto-switching charging mode while prioritizing green power.
-CE, FCC, RoHS certified with comprehensive test reports.
-Bluetooth Energy Monitoring with wired CAN communication.

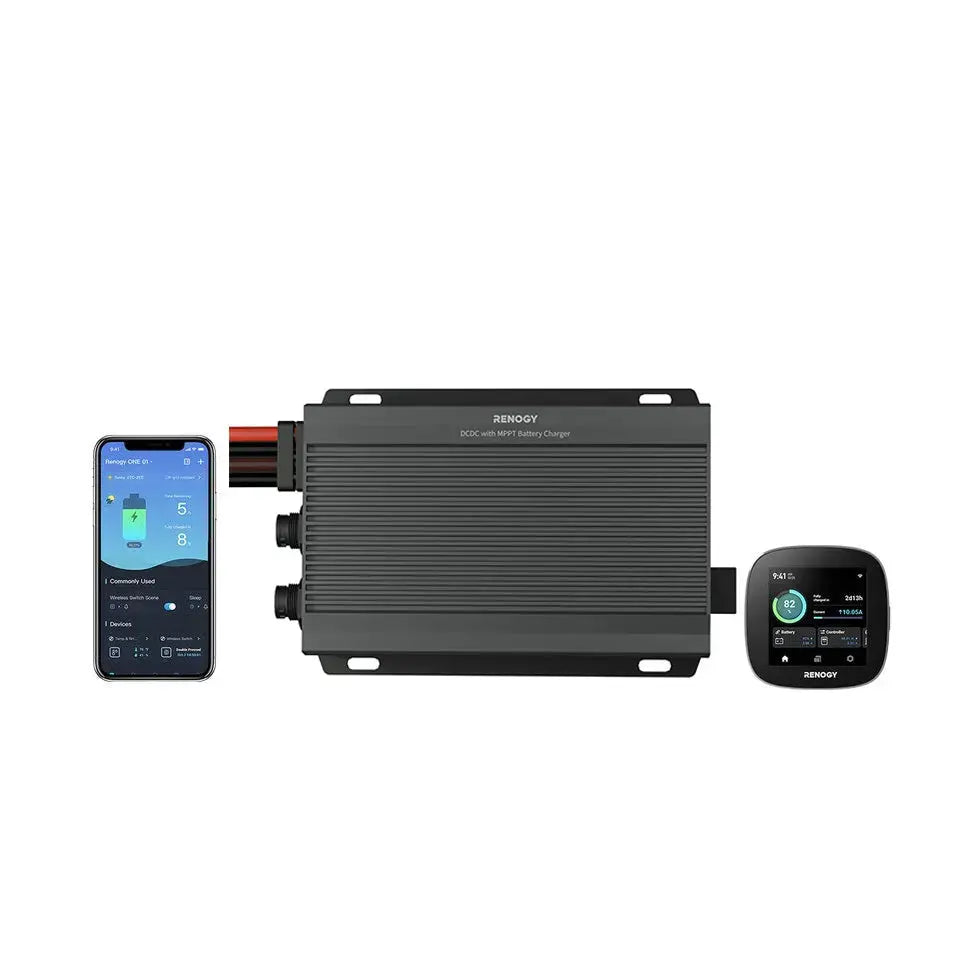

RENOGY 12V/24V IP67 50A DC-DC Battery Charger with MPPT

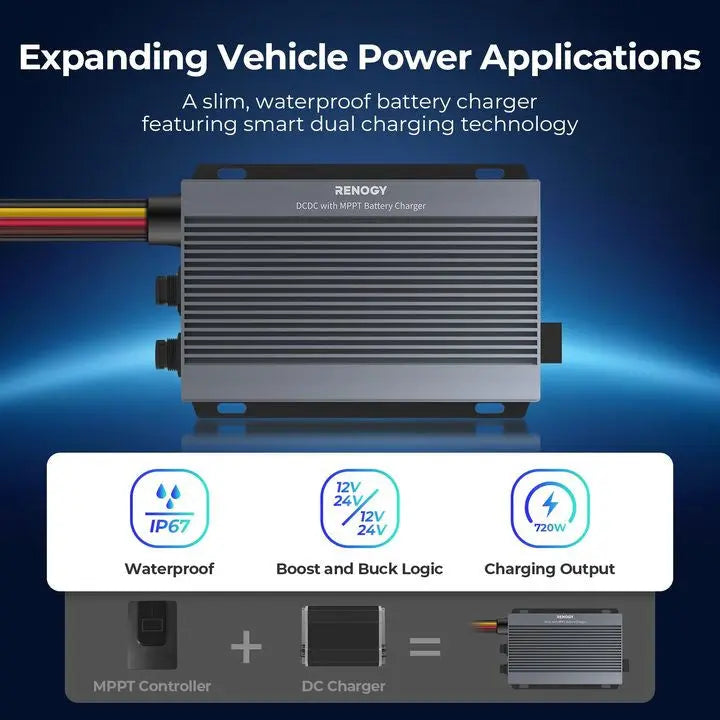

Introducing the RENOGY IP67 50A DC-DC Dual Input Battery Charger with MPPT, a slim, waterproof dual charging solution perfect for confined spaces. Equipped with intelligent boost and buck logic, it seamlessly accommodates 12V/24V-12V/24V voltage systems, elevating DIY possibilities to the uttermost. Renogy's exclusive intelligent charging logic prioritizes solar energy, efficiently charging your house battery while easing the load on generators. This innovative product combines vehicle and solar power, automatically adjusting modes based on sunlight intensity. Maximizing energy utilization, it boasts a robust 50A current and an impressive 720W output power. Renogy IP67 Dual Input Battery Charger seamlessly switches to solar charging in ample sunlight and smoothly transitions to generator charging during low light, ensuring uninterrupted device power. Embrace an eco-conscious charging experience without compromising efficiency or space, redefining sustainable energy utilization.

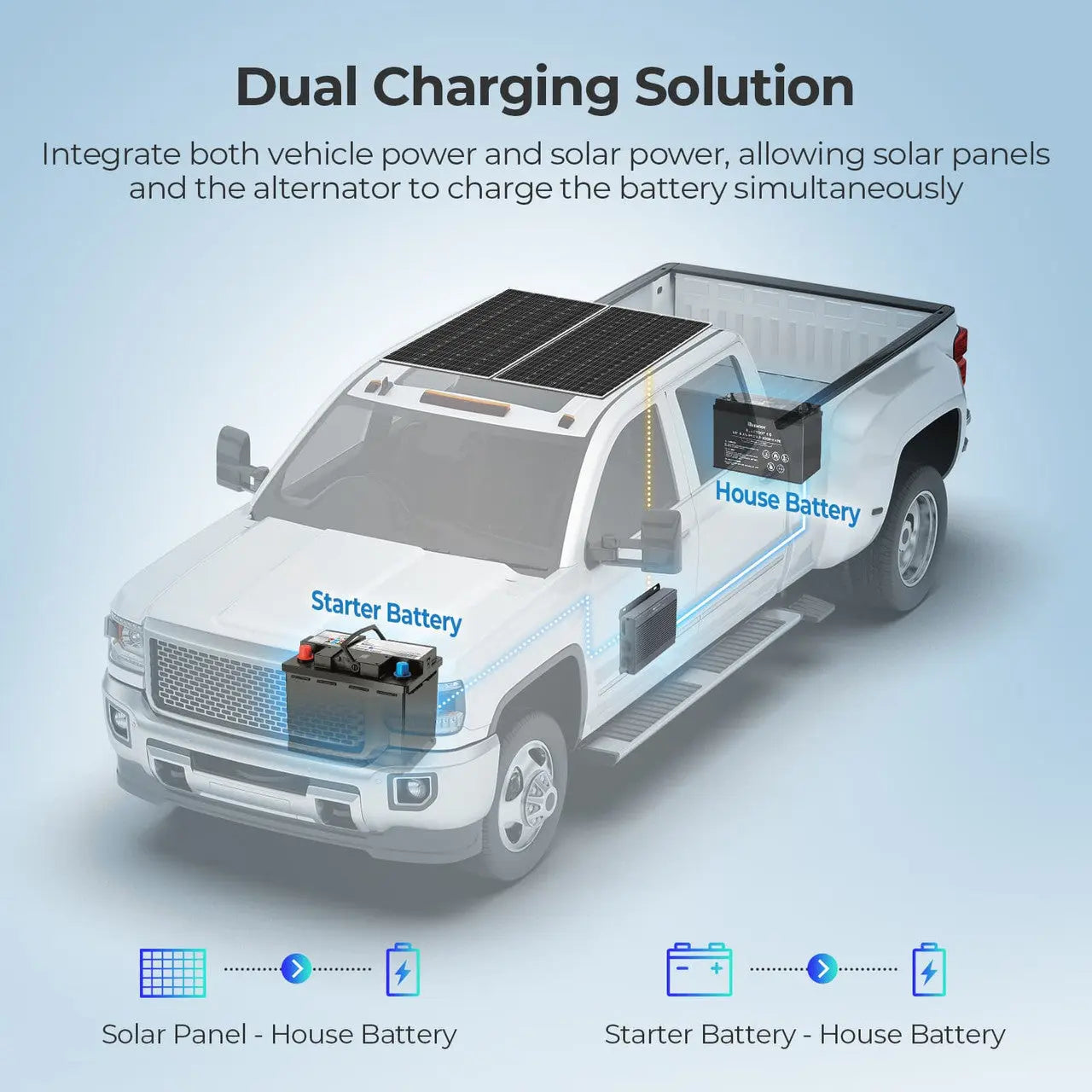

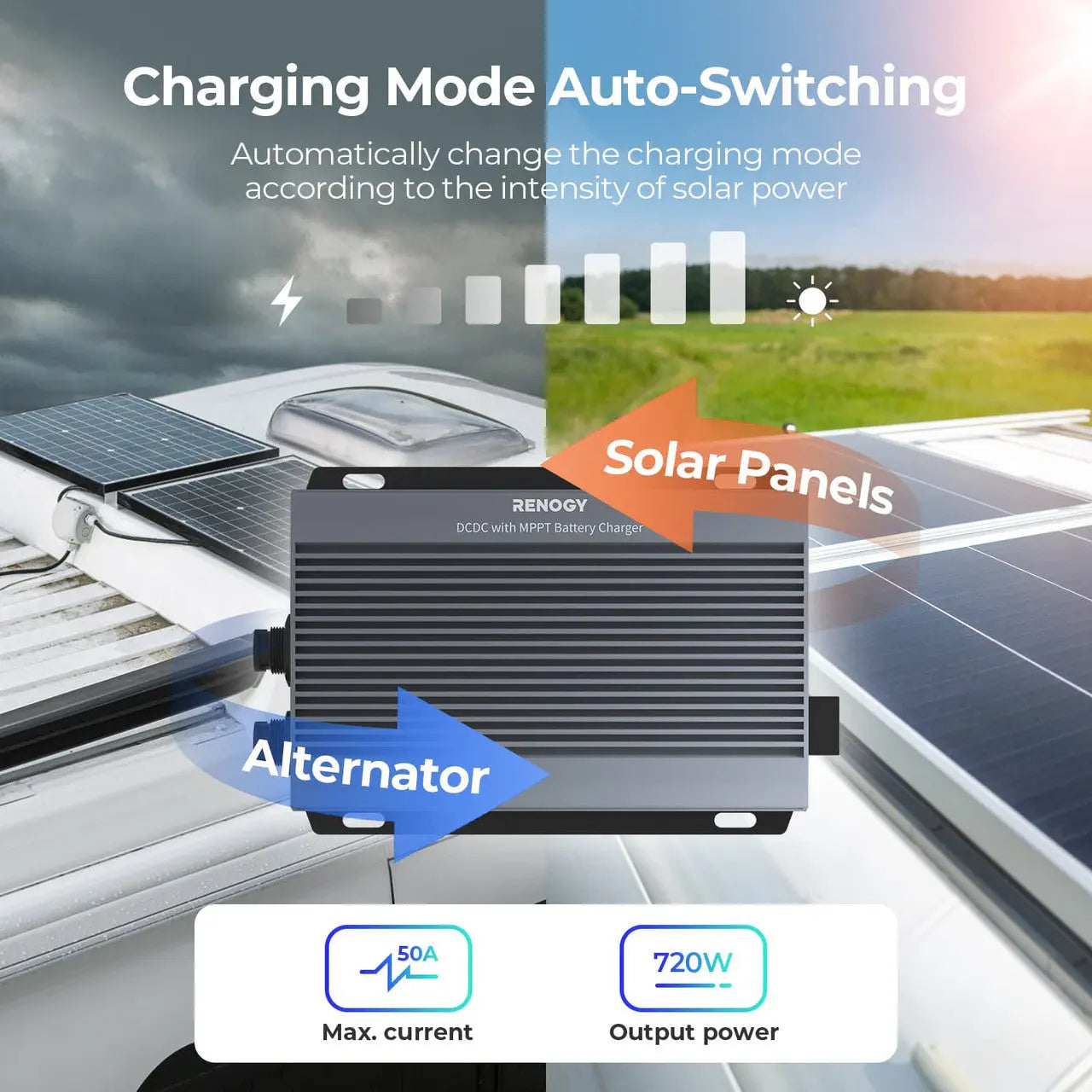

Intelligent Dual Charging Mode
Intelligently combining vehicle and solar power, with automatic mode adjustments based on sunlight intensity.

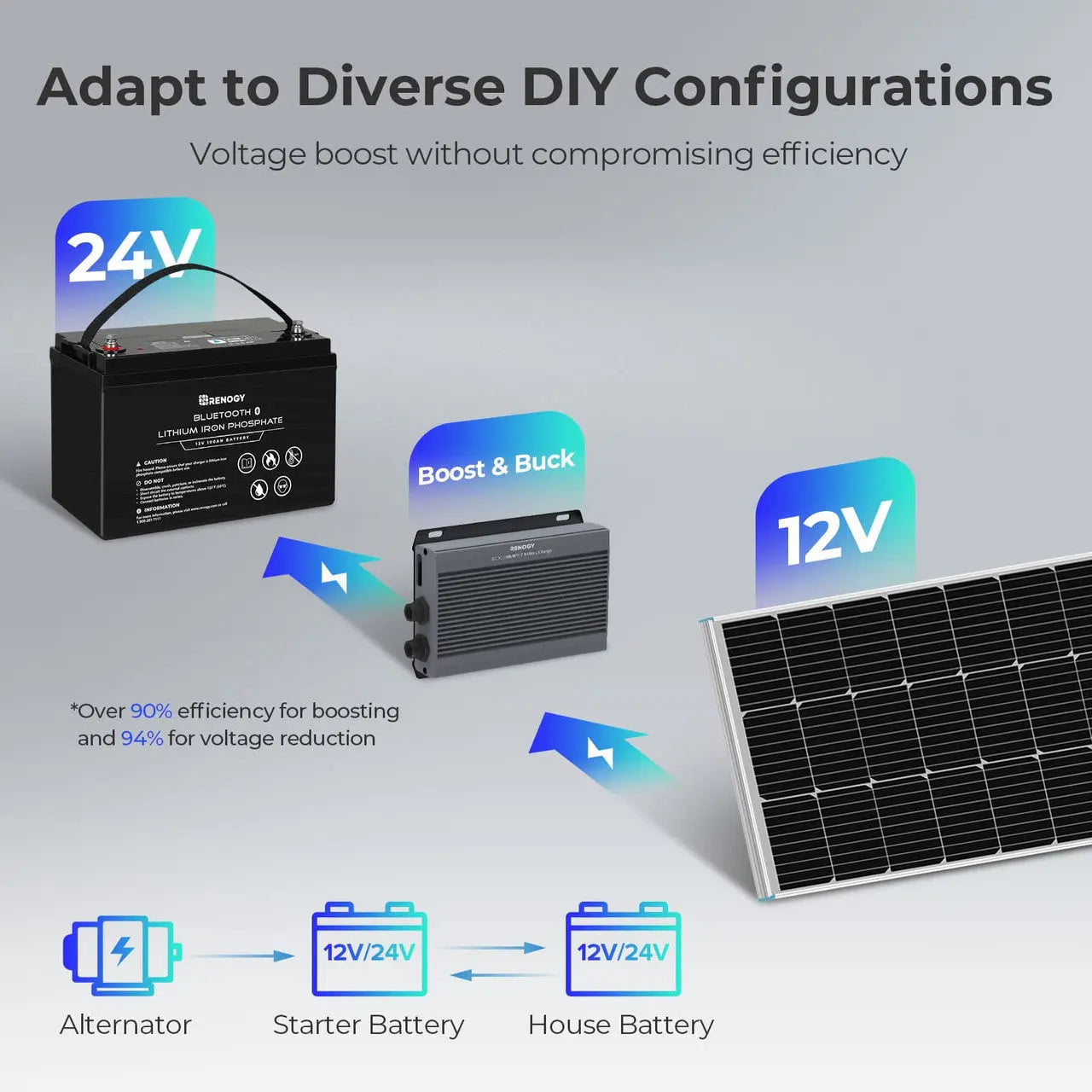

Compatible with a Wider Range of Voltage
Expanding solar system DIY options for greater versatility.

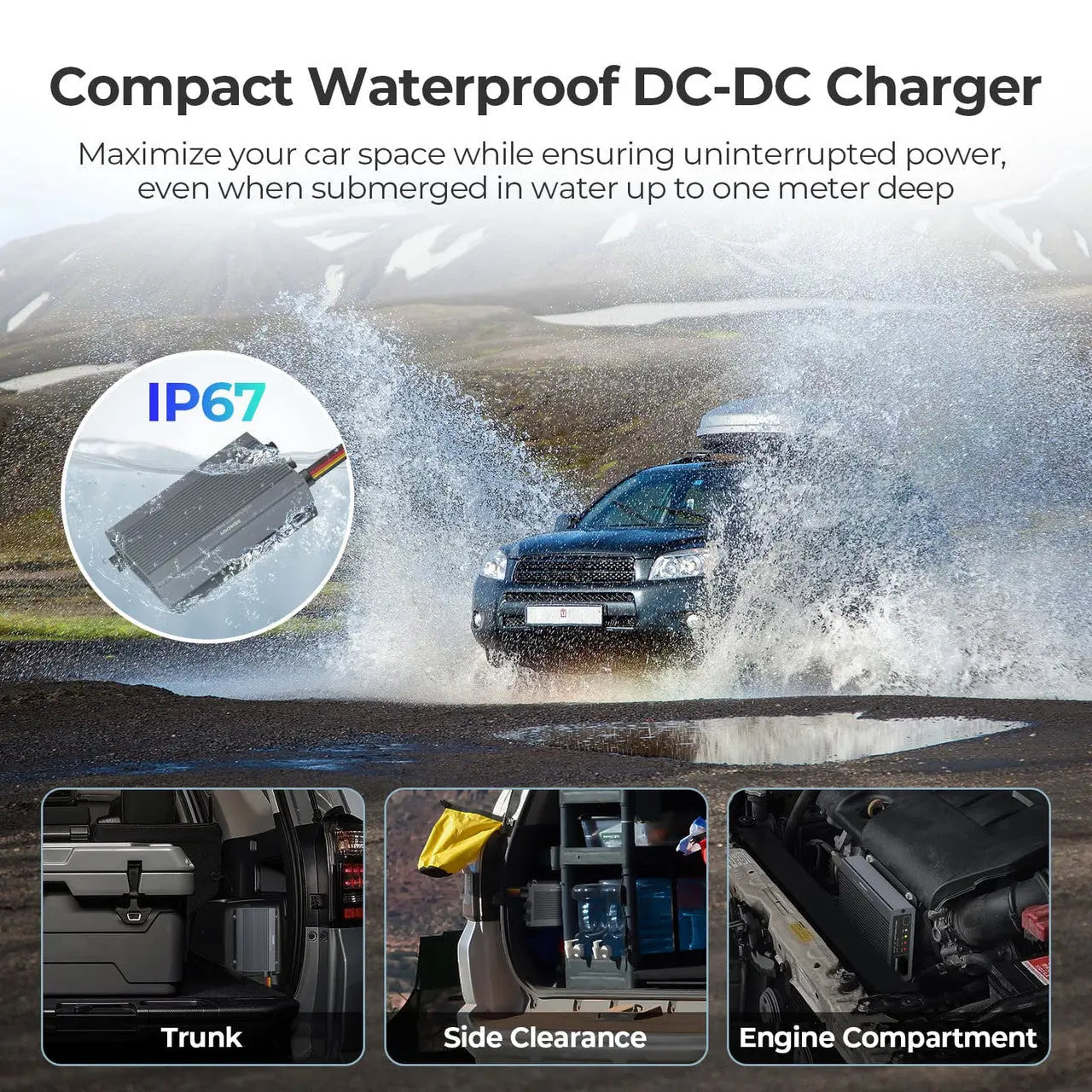

Compact Design for Space Optimization
Mountable in the engine compartment and side storeroom, allowing for a more spacious and comfortable living space, facilitating easier movement.
Optimized Charging Efficiency
720W charging power allows a 1.2kWh battery to be fully charged within 1.8 Hrs.
Enhanced Charging Safety
Comprehensive electric protections safeguard the charging process.
Robust and Resilient Design
Drop-Resistant
Sheet metal casing gives the charger a robust shell that withstands drops and impacts.
Temperature-Resistant
Withstand extreme temperatures from -31°F to 176°F and maintain full-load operation even at 131°F.
Water-Resistant
The all-around glue filling design provides complete protection for the charger and ensures a high level of waterproofing.
Ultimate Reliability with Impeccable Efficiency
The battery charger efficiently meets the needs of the house battery while providing a trickle charge to the starter battery, ensuring that the vehicle can always start reliably.
Basic Information
System Voltage: 12V/24V - 12V/24V Solar Input Voltage: 50 VDC
Output Voltage: 9-32 VDC Alternator Input: 9-32 VDC
Maximum Output Current Rating: 50A Output Power: 720W

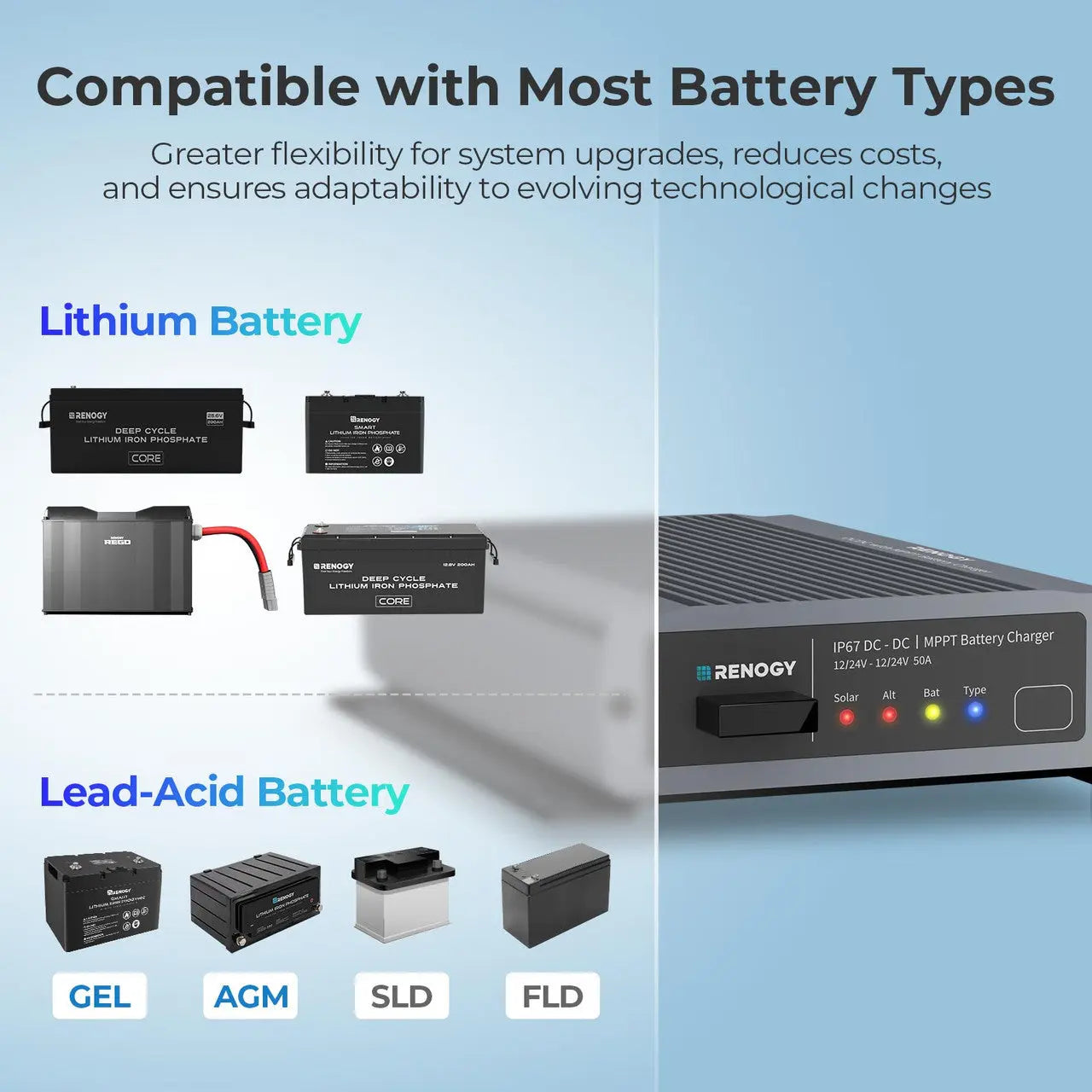

Battery Types: AGM/SLD , GEL ,FLD ,LI,USER Input Fuse Rating: 75A-100A
Output Fuse Rating: 75A-100A Charging Efficiency: 94%
Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium) and 0mV / ℃ / 2V; no compensation (Lithium) Idle Power Consumption: <100mA
GENERAL DATA
Model: RBC2125DS Terminal Range: 8AWG-4AWG
Communication Protocol: Modbus ; RV-C Operating Temperature Range: -31℉ to 176℉/-35℃ to 80℃
Storage Temperature Range: -40℉ to 176℉/-40℃ to 80℃ Humidity: 0%-95%, No Condensation
Maximum Operating Altitude: 3500m Enclosure Rating: IP67
Dimensions: 7.01 x 4.78 x 1.47 in/178.2 x 121.5 x 37.5mm Weight: 4.10 lb / 1.86 kg
Certification: UL1741;CE;RoHS;FCC Part 15 class B Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection/Overcurrent Protection
WARRANTY INFORMATION
Material and workmanship warranty: 3-year material warranty Charge Controllers: DCCS Dual Input
Battery Chargers: DCCS Dual Input



Package Includes

NOTE:
  • If you have any questions regarding this product, please call us at 1 (909) 287-7111 or submit a ticket for troubleshooting assistance.
  • More questions about your off-grid power system? Learn more from Renogy Learning Center!

IP67 50A DC-DC Battery Charger with MPPT

12V/24V IP67 50A DC-DC Battery Charger with MPPT

1 x



Battery Temperature Sensor

1 x



Terminal Rings

4 x



Install Screw(ST4*20mm)

1 x



1. What is the significance of the system voltage value of 12/24V-12/24V for IP67 chargers?


When the IP67 charger is connected to the solar panel, it can use the 12V solar panel to boost the voltage to charge the 24V Housing battery; it can use the 12V solar panel to buck the voltage to charge the 12V Housing battery. When the IP67 charger is connected to the starter battery, the 12V starter battery can be utilized to boost the voltage to charge the 24V Housing battery; the 12V starter battery can be utilized to charge the 12V Housing battery.

2. What are the solar input requirements for this charger?


(1) The charger is suitable for up to 720W solar panel.
(2) The charger is compatible with up to 50V solar panel input.
(3) The charger is compatible with both rigid and flexible modules.

3. What type of alternator is this charger compatible with?


The charger is compatible with smart alternators and traditional alternators, the working voltage of different alternators will be different. The product itself comes with Bluetooth communication function, you can connect to DC Home or Core via Bluetooth, and then adjust the appropriate input voltage value of the charger according to the characteristics of the working voltage of different types of alternators.

4. How do I set the battery type on this charger?


Way 1: The charger itself has a button to set the battery type, the button is next to the "Type" indicator, press it briefly to select a different battery type.
Way 2: The charger itself comes with Bluetooth communication, you can connect our Core, DC Home to change the battery type.

5. How to view data without a display?


The charger itself comes with Bluetooth communication, you can connect to our Core, DC Home to view the charger's data.
  • More questions about your off-grid power system? Learn more from Renogy Learning Center!
